Globe Valve Dealers in Ctm, Ahmedabad

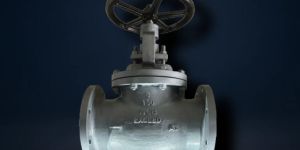

The Globe Valve is widely used and suitable for On Off or Regulating fluid flow. Main single seating in globe valves is parallel to line of flow and the flow pattern is offset type, not a straight line through flow as gate valve or ball valve. This design affords a better closure than a gate valve. The change in direction of fluid flow produces increased resistance and considerable pressure drop. Because the flow is directed against the disc in a symmetrical fashion, there is very little wear on the valve parts and is one of the easiest valves to repair. Globe Valve can be Bolted Bonnet construction or Union Bonnet Types. Bolted bonnet Globe Valves are very easy to maintenanace. Valve seat can be intergal or replaceable as per application suit. 3 Way Globe also an option for Mixing & Diverting application operated by manual, pneumatic or electrical. Globe valves are also available with range of operation such as Manual Hand Wheel operated Gear operated Pneumatic Diaphragm Actuator operated Pneumatic Cylinder Actuator Operated Electrical Actuator operated Motorized Actuator Operated. Globe Valve also can supplied with wide range of Disc such as Plug Type Disc, Flat Disc, Regulating Disc, Soft Seated Disc, Guided Disc etc to suit various application. Dharmi Engineers manufacturing & exporting wide range of Industrial Globe Valve. Dharmi Engineers also offer Three Way Globe Valve (Mixing & Diverting Type Globe Valve) for various industrial applications.

As a known name, we ensure safe and timely delivery of the orders at any desired Ahmedabad(India). With us, one can stay completely assured for top-notch quality products that are designed and developed using the premium material and cutting-edge techniques. Also, we ensure that the material is sourced from the reliable places only.

We are offering globe valve. design & testing standard manufacturing standard :bs:1873 testing & inspection std : api:598 end connection : flanged ends as per ansi b 16.5 & 26” and above ansi b 16.47 series a & b butt weld ends : as per ansi b 16.25 shell wall thickness : ansi b 16.34 special features with gear operation if the torque exceeds 350n with limit switch arrangements for open & close position with electrical actuator with stelliting with ibr certification with nace mr 0175 with position indicators with locking arrangement

  Detail:GLOBE VALVE INVENT makes heavy duty all type of Globe Valves, with all type of ends like Fanged End,Butt Weld, Screwed End,Socket End(Only in forged valves). We are also Providing the extra attachment As per Our Client Requirement like Actuator,Live Loading Arrangement,Locking Arrangement,Limit Switch Arrangement,Position Indicator ,Vacuum Seal,Gear Box, We are providing the most Advance Design features to be ultimate in dependable and economic flow control   DESIGN FEATURES:- ** DESIGN AND MANUFACTURING:-  BS 1873 / ASME B 16.34 ( 2"

We are counted amidst the well-reputed Globe Valve Manufacturers and Suppliers in India. Customers from every nook and comer of India are placing bulk orders for the Globe Check Valve due to the unmatched quality and inexplicable performance in respective applications. The use of optimum quality materials in the manufacturing of the Globe Control Valve also ensure notable features like high durability, tensile strength and resistance to adverse conditions. Further to meet the requirements of the application, the Globe Check Valves are available in varied sizes and dimensions.

Globe Valve Bolted Bonnet Design Forged Steel Pressure Seal Design Range : 12″ to 12″ Pressure Class : ANSI 150# to 600# End Connections : Flanged, Screwed, Butt and Socket welded, Victolic End Manufacturing Standards : BS : 1873 BS-5352 ANSI B 16.34 Face to Face : As per ANSI B 16.10 End flanges : As per ANSI BS DIN Testing Standard : BS – 5146 API – 598

We are one of the prominent Globe Valve Manufacturers, Exporters and Suppliers in Gujarat, India. The Globe Valves (cast steel) that we deal in are fabricated from top grade steel varieties at our well-developed manufacturing facility. The entire procedure of producing Globe Valve is supervised by the experts. The high-quality Globe Valves of our can be purchased at reasonable prices. Standard Features Outside Screw and YokeBolted BonnetRising Stem Details Operation : Handwheel, Chainwheel, Electrical Actuator, etcOptional Features : Pressure Sealed Joints, Drain plug and Bypass Arrangement, Flow Regulation Discs, etcSize : From ½� to 16�ANSI Class : #150 to #2500Material : All Grades of Carbon Steels, Stainless Steels and Alloy SteelsEnds : Flanged and Butt-weld Ends Standards Manufacturing Standard : BS1873Pressure-Temperature : ANSI B16.34Face to Face : ANSI B16.10Inspection : API 598 Applications PetroleumPower GenerationChemicalsSteel PlantsFertilizers

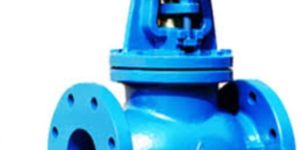

Manufacturer & Supplier of Globe Valve & Globe Vale. Our product range also comprises of Diaphragm Type Control Valve, Cylinder Operated Control Valve and Solenoid Valve.   We manufacture a wide range of Globe Valves which includes seal globe valves, gate globe valves and cast iron globe valves. Regent Globe Valves are O.S. & Y Type i.e. outside screw & yoke, Bolted bonnet, & Rising stem. Globe valves are used where throttling and both throttling and shut-off is required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open. Normally globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have the advantages. Design Features: Streamlined shaped body for smooth flow of the working fluid for minimum pressure Drop. Back seating arrangement permits the replacement of packings while the valve is in full open position   Material Structure: End Connection: Flanged end raised face, Butt weld end, RTJ, etc. Operation : Hand wheel, Gear operator, Electrical Actuator, Pneumatic, Hydraulic Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastalloy, Inconel, Duplex Stainless Steel. Trim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless steel. Control Operation: Manual, Pneumatic, Electric

LGL Series globe steam stop valve are manufactured by lubi valves. Conforming to BS 5152 standards, designed for durability with a cast iron body

Close Bonnet safety valve is another popular type of safety valve which contains the fluid entirely and helps to discharge it in the system. This fluid is not vented to the air. For different types of power vessels these vents are mostly used. The spring enclosure is widely used and considered useful for valves with small screw. At present these valves have become quite common and different ranges of such valves are available in the market.  The ranges of spring valves mainly depend on the steam and discharge of fluid. The fully closed bonnets are becoming extremely popular in recent days. We being the leading distributor of this product have it in various sizes and ranges to cope up with the exact need of the customer Long life High performance Best in quality

The Globe Valve offered by us is used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body. Because of their spherical body shapes, these valves are named as Globe Valves. Our range of Gate Valve is widely appreciated by the customers owing to their high quality and durability.

Gate Forged Valves are the members of valves family having slightly distinguished characteristics and features. Gate valves are made up of cast iron and has a threaded stem. The function of gate valves is quite simple as it works by lifting up of the gate which is installed in between the valve to regulate the flow. Fluid flows from one direction to another when the gate is lifted and stops when gate becomes a barrier. Pressure loss is minimum in this type of valves.As the name speaks, globe valves are a flexible disk type-element which has a ring seat in the spherical body. The valve is of spherical shape divided into two halves by a baffle installed inside. This valve is used to regulate the flow of liquids in a pipeline. Lastly, check valves are valves installed in pipes to regular the flow of liquid in one direction. It works on the basis of pressure and prevents the backflow. Hence, the three valves have its features and facilitate various industries. ADVANTAGES :- DISADVANTAGES :- Gate valves have easy to operate closing feature. Minimum pressure loss. Automatic opening and closing feature Check valve disk freezes in open position. Requires tremendous force to close under high pressure. Leakage occurs due to frequent change in temperature.
