Globe Valve
Manufacturing Std. : : Generally conforming to BS 5352
End Connectionc : : Screwed Ends to BSP / BSPT/ NPT (F) , Socket Weld Ends to ANSI B 16.11
Inspection and Testing Std : : BS 6755 (Part – I)
We offer globe valve, which is used for single direction flow control and is also efficient for throttling services. These valves are designed for least possible obstruction to free flow.Some of the technical specifications are:
Stainless Steel Wcb Globe Valve
10 Piece (MOQ)
Material : Stainless Steel
Color : Silver
Pattern : Plain
Type : Stainless Steel Globe Valve
Country of Origin : India
Application : Steam
Driving Mode : Manual
Packaging Type : Box
Globe Valve
1 Piece (MOQ)
Material : Brass
Finishing : Polished
Color : Silver
Usage : Water Fitting
Mounting Type : Horizontal
Specialities : Non Breakable, Investment Casting, Heat Resistance
Type : Industrial Valves
Country of Origin : India
Globe Valves
Type : Globe Valve
Material : Brass
Condition : New
Automatic Grade : Automatic
Packaging Type : Wooden Box
We synthesize a wide range of Globe Valves which includes seal globe valves, gate globe valves and cast iron globe valves. These globe valves are made from the finest quality of metal and raw materials. We hold a state of the art infrastructure, where we have all the latest machineries and tools. All are team is specially trained. We have set our own quality control team. The designs are unique and efficient. Its been more than a decade that we are consistently serving our clients. With all this we are the paramount cast iron globe valves manufacturer and supplier from India. ZED Globe Valves are O.S. & Y Type i.e. Outside screw & yoke, Bolted bonnet, & Rising stem. Globe valves are used where throttling and both throttling and shut-off is required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open. Normally globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have the advantages. ZED can also supply Angle Valves, Type Globe Valves and Globe Valves as S.D.NR (screw-down non-return) which in effect converts it into two valves, stop valve when closed or a check valve when open. Design Features : Streamlined shaped body for smooth flow of the working fluid for minimum pressure Drop. Back seating arrangement permits the replacement of packings while the valve is in full open position Standards Applicable : Design Standard : BS 1873 Testing Standard : API 598 / BS EN 12266 -1 Face to Face : ASME B 16.10 End Connection : Flanged End : ASME B 16.5 Butt Weld End : ASME B 16.25 Pressure Temperature : ASME B 16.34 Valve Operation : Operator : Hand wheel Size Range : 2" - 10" Class 150, 300 2" - 6" Class 600 2" - 4" Class 900, 1500 Operator : Gear Operator Size Range : 12" & above Class 150, 300 8" & above Class 600 6" & above Class 900 & 1500 Material Structure : End Connection : Flanged end raised face, Butt weld end, RTJ, etc. Operation : Hand wheel, Gear operator, Electrical Actuator, Pneumatic, Hydraulic Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastalloy, Inconel, Duplex Stainless Steel. Trim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless steel.
Globe Valve
10 Piece (MOQ)
Material : Stainless Steel
Usage : Water Fitting
Finishing : Polished
Media : Water
Specialities : Non Breakable, Investment Casting, Blow-Out-Proof
Packaging Type : Carton
Brand Name : ARC-LOK
Globe Valves
Designed and manufactured to the highest standards of quality, durability, are available in various classes (150, 300, 600, 900, 1500, 2500).
Globe Valve
8,500 - 8,600 Per Piece
Weight : 5Kg, 10kg
Packaging Type : Wooden Box
Structure : U Section
Diameter (mm) : 40 Mm, 50mm
Overall Length : 6-10 Inch
Valve Size : 1inch, 1/2inch
Voltage Range : 24 V AC
Specialities : Non Breakable, Investment Casting, Heat Resistance, Durable, Casting Approved
Diametre (milimetre) : 100 To 1000 Mm
Type : Industrial Valves
Brand Name : SRK
Material : Stainless Steel
Color : White
Condition : New
Finishing : Coated
Automatic Grade : Manual
IC Screwed Globe Valve
Weight : 5Kg, 10kg, 15kg
Packaging Type : Wooden Box, Carton, Pallets
Diameter (mm) : 50mm, 60mm
Overall Length : 6-10 Inch, 20-30 Inch
Valve Size : 1inch, 1/2inch, 1.1/2inch, 1.1/4inch
Specialities : Non Breakable, Investment Casting, Heat Resistance, Durable
Diametre (milimetre) : 100 To 1000 Mm
Certification : ISO 9001:2008 Certified
Warranty : 3 Year
Country of Origin : India
Forged Globe Valve
Material : Carbon Steeel
Application : Gas Fitting
Power : Hydraulic
Pressure : Low
Structure : Double Half Shaft
Port Size : 0.1mm-5cm
Technics : Hard Sealing
Clients can select any payment mode from our online or offline methods. It is Supplier & Manufacturer of Forged Globe Valve. Both of them are secure, hassle free, and ensure the fastest trade with the customers. We have hired experienced quality auditors who stringently check the raw materials against varied quality parameters before procurement. Thus, we ensure quality products at buyer's end.
Cast Iron Globe Valve
Our range of construction material for the fabrication of globe valve cover up many materials like WC-1,WC-6, WC-9,LCB, WCB, cast iron, CF-8, CD4-CU, CF-3, CF-3M and hastelloy. Gasket and packing are available with material choices like graphite and PTFE. It is used to offer 100% smooth flow area. It is specially built for high temperature applications. It can be effectively used for handling the steam. It is preferred to minimize pressure drop across the device.

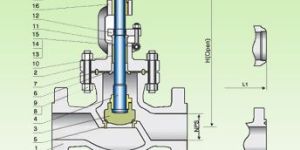

Cast steel Globe valve 150 LB /300 LB
Appiicarit Standards Steel Globe Valves BS EN 13709/API600 Steel Valves ASME B16.34 Face To Face ASME B16.10 End Ranges ASME B16.5 Butt Welding Ends ASME B16.25 Inspection And Test API 598 Design Descriptions Straight Pattern Body Design OS & Y Out Side Screw and Yoke Bb, Bolted Bonnet Yoke Integral With Bonnet Rising Stern And Hand Wheel Loose Disc, Choice Of Plug Or Ball Renewable Seat Ring Impact Hand Wheel For 10" & Above Horizontal Service Ranged Or Butt Welding Ends Available With BG Operator Materials Of Parts No. Part Name Carbon Steel ASTM Material 1/1/4cr-1/2 mo 1 Body A216-WCB A217-WC6 2 Bonnet A216-WCB A217-WC6 3 Disc A105+CR13 A217-F1+HF 4 Stem Al 82-F6a CR-MO-V 5 Seat Ring A105+HF A182-F11+HF 6 Stem Backseat A276-420 A276-304 7 Bonnet Gasket Steel Ring 304SS ring 8 Bonnet Stud A193-B7 A193-B16 9 Bonnet Stud Nut A194-2H A194-7 10 Packing Graphtte 11 Gland A276-420 A276-304 12 Gland Flange A216-WCB A217-W06 13 Eye Bolt Pin Carbon Steel A276-420 14 Eye Bolt Carbon Steel A193-B7 15 Eye Bott Nut Carbon Steel A194-2H 16 Yoke Sleeve Aluminum-Bronze 17 Hand Wheel Malleable Iron
CI Globe Valve
CI Globe Valve
Globe Valve
We are one of the prominent Globe Valve Manufacturers, Exporters and Suppliers in Gujarat, India. The Globe Valves (cast steel) that we deal in are fabricated from top grade steel varieties at our well-developed manufacturing facility. The entire procedure of producing Globe Valve is supervised by the experts. The high-quality Globe Valves of our can be purchased at reasonable prices. Standard Features Outside Screw and YokeBolted BonnetRising Stem Details Operation : Handwheel, Chainwheel, Electrical Actuator, etcOptional Features : Pressure Sealed Joints, Drain plug and Bypass Arrangement, Flow Regulation Discs, etcSize : From ½â to 16âANSI Class : #150 to #2500Material : All Grades of Carbon Steels, Stainless Steels and Alloy SteelsEnds : Flanged and Butt-weld Ends Standards Manufacturing Standard : BS1873Pressure-Temperature : ANSI B16.34Face to Face : ANSI B16.10Inspection : API 598 Applications PetroleumPower GenerationChemicalsSteel PlantsFertilizers
Ss Globe Valve
We are offering ss globe valve. Acme ss globe valve 15 mm to 600 mm
Globe Valve
End Connection : SCREWED, SOCKET WELD, FLANGED END, BUTT WELD END, RTJ.
Size Range : 15mm TO 400mm
BODY MATERIAL : CAST IRON, CAST CARBON STEEL (ASTM A 216 GR. WCB), FORGED CARBON STEEL (ASTM A 105), CF8 (SS 304), CF8M (SS 316), CF3M (SS 316L), SS 202, ALLOY STEEL & OTHERS.
DESIGN : RISING SPINDLE, JACKETED, EXTENDED STEM & GEAR OPERATED , PNEUMATIC CYLINDER OPERATED ,
PRESSURE RATING CLASS : ASA 150, 300, 600, 800, 900, 1500, 2500, BS 10 TABLE D, E, F, H, ND 16, ND 40.
The Globe Valve offered by us is used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body. Because of their spherical body shapes, these valves are named as Globe Valves. Our range of Globe Valve is widely appreciated by the customers owing to their high quality and durability. Features - Durable- Highly efficient- Reliable performance- Precision engineered
Forged Steel Globe Valve
Forged steel globe valve Memory Seal Seats Compensate automatically for wear and fluctuations of pressure and temperature. Solid cup and cone type PTFE Stem Seal- Adjustable. Stem bearing in Gland nut reduces Side thrust effect.
Globe Valves
We offer Globe Valves.
Globe Valve
Design Standard : BS 1873
Testing Standard : BS EN 12266-I
Globe Valve is heavy duty, bolted bonnet, rising stem with rising Hand wheel."HP" MAKE Globe Valve is best quality Valves in compliance with the international standards of quality. The internal passage within the Valve diverts flow through 90? changes of direction resulting in pressure drop & Turbulence. Globe Valve used mainly for all Service Media like Oil, Gas, Air, Steam, & other Liquids. Globe valve is very faster to operate due to less travel. More afford requires Compare to Gate Valve.
Cs Globe Valve
SEAT & BACK SEAT : 22 Kg/cm2
PNEUMATIC TEST : 6 Kg/cm2
MAX TEMP. : 454oC
Cs globe valve, DESIGN FEATURES globe valves MANUFACTURING STANDARDS : BS : 1873API-6DANSI B 16.34 FACE TO FACE AS PER ANSI B 16.10 ENDS FLANGED & DRILLED AS PER ANSI B 16.5 R.F. TESTED AS PER BS : 5146 ABAILABLE WITH ACTUATOR OPERATOR ABAILABLE WITH WXTENSION STEM
Globe Valves
2,000 Per Units
Brand Name : Worth
Driving Mode : Manual
Surface : Galvanized
Size : 50 NB to 350 NB
End : Screwed Ends,Flanged End
Pressure : High Pressure
Body Material : Stainless Steel
Usage/Application : Industrial
Globe Gate Valve
The Globe Valve offered by us is used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body. Because of their spherical body shapes, these valves are named as Globe Valves. Our range of Gate Valve is widely appreciated by the customers owing to their high quality and durability.
Globe Valves
Rational structure, reliable sealing & sturdy construction to ensure excellent performance. Anti- friction bearings are provided in higher sizes and classes. Universal trim: 13Cr stem, wedge in CA 15 or 13% Cr faced is also available. Sap globe Valves are heavy duty, outside screw & yoke type, bolted bonnet, rising stem with rising hand wheel. Straight through bore design assures streamlined, minimum turbulence, less erosion, lower pressure drop, & resistance to flow. Deep stuffing box. The Seat rings are cylindrical bottom seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. Integral seat ring provides in SS valves. Globe Valves are available in 150#, 300# & 600#. Back Seat arrangement to provide isolation of Stuffing Box for On-Line serviceability Excellent sealing against increased line pressure.
Globe Valve
We are counted amidst the well-reputed Globe Valve Manufacturers and Suppliers in India. Customers from every nook and comer of India are placing bulk orders for the Globe Check Valve due to the unmatched quality and inexplicable performance in respective applications. The use of optimum quality materials in the manufacturing of the Globe Control Valve also ensure notable features like high durability, tensile strength and resistance to adverse conditions. Further to meet the requirements of the application, the Globe Check Valves are available in varied sizes and dimensions.
Globe Valve
Design Standard : BS 1873
Face to Face : ASME B 16.10
End Connection : Flanged End - ASME B 16.5
Size Range : Handwheel
Product Range : Size Range
Class : 2" - 24"
Class 150 : 2" - 16"
Class 300 : 2" - 16"
Class 600 : 2" - 12"
Class 900 : 2" - 12"
Class 1500 : 1/2"-11/2"
Class 800 : tandard
Testing Standard : BS EN 12266 – 1
: Butt Weld End – ASME B 16.25
Pressure – Temperature Chart : ASME B 16.34
Valve Operation : Operator
2"-10"-Class 150, 300 :
2"-6"-Class 600 :
2"-4"-Class 900, 1500 : Gear Operator
12” & Above - Class 150 & 300 :
8” & Above - Class 600 :
Globe Valve
We are offering globe valve. Nu-tech cast steel globe valves are designed and manufactured to provide maximum service life and dependability. All gate valves are full ported and meet the design requirements of american petroleum institute standard api600 & 6d bs en 13709 and generally, conform to american society of mechanical engineers standard asme b1634.
Globe Valves
Features STARTEK Cast Steel Globe Valves have been designed to meet the requirements BS1873/ASME B16.34 Face to Face and End to End dimensions conform toASME B16.10 /ISO 5752/ BS 2080/ DIN End flange dimensions conform toASME B16.5/ ISO 7005-1 /API 605/ BS 3293 / DIN Butt weld end dimensions conform toASME 816.25 Anti-frictional Ball bearings are provided in higher sizes and Gasses. Outside screw and yoke construction All the valves provided with backseat arrangement The gland is of self aligning two piece type Deep stuffing box The Seat-rings are shoulder seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. In case of SS valves the Seat-rings are integral to Body The Body to Bonnet joint is a male & female in ISO PN 20, PN 50 & PN110 / ASME 150#, 300# & 600# valves and ring joint is used in higher Gasses Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312 Options Angle and Y type design available For low temperature and cryogenic services (cold box and non-wld box applications) extended bonnet as per BS 6364 available Locking arrangement Gear, Electrical, Hydraulic or Pneumatic actuator available Regulating, guided and soft seated plugs available Bellow Seal for critical service and hazardous media Option Angle and Ytype design available For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available Locking arrangement Gear, Electrical, Hydraulic or Pneumatic actuator available Regulating, guided and soft seated plugs available Bellow Seal for critical service and hazardous media Materials Part Name Material Option Body ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3/ A351 CF3M /A352 LCB Bonnet ASTMA216 WCB/A217WC6 /A217 WC9 /A217 C5 /A217 C12 /A351 CF8 /A351 CF8M /A351 CF3/A351 CF3M /A352 LCB Disc * ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3/ A351 CF3M /A352 LCB Disc Nut ASTM A 276 410 /A 276 304 /A 276 304L /A 276 316L Stem ASTM A 276 410 /A 276 304 /A 276 304L /A 276 316L Seat Rings* ASTMA216WCB/A217WC6/A217WC9/A217C5/A217C12/A351 CF8/A351 CF8M/A351 CF3/ A351 CF3M/A352LCB Back Seat Bushing ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L Gland ASTM A 276 410 / A 276 304 / A 276 304L / A276 316L Gland Flange Carbon Steel / Stainless Steel Stem Nut ASTM A439 Gr.D2/AI. Bronze Gland Packing GraphiteAsbestos/ Graphoil / PTFE Bonnet Gasket Corrugated Soft Iron / Corrugated SS /Spiral Wound SS 304 with Asbestos or Graphoil / Octagonal Ring Gland Eye - Bolt & Nut Carbon Steel / Stainless Steel Cross Bolts & Nuts Carbon Steel / Stainless Steel Hand Wheel Carbon Steel Hand Wheel Nut Carbon Steel Grub Screw Carbon Steel Studs/Bolts ASTMA193 GrB7 /A193 Gr B7M /A193 GrB8 /A193 Gr B8M /A320 GrL7 Nut ASTMA194 GrB7/A194 GrB7M /A194 GrB8/A194 GrB8M /A194 Gr4/7
Globe Valve
Types Of Gate ValveWCB/CS Gate Valve FEFCS Gate Valve 800# SEKnife Edge Gate ValveGate Valves, Gate Valves Manufacturers, India
Forged CS Cryogenic Globe Valve
1,000 Per
2 Piece (MOQ)
Material : Stainless Steel
Pressure : Medium And Hig Pressure
Country of Origin : Made in India
Brand Name : ELITE
Usage/Application : Air
Valve Size : 130mm
Model Name/Number : DGHD1545
Automation Grade : Automatic
Design : Yes
Globe Valves
Operation : Gear Operated, Pneumatic actuator Operated or Electrical Actuator Operated
Body : ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 351 CF8 / A 351 CF8M / A 351 CF3
Bonnet & Disc : ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 351 CF8 / A 351 CF8M / A 351 CF3
Stem : ASTM A 276 410 / A 276 304 / A 276 316
Gland : ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L
Seat Ring : ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 351 CF8 / A 351 CF8M / A 351 CF3
Fluid Force Valves Provide Gear Operated,Pneumatic actuator Operated or Electrical Actuator OperatedInvestment Casting,Sand Casting,Carbon Steel,Cast Iron,Gun Metal. Features Cast Steel Globe Valves have been designed to meet the requirements BS 1873/ASME B 16.34 Face to Face an End to End dimensions confirm to ASME B 16.10/BS 2080/DIN End flange dimensions confirm to ASME B 16.5/API 605/BS 3293/DIN Butt weld end dimensions confirm to ASME B 16.25 Outside screw and Bolted yoke construction design Valves Consists back seat arrangement The Body to Bonnet joint is a male & female in ASME 150#&300#
Gun Metal Globe Valve
Established in the year 1960, we, “Metallic Manufacturers" are engaged in manufacturing and supplying a commendable range of Industrial Valves and SS Pipe Fittings. The range offered by us encompasses Ball Valves, Needle Valves and Check Valves. These valves are known for their features such as perfect finish, easy installation and compact design. Owing to these features, our offered valves are demanded across national and international markets.
