Globe Valve Dealers in Vatva, Ahmedabad

We synthesize a wide range of Globe Valves which includes seal globe valves, gate globe valves and cast iron globe valves. These globe valves are made from the finest quality of metal and raw materials. We hold a state of the art infrastructure, where we have all the latest machineries and tools. All are team is specially trained. We have set our own quality control team. The designs are unique and efficient. It’s been more than a decade that we are consistently serving our clients. With all this we are the paramount cast iron globe valves manufacturer and supplier from India.

Gate Forged Valves are the members of valves family having slightly distinguished characteristics and features. Gate valves are made up of cast iron and has a threaded stem. The function of gate valves is quite simple as it works by lifting up of the gate which is installed in between the valve to regulate the flow. Fluid flows from one direction to another when the gate is lifted and stops when gate becomes a barrier. Pressure loss is minimum in this type of valves.As the name speaks, globe valves are a flexible disk type-element which has a ring seat in the spherical body. The valve is of spherical shape divided into two halves by a baffle installed inside. This valve is used to regulate the flow of liquids in a pipeline. Lastly, check valves are valves installed in pipes to regular the flow of liquid in one direction. It works on the basis of pressure and prevents the backflow. Hence, the three valves have its features and facilitate various industries. ADVANTAGES :- DISADVANTAGES :- Gate valves have easy to operate closing feature. Minimum pressure loss. Automatic opening and closing feature Check valve disk freezes in open position. Requires tremendous force to close under high pressure. Leakage occurs due to frequent change in temperature.

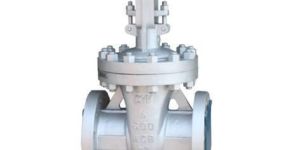

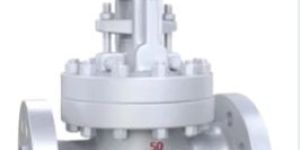

The API 603 Stainless Steel Gate Valve is an economical alternet to API 600 Stainless Steel Gate Valve in pressure rating ASME class 150 and class 300 available on request. Heavy duty Out Side Screw & Yoke Type, Bolted Bonnet, Rising Stem, Non Rising Hand Wheel, Renewable Seatring for Carbon Steel Valves, Integral for Stainless Steel Valves. Valves with most advanced design features provide the ultimate in dependable, economic flow control

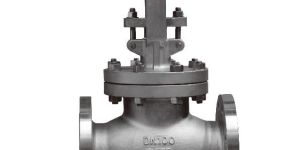

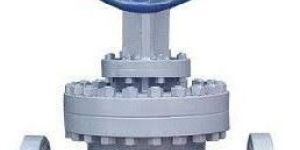

Manufacturer & Supplier of Globe Valve & Globe Vale. Our product range also comprises of Diaphragm Type Control Valve, Cylinder Operated Control Valve and Solenoid Valve.   We manufacture a wide range of Globe Valves which includes seal globe valves, gate globe valves and cast iron globe valves. Regent Globe Valves are O.S. & Y Type i.e. outside screw & yoke, Bolted bonnet, & Rising stem. Globe valves are used where throttling and both throttling and shut-off is required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open. Normally globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have the advantages. Design Features: Streamlined shaped body for smooth flow of the working fluid for minimum pressure Drop. Back seating arrangement permits the replacement of packings while the valve is in full open position   Material Structure: End Connection: Flanged end raised face, Butt weld end, RTJ, etc. Operation : Hand wheel, Gear operator, Electrical Actuator, Pneumatic, Hydraulic Shell : WCB, WC1, WC6, WC9, LCB, LCC, LC3, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCu, Hastalloy, Inconel, Duplex Stainless Steel. Trim : 13% Cr. Steel, 304, 304L, 316, 316L, 321, 347, Monel, Duplex Stainless steel. Control Operation: Manual, Pneumatic, Electric

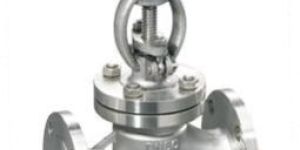

Screwed in Bonnet, Inside Screw, Rising Stem with Backseat Arrangement, Renewable Stainless Steel Trim, Handwheel Operated, Screwed Female Ends (BSPT), Suitable for Maximum Steam Working Pressure 250 Psig

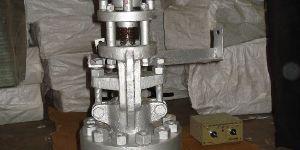

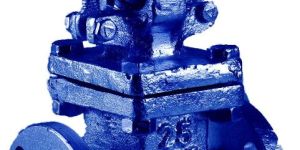

Our organization is actively engaged in manufacturing and supplying of premium quality Industrial Globe Valve to our clients. While manufacturing of this globe valve, our adept professionals use quality tested raw material and sophisticated technology. The provided globe valve is checked on various parameters to ensure its imperfection & durability. Available in various dimensions, our prestigious clients can avail this globe valve from us at nominal price. Features: Sturdy construction High durability Rust proof Class 600 Globe Valve: OS & Y, rising stem, plug type disc, bolted bonnet,threaded or welded seat ring Standard Compliance: Basic Design: BS 1873 Face to Face Dimension: ANSI B 16. 10 End to End Dimension: ANSI B 16. 10 End Flange to ANSI B 16.5 B.W. Ends to ANSI B 16.25 Shell Wall Thickness: 2″-12″to BS 1873 Manufacturing to nace MR – 01 – 75 on request

As a known name, we ensure safe and timely delivery of the orders at any desired Ahmedabad(India). With us, one can stay completely assured for top-notch quality products that are designed and developed using the premium material and cutting-edge techniques. Also, we ensure that the material is sourced from the reliable places only.

BODY | BONNET ASTM A 182 Gr F 304 | F 316 TRIMS 18 Cr 8 Ni | 18 Cr 10Ni -2MO MFG STD BS 5352 INSP & TEST STD BS 5146 | BS 6755 ENDS SCREWED TO BSP | BSPT | NPT SOCKETWELD TO ASME B 16.11 HYD-TEST PRESSURE BODY : 3000 Psig (211 KgCm ²) SEAT : 2000 Psig (140 KgCm ²) SIZE RANGE 15 MM TO 50 MM

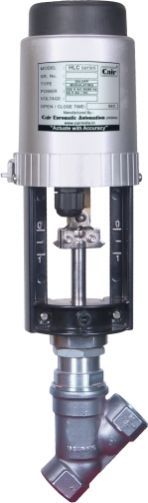

With the help of our diligent and dexterous professionals, we are offering a comprehensive range of Pneumatic Y-Type Control Valves to the prestigious clients. Precisely-engineered in complete compliance with the international quality standards & norms, offered valves are also known as 2/2 Way Pneumatic Operated 'Y' Type On/Off Control Valves in the market. The offered control valves have steel body and study built.   Quality attributes: ·         High strength ·         Durable ·         Secured packing   Specifications: ·         Body: Stainless steel ·         Investment casting CF 8 ·         Connection: B.S.P female/flange ·         Pneumatic pressure: 3.5 to 7 bar ·         Seatings: Teflon ·         Working pressure: Up to 16 bar

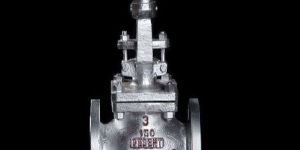

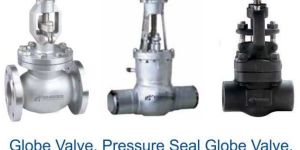

Pressure Valves Globe Valves are O.S. & Y Type i.e. Outside screw & yoke, Bolted bonnet, & Rising stem. Globe valves are used where throttling and both throttling and shut-off is required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and drop is not important when the valve is open. Normally globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have the advantages. Pressure Valves can also supply Angle Valves, “Y” Type Globe Valves and Globe Valves as S.D.NR (screw-down non-return) which in effect converts it into two valves – stop valve when closed or a check valve when open. Design Features Streamlined shaped body for smooth flow of the working fluid for minimum pressure Drop. Back seating arrangement permits the replacement of packings while the valve is in full open position Applications Petroleum,Power Generation Chemicals,Fertilizers, Steel Industries, Naturanal Gas /Fuel oil Control & Feed Water Control Operators Handwheel, Chainwheel, Gear Elecrical Actuator, Pneumatic/Hydraulic, Actuator Operated Special Features Pressure Sealed Joints/Double Block and Bleed/Cryogenic Service to BS 6364/Nace Specifications (MR-01-75), Regulating Discs for Throttling Service, Double Disc, Bypass Arrangement.

  Detail:GLOBE VALVE INVENT makes heavy duty all type of Globe Valves, with all type of ends like Fanged End,Butt Weld, Screwed End,Socket End(Only in forged valves). We are also Providing the extra attachment As per Our Client Requirement like Actuator,Live Loading Arrangement,Locking Arrangement,Limit Switch Arrangement,Position Indicator ,Vacuum Seal,Gear Box, We are providing the most Advance Design features to be ultimate in dependable and economic flow control   DESIGN FEATURES:- ** DESIGN AND MANUFACTURING:-  BS 1873 / ASME B 16.34 ( 2"

The Globe Valve is widely used and suitable for On Off or Regulating fluid flow. Main single seating in globe valves is parallel to line of flow and the flow pattern is offset type, not a straight line through flow as gate valve or ball valve. This design affords a better closure than a gate valve. The change in direction of fluid flow produces increased resistance and considerable pressure drop. Because the flow is directed against the disc in a symmetrical fashion, there is very little wear on the valve parts and is one of the easiest valves to repair. Globe Valve can be Bolted Bonnet construction or Union Bonnet Types. Bolted bonnet Globe Valves are very easy to maintenanace. Valve seat can be intergal or replaceable as per application suit. 3 Way Globe also an option for Mixing & Diverting application operated by manual, pneumatic or electrical. Globe valves are also available with range of operation such as Manual Hand Wheel operated Gear operated Pneumatic Diaphragm Actuator operated Pneumatic Cylinder Actuator Operated Electrical Actuator operated Motorized Actuator Operated. Globe Valve also can supplied with wide range of Disc such as Plug Type Disc, Flat Disc, Regulating Disc, Soft Seated Disc, Guided Disc etc to suit various application. Dharmi Engineers manufacturing & exporting wide range of Industrial Globe Valve. Dharmi Engineers also offer Three Way Globe Valve (Mixing & Diverting Type Globe Valve) for various industrial applications.

Pressure Seal Valves, Gate Valves, Check Valves, Ball Valve
