Induction Sealing Machine Dealers in Ahmedabad

Although there is a wide range of closures available ,the conventional bore sealing has, to date, been the most widely used method of sealing containers .Bore seals are inexpensive to manufacture and are relatively easy to fit. However, bore seals are do not form hermetic , flexible or even reliable seals- they leak. There are three types of closures available, which are either inserted into the neck of or form a combination of two. The effectiveness of this seal can be affected by temperature, natural relaxation & mechanical properties, all of which will cause seal to leak, especially in transit. Using the Induction Cap Sealing Technology, it's now possible to create alternative, alright, hermetic seals on the necks of containers. The process can produce significant cost savings. The seal is strong, flexible & yet easy to remove, and provides protection against cross contamintaion and an effective tamper-evident layer..     Advantages of Induction Cap Sealing Tamper Proof : It is not possible, from production to the Consumer that the content of the product be manipulated without being clearly noticed. Product Freshness : The taste and aroma of the product remains intact due to the hermatic seal. Protection against Leakage : There is no spillage or loss of contents of the product. Sales Promotion : The foil on the inside can be used for advertising or promotional purposes. Maximum Filling Speeds : The sealing takes place without any direct contact which allows full potential of the filling plant to be utilsed. Minimum Effort : The wad is put in the cap by the manufacturers. Thus the filling line requires only the Induction Cap Sealing equipment to be installed. Indirect Heating : Induction heating allows heat sensitive products such as creams , petroluem product , pesticides etc. to be sealed faster and safely than direct heating which would normally spoil or catch fire. IGBT Technology : IGBT's are more reliable and efficent at higher line speeds.  Wads The Wad basically consists of four layers : Cardboard or Foam Packing. Wax Layer. Aluminium Foil. Sealing Film.We see a pulp board packing material as the retaining wad, the wax dot pattern layer , the aluminium foil and the sealing film. The lines of force radiate through the foil and induces current flow in it. This increases the temperature of the foil. Due to this , the sealing film melts and adheres to the lip of the container. After the seal is broken, the board or foam packing is retained by the cap.  Process The process of Induction Cap Sealing is based on the principle that a conductive material i.e. Al Foil heats up on exposure to high frequency magenetic field generated by an Induction Unit. This is a non contact process without direct heat transfer.Due to this, the sealable closure liner can be placed in the cap by the manufacturer. The Wad consists of a board packing material, a wax layer, aluminium foil and a sealable film. The screw cap combination passes through the induction unit after closure of the container.when the container is under the induction head, heat is developed into the aluminmium layer.The wax layer starts to melt and penetrates into the board layer.The Sealing layer also melt & forms a tight seal against the lip of container. The necessary pressure is provided by the liner/screw cap combination.On opening the container, the board remains inside the cap and serves as a seal on further use, whereas the aluminium foil is permanently sealed on the rim of the mouth of container.  Containers Innerseal can be used on containers made of PET,PVC,Polythene,Glass and other thermoplastics.They are suitable for use with screw type Snap On,Child resistant and other customer closures as long as the seal is in positive contact with the neck of container. A uniform neck finishing is required for good Induction Sealing.The sealing are not to be very wide.The small 50 ml to the big 200.Its Drum having a neck size of 10 mm opening to the wide mouth of 120 mm can be Induction sealed.Induction Sealing liners for HDPE,LDPE,PET & PP in the different thickness locally available.

Our Company is enlisted in the most eminent manufacturers and suppliers of Induction Sealing Machineutilize electromagnetic induction principle to produce instant high heat to melt aluminum foil. It is a non-contact method of heating a metallic disk to hermetically seal the top of plastic and glass containers. It is specially designed to seal online Induction wads, seals on the bottle. Bottle of different diameter can be handled on induction sealing machine. This sealing process takes place after the container has been filled and capped. The advantage of this machine is that there is No Surface Heat for sealing the caps. .     This Induction Sealing Machine is made of premium quality stainless steel that is procured from reliable vendors. It is widely appreciated for its corrosion resistance, compact design and hassle free working. We offer this sealer in standard dimensions. It is widely used as sealing package machine in industries such asfood, beverage, alcohol, pharmaceuticals, pesticides, chemical, lubricant, oil and cosmetics industries etc. This Induction sealing machines comprise a power source, a sealing head or coil and a cooling system. Manual hand held units are also available for laboratory or low volume work but high power automatic capsealers are usually mounted above conveyor production lines.     Induction Sealing Machine offered by our company is a simple and reliable method of bottle sealing. It welds an aluminum foil seal across the bottle neck, to prevent leakage of the product. This machine provides tamper evidence and improves product shelf life due to the excellent barrier properties of the foil and its airtight seal onto the container. This machine also improves pack presentation and customer acceptance. These machines are contrived with supreme grade of raw material of stainless steel and sophisticated machines and we do complete quality inspection of these sealing machines before delivering at the client’s end. These machines can be custom designed according to the requirements of our respected customers. These are made according to the quality standards and are offered to our clients at their pocket friendly prices     Features and Advantages of Induction Sealing Machine Less power consumption. Easy installation and operation. Ejection plastic iron housing. High sealing speed, suitable for volume-produce. Convenient for use, good sealing quality, work continuously. This machine seals caps through foil that provides tight and strong seal and is unaffected by grease, powder, or moisture contamination. Each function of Induction cap sealing machine is labeled clearly, which makes it easy and simple for the user. A sealed product is perceived to be safe and hygienic. Free from oxidation and contamination. Increased shelf life- Product freshness. Leak prevention - no rejection, hence enhanced profits

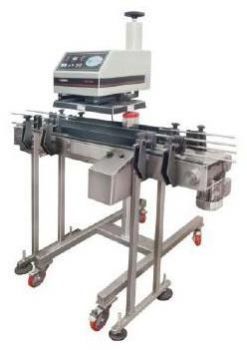

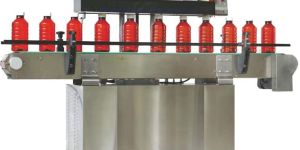

Automatic Induction Cap Sealing Machine suitable for various type of Plastic or Glass Bottles used on any Liquid Filling, Powder Filling or Tablet Bottle Packing Line. Machine suitable for Sealing Bottle Neck using Weds provided inside the Cap. Machine can be connected to any capping machine by installing the Induction Sealing Head on outfeed conveyor of Capping Machine for online operation or can be supplied with Transfer conveyor system to use it offline or to connect with any machine for online operation. Induction Sealing Machine available with various speed range depending on type of Bottles, Bottle Size and most important Bottle Neck Diameter. Machine suitable for complete online operation to connect with any Packing Line. Note : WE DO NOT MANUFACTURE INDUCTION CAP SEALING MACHINE but we can arrange to supply the same using our source from Local supplier of India for any Packing Line. We have sold many lines with Induction Sealing Machine in India and Abroad for Pharmaceutical, Food, Cosmetic and other industries.A

Latest Induction Cap Sealing Technology, to create alternative, airtight, hermetic seals on the necks of containers. The process can produce significant cost savings in the Packaging Process. The seal is strong, flexible & yet easy to remove and provides protection against contamination. Induction heating allows heat sensitive products such as creams, petroleum products, Herbal shampoos etc. which would normally gets spoiled or catch fire on normal heat sealing to be sealed. The sealing takes place without any direct contact which allows full potential of the filling plant to be utilised. The process of Induction Cap Sealing is based on the principle that a conductive material i.e. Al Foil heats up on exposure to high frequency magnetic field generated by an Induction Unit. This is a non contact process without direct heat transfer. Due to this, the sealable closure liner can be placed in the cap by the manufacturer. The Wad consists of a board packing material, a wax layer, Aluminium foil and a sealable film. The screw cap combination passes through the induction unit after closure of the container. When the container is under the induction head, heat is developed into the Aluminium layer. The wax layer starts to melt and penetrates into the board layer. The Sealing layer also melts & forms a tight seal against the lip of container. The necessary pressure is provided by the liner/screw cap combination. On opening the container, the board remains inside the cap and serves as a seal on further use, whereas the aluminium foil is permanently sealed on the rim of the mouth of container. ADVANTAGES OF INDUCTION CAP SEALING: Tamper Proof: It is not possible, from production to the Consumer that the content of the product be manipulated without being clearly noticed. Product Freshness: The taste and aroma of the product remains intact due to the hermetic seal. Protection against Leakage: There is no spillage or loss of contents of the product. Sales Promotion: The foil on the inside can be used for advertising or promotional purposes. Maximum Filling Speeds: The sealing takes place without any direct contact which allows full potential of the filling plant to be utilized. Minimum Effort: The wad is put in the cap by the manufacturers. Thus the filling line requires only the Induction Cap Sealing equipment to be installed. Indirect Heating: Induction heating allows heat sensitive products such as creams, petroleum product, pesticides etc. to be sealed faster and safely than direct heating which would normally spoil or catch fire. IGBT Technology: IGBT's are more reliable and efficient at higher line speeds.

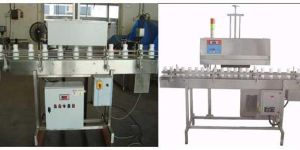

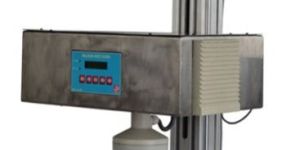

We are engaged in manufacturing and supplying of Online Induction Sealing Machine. We fabricate our Induction Machine using high-grade metal material and sophisticated technology. Our Online Sealing Machine comes with the latest unitech I.G.B.T. solid state induction cap sealing system. Due to its striking features, our Online Induction Sealing Machine is widely used in many industries like chemicals, cosmetics, oils and in petroleum and food products.   Other Details : Latest Unitech I.G.B.T. Solid State Induction Cap Sealing System Model UEC 2000/3000 Control Panel Input Voltage : 250 Volts AC 50 Hz Input Cureent : 5 Amps Max Output Power : 2 k watt/3 k watt Water Cirulation System : SS Tank, Radiator with Cooling Fan 1/8 HP Water Pump, Flow Switch No water flow no current system No wad detection system Induction Unit : Consisting of Epoxy Cncapsulated Induction Head, Output Transformer Unit Adjustable Head Stand

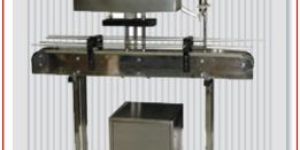

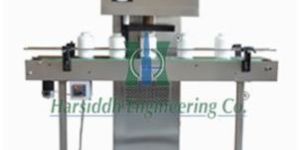

Application Automatic linear induction cap sealing machine to seal wad on mouth of the bottles of automatic container packing lines.   Technical Specification Model Speed : 60 to 80 bottle per minute. Neck Diameter : 20mm to 120mm. Type of bottles : Glass, Plastic.   Unique Features Simple and compact in design. Latest solid state semiconductor technology ensures reliability. Microprocessor base systems. In built over current, over voltage and over temperature protection system. A.C Drive for speed control (optional).

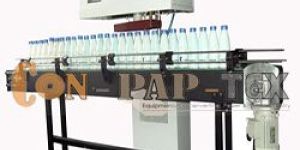

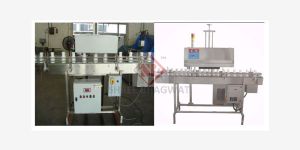

Flourished with the outstanding experts in this domain, we are leading manufacturer, supplier, exporter a huge range of Induction Cap Sealing Machine. Our assortment of superior, Induction Cap Sealing Machine is the best ever and efficient way of sealing the containers with foiling membranes. Further these machines are ideal for all types of containers and can be easily incorporated in the production lines. It is well-known that the inner foil seal provides a true hermetic oxygen barrier which prolongs product life along with preventing leakage. The sealing layer also melts and forms a tight seal against the lip of container. The necessary pressure is provided by the linerscrew cap combination.

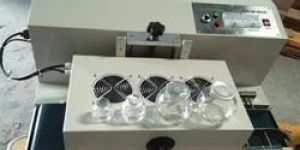

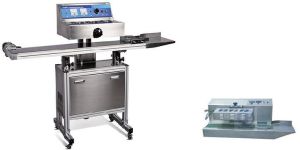

We are offering induction sealing machine. Description continuous induction sealing machine utilizes electro magnetic induction principle to produce instant high heat to melt aluminum foil that then adheres to the bunghole, reaching the aim of wet-proof, leakage-proof, mildew-proof and extending preservation time. Now it is widely used as sealing package machine in industries such as pharmaceuticals, pesticides, pesticides, lubricant application it is widely used as sealing package machine in industries such as pharmaceuticals, pesticides, pesticides, lubricant. Features high sealing speed, suitable for volume-produce convenient for use, good sealing quality, work continuously ejection plastic iron housing specification power 1.5 kw conveyor speed 0~12 mts.min bottle dia 30~150 mm bottle height 10~300mm size 1550x550x1350 mm length 350mm block height 65mm

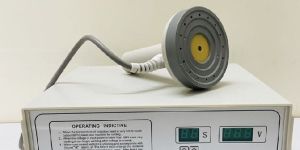

Induction Sealer used for sealing Plastic & Glass Bottles Caps with Aluminum, Foils at very high speed Electro magnetic Induction Sealing used for leak proof & Temper evident and extended shelf life     FEATURES Push switch for instant sealing start Different time can be set as per foil thickness. Fuse protection Low power consumption. For Heavy Production Continuous Model     APPLICATION Pharma Industry Chemical Lubricant Cosmetic Food Segment & many more

We are a leading manufacturer of Induction Sealing Machine, including Manual, Automatic Induction Sealer including motorized height adjustability and standard features meeting International Quality   Features: Employs the principles of electromagnetic induction. Higher Production. Variable Speed Conveyors. Induction head with motorized height adjustability. Air-cooled. Bottle Dia.: 30 ~ 130mm Bottle Height: 10 ~ 300mm   Application: Food Industries. Beverages Industries. Pharmaceutical Industries. Cosmetic Industries.

Induction sealing machine are mainly used to seal plastic bottles (PP, PET, PE, PS, PVC) & glass containers with aluminum foil for pharmacy, chemical industry, pesticide, food stuff, cosmetic, lubricating oil, industry etc. they are two types of automatic and portable for your choose.

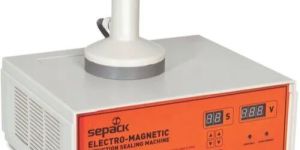

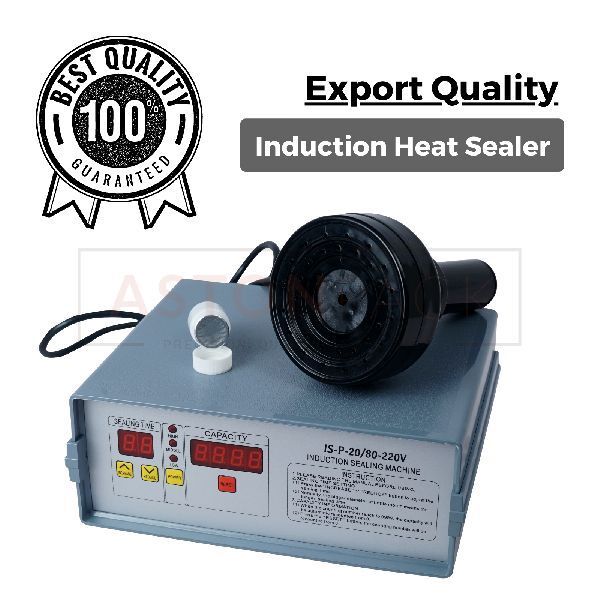

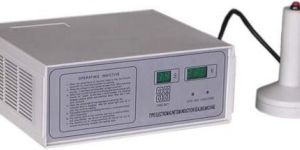

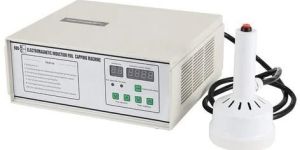

This is a portable induction cap sealer for laboratory use or low production volumes,Neck Diameters: 20mm – 63mm,Speed: 4 – 6 containers per minute
