Instrumentation Equipment Dealers in Subhash Bridge, Ahmedabad

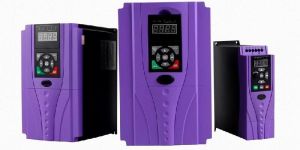

HSD2000 has perfect performance thanks to 64bit DSP, high performance FPGA, and the newest motor control algorithm. It could drive synchronous servo motor and asynchronous servo motor, as well as induction motors. Available for pulse / analog / field bus   Specification   HSD2000 has perfect performance thanks to 64bit DSP, high performance FPGA, and the newest motor control algorithm. It could drive synchronous servo motor and asynchronous servo motor, as well as induction motors. Available for pulse / analog / field bus / digital input signal / keyboard control, and supports all types of encoders including incremental, SinCos, absolute, The power range is from 2.2KW up to 132KW.      Features:   1. Employed DSP+FPGA, reliability and performance is improved markedly High performance/ High flexibility / Strong over-load ability     2. Perfectly work as AC synchronous servo drive and asynchronous servo drive, can drive:synchronous servo motor (position control), asynchronous servo motor and induction motors.   3. Speed mode/ torque mode/ servo mode/spindle drive mode optional     A. Speed mode  Open loop：For most of applications, like Cranes, CNC spindle   Close loop： For the applications require higher speed accuracy, e.g elevator, harbor cranes:      B.  Torque mode：  Open loop：General winding applications, e.g leather winding, film winding  Close loop： Winding applications requires high tension accuracy, with winding diameter calculation,  e.g steel panel winding.     C.  Servo mode：  Pulse tracking： Usually co-work with CNC controller or other upper computer  Positioning： CNC spindle positioning, internal digital positioning.    D.  Spindle mode. 4. Auto-turning of synchronous servo motor pole angle, no need zeroing, match all brands of servo motor easily   5. Easy operation: pulse control / filed bus control / IO control / analog control   6. Under servo mode, positioning accuracy is less than ±1 pulse   7. Close-loop vector control, speed ratio is up to 1:5000,can achieve high speed accuracy   8. Time-sharing control of 2 motors with different parameters

V33 Series AC Drive Specifications 400V Class: suitable motor capacity:0.75~800kW460V Class: suitable motor capacity:1~800HP525V Class: suitable motor capacity:1.1~630kW575V Class: suitable motor capacity:75~1000HP690V Class: suitable motor capacity:90~1000kW  Feature Safe and efficient control of movements Protective and efficient starts Controlled ramping for safe start-up Optimized operation and full control Direct torque control eliminates disturbances Protection against damage and downtime Speed controller increases efficiency Safe and efficient braking For Cranes, Crushers, Mills and Mixers applications User-friendly and reliable operation Cost-efficient and flexible installation Options add functionality A complete series Simplified maintenance

We are offering copper bus bars to cater to the ever-changing demands of clients, we bring forth copper components. These products are widely used in electrical panel board, transformer, bushing and switchgear industries. Owing to their optimum performance, user-friendliness and reliable service life, these products are widely applauded by the clients.

We are offering industrial copper control cables. Industrial copper control cables up to 1.1 kv as per is – 1554 (part i) & is 7098 (part i) pvcxlpe insulation un-armoured armoured (strip or round wired) frls hr type capacity – 1.5 & 2.5 sq. Mm up to 61 cores

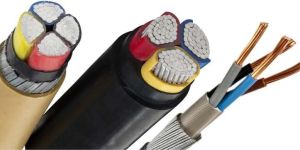

Range of lt-ht power cables in aluminium as well as in copper conductors. Lt cables find used in transmission of power up to 1100 volts & ht cables for 3.3 kv & above. conductor : aluminium copper as per is: 8130 insulation : xlpe • inner sheath : pvc type st-1 as per is: 5831 armor : gi wire flat strip as per is: 1554 outer sheath : pvc type st-2 as per is: 5831 reference specs : is : 1554, is : 7098 (part – 1)

We are a leading manufacturer of Copper Bus Bars and Copper Flats. Our production range encompasses a wide spectrum of sizes. We offer flat bars with Corner radius, Full Radius and Sharp Edge. As an experience and reliable with fully integrated production, we have long been keeping pace with changes in the market. The latest trends involve additional alloying as well as Oxygen Free Copper - and we're involved in those things too. Use of Copper Flats / Copper Bus Bars : » Switchgear construction (low and medium voltage) » Power distribution systems (Bus Bars) » Transformers/Electrical components » Electrical Machine Construction » Wind Power » Automotives Width: 5 mm to 250 mm | Thickness: 1 mm and above Features of CML product: » Higher Conductivity for better current carrying capacity » Excellent dimensional control for superior contacts » Engineered for longer life » Customer Specification Solution » Crack Free Bends

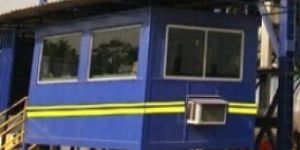

Size of container: 2.6 x 2.2 x 2.5 m Container with tinted glass windows at all sides. Insulated, dust proof and air-conditioned. Pre-wire electrical power and control panels along with console. Depending on plant configuration, the power requirement may change. All plant controls, PLC, switch gear and control gear are housed within the power and control panels. All motors are rated IP55, class F insulation.

Aluminium Bus Bar, Industrial X Ray Film, Copper Nugget, Copper Rod

Electronic Starters, Automatic Water Level Controller, Security System

Access Panel, Computer, CCTV, FIRE SYSTE

Submersible Pump Control Panels, Ammeters, Star Delta Control Panel

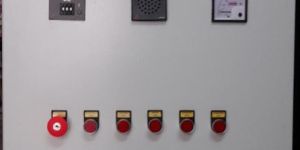

Electric Oven Control Panel

We made as per customers required

Programmable Controllers, Connection Systems, Motion Contro

Digital Pressure Sensors, Photoelectric Sensors, Temperature Controlle
