Laboratory Autoclave And Sterilizers Dealers in Ctm, Ahmedabad

The laboratory line features a user friendly, microcontroller based system which offers enhanced monitoring and control. The programs are designed to treat all load types including liquids, instruments and waste. All programs are fully customizable to suit the specific needs and requirements of the end user.  Working Process: Pre sterile Sterilization(Operating Temperature 121째C-134째C) Drying Feature Steam Sterilizer: Fully automatic operated system System comprising chamber and jacket support Chamber is made by SS 316 grade Boiler made of full SS Door is made from thick SS plate Usb data storage Online printing Safety valve for boiler,jacket & chamber are different Digital temperature controller Plc operating system Alarm notification Safety or error detection: Vacuum fail Chamber pressure safety valve Jacket pressure safety valve Automatic heater cut-off Water level indicator Thermostate for double safety to control heaters

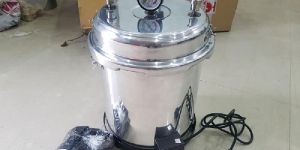

We are offering digital autoclave. Application : “nova” vertical autoclave is an asset to hospitals, pharmaceutical, biotechnology, tissue culture, bio- fertilizer laboratories and research institutes, micro-biology lab., quality control & research labs with modest sterilizing needs, where contaminated objects require sterilization. We represent most innovative and advanced technologies in our products supported by our most efficient customer support network. Technical specification: * double wall design has single chamber for steam and water. * working chamber made of stainless steel lm 304 grade. * outer cover made of stainless steel. * lid, flange & bottom sheet also made of stainless steel. all joints argon welded. * joint less silicon gasket, heavy duty industrial flange heater. * pressure range : 15 to 22 psi, factory set at 15 psi. * temperature control : microprocessor based digital display. * temperature sensor : pt-100. * temperature range : 121 deg. C to 125 deg. C. * temperature resolution : 0.1 deg. C. * temp. Accuracy +- 0.5 deg. C * lid fitting pressure gauge 0-30 psi, safety spring loaded pressure valve, steam release valve. * hydraulically tested. * foot lifting arrangement included for size 18” x 24” & 22” x 30”. * electrical : 230 v15 a50 hz. Standard model: temperature automatically maintained by digital controller, which controlspressure and temperature with temperature indication, factory set at 121 deg. C (15 psi), alongwith built-in digital timer adjustable for maintaining sterilization cycle time with auto cut-off. Complete with basket made ofthick s.s.wiremesh rods.

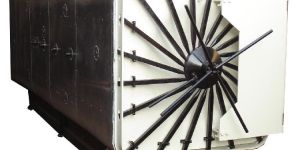

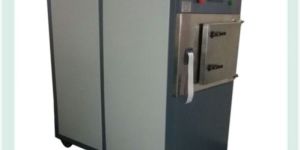

We are affianced in manufacturing and supplying Hospital ETO Sterilizer widely used in pharmaceutical industry and health care institutions to sterilize products/material sensitive to moisture or heat. Our ETO sterilizers have the capability to destroy pathogens and consist of electrical heating jackets to provide excellent steam and temperature distribution in the heating chamber. The Hospital ETO Sterilizer supplied by us is functional for sterilizing needles, vessels, syringes and surgical instruments. These are suitable for differential industrial applications in hospitals, clinics and health centers. Ethylene Oxide Sterilization method is widely used by medical device manufacturers for larger scale sterilization. Our Ethylene ETO Hospital Sterilizers are built with features such as continuous gas monitoring system.

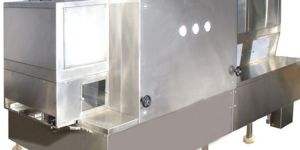

Salient Features Each independent filter plenum is provided with filter integrity sample ports. The equipment’s conveyor belt is monitored and alarm status is activated if it operates outside the belt speed set points. Provision for ports to allow introduction of validation thermocouples in each zone. The tunnel is provided with fully integrated ampoule / vial flow control logic to allow automatic stops and restarts of the equipment. All filter modules have differential pressure gauges to monitor pressure. Pressure switches with high and low alarms When the tunnel is not in use it can be operated in night-mode to save energy while preventing contamination.

Close Bonnet safety valve is another popular type of safety valve which contains the fluid entirely and helps to discharge it in the system. This fluid is not vented to the air. For different types of power vessels these vents are mostly used. The spring enclosure is widely used and considered useful for valves with small screw. At present these valves have become quite common and different ranges of such valves are available in the market.  The ranges of spring valves mainly depend on the steam and discharge of fluid. The fully closed bonnets are becoming extremely popular in recent days. We being the leading distributor of this product have it in various sizes and ranges to cope up with the exact need of the customer Long life High performance Best in quality

Shreeji Industries is established name in ETO sterilizer with proven reputation in wide range of application like Foods, Medical and Surgery arena. ETO Sterilizer is equipment, which facilitate ETO Sterilization process. Ethylene oxide sterilization is a type of chemical process consisting of four primary variables namely gas concentration, humidity, temperature and time. Ethylene oxide is an alkylation agent that disrupts DNA of microorganisms, which prevents them from reproducing. ETO sterilization assures that a safe and sterile product will be delivered to the market each and every time. We manufacture ETO Sterilizer with volumetric capacity from 0.5 m3 to 44.1 m3

ABF research and development efforts resulted in good quality products with excellent and precise process control as per needs of customer and their level of satisfaction. Steam sterilizers are available in different models and for the suitable applications. Vertical sterilizers (Microbiology lab) with swing doors. Horizontal cylindrical sterilizers (Microbiology lab) with conventional radial arm. Horizontal rectangular sterilizers with conventional radial arm and also with sliding doors. Bung processor cum sterilizer. All models are available with SINGLE/DOUBLE door design except vertical which is available only with single door.Special Features : Specially designed chamber to ensure complete condensate removal. Specially designed connector/nozzles sanitary type to avoid any chances of contamination. Special welding technique to avoid welding depressions inside the chamber. Excellent chamber finish with crevice free construction to avoid chances of contamination. Uniform distribution of steam to achieve uniform temperature + 0.1.5oC Sterile air filter (0.01micron) for vacuum break is provided on sterile side. Automatic control with PLC based Sterilizer control panel.

Ambica Boiler & Fabricator has developed world class ETO Sterilizer with higher quality used in Pharmaceutical Industry. Ethylene oxide or ETO Sterilizer is used in sterilization of items that are heat and moisture sensitive. ETO Sterilizer is well-defined as Ethylene Oxide Sterilizer which utilizes ethylene oxide at the similar time as a biocide to destroy bacteria, viruses, fungus and other unwanted organisms. E.T.O Sterilizer contains of a fully packed chamber frequently dual jacketed, corrosion conflict and gas resistant of appropriate composite generally of mild steel. At Abster Equipments, ETO Sterilizer will be in great structure using plates of suitable thickness which avoids buckling under vacuum due to density. Ambica Boiler & Fabricatoris a foremost Manufacturer, Exporter & Supplier of Ethylene Oxide Sterilizer which is a chemical process consisting of four major variables like:- Humidity Gas Concentration Time Temperature

We offer gun metal safety valves open discharge as well as in enclosed body also known as angle type safety valve or pressure release safety valve, which are ideal for compressible fluids like steam, gas, or vapor. Safety valves are suitable for application areas where high pressure and capacity is required. Our precision engineered safety valves are appreciated for high capacity level, durable finish, and industry competitive price. features: high capacity level durable finish

We bring forth high quality safety valves that are known for their high strength and accurate dimensions. these safety valves are widely demanded in various industries owing to their qualitative features. We offer safety valves in different sizes to meet the client’s requirement. features : superior qualityhigh strengthdurableaccurate design

We offer our clients, an optimum quality of auto clave. these are precision engineered and are used to sterilize equipment and supplies , by subjection of a high pressure steam. These are extensively used in segments like medicine, microbiology, dentistry and veterinary science. We fabricate these from high quality components and metals, as per the specifications mentioned by our clients. These are available in the following specifications : lifting arrangement water level indication arrangement perforated basket pressure stat to cut off current at set pressure dial thermometer timer 0-60 minutes low water level cut of device

Dry Heat Sterilizer, Glass Vial, Glass Bottle, Rubber Closur

ETO Sterilizer, ETO Cartridges, Autoclave Sterilize

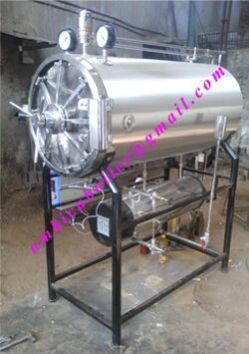

      Contsrtuction The unit has outer chamber, inner chamber, Boiler, Lid and Jacket - all made of AISI 304 grade stainless steel. For controlling sterilization cycle, a three way valve or a multiport valve - made of S.S. is provided. The unit have a very efficient ms radial locking arrangement, fitted on ms ring, duly chrome plated. It is supplied complete with vaccum breaker, water level indicator, steam trap and automatic pressure control switch. The whole unit is mounted on a robust tubular ms stand. Operatable on single / three phase, 220/440 volts, 50Hz A.C. Supply.   Mode of Heating Electrically heated by special flange type / immersion type heaters bearing ISI mark, to work on single / three phase, 220/240 volts, 50Hz, A.C. supply.   Working Pressure The pressure inside the chamber is variable from 5 psi to 20 psi. But the normal recommended pressure for sterilization process is 1.2 Kgf/cm2 (15 psi).     Working Temperature : 121 deg.CWorking Pressure : 1.26 Kgf/cm2 (15 psi)Hydro Test Pressure : 2.5 Kgf/cm2 (35 psi)   Working Chamber Size Volume Load (KW) 400 x 600 mm 78 Ltrs 6 KW 500 x 900 mm 135 Ltrs 10 KW 550 x 750 mm 152 Ltrs 9 KW 400 x 1100mm 162 Ltrs 12 KW 500 x 1200mm 185 Ltrs 12 KW 600 x 1200mm 300 Ltrs 18 KW 750 x 1200mm 525 Ltrs 18 KW   Optional Accessories Semi Automatic Pressure Control Switch. Automatic Low Water Cut Off Device Mechanical Timer (0-60 Min) Mechanical Timer With Alarm System Solid State Digital Timer (0-120 Mins) Solid State Digital Temperature Indicator. Micro-Processor Based Programmable Timer Controller. Micro-Processor Based Programmable Timer (0-120) Circular Temperature Chart Recorder (24 Hours/Seven Days) Strip Chart Recorder Digital Pressure Transducer Cum Indicator Automatic Pressure And Temperature Mapping System With Validation Soft Ware (Without Pc)   Rubber Gaskets Neoprene rubbler or silicon rubber Size 250 X 450 MM 300 X 500 MM 350 X 550 MM 450 X 600 MM 500 x 1200mm 550 X 750 MM   Spare Heaters (In-house custom Developed SS Heaters) 2 KW 3 KW 4 KW

Heat and corrosion resistant high chrome alloy trim self aligning flat faced valve, disc and remain pressure tight . Carefully lapped flat faces of valveand seat to optical precision guarantee pressuretightnessTop guided to ensure high discharge capacities . Thus ensuring the use of a valve of the minimum size for the given duties.Materials used are selected to suit service conditions SAFETY VALVE : A Valve which automatically discharges gases & vapours so as to prevent a predetermined vapours so as to prevent a predetermined safe predetemined safe pressure being exceeded. it is characterised by a rapid full opening action & used for steam, gases or vapour service.
