Mahima Fabricators Amraiwadi, Ahmedabad, Gujarat

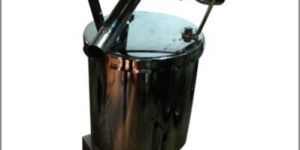

It is used to collect the dust and foreign particles which come out of the compression machine. Normally it is mounted directly at the output of the compression machine. SALIENT FEATURES : Specially designed on vibratory motor principle De-dusting disc penetration dia is 3 mm Mounted on a set of heavy duty spring and pad SS 316 Contact parts Totally encapsulated design and easy to clean Acrylic window in top guard for process visualization Proper path to move the tablet Two nos. of dust collection port Height adjustment stand design with four wheel

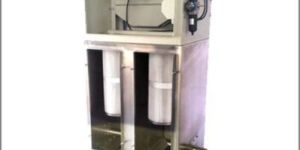

Dust extractor is used for controlling dust generated during tablet compression, tablet de-dusting, granulation & other processes. It avoids product crosscontamination. All contact parts in SS 304/ SS 316 quality. Machine is provided with castor wheels and nos. Of manifold to connect two or three machines at a time.

Model Number : Turbo Model

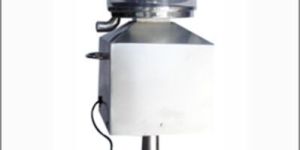

The machine works on the vibratory principle. It is used to remove fine surface dust and edges from the tablet in two stages. In the first stage, the tablets collected from the tablet press onto the bottom screen vibrate around the perforated plate while ascending upwards by approximately 3 meters. In the 2nd stage the tablet is turned over and it ascends against perforated plate by approximately 3 meters. This results in the effective removal of dust and burrs present on the tablet. Salient Features : 1) Conforms to cGMP 2)SS 316 Contact parts 3)In line compatibility with all the tablet presses 4)Adjustable height and easy mobility 5)Easy to dismantle for cleaning of contact parts

1) Provided with stainless steel S.S 304 contact parts (SS 316 optionally) 2) Blower fan is dynamically balanced. 3) Machine in fitted with the castor wheels for easy mobility. 4) Overcome dust hazards as well as cross contamination at tablet compression. 5) Minimizes mechanical strain, excessive wear of tableting machine resulting in minimum machine breakdowns and punch wears. 6) All inlet manifolds and dust collection trays are of S.S. 304 7) Inlet manifolds facilitate to connect any Tablet press machine and De-burring units.

Power : 0.75 HP / 2880 RPM / 3 Phase / 440 V / 50 Hz

COLLOID MILL is suitable for homogenizing emulsifying dispersing, mixing, comminuting of liquids to highly viscous products. It is based on rotor stator principle, It is avail OPERATIONS:- Product is feed to the operating areas of a rotor, having a speed of 3000 R.P.M by specially designed feed device. The product is processed by high sheer, pressure and friction between the stator and rotor , the angular gap becomes narrower towards the discharges section. This processed product continuously leaves the mill through the drain pipe, if required, it can be re circulated SALIENT FEATURES : All contact parts are made out of S.S. 304 (S.S. 316 on demand at extra cost). No castings are used to avoid contamination problems. • 2 Coupling provided between motor shaft and rotor shaft for ease in maintenance. 3 Three leak proof neoprene sealing device between the motor and the processing chamber to prevent liquid going in the motor winding. 4 Modified design of semi concave teeth in rotor and stator reduces motor h.p. and gives better performance in size reduction without damaging the products. 5 Extended bearing housing specially designed to facilitate fine metal contact of rotor and stator. 6 This unique design provides smooth and consistence all around performance and long life of rotor and stator. 7 Three way cock system for draining and recirculation of the liquids provided as standard. 8 Extra discharge sprout provided as a standard for viscous products. 9 DOL starter with overload relay for protection against single phasing and low voltage. 10 Contact parts can be easily dismantled for cleaning.
