Material Handling Equipments Dealers in Ahmedabad

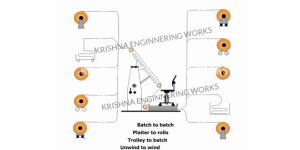

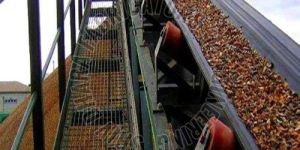

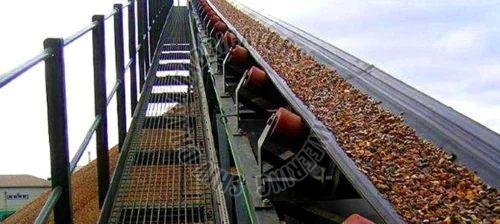

Material Handling System is used for any winding & unwinding application for guiding the web to reduce the wastages of the material & to get high production output with minimum man power. Web Guiding System and Conveyor equipment made.

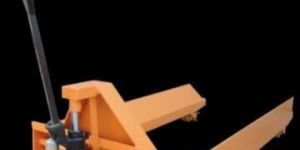

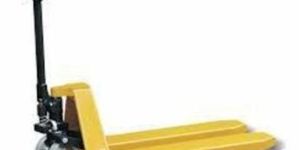

Weight Scale Pallet Truck Capacity : 500 1000 kgs Min Height : 90mm Max height :200mm Fork length : 1150mm Fork Width : 160mm Overall fork width : 550mm Stearing wheel : 200x50 mm Roller wheel : 80x70 mm

- Capacity: 1.5 tons, 2 tons, 3.5 tons - Electronic control for smooth transmission and acceleration - Twin jack hydraulic system with guided lift - Pulling type tie bar to prevent buckling of tie bar - Belly button for operator safety - Battery status indicator   CHASSIS : Fabricated from rolled channels and plates.DRIVE UNIT AND TRANSMISSION :Traction motor is mounted above the drive wheel, drive to the wheel is transmitted through two stages chain reduction & final reduction by gear & pinion. The entire unit swivels on heavy duty self aligning bearings.ELECTRICAL SYSTEM :Control panel located below steering handle, consists of four heavy duty solenoid operated contractors with arc shields & magnetic blow outs for forward/reverse motion & cutting out two stage resistance bank. The complete electric circuit is protected by adequate rated fuses CONTROLS :Controls for forward reverse motion, horn, light, emergency cut-off & key switch are mounted on dash board. Accelerator & mechanical brake is foot operated.BRAKE :The brake comprises of two internal expanding shoe mounted on rear axle, with parking brake facility.OPTIONAL EXTRAS :Chequered platform, manual or motorised elevation, low voltage battery discharge alarm, front suspension, 1800mm long platform and scissor type platform for all models. Hydraulic brakes and rear suspension for high platform models only. Electronic controls for soft and jerk free transmission provides the following advantages :1. No wastage of battery power resulting in more work out put.2. Lower maintenance cost and downtime of equipment.

In order to deliver quality content, our entire production process is commenced under the strict eyes of quality examiners. We are known for delivering the orders within the specified time frame owing to our modern transit facilities.

Impact Pulverizer consists of an encased rotor carrying swing hammers, classifier for fineness regulation, and Blower Fan mounted on a solid shaft. Raw material to be pulverized enters the crushing chamber through the hopper and automatic rotary feeder. The impact of the hammer on the feed material against the Liner plates reduces it into fine powder. The ground material is carried towards the classifier for classification and the over size particles are rejected by the classifier and returns to the crushing chamber for further grinding. The classified material is then conveyed into the cyclone for collection and bagging. A dust collector is provided in the system for ensuring dust free operation and no loss of ground powder.

Product Name: Battery Stacker We are engaged in manufacturing of the Battery Stacker, Battery Stacker, Battery Stacker exporters, Battery Stacker wholesalers, Battery Stacker traders, Battery Stacker producers, Battery Stacker suppliers, Battery Stacker manufacturers, Battery Stacker manufacturer, Battery Stacker manufacturing companies, Battery Stacker companies for your sourcing needs, Battery Stacker Manufacturers, Battery Stacker Suppliers & Exporters, Battery Stacker production centers. Capacity: 500kgs to 2ton Fork length: 1150mm/as per customer requirement Fork width: 600mm/as per customer requirement Fork: 150mm Lower height: 90mm/100mm Raised height: 1600mm/1800mm/2000mm/2500mm/3000mm/as per customer requirement Mast system : single/double/triple mast system Lower speed: continuously variable Pump : simple and reliable hydraulic system Wheels : dust free nylon wheels with double sealed bearings. Wheels steering and support wheels : 2 nylon wheels ø 180 x 50mm Load wheels : 4 nylon wheels ø 80 x 70mm color: golden yellow powder coated color Handle : drawbar with finger protection clamp and release handle Structure : simplex single mast structure made from heavy duty ‘c’ channel section. It would be supported by heavy-duty deep grooved guide rollers. Forks lifting would be by means of 2 nos. Duplex chain & design pulley. Hydraulic unit : hydraulic cylinder part would be supported by single acting cylinder piston rod is inducted with hard chrome plated. The sealing arrangement is of polyurethane seals, teflon seals for long life smooth working. Leak proof viper seals will be given to protect from ingress dirt & dust. DC power pack unit (optional) DC POWER PACK-1NOS 12VOLTS/24VOLTS DC MOTOR-1NOS 12LITER MS/PLATIC OIL TANK-1NOS 1.5KW/2.0KW, 2.2CC/REV GEAR PUMP WITH SINGLE ACTING VALVE BLOCK-1NOS 12VOLTS/24VOLTS 150 AMPIER EXIDE/TATA/STANDARD MAKE BATTERY-1NOS 12VOLTS/24VOLTS 15 A SMPS BASED BATTERY CHARGER (230VOLTS AC TO 12V/24V DC)-1NOS UP POSITION BY PUSH CONTROL SYSTEM-1NOS DOWN POSITION BY PUSH CONTROL SYSTEM-1NOS KEY LOCK SYSTEM OPERATED BATTERY STACKER TO CONTROL MISS USE OF EQUIPMENT-1NOS Pressure relief valve – 1nos Many fold block – 1nos Suction filters – 1nos D. C electric solenoid valve – 1nos Pilot operated check valve – 1nos Phase a. C motor – 1nos Flow control valve – 1nos Completed fitting accessory – 1nos Liftomatic offers Hard chromed, polished pistons that are resistant to rust, Scratches and wear Double sealed high pressure polyurethane packing To ensure long life of the hydraulic system To prevent leakages Ergonomically designed steering handle For easy operation from all angles To reduce pulling power and minimize operation fatigue Light and compact construction Mast:made of quality steel bent in c profiles. Inner and outer mast furnished with thrust rollers to prevent lateral play. Carriage:the carriage has an open centre section and low profiled forks with inner reinforcement.

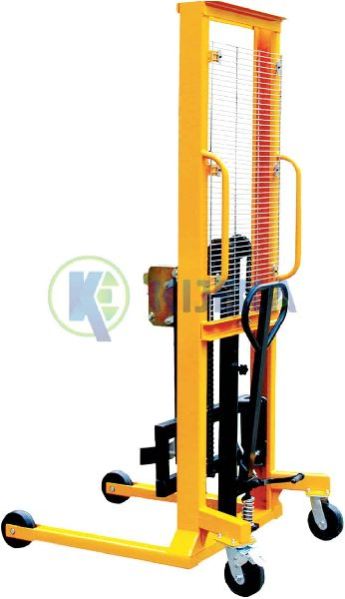

the drum stacker developed by tmmc (mhe divn) is designed to lift standard 205 litres barrels and stack the same one above the other or at any other height as may be required in horizontal position. lifting is by means of hand operated pump with facilities for holding, lowering at desired height. these drum stacker are fitted with two m.s. rollers to the front legs & two polymer swivel wheels at the rear end with double sealed ball bearings. it is designed to lift standard 205 ltrs. barrel in horizontal and stack at different desired height. equipment can be modified to suit special applications. also available in a variety of drum lifters and drum jockeys.

Our products are packed according to the requirement of buyers, as we provide customized packaging solutions. Our packages are superior, secure and waterproof as well. Serving the clientele with finest assortment of products, we are a high-flying organization operating from Gujarat(India).

The Auto Feeder Scoring Machine, provided by us, is acclaimed for its make & durability. Since incorporation, our organization has sustained its procedure to make delivery within the postulated time. Therefore, we assure to distribute goods to patrons' doorsteps on the day promised. For safe assembling of all the products, we have invested our time and money in the capacious storage unit that helps us in keeping the products safe till final delivery to the clients.
