Overhead Cranes Dealers in Vastral, Ahmedabad

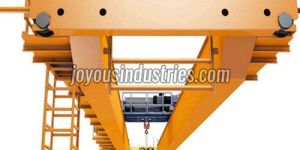

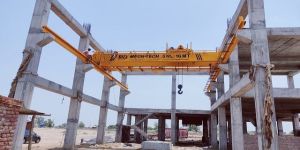

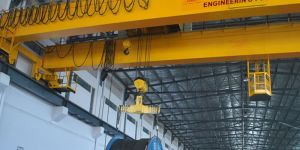

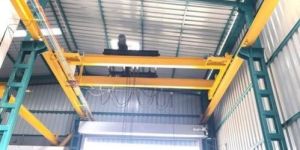

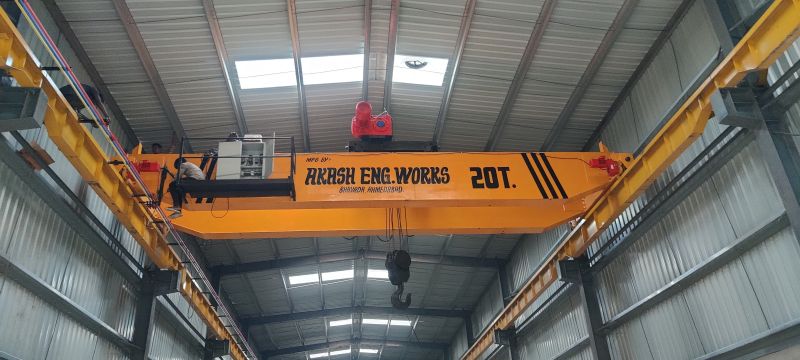

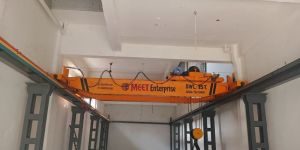

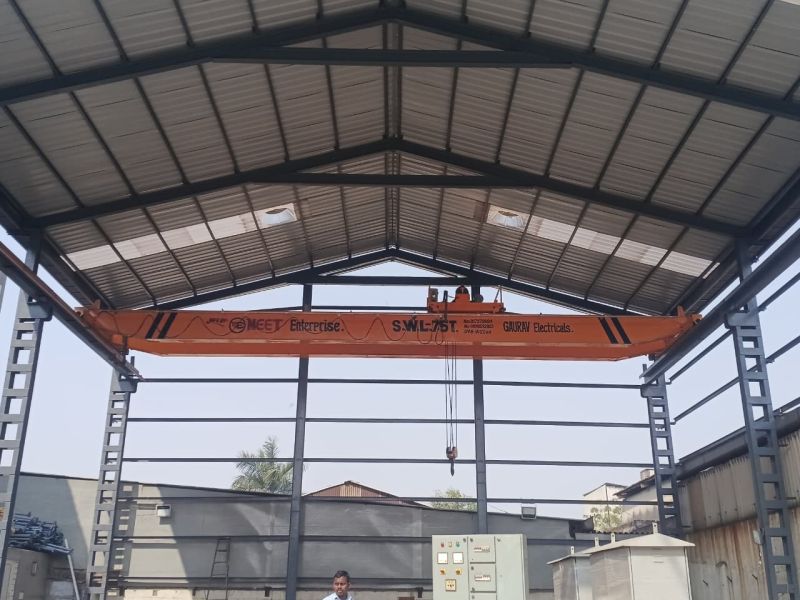

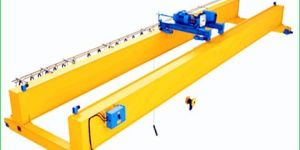

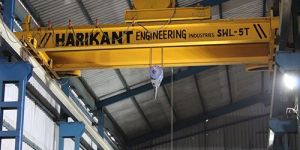

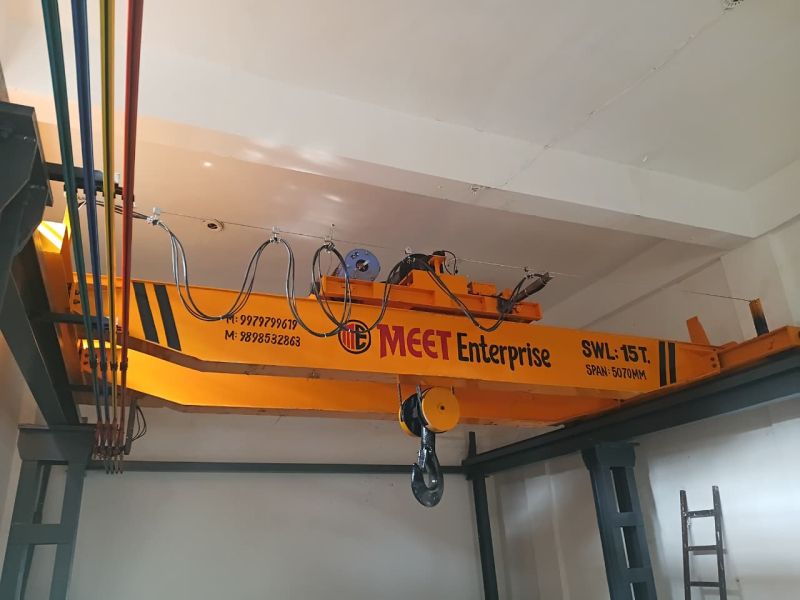

The Double Girder Cranes are generally used when heavy loads and wide spans are required. Double Girder Cranes consists of two torsion-free box Girders consists and load lifted by Crab which is running on the Top of two Girders. Platform with hand railing for easy, simple and safe maintenance of the crane extended partially or totally along the girder width. Span: 5 mtrs. to 80 mtrs. S.W.L: 500 kgs. to 1,50,000 kgs.   Crane Girder:   Crane Girders are of plate box type / standard rolled steel / compound beams. All the main butt weld joints of the web are strong and rigid structure thus 100% reliability of welded joints is ensured. The material of conforms to IS: 2062-1992.   Motors:   The motors are used specially crane duty (S4) Squirrel Cage & Slip Ring Motors suitable for frequent starting, reversing and braking in accordance with IS: 325. Motors are totally enclosed in dust proof & fan cooling (TEFC) construction, insulation class ‘F’, IP54 protection, foot / flange / face mounted.   Brakes:   Electromagnetic single – dual AC disc type / electromagnetic shoe type / Electro Hydraulic Thruster brakes are provided in all three motions. These brakes are “FAIL TO SAFE” type means automatically release when the motor circuit it  on and applied when motor circuit is off. DC brakes are also provided on request.   Gear Box:   The entire gear boxes are made of accurate hob cut helical spur gears & pinions having hardness 250 to 300 BHN made from carbon-alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / spur gear designed for adequate strength and optimum wear resistance for smooth operation and long life.   Wheel Assembly:   Long travel wheels are straight treaded double flanged forged steel wheels. Wheels are supported on antifriction ball or double row self aligned spherical roller bearings in special blocks of ‘L’ type design for easy maintenance.   Speed:   Selected depending on client specifications / applications / shed dimensions.   Crane Control:   From floor through pendant push buttons, optionally through radio remote control / cabin with master control (depending on customer’s choice and application)   Power Supply System:   To Hoist and cross travel through trailing cables / Drag Chain to crane through shrouded bus bars / Trailing cable / M.S. Angle iron Conductors / Bare Copper conductors (depending on customer’s choice and application)   Electric Panel:   Modular Design ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.   Limit Switch:   Safety limit switches for stoppers will be provided to prevent over traveling in all motions.   Painting:   Two coats of primer before assembly and Two coats of synthetic enamel after testing.

We offer efficient eot cranes with a drive system comprising crane duty electric motors, gearboxes and brakes. Sheet metal fabricated dust proof control panel houses contactors for all motions, transformer, mcb and other electrical components arranged logically.

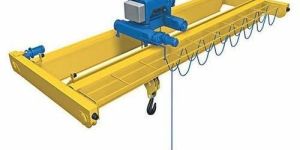

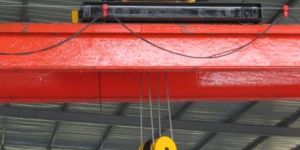

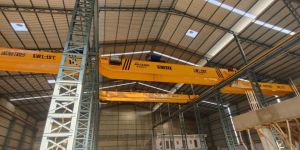

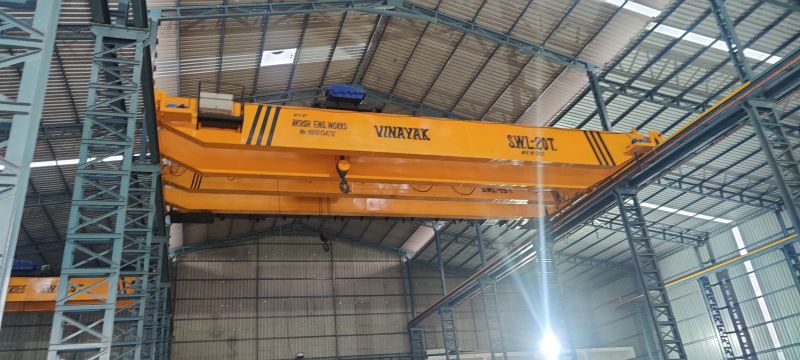

We are offering Double Girder Eot Cranes. The Double Girder EOT Crane provided by us is manufactured keeping in mind all safety measures. The operations are made easy with the usage of latest and advanced technology. We are among the foremost Double Girder EOT Crane Manufacturers and Exporters in India. Features : High efficiency Trouble free performance Full length platform on one side Low maintenance cost Optional features : Cabin operated Dual Speed / Micro speed Crabs with auxiliary hoist Hazardous application Remote control operation With VFD drives.

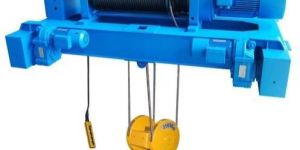

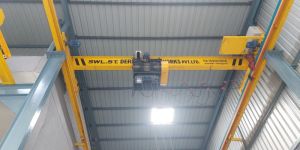

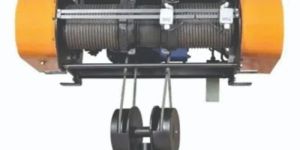

EOT Crane è Electric Overhead Travelling Crane, is a kind of widely used lifting equipment for material lifting in the workshop, warehouse, and material field. EOT crane is composed of hoisting mechanism, trolley running mechanism, and trolley frame. Hoisting mechanism including electric motor, brake, reduction gear, drum, and block and tackle. Electric motor drives the drum to rotate through the reduction gear, and make wire rope wound on a reel or put down from the reel to lift heavy weights. The trolley frame which is usually adopted welding structure, is a rack used to support and install the hoisting mechanism and the trolley running mechanism.

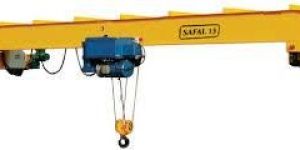

We are one of the reputed manufacturers, suppliers and exporters of single girder overhead travelling crane. These cranes are designed in accordance with various is standard provision. Our operation cranes run on eminent landing strip scheme along the span of a plant and supply three axes of hook motions. These cranes are in use in wide range of elating applications from the lightest duty to strict engineering applications. features low dead weight : reduce cost of supporting structure minimum headroom : reduce building cost standard components competitive prices & quick delivery wide selection of operation speeds deflection

Accurate Engineers Manufacturer and Supplier Of Single Girder Crane in Ahmedabad. Compact and light weight design ensures lower building space, most optimum utilization of floor space and lower building loads.Special Features of modular cranes : Light Weight and compact construction minimizing building loads and space savingSuitable for Light and Medium duty workshop applicationsAll motors are TEFC with class F insulationHeavy duty cast steel rope guideUpper and Lower hook travel limit switchAdditional Counter weight operated over hoist limit switch as option

EOT Crane, Induction Melting Furnace, Ingersoll Rand Air Compresso

EOT Cranes, Concrete Mixer Machines, SHEET METAL MACHINE BREAK

Double Girder Goliath Cranes, Electro.Hydraulic Thruster Brak

Double Girder EOT Crane, EOT Cranes, Electrical Wire, Rope Hoist, Jib Cran

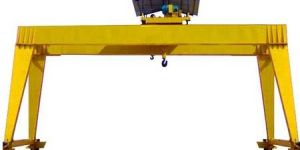

Goliath Crane, Flameproof Electric Hoists, Hot Cranes, Jib Crane

Double Girder Semi Portal Crane, Flame Proof Hoist, Crane Hois
