Penetrometer Dealers in Ahmedabad

Pavement Dynamic Cone Penetrometer (AIM 567)   The Pavement Dynamic Cone Penetrometer (DCP) is a very robust instrument, designed for rapid in-situ evaluation of strength of sub- grade and the bases for roads & runway pavements. Continuous measurements can be made down to a depth of 800 mm, or when an extension is fitted, to a depth of 1200 mm. Where pavement layers have different strengths, the boundaries can be identified and the thickness of the layers determined.   Application Flexural Strength Measurement Industry Civil Infrastructure Asphalt / Petroleum/ Bitumen Testing Dams & Tunnels Real Estate Roads, Highways & Bridges Traffic Monitoring Education Building Technology Civil Department Geotechnical Science Colleges Traffic & Transportation Roads, Highways & Bridges

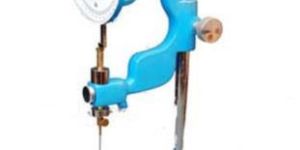

Used to determine grade of bitumen. The penetration tests determine consistency of bitumen for the purpose of grading. Depth in units 1/10 of millimeter to which a standard needle having a standard weight will penetrate vertically in a duration of five seconds at a temperature of 250C determines penetration for gradation. Two Models. Hand Operated and Electrically Operated. Hand Operated Model: It consists of a vertical pillar mounted on a base provided with levelling screws. The head, together with dial plunger rod a cone (or needle) slides on a pillar an can be clamped at any desired height. A rack and pinion and pointer assemble provides fine adjustment of needle or cone tip to sample. It incorporates a clutch mechanism. Which makes reading of penetration and subsequent resetting a simple and accurate operation. The dial is graduated in 400 1/10 and the millimeter subdivisions and the needle pointer against figures makes easy reading. Supplied with a bitumen penetration needle, ring weight One 50gm, two sample containers. Electrically Operated Model: Bitumen Penetrometer, Electrically operated model is provided with Automatic Digital Timer and electrical arrangement to carry out the test without needle of stop watch and with great ease and accuracy.

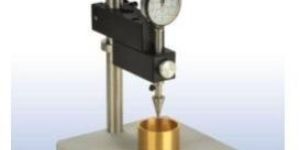

Compliance Standards ASTM D5, ASTM D217, ASTM D937, ASTM D1321, AASTHO T-49, IP 50, IP 49, IP 179 Applications Needle Penetration of Bituminous Materials ASTM D5; IP 49; DIN 52010 Cone Penetration of Lubricating Grease ASTM D217; IP 50; ISO 2137; DIN 51804; FTM 791-311, FTM 791-313 Cone Penetration of Petrolatum ASTM D937; IP 179; ISO 2137; DIN 51580 Needle Penetration of Petroleum Waxes ASTM D1321; IP 376; DIN 51579 Cone Penetration of Lubricating Grease Using One-Quarter and One-Half Scale Cone Equipment ASTM D1403; IP 310; ISO 2137; DIN 51804 Salient Features Fully Automatic operational Design Compact design and rugged construction ensures long service life Compact design also facilitates easy transport for field applications. Sturdy cast iron base provides excellent support Digital Alphanumerical LCD touch screen display with keyboard (LCD Make : Schneider Electric) Optoelectronically depth detection & measurement through imported optoelectronic sensor Automatically timed programmable penetration Motorized placement of penetrator on sample surface Penetrometer arm automatically comes back to its home position at the end of 5 seconds penetration test In-built Facility to tare and reset the measurement results Display resolution of penetration depth in tenths of units (0.01mm) Magnifying lens for adjusting needle tip/cone tip exactly on the sample surface Low voltage Illuminator mounted on flexible arms to assist an operator during testing Built-in spirit level and leveling screws to ensure proper alignment Weight of the Needle/Cone and plunger match the criteria of ASTM and IP requirements. Large, removable base accommodates grease worker cups and other ASTM and non-standard sample containers Complete selection of penetrometer cones, needles and accessories for petroleum products testing and for a wide range of other applications (See optional accessories) Supplied complete with Needle/cone, container and applicable weight

Introduction Hand operated With Automatic Timer Hand Operated : The apparatus consist of a cast aluminium base with an iron stand on which moves an aluminium arm. A 6" dial is fixed on this arm and a brass chromium plated rod slide through the lower portion of the arm. A needle with weights is fitted to this rod. The dial is graduated from 0-400 in one tenth millimeter sub division. Supplied complete with adjustable needle holder, penetration needle sample container, transfer dish and weight of 50 gms. With Automatic Timer : Same as above but with automatic digital timer and electrical arrangement.

Compliance Standards ASTM D5, ASTM D217, ASTM D937, ASTM D1321, AASTHO T-49, IP 50, IP 49, IP 179 Applications Needle Penetration of Bituminous Materials ASTM D5; IP 49; DIN 52010 Cone Penetration of Lubricating Grease ASTM D217; IP 50; ISO 2137; DIN 51804; FTM 791-311, FTM 791-313 Cone Penetration of Petrolatum ASTM D937; IP 179; ISO 2137; DIN 51580 Needle Penetration of Petroleum Waxes ASTM D1321; IP 376; DIN 51579 Cone Penetration of Lubricating Grease Using One-Quarter and One-Half Scale Cone Equipment ASTM D1403; IP 310; ISO 2137; DIN 51804

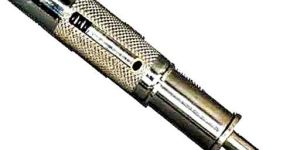

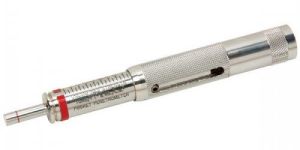

This test is used to determine the elapsed time between batching of a concrete sample and when it is deemed by standard methods to have set. The method involves measuring the penetration resistance of a test sample, which has had coarse particles removed at periodic intervals. It is particularly useful, in determining the effect on setting time of admixtures in the concrete, where these may have been introduced specifically to increase the setting time.It consists of cylindrical spring housing with a plunger attached to the top of the spring. Penetration needle is attached to the other end of the spring housing. The plunger is graduated in 1 kg divisions, to a maximum capacity of 60kg, which can be read with respect to the top end of the spring housing. A set of six needle points with areas of 645, 323, 161, 65, 32 and 16mm2 are provided. Supplied complete in a wooden carrying case. Pocket Penetrometer Consists of a needle having face area 3/10 sq.cm. and graduated at a distance of 25mm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve. The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. Scale range is 0-50 kg/cm2 when the penetration resistance reaches a value of 35kg/cm2 the concrete is assumed initially set. Supplied complete in a leather carrying case. AS PER ASTM C-403

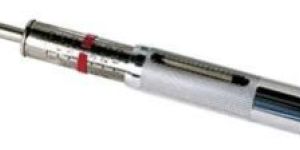

    Introduction This test is used to determine the elapsed time between batching of a concrete sample and when it is deemed by standard methods to have set. The method involves measuring the penetration resistance of a test sample, which has had coarse particles removed at periodic intervals. It is particularly useful, in determining the effect on setting time of admixtures in the concrete, where these may have been introduced specifically to increase the setting time.   It consists of cylindrical spring housing with a plunger attached to the top of the spring. Penetration needle is attached to the other end of the spring housing. The plunger is graduated in 1 kg divisions, to a maximum capacity of 60kg, which can be read with respect to the top end of the spring housing. A set of six needle points with areas of 645, 323, 161, 65, 32 and 16mm2 are provided. Supplied complete in a wooden carrying case.   General Descriptions & Specifications The Concrete Mixers are available in two versions for Laboratory or field use. The field models are hand operated. This portable concrete mixer has rubber tyred wheelsand a towing tongue so that it can be towed and moved around by hand. Its rotationis powered by single-phase electric motor or by hand . The lever allows the concrete to be tipped into a wheel-barrowor mixing pan. The driving shaft is mounted on sealed ball bearing The counter balanced drum swivels and tilt 360° for easy and complete discharge.   Pocket Penetrometer Consists of a needle having face area 3/10 sq.cm. and graduated at a distance of 25mm. The needles point is an integral part of barrel which houses a calibrated spring. The spring is confined in a sleeve. The resistance offered by the concrete mortar is shown on the direct reading scale with a marker ring which holds its position when released. Scale range is 0-50 kg/cm2 when the penetration resistance reaches a value of 35kg/cm2 the concrete is assumed initially set. Supplied complete in a leather carrying case. AS PER ASTM C-403 .

Owing to our expertise in this domain, we are offering our clients a broad assortment of BITUMEN PENETROMETER

Bitumen Penetrometer, Inspection Systems, Pipe Inspection Camera

Standard Penetrometer, Glass Adapter, Stefan Boltzmann Apparatu

Cone Penetrometer, Colour Matching Cabinet, Toxicity Teste

Penetrometer, Digital Thermometer, Lab Glassware, Lab Chemica
