Penetrometer Dealers in Delhi

Digital Penetrometer method has several advantages over the Casagrande method. It is easier to perform this test and the results are not so dependent on the design of the apparatus or the judgement of the operator. It is applicable to a wider range of soils. The test is based on the relationship between moisture content and the penetration of the cone into the soil sample. The moisture content at a given depth of penetration of the cone is taken as the liquid limit. As an inferential test, empirical correlations have been developed to assess the shear strength of soils at liquid limit. Reduces operator error • Applicable to a wide range of soils • Gives reproducible test results • Provides direct measurement of penetration.

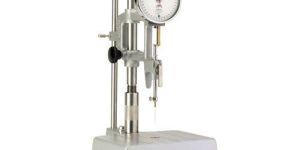

As per IP 49, 50 & 167 specifications and also per is 1448 (p: 60) & (p: 93) this apparatus is used for penetration test on a wide variety of materials. It consists of a head support mounted on a vertical rod which can be adjusted for height. A rack and pinion and pointer assembly provides fine adjustment of needle tip to sample and in corporate a slipping clutch mechanism which make reading of penetration and subsequent resetting a sample and accurate operation. The dial graduate from 0-400 in one tenth millimeter sub-division. The instrument is supplied with two sample containers & 2 wts. Penetrometer apparatus with containers and weights having penetration needle (Bitumen) Penetrometer apparatus with containers and weights having penetration CONE HOLLOW type (Grease) same as above – but with Geared arrangement for moving the arm with geared unit. Penetrometer with Brass Cone & Needle with DIGITAL TIMER DEVICE (Adjustable) --- same as above—but with geared arrangement for moving the arm with geared unit. Salient Features Optional Accessories Spare Penetration Needle (Pack of two) Spare Penetration solid cone Spare Penetration brass hollow cone Grease worker hand operated Grease worker hand operated big handle (Lever type) Grease cutter as per IP 50 Transfer Dish

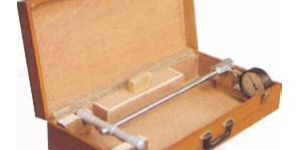

Product Code: EKE 165 Standrad: ASTM D 1558   Comprises hydraulic proctor needle system complete with a pressure gauge fixed at easily readable angle reading 0-70 kg x 2 kg. A set of needle points is supplied as a part of standard supply. This is identical to EKE 164, except that the penetration pressure on the needle is conveyed through a hydraulic system to a hydraulic pressure gauge. This system permits a greater control over rate of penetration because of better visibility of load indication on the gauge.

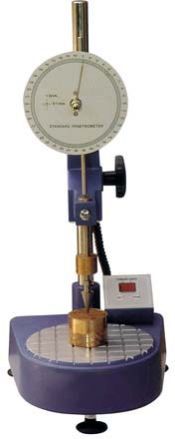

The Semi Automatic Cone Penetrometer that we provide are of utmost use for determination of the moisture content at which clay soils pass from a plastic to a liquid state. We make available two versions of Semi Automatic Cone Penetrometer. It features a timer, where the cone is allowed to free fall for a period of 5 seconds, including one each of 50 gm. & 100 gm. weight, one penetration cone, preset counter & measuring cup.

This apparatus is used for penetration test on a wide variety of materials such as grease, Petroleum, Bitumen, Tar, Wax, Polish, food stuff, Rubber asphalts and pharmaceuticals Creams.A given force is applied over a given of a millimeter and expressed as penetration. It consists of a head support mounted on a vertical rod which can be adjusted for height. A rack and pinion and pointer assembly provides fine adjustment of a needle tip to sample and incorporates a slipping clutch mechanism which make reading of Penetration and subsequent resetting of a sample and accurate operation. The dial is graduated from 0-400 in on tenth millimeter Sub Division. The instrument is supplied with two samples containers made of aluminium. The penetration is the distance in millimeter that a standard needle penetrates vertically into a sample of the material under fixed conditions of loading time and temperature. This instrument measures the reading on round dial fitted on a Aluminium Painted stand having adjustable penetration needle, holder sample container and transfer dish.

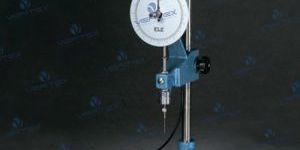

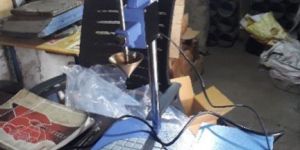

Automatic Digital Bitumen Penetrometer-VSLIC4038 The Automatic Electronic Penetrometer is used for determination of the needle penetration according to EN 1426, ASTM D5 and AASHTO T49 standards. The penetration depth of the needle is determined with a pulse type electronic measuring system, which is separated from the plunger during the test, this allows the free guidance of the plunger which virtually eliminates friction during the test.Before each start of the test the measuring system automatically resets, and then the penetration needle moves down to the sample by using the electric drive, the needle position can be finely adjusted by using the joystick located on the front panel. A magnifying glass and an ultra- bright LED lamp are supplied to assist the operator; the plunger is then automatically released onto the sample and raised automatically after the testing period. The test result is displayed on the digital display. The plunger can easily be removed to calibrate its weight.A water bath and a thermometer (IP38, ASTM 17C or 63C) required for the test are ordered separately. The Automatic Electronic Penetrometer is supplied complete with;Penetration Needle, 1 pieceTransfer DishSample Cup, Ø 55×35 mm, 6 pieces, stainless steel Technical Specifications Measuring Range: 0-50 mm Resolution: 0.01 mm Test Load: 100 g (plunger 97.5 g + 2.5 g penetration needle) Test Time: 5 seconds (adjustable from 0.1 to 9999 sec.) Dimensions: 270x480x750 mm Weight (approx.): 24 kg Power: 75 W Automatic Digital Bitumen PenetrometerAutomatic Electronic Penetrometer is used for determination of the needle penetration according Before each start of the test the measuring system automatically resets, and then the penetration needle moves down to the sample by using the electric drive, Automatic Digital Bitumen Penetrometer Summary The Automatic Electronic Penetrometer is used for determination of the needle penetration according to EN 1426, ASTM D5 and AASHTO T49 standards. The penetration depth of the needle is determined with a pulse type electronic measuring system, which is separated from the plunger during the test, this allows the free guidance of the plunger which virtually eliminates friction during the test.

Penetration is a measure of consistency to determine the plasticity of substances. It is measured by the distance a standard cone or needle will penetrate the surface by a free fall of a standard temperature. Penetration Apparatus is used in production for controlling the consistency of solid, Plastic, Semi-Solid & Viscous materials. Petroleum & Petro-Chemical, Plastics, food, paper, confectionery, cosmetics, Rubber & many other Industries have application for Penetrometer Apparatus. It is used for penetration test on a wide variety of materials such as grease, petroleum, bitumen, tar, wax, polish, food stuff, rubber, asphalts and pharmaceutical creams.This apparatus consists of a head support mounted on a vertical rod which can be adjusted for height. A rack & pinion & pointer assembly provides fine adjustment of cone or needle tip to sample & incorporates a slipping clutch mechanism which makes reading of Penetration & subsequent resetting a simple & accurate operation. The dial is graduated from 0-400 in one tenth millimeter subdivision. The Instrument is supplied with weights & sample containers

Sed to determine the moisture content at which clay soils pass from a plastic to a liquid state. Two Version are available. One the standard one & the other is semi-automatic with timer where the cone is allowed to free fall for a period of 5 seconds including one each of 50 gm. & 100 gm. weight, one penetration cone, preset counter & measuring cup.

Like Standard Penetrometer we also master in making Automatic Standard Penetrometer. We Manufacturer Automatic Standard Penetrometer with transistorized timer and Electro magnet incorporated in the clutch mechanism to accurately control penetration time to exact five seconds

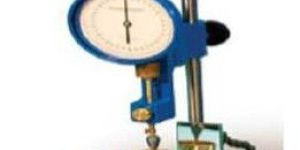

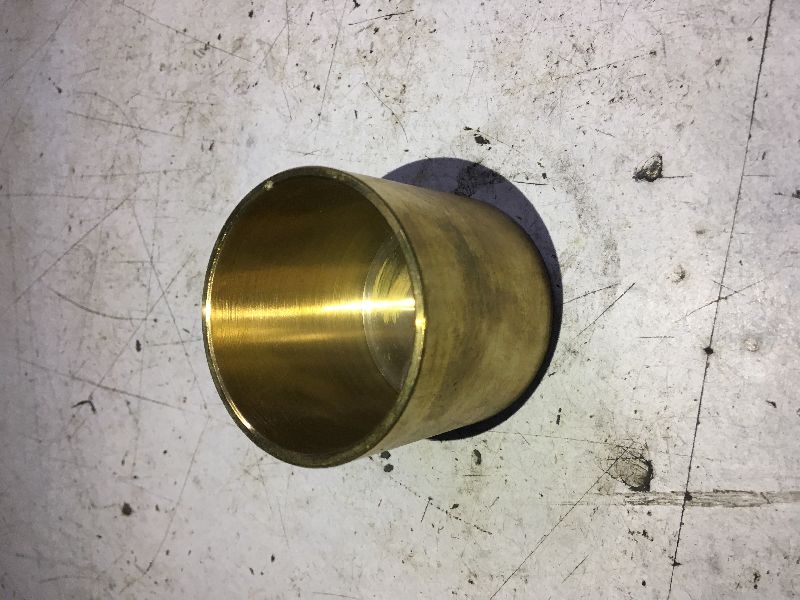

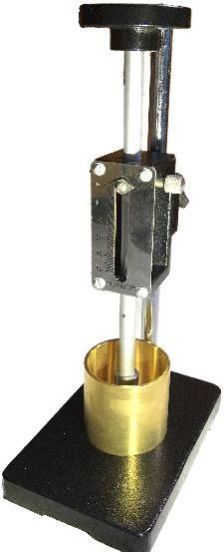

It will consist of metallic cone with half angle of 15' -30 ±15' and 30.50mm coned length. It will be fixed at the end of a metallic rod with a disc at the top of the rod so as to have a total sliding weight of 148± 0.5 gms. The total rod shall pass through two guides. (to ensure vertical movement) fixed to a stand. Suitable provision will be made for clamping the vertical rod at any desired height above the surface of the paste in the trough. A brass trough 50 mm internal diameter and 50 mm depth will be provided as per IS specification resting on M.S.bars. Ground Glass: 10mm thick and about 45 cm square or larger rough glass as per IS 2720 (Part V-1985) for mixing soil and water Spatula: Flexible with blade about 8 cm long and 2 cm wide made from stainless steel material as per IS: 2720 (part V-1985) Evaporating dish: Made from porcelain material having diameter of about 12 to 15 cm with smooth surface as per IS 2720 (part V-1985)

This apparatus is used for penetration on a wide variety of material such as greases petroleum, bitumen tar wax and polish. It consists of Timer (for setting the number of fall of needle ) head support mounted on a vertical rod, which can be adjusted for a height. Rack and pinion assemblies provide a fine adjustment of needle tip to a sample and incorporate a slipping clutch mechanism which make a reading of penetration and subsequent resetting of a sample and accurate operation. The dial is graduated from 0- 400 in one tenth millimeter sub division. It is supplied with on e container and one set of needle. SPP-1036 Bitumen Cone PenetrometerSame as SPP-1035 but without timer SPP-1037 Bitumen Penetration KitsConsists of one container and one set of needle SPP-1038 Red Wood Viscometer no1 electric heated with solid-state electronic regular without accThese viscometers are designed for viscosity tests of petroleum products. They confirm to recruitments of IP 70. Two adaption of red wood viscometer are available No.1 for liquids having red wood flow 20 seconds to 2000 seconds and No.II for liquids whose flow time exceeds 2000 seconds. The complete out fit comprises hammer finished stainless steel bath with electrical heating arrangements suitable to operate at 220 Volts AC mains with tap, silver plated oil cup with precision stainless steel jet, cup, cover ball, valve, thermometer-clip. Stirrer and M.S. sheet stand with leveling screwsRedwood Viscomet Er No.1 a.) Electrical heated with energy regulator control b) Same as above with digital indicator and controller

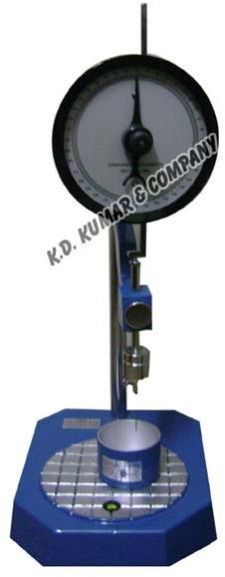

We are a trustworthy Manufacturer, Exporter and Supplier of Bitumen Penetrometer. The Bitumen Standard Penetrometer, offered by us, encompasses a base with the head support that mounted on a vertical rod for adjustment of height. Plus, the dial is advanced from 0-400 in1/10th mm subdivision. The Bitumen Penetrometer is offered by us with plunger & weight or needle & penetration mold. In addition to this, we can also make available its automatic model. Our Bitumen Penetrometer is competitively priced.

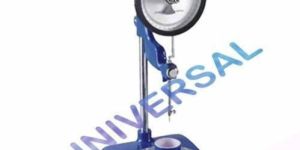

We bring forth Standard Penetrometer which is used to determine the quality of bitumen. Standard Penetrometer detects the consistency of bitumen for the purpose of grading. The Standard Penetrometer available with us is designed with a vertical pillar mounted on a base provided with leveling screws. FeaturesProvided with head and plunger rod and a con (needle), which slides on a pillar and can be clamped at any desired heightA rack, pinion and pointer assemble, provides fine adjustment of needle or cone tip to sampleIncludes a clutch mechanismSimple and accurate operationThe dial is graduated in 400 1/10 and the millimeter subdivisions and the needle pointer against figures makes easy reading ApplicationsCeramic industryChemical industryConstruction industryDefenseIrrigation industryMining industryPower (hydro/ thermal) Industries.

We are leading manufacturer of very high quality Pocket Penetrometer at a very reasonable market price.This instrument is used to estimate approximate unconfined compressive strength and the estimation to shear strength of soil Cohesive soils can also be classified in terms of consistency.It can be used on light weight concrete, special roof deck mixes and concrete additives.This instrument is used to estimate approximate unconfined compressive strength and the estimation to shear strength of soil Cohesive soils can also be classified in terms of consistency using this Penetrometer. This is a helpful and advantageous instrument. The needles point is an indispensable piece of barrel which houses an aligned spring. The spring is bound in a sleeve. The resistance offered by the solid mortar is appeared on the immediate perusing scale with a marker ring which holds its pos. Pocket Penetrometer for Soil Pocket Penetrometer is a lightweight, direct-reading soil penetrometer giving instant information for classification of cohesive soils on site or in the lab. Features: Excellent performance Superior quality Accurate results User friendly

We have invested a large amount for developing all-the-in-house storage facility that is managed and maintained by our diligent professionals. Also, it keeps us free from stock-out situations. Buyers can approach us, if looking for obtaining first-class products in Delhi(India). Hydraulic penetrometer is a simple tool allows you to observe the degree of soil compaction at depths from 0-18 inches (0-45 centimeters).
