The company has emerged as a prominent Manufacturer and Supplier of Vane Shear Apparatus. The Vane Shear Apparatus is meant for the soft and sensitive soils with shear strength less than 15 KNm2. Providing test results through careful control and compression, the Vane Shear Apparatus can work in the laboratory or fields. A small vane is to be pushed in the soil, with the controlled rotation measuring force needed for maximum resistance.

Soft and sensitive soils whose shear strength is less than 15 KN/m2, the results are dependent on operator's skill. Even pushing the sample tubes in soil may cause some disturbance. Experience shows that carefully controlled compression test results can be related to figures obtained by pushing a small vane in the soil and rotating it at a controlled rate and measuring the force, required for maximum resistance. Vane Shear Test can be conducted in a laboratory or in the field.

Quality being the sole concern, we offer functionally updated array of Vane Shear Apparatus that are quality assured and are corrosion resistant in nature. Our entire product range has high shear strength and is performance based. The Vane Shear Apparatus are known for their quality assurance.

• diameter: 38mm

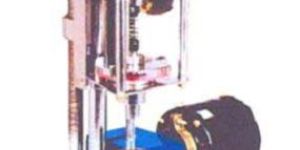

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement turning the upper end of a calibration torsion spring, vane dia, rod dia, vane size & vane height are as per IS specifications. The vane shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle indicates the angle of torque on a dial graduated in degree the dial reading multiplied by spring factor gives the torque a container for soil sample is also supplied & a sampling tube of 38mm. i.d. & 150mm long can also be used as container . Supplied with set of four springs, one each of approx. 2 kgscm sq., 4kgscm sq., 6 kgscm sq. & 8kgscm sq. complete as above in a wooden carrying case.

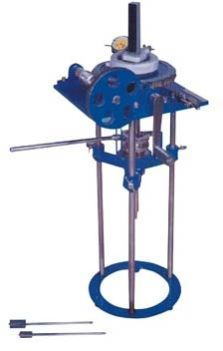

We provide another soil testing apparatus named as In-Situ Vane Shear Test Apparatus. The Apparatus is known for efficient execution of situ vane shear test from the bottom of a bore hole to analyze the place of adhesive deposits in shearing resistance. The apparatus is provided by the manufacturing concern at an economical price and is known for is durable quality among our clients. Specifications The equipment consists of a torque applicator assembly mounted on a base, a gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank, the torque ring is a split ring & deforms as torque is applied & the deformation is indicated by a dial gauge. A calibration 2 chart to convert dial gauge readings to torque force in kgscm is supplied. A pointer is provided For registering the rotations of the vane, a detachable stand is provided to anchor the instrument an attachment to securely hold the string of rods is provided. Vane ( with vane rod ) 37.5mm dia x 75mm high 1 no.Vane ( with vane rod ) 50.0mm dia x 100mm high 1 no.Torque rod ( square cross section) 0.6mts long 1 no.Rods quick couplind type, 1 mtr. long 1 no.Rods quick coupling type, 1 ½ mtr. long 1 no.Dummy rod, corresponding to 37.5mm dia vane 1 no.Dummy rod , corresponding to 50.0mm dia vane 1 no. Features Of 5 In-Situ Vane Shear Test Apparatus Consist of a Dummy Rod, with specs 50.0 mm dia vane 1 no.In-Situ Vane Shear Test Apparatus also consist of dummy rod, with specs, 37.5 mm dia vane 1 no.Rods are provided with quick coupling typePackaging is done carefully

Product Code: EKE 138Standrad: Standard I S: 4434 This apparatus is designed for conducting in-situ vane shear test from the bottom of a bore hole in saturated cohesive deposits, for determining their in-place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank. The torque ring has a section cut from it and deforms as torque is applied and the deformation is indicated by a dial gauge. A pointer is provided for registering the rotation of the vane. A detachable stand is provided to anchor the instrument. An attachment to securely hold the string of rods is provided. A calibration curve to convert the dial gauge readings to kg-cm of torque is also supplied.   EKE 13801 Torque Applicator Assembly, capacity2,000 kg-cm. Complete with stand One EKE 13802 Vane (with Vane Rod),37.5 mm dia x 75 mm high One` EKE 13803 Vane (with Vane Rod), one EKE 13804 Torque Rod (square cross section)60 cm long Twenty five EKE 13805 Rods (quick coupling type)1 m long Twenty five EKE 13806 Rods (quick coupling type)0.5 m long One EKE 13807 Dummy Rod One

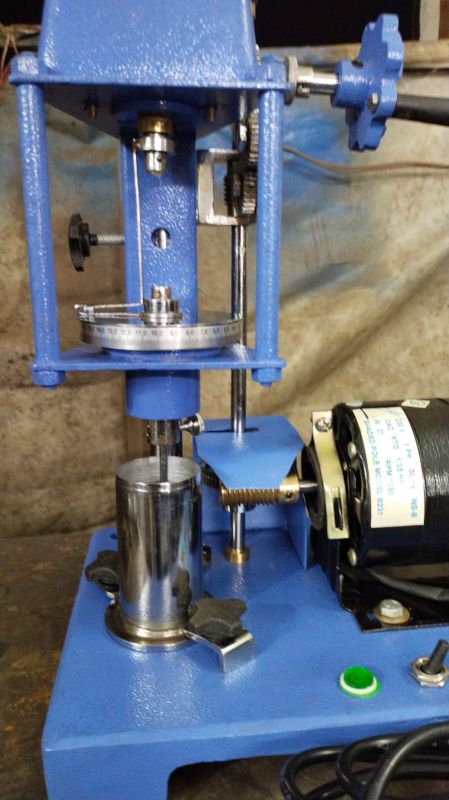

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of an electrically operated rate of rotating is 1/60 R.P.M. Suitable for operation on 230 V A.C. Single Phase which operates a worm gear arrangement turning the upper end of a calibration torsion spring, vane dia, rod dia, vane size & vane height are as per IS specifications. The vane shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle indicates the angle of torque on a dial graduated in degree the dial reading multiplied by spring factor gives the torque a container for soil sample is also supplied & a sampling tube of 38mm. i.d. & 150mm long can also be used as container . Supplied with set of four springs, one each of approx. 2 kgs/cm2, 4kgs/cm2, 6 kgs/cm2 & 8kgs/cm2 complete as above in a wooden carrying case

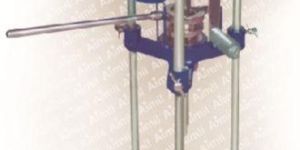

This apparatus is designed for conducting in-situ Vane Shear test from the bottom of bore hole in saturated cohesive deposits, for determining their in-place shearing resistance. The equipment consists of a torque applicator assembly mounted on a base. A gear wheel, which is marked in degrees, holds a torque ring and is geared to a crank. The torque ring has a section cut from it and deforms as torque is applied and the resultant deformation is indicated by a dial gauge. A pointer is provided for registering the rotation of the vane. A detachable stand is provided to anchor the instrument. An attachment to securely hold the string of rods is provided. A calibration curve to convert the dial gauge readings to kg-cm of torque is also supplied.

This method is performed to take the specimen from the soil where sampling tubes cause problem. Its validity is proved where soils have shear strength in order of 15kNm2 or less. This test asks complete care and skill of operator.

We offer to our customers a high performing Vane shear Apparatus at a marketing leading prices. The vane shear test is an in-situ geotechnical testing methods used to estimate the undrained shear strength of fully saturated clays without disturbance. The test is relatively simple, quick, and provides a cost-effective way of estimating the soil shear strength; therefore, it is widely used in geotechnical investigations. Under special condition, the vane shear test can be also carried out in the laboratory on undisturbed soil specimens; however, the use of the vane shear test in in-situ testing is much more common.
