Pulleys Dealers in Vastral, Ahmedabad

Our Magnetic Head Pulleys is specially design for conveyor systems to continuously remove and discharge tramp metal from the product flow for purification and materials separation. These magnetic head pulleys is more preferable for superior removal of ferrous contamination such as spikes, nuts, nails, cans any many other unnecessary materials. Mostly used in wood, plastic, steel, paper, scrap yard, mining recycling, municipal recycling industries and many other recycling plants with best and maintenance free operation.

The magnetic Drum pulley replaces the drive pulley at the end of conveyor belts. In view of the wide variety of conveyor belt types, the drum pulley are supplied made to measure and ready for installation. As the figure clearly show, the magnetic head roller extracts the iron particles from the material flow and carries them to the underside of the belt where they are removed and collected. Head roller magnets for conveyor belt are supplied in permanent magnets. The version with permanent magnets are fitted with powerful and An-Isotropic Hard ferrite Magnets /high intensity Rare Earth Nd-Fe-B Magnets and operate without the need for power supplies. The magnet system is available in two types: with Longitudinal polar field distribution for use with low levels of iron contamination and thin material layers, and with lateral polar field distribution for greater material thickness and larger iron particles.

Flat belt pulleys are used in transmission systems that are driven by flat belts, typically high-speed, low-power applications in textiles, paper making,, oil industries, steel industries, HVAC system and many more... Our flat belt pulleys and flat belt idler pulleys have a molded crown, which helps to center the belt, prevent rubbing against the outside flanges, and provide support under the center of the belt, where there is the most stress. The crown also helps to keep the belt on the flat belt pulley (belts tend to move to the tightest position). In some cases, our flat belt drive includes a tracking sleeve or other mechanism for keeping the belt on the flat pulley.

Head/Drive Pulley is located at the discharge terminus of the conveyor. It provides the driving force for the conveyor. In order to increase pulley life and traction, it often has a larger diameter than other pulleys.Jagruti can supply pulleys with hot vulcanized rubber lagging, plain or grooved, as required by client. Different patterns of grooving such as herringbone or diamond can be provided to increase tractive friction under dirty or wet conditions. Diamond grooves have the advantage of being installed in any orientation, regardless of belt direction.

We manufacture a wide range of Conveyor Pulleys with laining which are used for hassle-free conveyor operations. Our range caters to the needs of various industries, and is known for its high quality and cost effectiveness. We fabricate these pulleys keeping into view the accurate dimension and excellent durability. We also have competence to offer them as per the demands of our industrial clients.

We are associated with a group of quality auditors who check the offered lot on several parameters for ensuring quality compliance of the products. We are comfortable with online and traditional payment methods. Our policies related to payment procedures are transparent. We believe in professionally managing payment agreements.

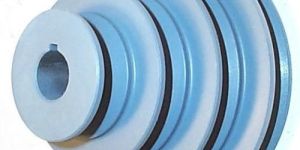

A series of pulleys of various diameters combined in a single concentric unit is knows as step pulley and used to vary the velocity ratio of shafts. Step Pulley is used where variations are required from slow rotations to high rotations with change of torque. It is also known as cone pulley.

With leveraging experience in manufacturing a quality range of belt pulley, Rajendra pulley pedestal center offers a wide range of pulley & gear that are required in paint industry. In paint industry belts are used for transfer paint from ground to places where it is used. Belt pulley is one type of drive pulley which fitted bottom the belts and on which they are smoothly run. We offer various types of gears, sprocket, pedestals that also used in paint industry.

With rich experience of this domain, we have established ourselves as a prominent manufacturer and supplier of Magnetic Drum Pulley. Widely used in ceramic and chemical industries, our offered magnetic tool is developed by experienced professionals using optimum grade raw material. In addition to this, we also customize this magnetic pulley in different sizes as per specific demand of the customers. Our offered Magnetic Drum Pulley is widely acknowledged and demanded in the markets owing to its reliable operation and optimum functionality. Features: Easy to fit Robust construction Resistant to corrosion

Head Pulley Magnets provide continuous self cleaning on products conveyed by belt. As product is conveyed along the belt it reaches the head pulley and enters the magnetic field where metal contaminants are attracted and held tightly to the belt surface. As the belt is conveyed around the magnetic pulley, metal contaminants are held in place until they pass through the magnetic field where they are safely discarded separate from the clean product. A diverter is typically installed below the pulley to direct the metal contaminants away from the cleaned product.   Construction : 304 stainless steel face Bored and keyed hubs Permanent ceramic magnet material All welded rugged construction Keyed shafts Axial or radial pole magnetic circuit.   Features : Available with or without shaft Several hub styles Lagged face Crowned face Taper lock hubs Stainless steel shafts High energy rare earth magnet material Custom sizes available Polarity options.

Magnetic Pulley, Ceramic Magnet, Suspension Magnet, Magnetic Separato

The magnetic Drum pulley replaces the drive pulley at the end of conveyor belts. In view of the wide variety of conveyor belt types, the drum pulley are supplied made to measure and ready for installation. As the figure clearly show, the magnetic head roller extracts the iron particles from the material flow and carries them to the underside of the belt where they are removed and collected. Head roller magnets for conveyor belt are supplied in permanent magnets. The version with permanent magnets are fitted with powerful and An-Isotropic Hard ferrite Magnets /high intensity Rare Earth Nd-Fe-B Magnets and operate without the need for power supplies. The magnet system is available in two types: with Longitudinal polar field distribution for use with low levels of iron contamination and thin material layers, and with lateral polar field distribution for greater material thickness and larger iron particles.

Head Pulley Magnets provide continuous self cleaning on products conveyed by belt. As product is conveyed along the belt it reaches the head pulley and enters the magnetic field where metal contaminants are attracted and held tightly to the belt surface. As the belt is conveyed around the magnetic pulley, metal contaminants are held in place until they pass through the magnetic field where they are safely discarded separate from the clean product. A diverter is typically installed below the pulley to direct the metal contaminants away from the cleaned product. Construction : 304 stainless steel face Bored and keyed hubs Permanent ceramic magnet material All welded rugged construction Keyed shafts Axial or radial pole magnetic circuit. Features : Available with or without shaft Several hub styles Lagged face Crowned face Taper lock hubs Stainless steel shafts High energy rare earth magnet material Custom sizes available Polarity options

Our pulleys are ideal for use with various industrial machines and construction equipments. These are between 2”-95 ” in size, made with aluminum alloy/aluminum, Cast iron and are capable of providing static or dynamic balance as required. We offer the following pulleys for different industrial applications: Groove Pulley Flat Pulley CI Fly Wheel

Step pulleys, This step pulley is developed by using best quality products and latest tools in compliance with market norms. We completely check the entire range of step pulleys on various quality parameters to make a standard of our products. We provide options of customization to our customers as per their requirements regarding products. Features: Sturdiness Easy installation Compact design

We offer an extensive range of Taper Lock Pulleys, which is easy to install and use. Taper Lock Pulleys come in varied sizes and design as per our clients' specifications and requirements. Manufactured from high quality raw material, Taper Lock Pulleys are wear & tear resistant, durable and high temperature resistant. Taper Lock Pulleys are made available at the most reasonable prices. Highlights Fitment & Dismantling makes faster & easierStandard available range is up to 508mm/20" shafts dia.Reduces downtime and also belt replacement costAvailable in inches & millimetersAvailable in Special or Odd Sizes as per drawings

We Offer Conveyor Drum Pulley. Offering drum pulley:The head and tail drum pulleys manufactured by us are readily available throughout the market at industry leading prices. These are fabricated by experienced professionals, who adhere to all internal quality norms.

Our organization is engaged in manufacturing top quality Vee-Belt Pulleys, which are appreciated for their sturdy construction and high efficiency. The raw material used in the production process is steel casting and cast iron. We also offer customized range of these pulleys according to the requirements of our clients. Some of the features of our product are as follows: Resistant to wear & tear Robust construction Withstand heavy load Smooth operation

For the utmost customer satisfaction, we are flexible in delivering the product range at the place agreed by the customers and that too in the set time. With the assistance of our packaging experts and advanced machines, we became capable of meeting the standard as well as customized packaging requirements of the clients.
