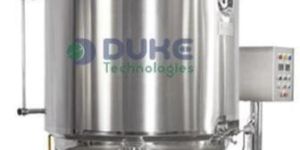

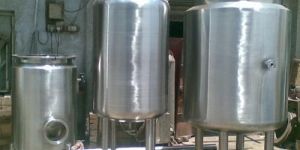

Stainless Steel Reaction Vessel Dealers in Ahmedabad

Stainless steel reaction vessel the vessels according to the customer's specification as well as according to the various Codes, Governing Procedures for design, Fabrication inspection testing and operation of pressure vessels from mild steel, stainless steel or of cast iron.

Reaction vessel sailant featurs : process reaction vessels    • process reaction vessels  • autoclaves / hydrogenators    • gmp reactors • reactors for corrosive applications   heat exchangers/pressure vessels/agitators    • custom-designed agitators    • pressure vessels/ tall vertical columns    • heat exchangers made of special alloys    • silicon carbide exchangers   dryers/mixers    • rotary vacuum paddle dryers • rotocone vacuum dryers    • conical screw dryers • spherical paddle chopper dryers    • ribbon blenders   specialised plant equipment     • gmp reaction & distillation systems for bulk drugs and       active pharmaceutical ingredients.

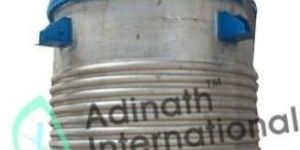

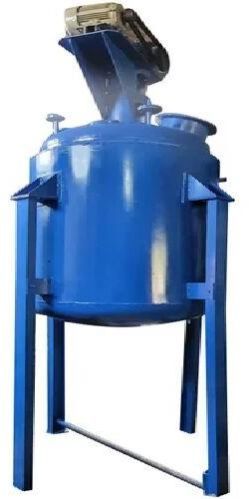

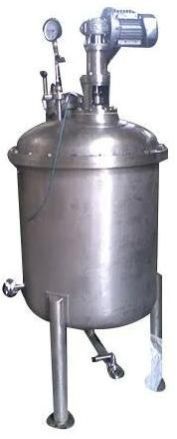

A jacket is provided on the Outside of the shell for Heating the reactor by passing steam or thermic Oil. or Cooling the reactor by passing cooling media. Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel. JACEKTED REACTION VESSEL DESCRIPTION : Jacketed Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends. TECHNICAL SPECIFICATION : A jacket is provided on the Outside of the shell for Heating the reactor by passing steam or thermic Oil. or Cooling the reactor by passing cooling media. Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel. Agitator assembly mounted on the Top dish of Reactor consists of Shaft supported by Lantern Assembly on the Top End containing Bearing Housing with Tapered roller bearing and Ball bearing to withstand impact load and vibratory load ensuring smooth rotation of the Shaft. Water cooled Stuffing box filled with gland rope pressed by Gland pusher is also provided. On the other end of the shaft Blade is fitted of different types as per the need of the Process viz. Single Anchor, Double Anchor, Gate, Paddle, Flat or Curved Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement. Top Dish of the Reactor is provided with various Nozzles viz. Manhole, Light Glass, Sight glass, Vapour, Addition, Reflux, Thermowell etc. Bottom Dish of the Reactor is provided with an Outlet nozzle where valve is fitted.
