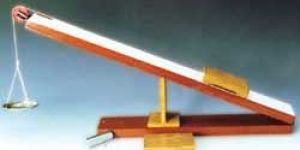

A plane board, 600x75mm, hinged to the base at one end and provided with a pulley for the force cord at the other. The inclination of the plane to be varied. Complete with brass roller 75 x 25mm diameter and scale pan.

Fitted on New-Wood board size 3/4 x 4" with Pan, Big Arc and Iron roller. (a) Reading Telescope: cat no. 1030 Complete with 175 mm objectives Eye piece 10x fitted on heavy base. (b) cat no 1032 -do- as above but special clamp for vertical movement with clamp and scale.

INCLINED WOOD PLANE A 6 mm glass tube contained in an brass case, mounted on a polished wooden board with plates for fixing to wall, open plate reflectors and ring and screws for vertical adjustment. The silvered scales, graduated in inches and mm are read by vernier moving by Rack and Pinion to 1200 in and 110 mm and are enclosed in glass cylinder. A glass cylinder at the lower end of the Barometer is provided with an ivory point to which the level of the mercury in the cistern is adjusted before readings are taken. Fitted with thermometer with centigrade and Fahrenheit scale. Supplied without mercury.

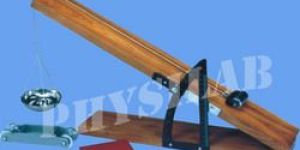

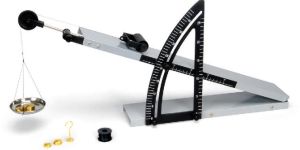

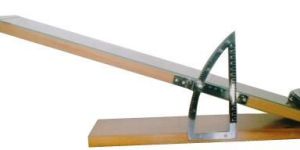

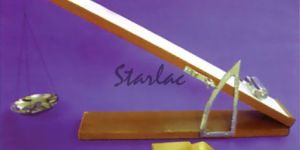

The convenience and versatility of this unit has made it very popular. It consists of a 15 x 60 cm. wooden board with glass top hinged on an iron base. To this is provided a sector with graduated arc and vertical scale. The plane may be clamped at any angle upto 45 degree. A frictionless pulley of 5 cm. diameter is attached to the end by means of a clamp adjustable to any necessary position. Inclined Plane is offered complete with brass roller, cart and pan, but without weights.

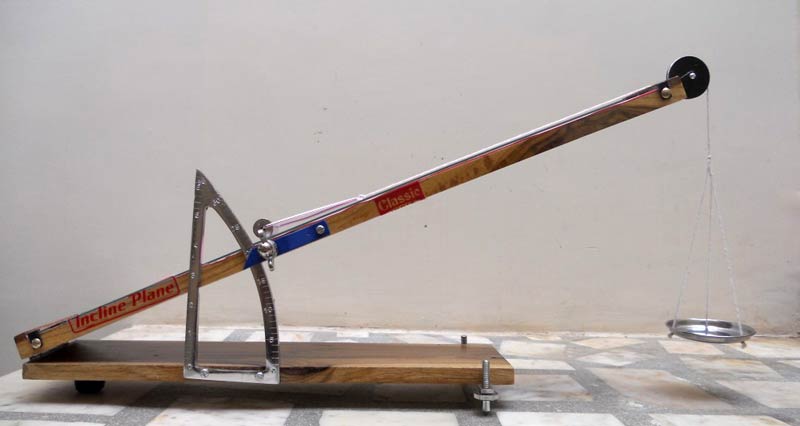

A 600 x 75 mm plane hinged to base at one end carries a pulley at the other. A movable block enables variation of inclination of plane, a friction slide 100 x 65 mm which is reversible and has one side cut away for half of its area. Complete with metal roller 75 x 25 mm diam., with pan but without masses.

We are one of the supreme Manufacturers, Exporters and Suppliers of Inclined Plane. Inclined Plain offered by us consists of a 600 x 75 mm plane hinged to base at one end carries a pulley at the other. A movable block enables variation of inclination of plane, a friction slide 100 x 65 mm which is reversible and has one side cut away for half of its area. Complete with metal roller 75 x 25 mm diam., with pan but without masses. Features Easy to useRobust ConstructionDurableNominal Rates

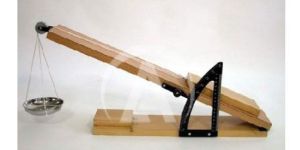

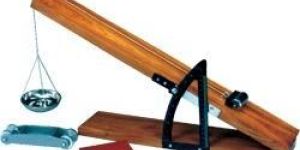

Hardwood comprising, cut-away base to allow cord to hang freely and hinged plane 60x7.5 cms. with aluminium pulley 28mm diameter, and stepped lower face to accommodate wood block for setting at angles between 24° & 45° approximately with cylindrical metal roller and scale pan.

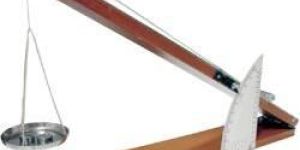

We are offering inclined plane : hardwood comprising, cut-away base to allow cord to hang freely and hinged plane 60x7.5 cms. With aluminum pulley 28mm diameter, and stepped lower face to accommodate wood block for setting at angles between 24° & 45° approximately with cylindrical metal roller and scale pan.

Hardwood comprising, cut-away base to allow cord to hang freely and hinged plane 60x7.5cms. with aluminium pulley 28mm diameter, and stepped lower face to accommodate wood block for setting at angles between 240 & 450 aproximately with cylindrical metal roller and scale pan.

The device is used to study the friction between two surfaces and the forces on an Inclined plane. Students can determine the coefficient of static friction and the coefficient of sliding friction and verify the normal and frictional components of the force exerted by the plane.

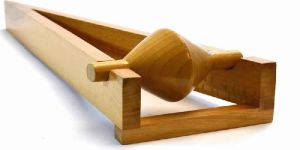

As the cylinder goes down the inclined plane, the double cone goes up, apparently contravening the laws of mechanics. In reality the center of gravity of both moving bodies goes down. Made entirely of wood. Length of the inclined plane: 50 cm. Dimensions of the double cone: 35 cm. Dimensions of the cylinder: 35 cm.
