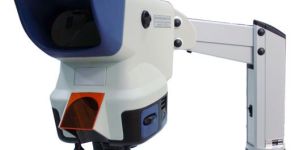

Radical Stereo Inspection Scope is with a specially wide field of viewing. It can from a clear and sharp image with a strong stereo sense of sight be comfortably viewed and conveniently operated. It is widely used in all kinds of field such as biology, anatomizing, electronic industry, mineral, investigation, inspection, etc. This improve operator's working efficiency and makes operators no longer suffer the strain of eye, neck and back due to the humanistic design. It is highly recommendable for electronic industry. Stereo image, rotary turrent can together fix 3 pieces of objectives with magnification 4x, 8x, and 12x to work, wide field view and long working distance make the observation more easy and joyful. Advanced optical technology allows operators freedom of head movement for superbergonomics and hand-eye-co-ordination, with the ability to wear glasses if required. Operators can increase productivity and improve quality.

The main body has 1/2mm x 165mm graduated horizontal scale. The vertical column has 1/2mm x 120mm graduated vertical scale, which take kinetically mounted carriage which is mounted the microscope. The microscope can be fitted to either side of the vertical column to suit the user’s preference, and can be set to the horizontal or vertical. The carriage has vernier and reading magnifier. Both carriages have locking screws, releasing which enables free manual movement of the carriages. Fine adjustment is by means of the fine screw thread with large dia knurled head at the end of each side. The working plateform fitted with white Perspex Milky sheet. Microscope : Main tube has a side arm which attached to the vertical carriage and fitted with Objective, eyepiece and cross hair / cross graticule, microscope have rack & pinion fine focusing large dia knob and can be set vertically or horizontally. Objective : Achromatic high resolution FL.75mm.Eye piece : Ramsden 10x with cross hair.Horizontal Scale : 165mm graduated in 1/2mm division with every centimeter numbered.Vertical Scale : 120mm graduated in 1/2mm division with every centimeter numbered.

With the assistance of our packaging experts and advanced machines, we became capable of meeting the standard as well as customized packaging requirements of the clients. Our storage facility is capacious to maintain large stock. So, clients are free to approach us for urgent and massive requirements.   Technical Specification : Stand- stable and robust,traditional horse shoe base. Body- inclined through 90 degree,standard tube length of 160mm Focusing- separate course and fine focusing knobs with graduation on one side. Coarse movement by screw lever  mechanism. Mechanical Stage – For X-Y movements,works  on dovetail slides. Nosepiece- triple revolving nosepiece is provided with positive click stop for proper centering. Stage- fixed square stage 125*125mm with stage clips to hold the slide. Illumination- illumination through a 50 mm diameter plano concave mirror mounting on gimbal mount. Objective- two achromatic objective of 10x and 40x(SL),100x (oil,SL) Eyepiece- two huygenian eyepiece of  10x  or 15x. Condensor- movable condenser is provided with iris diaphragm having 1.2 N.A.

Bd-01 field microscope light, versatile and sturdy body, easy to carry to fields. Observation tube length 160 mm, high grade standard optics. Provided with rack locking system to avoid breaking of slides. Slide holding grooves and adjustable plano-concave reflecting mirror provided. An adjustable clamp to hold pen battery for illumination. Provided with pen torch. Packed in raxine pouch. achromatic objective 10xhuygenian eyepiece 10x or 15xmagnification 100x or 150x bd-01a field microscope same as model bd-01 but with achromatic objective 45x (spring loaded) and 10x or 15x huygenian eyepiece.magnification 450 x or 675x bd-01b field microscope similar to bd - 01 but without reflector and slide holding grooves. Useful for study of opaque objects like plant parts, seeds, grains, crystals, diamonds and for quick and precise measurements in labs; factories and assembly lines. Provided with graduated reticule (optional) provided with achromatic objective 10x huygenian eyepiece 10x magnification : 100 x. Clamp with pen torch provided.optional : graduated raticule (extra)

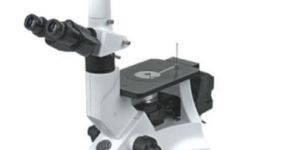

We are offering inverted metallurgical microscope 'vaiseshika' has designed metallurgical microscope with inverted design so often favored by metallurgist and industrial users. It serves time and is so convenient for large size metallographic specimen examinations. Prepared specimens and even large objects placed on the inverted stage are levelledautomatically to the optical axis, ready to examine. Inclined binocular body with paired swf 10x wide field eye piece. Main stage with built in graduated mechanical stage having low positioned controls gives added advantage to user. Illumination system is koehler type 20w halogen illuminator with condenser system. System has built in base transformer and variable light intensity control. Microscope operates on 220v ac. Microscope is supplied with colour contrast filters and set of parafocal achromatic objectives 5x, 10x, 20x & 40x and 10x and 15x paired eye pieces.

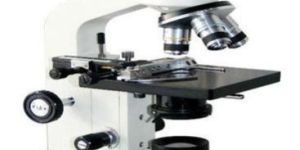

Co-Axial Coarse & Fine adjustment for accurate & easy operation. Tension control ring for coarse focusing adjustment sets the focusing for repeat observations for different slides. Stage : Fixed Co- Axial Mechanical Stage with low drive controls. Binocular Head : Inclined at 45° & rotatable through 360° with anti reflection coated prisms. Nose Piece : A low friction Ball Bearing Quadruple Nose Piece having a wide knurled gripping surface for easy rotation. Condenser : Abbe Type N.A. 1.25 condenser with iris diphragm and swing-out filter holder, focussable by Rack & pinion .

Our Student Compound Microscope consists of a monocular tube, straight, with body inclinable through 90 degree Horse shoe base stand having triple revolving nosepeice and fixed square stage with stage clips with plano-convex lens of 50 mm adjustable mirror on gimble mount. This Microscope is packed in moulded styrofoam box, with operation manual, dust cover and cleaning cloth. Wooden cabinet with lock and key are also available according to the customers need. In domestic market, we are the lesding suppliers of student compound microscopes in Assam, Meghalaya, Mizoram, Kerela, Karnataka, Tamil Nadu, Telangana and Andhra Pradesh. In international market, we are the leading exporters of student compound microscopes in Middle-East countries like UAE, Kuwait, Qatar, Iran, Iraq, Jordan and neighbouring countries like Bangladesh, Nepal & Sri-Lanka with best quality export packing by professionals from the last three decades.

A compact high performance Trinocular Inverted Metallurgical microscope with Polarising attachment as a standard accessory. It incorporates most advanced technical features to make it versatile for a wide range of applications in metallurgical investigations. From high grade anti fungus optical system incorporating, PLAN Metallurgical objectives (anti reflection coated) to its top quality ball bearing supported co-axial focussing, the microscope delivers more value, more versatility and top performance than any other similar microscope.  Plan optics, anti reflection coated  Inverted design for added Convenience  For critical Metallurgical Investigations  Recommended for Chip & Semi Conductor inspections  With Additional Facilities for Observation under Polarised Light

Mechanical tube length : 160mm Conjugate Distance of objective : 185mm Achromatic objectives 4x, 10x, 40x. Huygens : Eyepiece : H10x, H12.5x, H16x. Coarse adjustment range : 50mm Fine adjustment range : 1.8~2.2mm Condenser : Single lens condenser (NA = 0.65), Disc diaphragm, Abbe condenser (N.A.=0.65) Adjustable diaphragm. Illumination : Reflector ( ¯ 50mm) Stage Size : Area :120 x120mm, clips

We are a leading manufacturer and exporter of sophisticated pathological microscopes which are used in varied labs. Our range of pathological microscope is known in the industry for its superior performance and exceptional quality. Latest machines and technology is used and advanced production process is followed in the fabrication of the pathological microscopes. Clients are eased with the availability of pathological microscopes at market leading prices. components of pathological microscopes fixed sub stage abbe condenser n.a. 1.25 with iris diaphragm swing out filter holderillumination by piano concave mirroradjustable down stoppersturdy heavy & well balanced monocular body hinged type horse shoe base inclinable from 1-90 degreemechanical tube length 160 ±1 mmtriple revolving nose piece with click stopfocusing by separate course & fine adjustment knobsfixed square stage 120 x 120 mm with clips to hold the specimen slide supplied in packed thermo cole box with dust cover along with duster and illustrated instruction manual. Optional accessories co-axial mechanical stagewooden cabinet with lock & keysub stage pin type lamp 20w- 220veye piece 10x wfinterchangeable monocular inclined tube inclined at 45 degreedraw tube

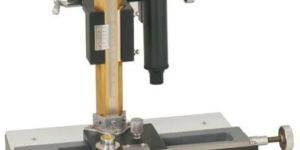

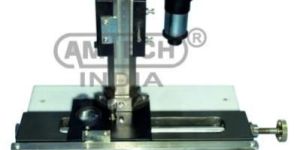

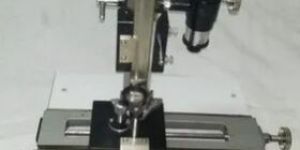

We are offering travelling microscope. The microscope consists of a heavy cast iron base fitted with three levelling screws with the top machined over which slides a gun metal carriage. the slide can be clamped at any position by means of a clamping screw. fine adjustments for final reading is done with a micrometer screw. a vertical slide operating in a similar way is fitted on the horizontal carriage. the microscope with rack and pinion is fitted on the vertical or horizontal position of microscope. microscope tube is fitted with 10x ramsden eye piece with cross line graticule & an achromatic 2"or 3" focal length objective of high quality. travels 17 cms horizontally and 14 cms vertically. Guaranteed accurate vernier reading 0.02 or 0.01 mm. With swing out magnifier for reading vernier. packed in a sturdy wooden box.

Focus Inverted Tissue Culture Trinocular Microscope with Photographic Attachment Model No.: TTM & TCM Inverted Tissue culture Microscope has been designed for examination of Tissue Cultures, Plankton, Living Protozoa and similar specimens in natural from in the Petri dish, Culture Bottle, test tube, or flask/vessel in which they grow. It finds vast application in Cancer Research, Serology, Urology, Histology, Parapsychology, Microbiology and water pollution. It can also be used for Phase contrast Microscopy to Impart normally colorless transparent specimen with enough contrast to permit clear examination of living bacteria,cells and tissues. Base : Large and sturdy base provides stability to the microscope and houses the solid – state transformer, the working of 6 volts 30 watts illumination.Stage : Oversize square plain stage 180mm X 150mm with two extension plates 150mm X 65mm for large bottles and micro filter work. Two stage clips are provided in drilled holes to accommodate specimen up to 40mm. A removable central insert gives 65mm dia stage aperture. Coaxial fixed/detachable mechanical stage can also be provided.Illumination : Brilliant illumination based on Koehler system is provided by a post – mounted high intensity 6v 30w illumination, powered from a base built – in variable intensity controlled transformer. The lamp house incorporating a focusable condenser lens with iris diaphragm, filter carrier, is mounted on a pole on which it can be positioned up or down to accommodate any type of culture-vessel in a vertical rang of 140mm.Working distance of condenser lens is 23mm.Focusing : Two large focus control knobs ;ocated low down at a convenient position assure accurate focusing. The back-lash free Rack and mechanism has 18mm range. Tension is instantly adjustable.Fine Focusing : Highly sensitive reading to 0.002mm is provided.Nose Piece : Quadruple revolving turret nose piece with positive click stops.Binocular : The Binocular observation tube assembled from coated prisms is 450 inclined with eye point position 320mm raised above the desk surface for greater comfort to the observer. It is interchangeable with straight tube. With Trinocular Head is also available.Objectives : 5x, 10x, LWD 20x and 40x,specially designed perfect flat-field objectives with long working distance (LWD) corrected for bottom thickness of bottles, flasks or chambers.Eye Pieces : WF 10x (paired) with eye-gnards, for genuine wide field observation.Filter : Blue and WhiteWeight : Approximately 10 Kg.
