Optical Instruments Dealers in Ambala

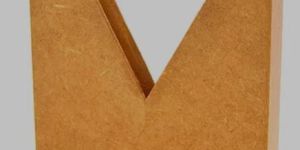

Wooden to take lenses or mirrors up to 76 mm diameter. Comprising as upright 100mm high, with a V shape slot to hold a convex or concave lens, mounted on a rectangular base 100 x 50mm. An index mark is engraved on each end of the base. LENS HOLDER Comprising metal holder with sides grooved to hold lens or mirror of 50mm diamenter LENS HOLDER Spring pattern, to hold lens or mirror of 50mm diameter. V-groove in center of holder. Mounted on 6mm metal rod which fits into standard optical bench mounts and stands. Supplied with bakelite base. LENS HOLDER Cast light metal, for lenses upto 25mm to 63mm diameter, with V-arms mounted on stem 9.5mm diameter. LENS HOLDER Round made of unbreakable PVC material, to take lens or mirror of 50mm diameter.

we offer a range of beam splitters and adopters, that are widely demanded as these help in obtaining optimum output coupling coefficient. These can also be used as variable beam splitters with an invariant direction (for reflected beams when used external to the cavity of any laser). With their ease in handling and better functioning, they are also has versatility in opthalmology. Further, we also provide customization as per clients' specifications. m splitter.

Spectrometer are used for the determination of measurement of Prisms angle refractive index of the Prism material determination of wavelength and frequency of emitted light. This is a robust instrument designed specifically for student educational use; Equipped with a heavy metal base for stability and an adjustable prism table, marked with grooved lines, Main graduated scale of 150mm or 175mm diameter is fixed, double ended verniers reading to 30 seconds, of an arc having rotary movement. The telescope is mounted on a movable pillar having fine adjustments along its axis. Collarimeter is mounted on a fixed pillar having objective, Eyepiece and Rack Pinion fine focussing.

Constant deviation spectrograph[1304] for direct reading for visible wavelength of spectrum, special series, emission spectra of elements, absorption spectra of compounds, fluriscence spectra, band spetra, zeman effect and determination of e/m, deflection of traces of metallic elements, raman spectra of liquids polarisation, studies, unknown substances analysis.the instrument has heavy pillar for mounting collimator/telescope prism housing. Prism table properly housed rotatable callibrated wave ength drum reflective index 1.661.74 achromatic high resolution lensesin telescope and collimator with rack and pinion eye piece with micrometer l.c. 0.01cm.

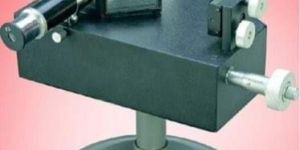

Michelson Interferometer The mirrors and beam splitters are extremely flat. Smooth mirror movement with lever system. The set up is equally suitable for other monochromatic light sources such as laser.Heavy base for high stability.

Wooden to take lenses or mirrors up to 76 mm diameter. Comprising as upright 100mm high, with a V shape slot to hold a convex or concave lens, mounted on a rectangular base 100 x 50mm. An index mark is engraved on each end of the base. LENS HOLDER Comprising metal holder with sides grooved to hold lens or mirror of 50mm diamenter LENS HOLDER Spring pattern, to hold lens or mirror of 50mm diameter. V-groove in center of holder. Mounted on 6mm metal rod which fits into standard optical bench mounts and stands. Supplied with bakelite base. LENS HOLDER Cast light metal, for lenses upto 25mm to 63mm diameter, with V-arms mounted on stem 9.5mm diameter. LENS HOLDER Round made of unbreakable PVC material, to take lens or mirror of 50mm diameter.

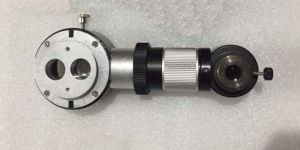

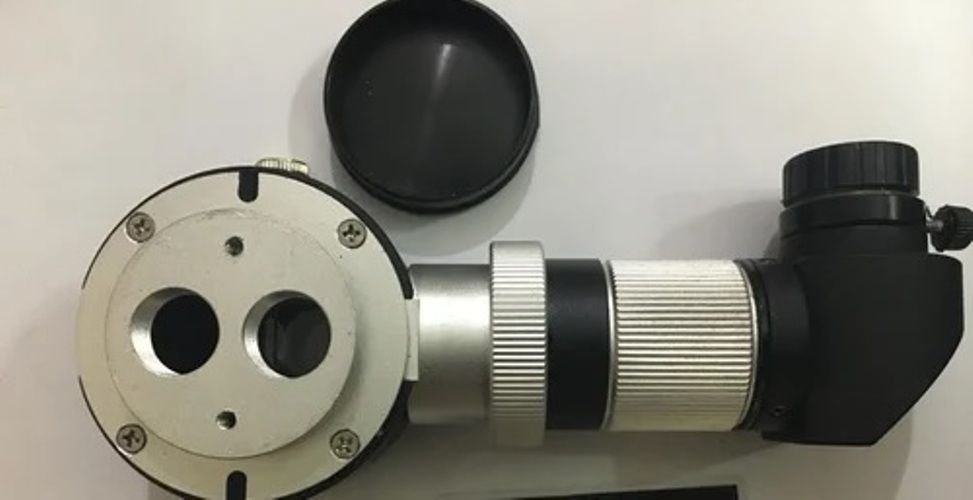

* Beam splitter uses two cube prisms with semi-reflective coatings to direct a portion of the light entering the Beam splitter to the accessory / camera port. * The remaining portion of the light passing through the prism goes to the eyepieces. * 20/80 Single port with focusing ring .

To take lenses & mirrors of upto 75mm diameter. Comprises a wooden upright 100mm high, with a V shaped slot to hold convex or concave lenses or mirrors mounted on a rectangular wooden base.

Since our inception, we are instrumental in offering finest quality michelson interferometer. The offered interferometer is designed by our experts in conformity with industry quality norms. Our provided interferometer is manufactured using the advanced technology, latest machines and the best grade components. Moreover, this interferometer is tested on different strict parameters to ensure its durability and quality. michelson interferometer mechanical optical mechanical part consists of following items bed: bed is optically ground, length 250mm lead screw: lead screw is optically ground with its nut, length 200 mm pitch 1 mm optical mirror mount: kinematic mirror mounts are to hold the mirror which be aligned in to orthogonal direction by means of screws provided at the rare of the mount. optical parts consist of the following items: a) beam splitter b) compensating plate size 45mmãƒâ€” 32mm ãƒâ€” 8mm 50mmãƒâ€” 35mm ãƒâ€” 8mm beam splitter and compensating plates are covered from the same optically worked glass plate surface flatness :ãâ»10 (both faces) parallelism :5 arc sec. mirrors :2nos. focal length :25mm thickness 10mm front surface :coating material : coated ai with sio2 l.c. Of instrument :10ã‚â¯4mm
