To demonstrate how the charge is stored in a capacitor and generate the concept of energy storage and its relation with the voltage across the condenser plates. A large electrolytic capacitor mounted on wooden base and provided with 4 mm sockets for connections.

We are offering dc potentiometer. The precision dc potentiometer type - 9408 has been designed to provide the highest standards of accuracy over a period of many years without any maintenance, whilst at the same time allowing rapid and easy operation. The most outstanding contribution to the development of potential meters in recent years resulted from the introduction of the unique vaiseshika low resistance precision instrument switch, used through out the precision dc potentiometer. Vaiseshika.com is available for more details. this switch was developed after several years of research into the fundamental factors affecting contact resistance. The stationary contacts are silver clad copper bars, mounted in a robust insulating frame. The brush, which is composed of several contact springs, each of which is independent of the others and is unrestricted in its movement, makes a bridge contact between adjacent bars in a symmetrical manner. As a result, low and consistent contact resistance is achieved without high contact pressure or mechanical wear. After a life test of some 20,000 operations, the switch was still mechanically sound and its stability had actually improved in the narrow range specified. The over all switch resistance is approximately 0.001 ohm and the variation of contact resistance is less than ± 0.0001 ohm.

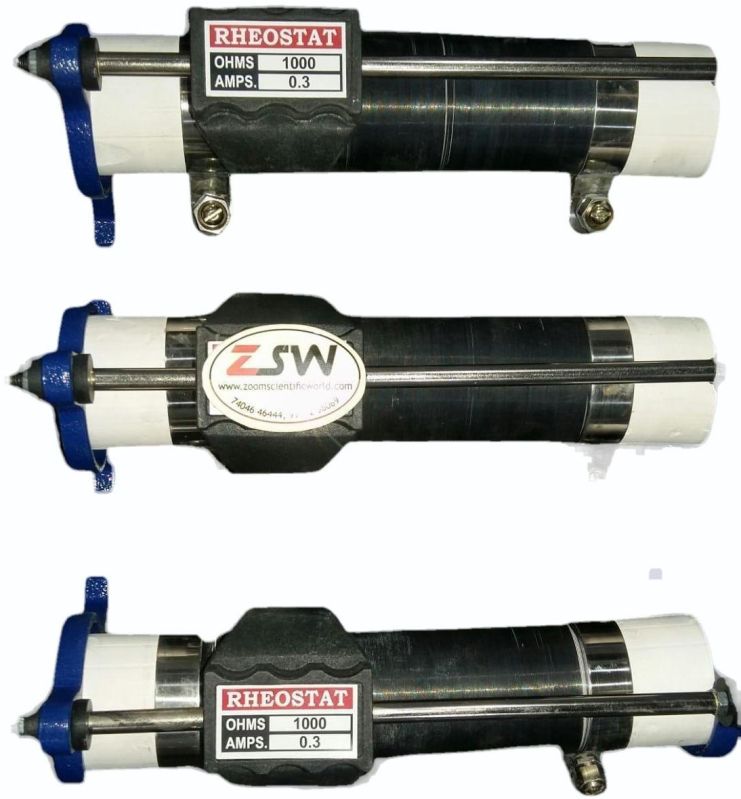

We are listed at the top in the list of the most dependable Rheostat Exporters and Suppliers in India. A layer of oxidized resistance wire is wound on a porcelain tube which is supported by end supports and a sliding contact and 4 mm socket terminals are provided in the structure of Electronic Rheostat. Additionally, customers are eased with the availability of the Laboratory Rheostat that meets the norms of national as well as international standards.

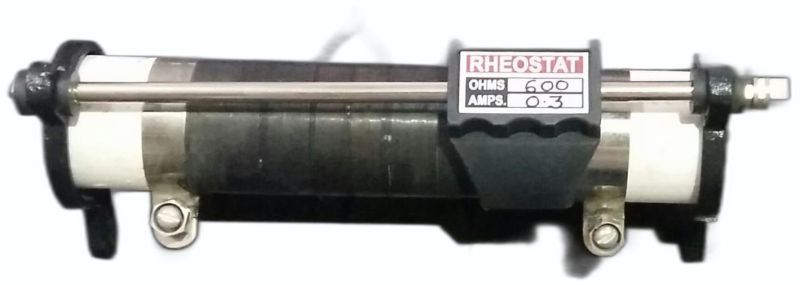

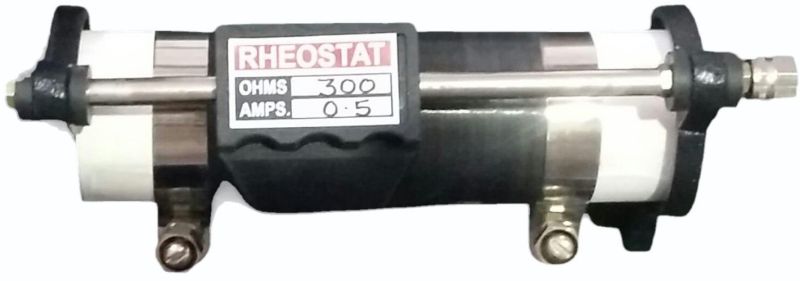

Rheostat Sliding Contact Comprising a layer of resistance wire wound on an insulating, heat resistant tube (porcelain) which is supported by cast metal feet. A sliding contact & three 4mm socket terminals are provided, one terminal being connected to the sliding contact & the other two to the ends of the winding, enabling the unit to be used as a Rheostat or potentiometer.

We are offering digital potentiometer with high performance and efficiency. Our digital potentiometers are in demand for offering highly accurate results. These digital potentiometers are demanded in laboratory activities for ensured accurate measurement results. Our digital potentiometer is designed with perfection and with the use of the finest quality materials to offer long-lasting service. specifications of our digital potentiometer front & back panels made of abs plastic moldingthe body cover is made of rust proof stainless steelwith 3½ digit led display supplied with calomel, and reference electrodescomplete with stand for holding the electrodes, dust cover and instruction manual price rs. 5200 each optional accessories silver electrodeplatinum electrodereference electrodecalomel electrode

We are instrumental in manufacturing and supplying precision-engineered Rheostat Single Tube Protected. Customers can avail from us Rheostat Single Tube Protected that is used as a series resistor or a potentiometer with variable up to 345 ohms at 1.2 rating. Our enclosed type Rheostat Single Tube Protected comes in a metal case with windings on porcelain former 350mm long x 56mm diameter; three 4mm socket terminals & four mounting lugs tapped.

Bridge Anderson[1016] anderson Bridge for Self-inductance this Bridge Method is More Complicated Than Those Which have Been Described So Far. the Bridge Has Got Following Main Features : p = Non-inductive Resistance of 1000 Ohms. q = Non-inductive Resistance of 1000 Ohms. r = Non-inductive Resistance of 1000 Ohms. s = a Variable Non-inductive Resistance in the Form of 3-decades of 10 X 1, 10 X 10 and 10 X 100 Ohms. this Resistance also Includes the Resistance of Self-inductance L Which is also Connected in the Same Arm. m = a Non-inductive Variable Resistance of 3 Decades of 10 X10, 10 X 100 and 10 X 1000 Ohms. c = a Standard Capacitance Provided in the Bridge in the Form of a Single Decade of 10 X 0.01 Mfd. *an Audio Frequency Oscillator of 1 Kc/s and a Variable Output of 10 Volts is Used as a Source of Supply. a Pair of Headphone of Good Sensitivity is Used as a Detector in the Bridge Network.

For use as series resistors or potentiometers. Open type slide wire type with a variety of resistance and current carrying capacity. Copper-nickel alloys wire is oxidised to provide perfect insulation. Phosphor bronze contact provided on metal chrome plated slider-rod to give rapid and smooth adjustment. Three 4 mm socket terminals are provided. One at each end of the wire and the third at one end of the slider-rod thus the Rheostat can be used as potentiometer also. Resistance in ohms and current carrying capacities are engraved on it. The end support are made of metal/bakelite. Diameter 43 mm.

We hold expertise in manufacturing and supplying optimum quality Laboratory Rheostat that are used in many different applications, from light dimmers to the motor controllers in large industrial machines. We provide two main types of Laboratory Rheostat which are the Rotary Rheostat and Slider Rheostat. About Laboratory Rheostat Electrical component that has an adjustable resistanceA type of potentiometer that has two terminals instead of threeThe symbol for a rheostat is a resistor symbol with an arrow diagonally across it

Medical Potentiometer  an economical, highly accurate, reliable, rugged & stable instrument for field & laboratory use. Model available me 984 k. Range 0 to 200 mv, 0 to 2000 mv display 3 ½ digit led display accuracy ± 1 mv ± 1 digit resolution 0. 01 mv temp. Compensation – slope correction 80% to 120% input resistance 1012 ohms ambient temp. 0° c to 50° c recorder output – power 230 vac ± 10% 50 hz ac size (lxbxh) 275 x 175 x 85 mm weight 2. 0 kgm. (approx) accessories glass, reference silver & platinum electrodes, dust cover, stand & instruction manual.

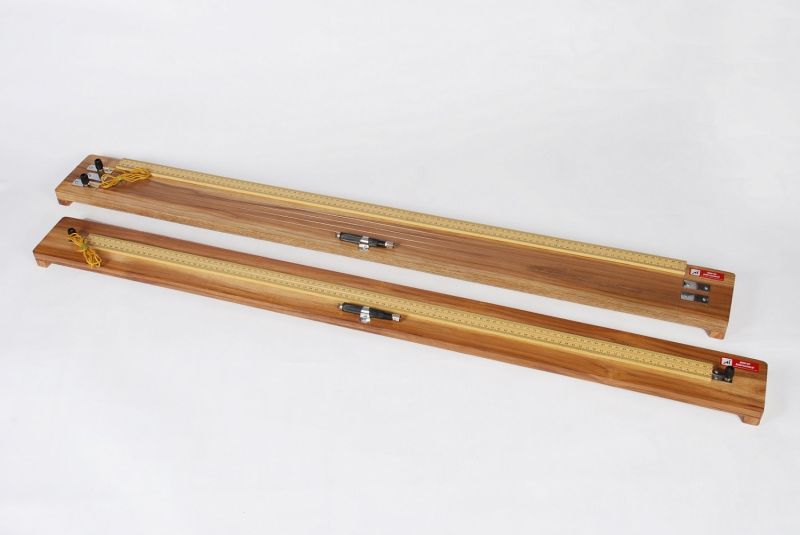

Wire Potentiometeris designed with perfection and with the use of the finest quality materials to offer long-lasting service. We are a quality driven and make sure that the offered lot is prepared using the premium grade raw material. Also, we make sure that it is sourced from the certified vendors. Our products are the best in the industry, as they are specially manufactured as per international and national quality managements standards.

Power Rheostats are made with a variety of resistance & current carrying capacity so as to satisfy every need. They are wound with heavily oxidized eureka resistance wire upon a porcelain tube dia 44 mm aprox. The tube is carrying upon Bakelite rider and the heavy duty sliding contact is of the phosphor bronze with brass rod. 4 mm socket terminals are fitted, allowing for rheostat or potentiometer connection. Total resistance and maximum current capacity is marked on the slider. Total Permanent current loading should not exceed 75% of the marked values. The actual resistance of Wire Wound Rheostats shall be +20% -5% of the rated resistance as per our resistance chart. (as per ISI specification no. IS : 9051 S. No. 10.3), we are recognized as one of the major Electronic Rheostats Manufacturers and Exporters from India.

For use as series resistors or potentiometers. Open slide wire type with a variety of resistance and current carrying capacity. Copper nickel alloys wire is oxidized to provide perfect insulation.

Alpha Chem is manufactures,exporter & suppliers of Digital Potentiometer. Digital Potentiometer 3½ digit LED display along with Glass, silver , platinum , reference electrode mains operated. Range pH 0 to 200 mV 0 to 2000 Accuracy pH ——– mV ± 1 mV ± 1 digit Resolution 0.1 mV Slope correction 80% to 120% Ambient Temperature 0º C to 50º C Display 3½ digit LED display Power 230 V ± 10% 50Hz AC Dimensions 275x175x85 mm Accessories 1) Glass, Reference , Silver and Platinum Electrodes 2) Dust cover 3) Instruction manual.

Owing to the dedication of our diligent professionals, we have earned a reputed name in offering the finest quality assortment of rheostat. Offered physical instrument is designed to provide a variety of resistance & current carrying capacity for various applications. Our provided instrument is perfectly suited for physics laboratory and is high on demand in various colleges, universities etc. Furthermore, we provide this instrument in customized form in accordance with clients' requirements. features: strong construction highly flexible increased effectiveness.
