Passive Components Dealers

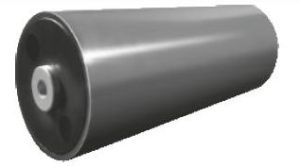

Offered by us in several specifications, our products are in complete compliance with the quality standards. From traditional payment methods to modern ones, we are familiar with all of these payment methods. According to the suitability of patrons, we ensure the payment for an order is done conveniently.   Model : DSC- Dry type   Specification: 50/60Hz Keeping with its tradition of completely dry products, ELECTRONICON has launched the first MV Surge Capacitor in self-healing technology. The DSC surge voltage protection capacitor ("surge capacitor") is the ideal solution for limiting transient over-voltages in combination with the PD-free layout.The self-healing dielectric provides for extremely long operating life and highest operational safety. Thanks to the solid polyurethane filling the DSC™can be installed in any mounting position. Moreover, there are no liquids to threaten the enviroment or to be considered during for disposal at the end of operational life.   Details : Rating : 0.1/0.125/0.25 uFVoltage: 3.3/3.6/6.6/7.2/11/12/17.5 KVApplication: Surge suppression/limiting transient voltage

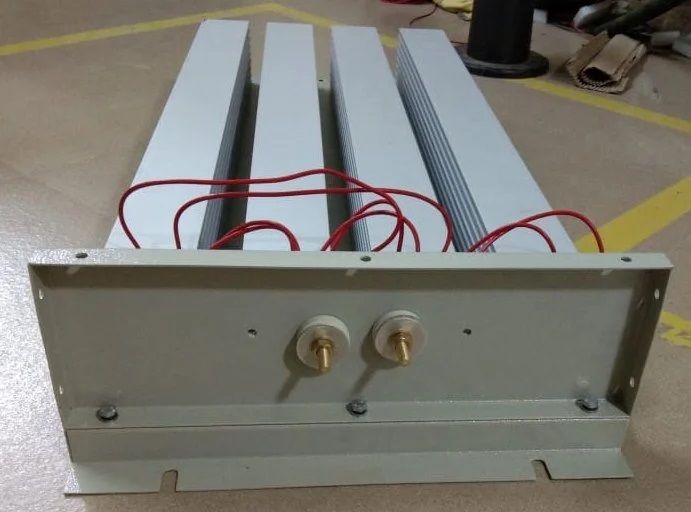

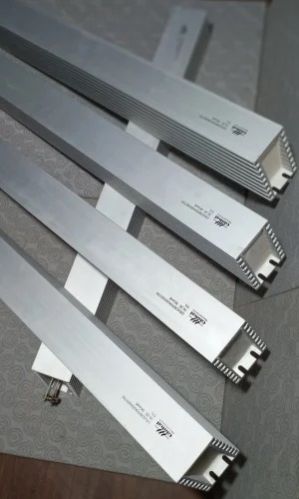

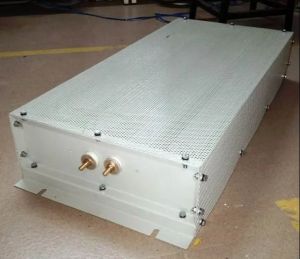

Manufacturer & Exporter of Starting Resistors. Our product range also comprises of Load Banks and Braking Resistors.   Features : This resistor allows a stepped starting having high starting torque with low and limited starting currents. Suggested for high power motors and to drive equipments with strong inertia and needs of fast accelerations and heavy, long and frequent startings This resistor is used for gradual starting with the possibility to choose the torque in relation with the device to start. Suggested for equipments with low starting torque and increasing advancement

Elpro offers Varistors with peak current ratings from 6,500A-70,000A, peak energy ratings from 70J-10,000J, and various mounting options to serve a wide range of applications. Designed by a vastly experienced team, consisting of some of the finest talent available in India, France & the US, Elpro brings a complete range of Dynamic and High performance MOVs for the discerning customers. Its products find suitability for applications in such diverse industry segments as Railways, Telecommunication, Solar Energy, Wind Energy, Induction Furnaces, Rotating machinery, UPS, Electric Panels, etc.

AC & DC capacitors for power electronics applications with high current and harmonic distortion. DC capacitors for power inverters for railways, welding, energy storage and filtering applications. Typical applications: inverter, filtering, switching, high power lighting, traction and railways, welding, PFC with high voltage and high harmonic application (i.e. Wind turbines).

Clients can avail from us a wide range of Wire Grid Resistance that is widely used for earthing applications. It is precisely designed and manufactured with the aid of cutting edge technology from quality approved raw material. Provided product is employed in alternative current distribution networks and limit the restricted earth current to a safe value that flow from the transformer star point without surpassing specified temperature. The offered product is quality tested before delivery to ascertain their durability at clients end. In tune with the variegated requirements of our clients we provide this Wire Grid Resistance in various specifications. Features: Resistance wire is would on ceramic insulator to form a coil for wire wound. Tapping can be taken at any place. These Resistors are economical for low current. Available in ratings of 1 Amp and above. Specifications: Dissipation is negligible & the temperature rise for the resistor element depends on its capacity to store the energy generated in proportion to the mass & specific heat of the material used. Theses NGRS are connected between the neutral point of transformer / generator & the earth. In Earth fault condition continuous current of 5 % to 10 % of full load current pass through the resistor due to unbalance in systems. In Earth fault condition the Restricted earth fault current passes through the Metallic Resistor protecting the system till automatic protection takes place by absorbing the earth pressure, protecting the winding etc. Hence these resistors are designed for allowing maximum heat dissipation Internal Features Of Resistor Enclosure Group of Resistance elements are mounted together to form a Bank. Banks are then connected in series or parallel to provide the current and ohmic value required. All Resistance Bank to Bank interconnections will be done by solid stainless steel / copper. In case of continuous current ratings for better heat dissipation, perforated sheet / jali with welded GI wire mesh is provided at the bottom. Foundation channels have welded or bolted to the angle iron structure on two sides with arrangement to fix on foundation by bolts at site. Terminals are brought through Porcelain bushings of appropriate voltage class or brought down as per requirement of customer. In case of higher voltage, the banks are placed on stand off insulators housed inside the enclosures, or the enclosures is also insulated from ground by using stand off insulator if asked by customer TESTS (A) Routine Tests: - Following Tests Will Be Conducted. Visual and Dimensional. Insulation resistance value measurement by using 500V / 1000V megger before and after dielectric test. Resistance value measurement with Ã?â??Ã?± 10 % tolerance. H.V. Test of twice the rated voltage +1000 volts for voltage class below 660 volts or 2.25 times of rated voltage +2000 volts for voltages above 1100 volts. (B) TYPE TESTS :- Temperature rise test i.e., Heat run test if required will be conducted by passing equivalent / rated current for rated / equivalent time keeping IT Constant through a part of Resistor.   Technical Information: Line to neutral voltage rate Normally Full load current rate is same System Voltage is divided by root3 i.e. 1.732. Initial current flow through resistors when it is cold Time length rate for NGR must tolerate rated voltage. NGR construction includes resistor assembly, internal connections, plus required insulators, etc Generally temperature rise rating is restricted to 375 deg.c. above ambient temperature as per BS-587. It can be 760 deg.c. as per IEEE-32 Normally 10 % of full load current is require for continuous functioning rate of neutral grounding resistor of 5 % to 10 % of full load current Such resistor elements material are made from any stainless steel or FeCrAl or Cu-Ni or Ni-Cr or any other resistance material. Normally formed stainless steel element are best   Information To Be Furnished To Us: Material of Resistor Ohmic Value Current Rating Duty rating 10 sec.,30 sec.,60 sec., & continuous etc. If details against and cannot be given then inform details of transformer such as KVA rating, full load current, Primary & Secondary Voltage. System voltage / operating voltage. Type of Enclosure and material for enclosure ( protection class as per IS- 12063) Location: Indoor or outdoor. Temperature rise allowed over an ambient temperature. Whether space heater, current transformer , isolating switch on load / off load, manually / motorised, or any other accessories are required. Details of atmospheric conditions at site and height above sea level

We provide Capacitors that are available in different capacitances and sizes. Our Capacitors are widely used for different kinds of specific requirements as an electronic component. Our Capacitors are supplied to all over India to fulfill the requirements of our clients. We offer our Capacitors at an affordable market price for our customers.

MKP-MKPg-type capacitors are based on a low-loss dielectric formed by pure polypropylene film. A thin self-healing mixture of zinc and aluminium is metallized directly on one side of the PP-film Vacuum.Our long-term experience as well as on going research and improvements in this technology ensure the excellent self-healing characteristics of the dielectric and a long operating life of our capacitors.
