Passive Components Dealers in Chennai

This series of Gem III is specifically designed for applications such as AC filters where harmonic frequencies greater than 60Hz are common. Application Data is provided starting on page 5 that gives the Equivalent Series Resistance (ESR) for these units. This allows the user to calculate the losses for each design/application and to ensure that they are kept within the permissible limits. Any questions regarding the suitability of a capacitor for a particular application may be referred to RBC Engineers through your RBC sales representative. Specification Available Capacitance Range: 2 to 120 μF Capacitance Tolerance: ± 6% Rated Voltage: See Rating Tables. Rating is the 60Hz RMS voltage for a sinusoidal waveform. Leakage Current: 30 μA maximum Frequency: 50/60 Hz. For higher frequencies refer to the Application. Operating Temperature: -40 °C to +70 °C Storage Temperature: -40 °C to +90 °C Operating Life: 60,000 hours with 94% survival Dissipation Factor: 0.1% maximum

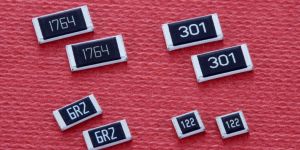

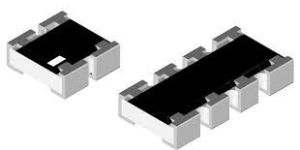

We deliver a huge variety of resistor which is fabricated using superior raw material and is available at reasonable prices. With the support of our engineers and designers we are able to carve a niche (Irrelevant And Incomplete Sentence). Our range of resistant includes:

Our Mission Grow in the business of electronics distribution by providing: Supply chain – Kitting and consolidation Development support to convert concepts to products (Own Design house) Top-notch customer support team dedicated to manage customer’s requirements.

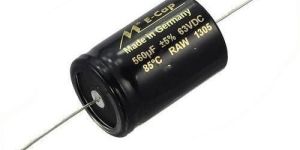

1. Point of products       We started the development of capacitors with large capacitance and for high ripple current,       ahead of other companies. Now, our capacitors for mid-to high-voltage have a high market       share. Our Screw Terminal Type Aluminum Electrolytic Capacitors are used for inverters for       trains elevators etc. in the fields that are required to offer high reliability.      2. Features       Through the self-development of high-quality anode foil and electrolyte,       high reliability and excellent cost performance have been achieved.       Our products are used for the equipment that requires a large capacitance such       as invereter and large power source.       Lead-free/Conforming to RoHS Directive.      3. Product line chart     CRART   Redial Type Aluminum Electrolytic Capacitor      1. Features        The HU type is the radial type products of 2,000 hours.       2. Product line chart    CRART   Snap Mount Type Aluminum Electrolytic Capacitor      1. Point of products        Snap Mount Type Aluminum Electrolytic Capacitors are used for switching power supply,        general inverters, UPS, etc. that require small-size capacitors with relatively large-capacitance.      2. Features       Through the self-development of high-quality anode foil and electrolyte.       our Snap Mount Type Aluminum Electrolytic Capacitors have achieved high reliability       and excellent cost performance.       Lead-free/Conforming to RoHS Directive.      3. Product line chart  CRART   Aluminum Electrolytic Capacitor for Photo Flash      1. Point of products        Hitachi stroboflash capacitors have been used for Digital Still Camera(DSC),        Digital single lens reflex camera(D-SLR), Medium Format Camera,        and others for professional studio, especially for the minifuarized applications.      2. Features       Hitachi stroboflash capacitors provide the high reliability and the excellent cost performance       with high-quality anode foils and electrolyte liquid which we have developed by ourselves.       All Hitachi stroboflash capacitors apply RoHS regulation.      3. Product line chart   CRART   Plastic Film Capacitors      1. Point of products       Plastic Film Capacitors with the high with stand-current performance of the conventional       capacitors for photo flashes are used now widely for general appliances, industrial equipment,       digital equipment, automotive electrical components, and hybrid cars which are required to offer       high reliability and long life.       At present, Plastic Film Capacitors are used only for automotive components such as HID lamp.       ECU for engine control which is required to offer high reliability, and smoothing capacitor for       hybrid car, DC/DC capacitor.       All products are environmental-conscious and comply with RoHS Directive.      2. Features       [MDD(5),MDD-HD(5Y),MDD-HD(4H),MDD-HD(4),MDD-HD(4HS),MDD-p(4) Series]       For PFC use only, Improve of pulse current resistance with the technology for Automobile       [MMX-E,MML-E Series]       Small-Size, flame-resistant epoxy resin encased       [MKC-JS]       High moisture resistant, small-size resin encased type, suited for automotive electrical       components       [MTB Series}       Special products such as high-frequency type and large-current type are available depending       on applications for general electronic equipment and industrial equipmen

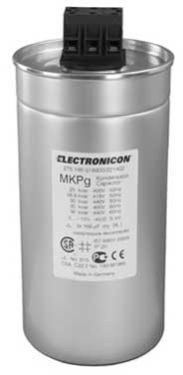

We provide high efficiency Power Capacitor that is sourced from the Electronicon. Our wide range of Power Capacitor includes LVMV power factor correction, harmonic filtering, power capacitors, detuning reactors, power factor controllers and switching & discharge devices. Today, we have carved a niche as one of the key Power Capacitor Suppliers in India.

We sternly keep a check on the designing and manufacturing of products and ensure that the material is strictly procured from the leading names only. The raw material is examined on the grounds of quality to deliver finest range of products. We follow the globally accepted packaging norms that help us in delivering the products safely. Our professionals ensure that the packing material we use keeps the product safe from external damaging factors. Features : Advanced mechanism Safe & reliable Reasonably priced

A capacitor is an electronic component that replaced the former condenser. This passive device has two conductors kept apart by an insulator. The static electric field formed between the two conductors due to voltage variation produces mechanical energy. Capacitors do the function of allowing alternating current to pass through filter network for smooth output of power. This is done by blocking the flow of direct current. This is one of the components that we supply in great numbers and variety. Designing and programming are done at our site with high level of precision, paying special attention to ensure quality, stability and optimal performance.

A capacitor (originally known as a condenser) is a passive two-terminal electrical component used to store energy electrostatically in an electric field. The forms of practical capacitors vary widely, but all contain at least two electrical conductors (plates) separated by a dielectric (i.e., insulator). The conductors can be thin films of metal, aluminum foil or disks, etc. The 'nonconducting' dielectric acts to increase the capacitor's charge capacity. A dielectric can be glass, ceramic, plastic film, air, paper, mica, etc. Capacitors are widely used as parts of electrical circuits in many common electrical devices. Unlike a resistor, a capacitor does not dissipate energy. Instead, a capacitor stores energy in the form of an electrostatic field between its plates.When there is a potential difference across the conductors (e.g., when a capacitor is attached across a battery), an electric field develops across the dielectric, causing positive charge (+Q) to collect on one plate and negative charge (-Q) to collect on the other plate. If a battery has been attached to a capacitor for a sufficient amount of time, no current can flow through the capacitor. However, if an accelerating or alternating voltage is applied across the leads of the capacitor, a displacement current can flow.An ideal capacitor is characterized by a single constant value for its capacitance. Capacitance is expressed as the ratio of the electric charge (Q) on each conductor to the potential difference (V) between them. The SI unit of capacitance is the farad (F), which is equal to one coulomb per volt (1 C/V). Typical capacitance values range from about 1 pF (10-12 F) to about 1 mF (10-3 F).The capacitance is greater when there is a narrower separation between conductors and when the conductors have a larger surface area. In practice, the dielectric between the plates passes a small amount of leakage current and also has an electric field strength limit, known as the breakdown voltage. The conductors and leads introduce an undesired inductance and resistance.Capacitors are widely used in electronic circuits for blocking direct current while allowing alternating current to pass. In analog filter networks, they smooth the output of power supplies. In resonant circuits they tune radios to particular frequencies. In electric power transmission systems they stabilize voltage and power flow.

Modular and unit type versions of capacitors, upto 75 KVAR per modular unit Super tropicalised for ambients up to 55°C Vacuum oil impregnation with superior dielectric fluids,increases life of capacitors In-built protection against short circuit with unique pressure sensitive disconnector Power capacitors bear the ISI mark and are tested and certified to meet standards Easy servicability of capacitors at site facilitated by a simple crimp Best suited for APFC panels due to compact space saving design Unique 'CLAMPTITE' finger proof termination Wave cut film to ensure high inrush current withstand capability High life expectancy

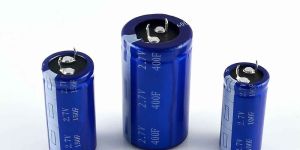

We are successfully engaged in the production of high end High-Voltage Capacitors, Wholesale Capacitor, Current Capacitors in the market. Our capacitors are widely recommended for their effective working and wide usage in a wide number of products. They are available with an assurance of high level quality and performance. We manufacture our capacitors under strict quality controls so that there is no compromise in quality. Apart from that we are one of the most trustworthy Current Capacity Suppliers in India. We bring to our customers some truly high quality Capacitors which are no where else to be found. Our Tantalum Capacitor is highly popular and is intensely demanded in the market. Our Polyester Film Capacitor is made from premium quality materials to ensure that they have a high performance. Capacitors supplied by us are manufactured using high-tech machines to ensure that they are flawless. Today we are among the renowned capacitor suppliers from India. Our capacitors are available in different specifications according to the requirements of our esteemed customers.

Temperature compensating Hi-K / Semi-conductive High voltage Radial / Axial Leaded Multi-layer Taped / Bulk form Chip Ceramics Y-type Safety capacitors

We hold expertise in designing and developing remarkable silicon steel lamination chokes. Designed with utmost precision, these offered products meet industry laid parameters. Furthermore, keeping in mind diversified demands of the clients, we have made these products available in different specifications that can customized as per the requirements. some of the features of silicon steel lamination chokes are as follows: longer functional life robust construction non-corrosive body easy to operate dimensional stability

We are counted amidst the well-known Manufacturers and Suppliers of high-performance Electrical Inductor. It is designed and developed by our experts using high-grade raw materials and advanced machines. The manufacturing process is carried out under the supervision of our quality analysts and thus the finished products remain free from defects. Buyers can easily place bulk orders for Electrical Inductor with us! About Inductor :An inductor, also called a coil or reactor, is a passive two-terminal electrical component which resists changes in electric current passing through it. It consists of a conductor such as a wire, usually wound into a coil. When a current flows through it, energy is stored temporarily in a magnetic field in the coil. When the current flowing through an inductor changes, the time-varying magnetic field induces a voltage in the conductor, according to Faraday’s law of electromagnetic induction, which opposes the change in current that created it.An inductor is characterized by its inductance, the ratio of the voltage to the rate of change of current, which has units of henries (H). Inductors have values that typically range from 1 µH (10−6H) to 1 H. Many inductors have a magnetic core made of iron or ferrite inside the coil, which serves to increase the magnetic field and thus the inductance. Along with capacitors and resistors, inductors are one of the three passive linear circuit elements that make up electric circuits. Inductors are widely used in alternating current (AC) electronic equipment, particularly in radio equipment. They are used to block AC while allowing DC to pass; inductors designed for this purpose are called chokes. They are also used in electronic filters to separate signals of different frequencies, and in combination with capacitors to make tuned circuits, used to tune radio and TV receivers.

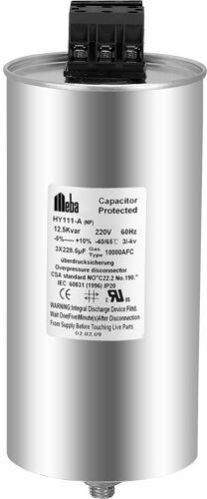

PFC CAPACITORS The efficiency of power generation, transmission or conversion is improved when operated at near unity power factor. The least expensive way to achieve the same is by installing Power Factor Correction Capacitors. TIBCON PFC Capacitors are designed and manufactured for most demanding applications and toughest ambient conditions. These Capacitors are made in accordance with Metallised Polypropelene technology with built-in SELF HEALING properties. We mastered this technology over a period of 30 years and have state of art manufacturing facility for metallization of the film. The elements are wound on fully automatic numerically controlled winding machine that ensure no corona discharge & ionisation. The elements are housed in Cylindrical shaped aluminium case with in built explosion proof safety device.   UNIQUE FEATURES Compact Cylindrical Construction Unique Explosion Proof Design 3 Phase - Delta Connection Easy Banking Non-PCB Oil Encapsulation ECO-Friendly High Temperature withstanding capacity Self Healing Properties Safe-Touch, Shock-Proof Terminals Longer Life Expectancy Available in both Cylindrical & Box type design Wide Range - Standard Duty 1-50KVAR in 400/415/440V Heavy Duty - 5-30KVAR in 440/480/525V Super Heavy Duty - 5-30KVAR in 600/660/690V APPLICATIONS APFC Control Panels Wind Turbines Commercial Establishments Industrial & Semi Industrial applications De-tuned Harmonic Filters Motors & Transformers Welding, Furnaces etc

We are involved with the manufacturing exporting and supplying of the high quality Power Factor Correction Capacitors. These Power Factor Correction Capacitors make use of the technique where the dielectric is comprised of different layers of polypro. Construction : Power Factor Correction Capacitors give a consistent performance at full load. Operating conditions for these Power Factor Correction Capacitors should be controlled as excessive heating affects the life span of these Power Factor Correction Capacitors. Long Life (Heavy Duty) Series : Industrial Power Factor Correction Capacitors and High performing PPMh Capacitors featuring elements wound with PPMh film sets provide new standards for performances, reliability and compactness. Lifespan of up to 150,000 hours can better performance is obtained by effective self healing and decreased dielectric losses.

Scalable system approach Global development and production Established system supplier Passive entrygo systems provide comfortable, keyless entry into the vehicle and also enable keyless engine starting.
