Photo Meters Dealers in Ambala

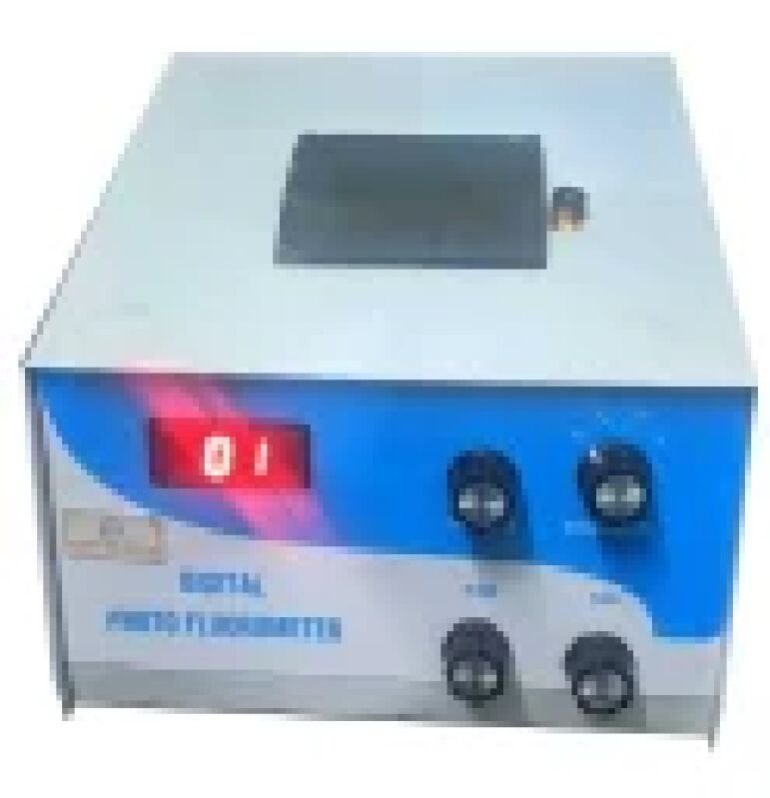

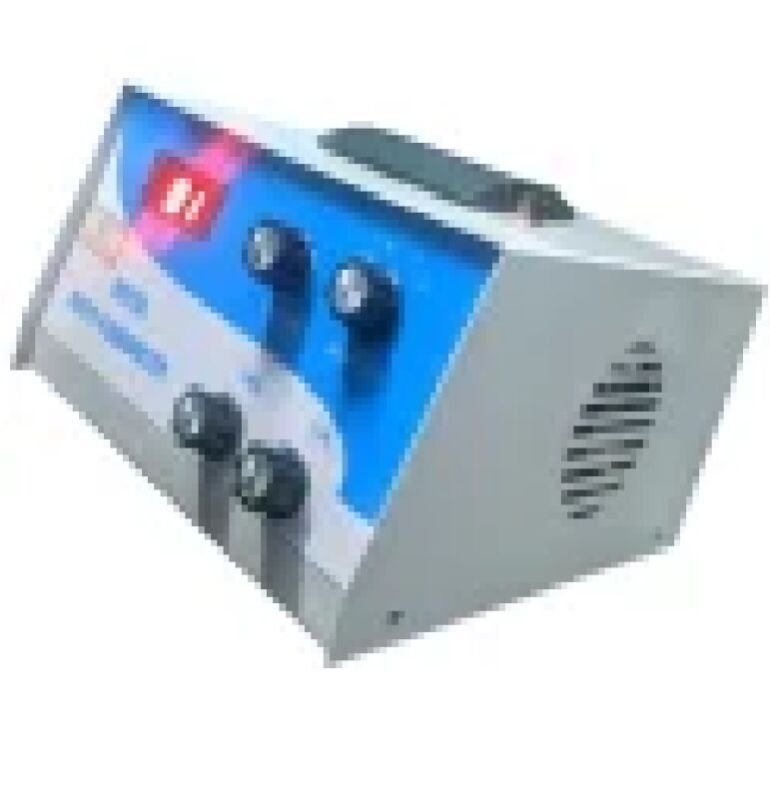

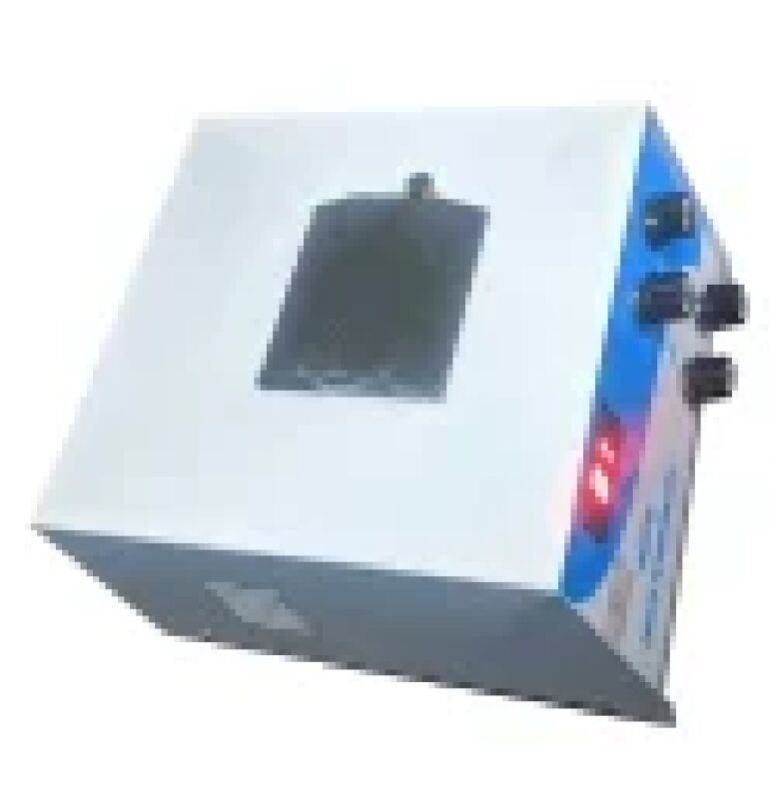

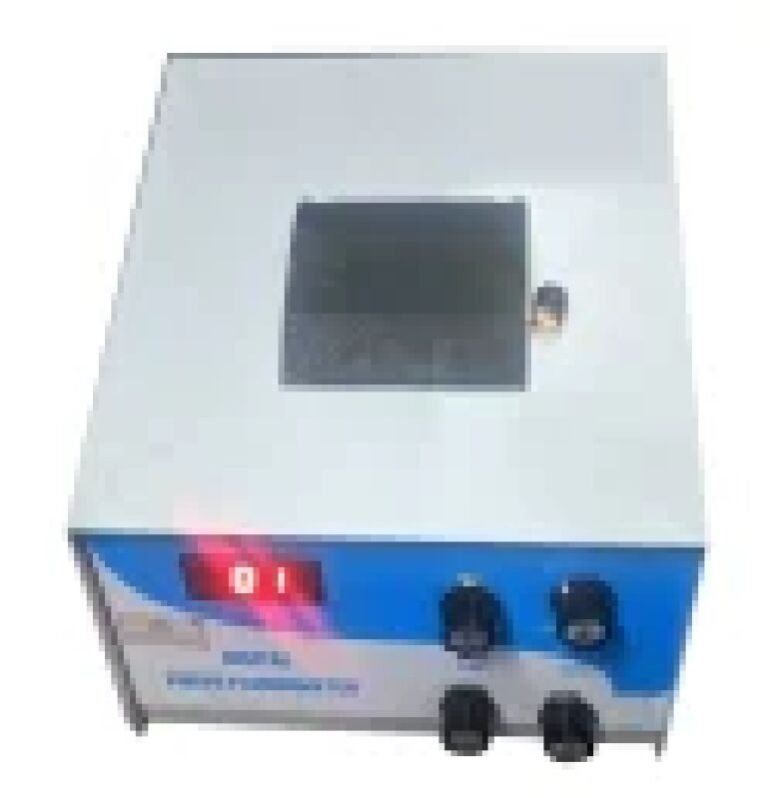

Fluoro Sensitivity Full scale deflection obtained with 1 ppm quinine sulphate in 0.1 N sulphuric acid (primary Wavelength 360 nm). Display 3 digit bright red seven segment LED display. Excitation Source 12V, 50W Tungsten Halogen Lamp. Sensitivity Range Adjustable in 4 ranges

Digital Flame Photometer is a simple & easy to operated instrument for determination of sodium & Potassium Calcium & Lithium are optional filters. It is an ideal instrument for soil testing labs. It is a dual channel Flame Photometer used for simultaneous observation of NA & k in blood serum (Plasma), Urine & other type of biological fluids. The instruments are supplied in two units viz. Main unit and Compressor unit. The main unit comprised of digital, detector, filters and nebulizer. The compressor unit supplies the compressed air to the main unit.

Digital flame photometer with filters Na & K 2 ½ digit LED display along with compressor and other accessories. Medi flame photometer with Na & K filters. Results in meq/1 for medical use. 2 ½ digit LED display with compressor and other accessories. Accessories Additional filter such as Na, K, Li, Ca each for flame photometer.

Far-famed for the outstanding range of Chlorophyll Fluorometer; we are a leading name in this trade. We are celebrated name based in Haryana(India) and actively engrossed in making available high quality products at the most reasonable prices.

FLAME PHOTO METER SPECIFICATIONS No. of Filters Na & K (Ca & Li optional) Range Na:0-100, Ca:20-100, K:0-100, Li:10-100ppm Sensitivity Na : 5 ppm, Ca : 10 ppm, K: 5 ppm , Li : 10ppm Read out 2½ Digit bright LED Display Accuracy ± 2% upto ± 5% above 40 ppm Repeatability ±2Count Detector Silicon Photo diode Filters Narrow band interference glass filters Nebuliser Black BAKELITE, axial flow type Flame Sys. LPG and dry oil free air Warm up Time 10 minutes

This instrument is designed with the modern state of art technology incorporating LSI Electronic Digital cireuitry. The chamber for he animal is made out of clear Perspex sheet fitted with grill of nickel plated brass rods placed 3/16� apart. A variable shock of strength 100v, 50ma is provided. Which is built in the instrument. Also a four digit counter is provided which counts the movement of the animal, inside the Perspex chamber. The counter is provided with a reset switch.

We are offering actophotometer. Digital actophotometer (activity cage) is designed to study the spontaneous or induced or locomotors activity in small animals like mice or rates. In this apparatus, we have used the optical sensors and emitters to record the horizontal movements of the animals on a six digit digital counter display.

Digital flame photometer with filters Na & K 2 ½ digit LED display along with compressor and other accessories. Medi flame photometer with Na & K filters. Results in meq/1 for medical use. 2 ½ digit LED display with compressor and other accessories. Accessories Additional filter such as Na, K, Li, Ca each for flame photometer

lb photometer is used to compare the intensities of two light sources. This is achieved by using a combination of specially made prisms knows as lummer brodhun cube. Lb photometer consists of a box that is made totally dark from inside and the prism cube is fitted inside this box along with right angled prisms in a very symetrical fashion. light entering from the openings of the box strike the right angled prisms and passes through a right angle and falls on the prism cube. our lb photometer is best in its class and precisely developed. We use custom made right angled glass prisms whose opposite sides are made convex by grinding and then pressing against eachother in a special brass enclosure known as the brodhun cube. With precise, carefull machining and proper design, our lb photometer is totally capable of performing the light intensity experiments very accurately. technical specifications the box has 2 windows for the enterence of light. if the lights from 2 sources are different, 2 circles, bright and dark are seen through the telescope provided with the box. the instrument can be mounted on an optical bench. if the intensities of the lights are almost same, the two rings almost appear to be 1 having the samebrighteness.

Rugged, reliable & accurate Flame Photometer instrument to determine concentration of na, k, li and ca solutions in clinical lab & soil laboratories. Model available me 881. No. Of filters na & k (ca & li optional) range : na:0-100 ppm, ca:20-100 ppm, k:0- 100 ppm, li:10-100 ppm sensitivity na : 5 ppm, ca : 10 ppm, k : 5 ppm , li : 10 ppm read out 2½ digit bright led display accuracy ± 2% upto 40 ppm, ± 5% above 40 ppm repeatability ± 2 count detector silicon photodiode filters narrow band interference glass filters nebulizer black bakelite, axial flow type flame system lpg and dry oil free air warm up time 10 minutes power 230 vac ± 10% 50 hz ac size (lxbxh) 355 x 250 x 210 mm weight 6. 5 kgm. (approx).

We are a leading manufacturer and wholesale supplier from Haryana, who are engaged in processing Actophotometer that are designed using advanced technology while including LSI Electronic Digital Circuitry. It consists of a Perspex sheet which is fitted with nickel coated brass rods and the control panel is accurately designed with shock strength and digital voltmeter. Actophotometer has detachable cords which makes it easy to handle and store. Furthermore a dropping tray is provided which helps in easy cleaning of the device. Avail Actophotometer from us at competitive prices.   Operating Instructions : Insert the mains lead into the mains socket and the socket provided on the left hand side of the cabinet. Switch the Instrument ON with the help of the switch marked Mains of the front panel.  The red indicator above the ON switch starts glowing and indicates that the mains voltage is available. Also the four digit display marked COUNT starts displaying either all Zero’s or some count. Press the Reset switch once. Now the COUNT is 0000. Insert the animal into the chamber. Switch the Shock ON with the help of the Switch marked ON near the voltmeter. The green indicator starts glowing. St the Shock Strength value on the Voltmeter with the help of SHOCK STRENGTH to the desired value according to the experiment. Now because of the Shock available on the grid, the animal starts moving here and there. This movement is recorded on the Four Digits Counter and is displayed on the front panel marked with COUNT. Interrelate the count value with the experiment requirements being performed.   Precautions: Keep the instrument clean and dry. Do not handle the instrument with wet hands. Do not try to touch the grill when the SHOCK STRENGTH is on. Handle the Perspex box carefully.
