Rotary Die Cutting Machine Dealers in Amritsar

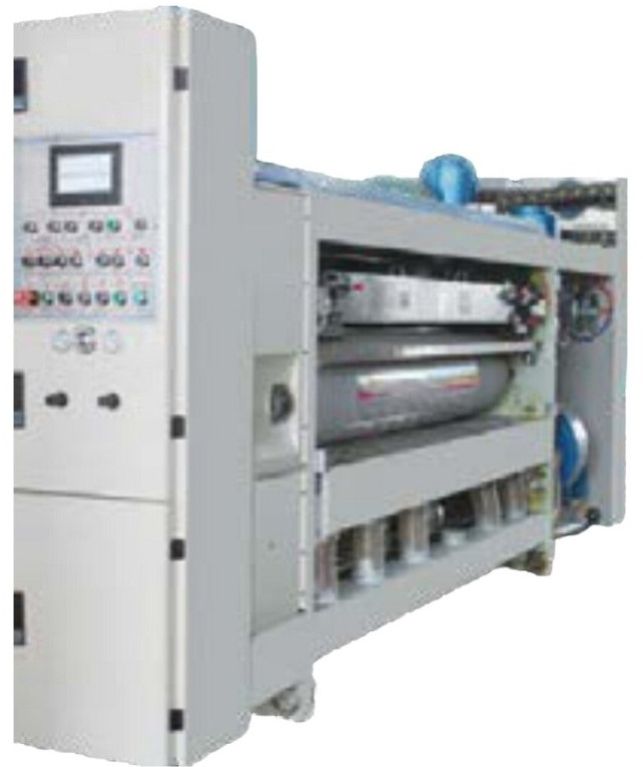

Features & Stack Units This machine is exclusive equipment for die cutting and molding, suitable for the manufacturing of coloful cartons, boxes and other package products of abnormal shape. It adopts the double roller pressing and urethane soft template; die cutting apeed difference servo makes up the linear velocity automatically, once completing the paperboard and the siding, slotting, punching, creasing and folding of the corrugated paper of medium and small thickness. The machine adopts the vacuum adsorption feeding facility; the main machine adjusts the speed by electromagnetism and the die cutting phase by computer, featuring high precision of die cutting, high speed and convenient operation.

For higher production capacity, this machines comes with Lead edge feeder which can feed boards at the speed of 80 pcsmin.Rubber Roll sleeve is made of imported high quality product, cutting time could be 8 million to 10 million time.Machine can do slitting, creasing, slotting, corner cutting jobs in single stroke as per design of Rotary Die fitted on the machine Roll.Upper soft role adopts mechanical type or hydraulic to control horizontal micro-swing, swing area within 40 cm to relieve wear of wrap and not influence die-cutting precision.

Die cutter phase is adjusted by computer and electric digital control In a scope of 360°, Die Cutter horizontal movement is adjusted by computer and electric digital control of a scope of ± 5mm. Uniflair glue die cutting cushion roller servo traces simultaneously, when the restored roller is input inside the serveo computer system, it will calculate accurately and automatically and follow the printing speed to ensure the velocity of blade line the same as the cushion roller and make the formation of the die cutting beautiful and same in size. No matter how the diameter of the cushion changes, the die cutting plate will not be damaged. The upper and lower roller of the die cutting adopts the design of different sizes.

Die-cutting roller is the high quality steel materials, 30mm thickness, balance correction, hard-chrome plating. Wallboard is high-quality cast iron material, 50mm thickness, and large processing center production. Soft-roll automatic grinding institutions improve rubber sleeve to pouches repeat usage and can grinding 3-4 times. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line The rubber is CUE polyurethane from America, easy to install and can die-cutting 12millon times. Mechanical soft roll about 40 mm lateral movement, the pads wear uniform. Six level grinding gears used 40cr material, low noise, long life. Die-cutting roller cylinder automatic separation devices to reduce rubber wear.

Printing Machines also available with Rotary Die Cutting options. It can be attached with a slotting head on Rotary cylinder as well as an independent slitter scorer unit.

All transmission gears are made of high quality alloy steel (40Cr) grinded under high temperature with hardness > HRC42, Spraying circulation is adopted to lubricate the gears, reduce noise and prolong the service life. Anvil roller and mould roller adopts high-grade steel with fine reground and chrome plated surface. Balance correction enhances running stability Mould roller and anvil roller can be apart / released by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber. Pneumatic lifting device working synchronous with the feeding system (During the feeding operation the mould roller pressed and when the feeding stops the mould roller released to ensure the correct die-cutting of every paperboard)  Mechanical drive anvil roller transverse moves within 60mm and installed with radial differential device to spread wear evenly (every cutting at different position) and to improve the life of anvil roller lx407 No matter how vary the diameter of anvil roller, unique speed difference compensation device makes the anvil roller slide together with mould roller so that the surface speed of anvil roller complies with it of the mould .roller, to make a perfect, uniformed die cutting. slotting machine could be made in good quality. Imported urethane (rubber) cover and its correction device to prolong the working life 3 to 4 corrections, 1 1.5mm each correction Planetary gear phasing structure, 360 degree motorized adjustment (run, brake, forward & backward)

Function and Uses The machine adopts chain feeding system and double roller rotary type. It can perform all process of slitting, creasing , corner cutting and hit special whole at one time. It has advantage of high precision, easy to operate, long service life and low cost. Paper Feeding Unit Adopt lead edge feeding system with vacuum adsorption auxiliary feed, (optional equipment kick feeding system) Speed: 10000 Sheets/Hr, die-cutting precision: ±0.75mm. Manual adjust former block board and computer control lateral block board, dial indicator. Leading paper roll have groove glue surface to prevent the crushed card board and increase the accuracy of feeding.   Main Characteristics The drum made of high quality steel tube, thickness 30mm, do balance treatment, plated chrome. Full machine gear made of 45# steel have been quenched treatment, Adopts lock-alx key less and cross-head system connect with shafts fi nish no gap adjustment. Driving part uses pull pump to lubricating (motorized phase adjustment type used spray lubricating). Oil box made of thick iron plate to avoid oil leakage. Phase adjustment by manual operate with micro-adjustment (or motorized adjust in 360º) Die Roller (bottom roller) lift-down adopts pneumatic control, manual or automatic operation. Rubber roller (top roller be wrapped anvil cover from “Maxdura” Brand from Taiwan (or CUE, DAY option), long use life. Rubber roller (top roller) can move automatically, move range ±40mm. Rubber roller (top roller) fix overrunning clutch to compensate line speed automatically, and avoid one position cutting. Equipped with anvil cover repair device, prolong use life.

This machine is designed for cutting, creasing and punching of corrugated sheets. This high speed machine is an ideal substitute for scoring (Rotary), slotting and additionally gives higher productivity. It is equipped with Chain feeding ensuring easy operation & helps in easy feeding of warp board. Die cutting roller is made of high quality steel with hard chromed plating. Upward roller can move 40 mm from left to right . This machine is equipped with rubber turning system. We can directly process the damaged part of rubber after long use. Kick feed and lead edge (vacuum) fed models are also available.
