ACTON ELECTRIC COMPANY Hebbal, Bengaluru, Karnataka

The 11/12 KV Switching Panel with VCB is suitable for indoor & outdoor applications. The Switching Panel consists of a Vacuum Circuit Breaker that can be used for Protection of the Transformer.   Features: The Protection / Tripping System is Implemented though Vacuum Interrupters & control relays The Cubicle is Powder Coated with 60-120 microns for its Inner / Outer texture with High Quality Process. The type tests conducted by us in CPRI Bangalore is as follows Ingress Protection Test IP 55.

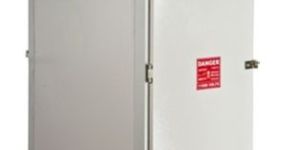

Product Features: The  panel consists of Load Break Switches with earth switches for the operating mode.  Load Break switch with Fuse Tripping Mechanism for switch ON & OFF Transformers.  Load Break Switches are Powder Coated with 60-120 microns for its inner / outer texture with High Quality processes  The type tests conducted by us in CPRI Bangalore is as follows Lightning Impulse & Power Frequency voltage Withstand Test (DRY). IEC62271-200/2003 LI 75kV (Peak) & PF 28kV  Ingress Protection Test IP 55 as per IEC 60529 Category-1

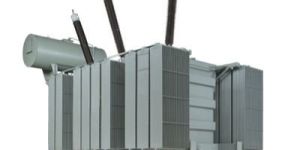

Acton Power Transformers are known for delivering excellent performance. The expert R&D team develops one of the most advanced designs to withstand short-circuit and impulse voltage tests. Features: Robust design to take care of frequent short circuits Excellent process of shrinkage and drying of coils resulting in a sturdy construction Step-up and Step-down transformers manufactured Manufactured with prime CRGO using step-lap design for low losses Various ratings type tested from NABL accredited labs

Working Frequency : 50/60 Hz

Usage : IS 2026, IEC 76, ANSI.C.57, as per customer requirement

Class Of Insulation : Class A

LT Panels (415V) complying to IEC 61439 and 61641 standards Panels up to 50 KA breaking capacity Panels up to 10000 A Copper and aluminum busbar Forms of Internal separation up to 4b Flexible design Panels up to IP65 protection Usage of Schneider, ABB, L&T, Siemens & Mitsubishi breakers Application:Industries | Infrastructures | Commercial complex | Residential | Power generation | Hospitals & Hotels etc. Specialized Panels for different applications

11/12kV  LBS is used in indoor & outdoor application PANEL / KIOSK / RMU. The load Break Switch can be used for the Switching ON & OFF operation of Transformers & IN / OUT operations. The Switch has auxiliary contacts & may be used for ON & OFF Indications. The Switch has Optional Earth Switch & Provision for Striker Pin HRC Fuses which works as a protection for Transformer.   Features: The Load Break Switches are provided with suitable HRC fuses as a protective device. The Cubicles are Powder Coated with 80-120 microns for its inner / outer texture with High Quality Processes. Type tested at CPRI as per IEC 62271-200/2003 LI 75kV (Peak) & PF 28kV Lightning Impulse & Power Frequency Voltage Withstand Test (Dry)  as per IEC 62271-100/2001 LI 75kV (Peak) PF 28kV. Temperature Rise test at 630 & Milli volt drop test IEC 62271-1-100-2008/IEC : 62271-1-2007. Short-time & peaks withstand current tests as per IS : 9920 (part1) : 2002 /IEC 60265-1 (1998). Mechanical endurance Test for 1000 operation as per customer instruction.

With the experience gained in manufacturing oil filled Power & Distribution Transformers, Acton also manufactures Dry Type Transformers for special applications. Features: Flame retardant and self extinguishing Maintenance Free Compact & thus providing high flexibility during installation Low operational costs High Resistance to dynamic circuit stresses High Impulse & High Short Circuit Strength Low Partial Discharge Resistant to Temperature fluctuations

Class Of Insulation : Class F, H

Enclosure : IP 21 to IP45, as per customer requirement

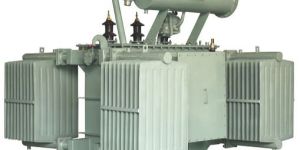

Acton manufactures oil filled Distribution Transformers in Wound or Stack core using CRGO Steel or Amorphous metal.   Features: Able to withstand Short Circuit & Impulse Voltage tests as per IS/IEC Powder Coating for excellent finish Available as CSP (Completely Self Protected) Type Designed to meet customized specifications Available as Corrugated Hermetically Sealed Type whichis compact in size Various ratings type tested from NABL accredited labs

Insulation Class : Class A

Tap Changer : OCTC, OLTC, as per customer requirement

We are also sales diesel Gensets ranging from 10kVA to 5200 kVA, since 2012. Make: Kirloskar Green. Acton is unique in design and construction, compact & well engineered. It has been tried, tested & found to be extremely reliable & consistent in delivering optimum performance.  Range 10 – 5200 kVA. Wide spread service network across length and breadth of India. 24 x 7 on 100% Load. Specially designed acoustics to meet stringent PCB/MOEF norms of 75 dBA @ 1 meter. Insulation material conforms IS 8123.

Compact Secondary Substation is a prefabricated, type tested as per latest IEC standard 62271-202 and CSS is arc tested assembly comprising an enclosure containing medium voltage (MV) switchgear, distribution transformers, low voltage (LV) switchboards, connections and auxiliary equipment to supply low voltage energy from medium voltage systems. Compact substations are typically installed in locations accessible to the public and ensure protection for all people according to specified service conditions due to the highest degree of Internal Arc Classification. Acton is unique in design and construction, compact & well engineered. It has been tried, tested & found to be extremely reliable & consistent in delivering optimum performance. The C.S.S is compartmentalized into 4 sections1) 11KV Metering compartment. 2) HT switchgear compartment. 3) Transformer compartment.  4) LT switchgear compartment with metering
