Distribution Transformers Dealers

(121 products available)
  • Premium
    Planar Transformer +3

    Planar Transformer

    500 - 2,500 / piece

    • MOQ100 Piece
    • Driven TypeElectric
    • ShapeRectangle
    • Power10 KW
    • SpecialityRobust Construction, High Efficiency
    • Country of Origin220 V
    • Number Of FlowerPower Transformers
    • Country of OriginIndia
    • Power Range120-800 Watts
    • FrequenceyRange up to 700kHz
    • Output10A
    • BrandRoRak
    • Flat Coil Transformer,Compact Power Transformer,High-Efficiency Transformer,Space-Saving Power Transformer,Power Electronics TransformerMiniature Planar Transformer,Industrial Power Transformer,Planar Magnetic Transformer
    ...more
    www

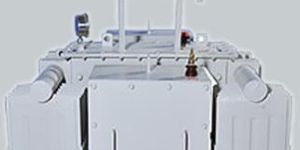

  • Distribution Transformers

    Distribution Transformers

    Get Price Quote

    • Insulation ClassClass A
    • Tap ChangerOCTC, OLTC, as per customer requirement
    • Ratings1 Phase, upto 33 kV 167 kVA 3 Phase upto 33 kV 3000 kVA
    • Frequency50/60 Hz
    • Applicable StandardsIS 2026, IEC 76, ANSI.C.57
    • CoreWound or Stack ;  CRGO Steel or Amorphous Metal
    • WindingCopper / Aluminum
    • Insulating FluidMineral Oil, both inhibited &  uninhibited, as per IS/IEC
    • Acton manufactures oil filled Distribution Transformers in Wound or Stack core using CRGO Steel or Amorphous metal.   Features: Able to withstand Short Circuit & Impulse Voltage tests as per IS/IEC Powder Coating for excellent finish Available as CSP (Completely Self Protected) Type Designed to meet customized specifications Available as Corrugated Hermetically Sealed Type whichis compact in size Various ratings type tested from NABL accredited labs
    ...more
  • Three Phase Auto Transformer

    Three Phase Auto Transformer

    Get Price Quote

    Description Three phaseCapacity 6A , 1200ACooling Forced Air / oil immersed Mounting Balance / unbalance
  • 63kva Distribution Transformer

    63kva Distribution Transformer

    Get Price Quote

    A distribution transformer or service transformer is a transformer that provides the final voltage transformation in the electric power distribution system, stepping down the voltage used in the distribution lines to the level used by the customer. The invention of a practical efficient transformer made AC power distribution feasible; a system using distribution transformers was demonstrated as early as 1882.
    ...more
  • MV Outdoor OilCooled Voltage Transformers

    MV Outdoor OilCooled Voltage Transformers

    Get Price Quote

    We manufacture M.V. OUTDOOR OIL-COOLED VOLTAGE TRANSFORMER which is available in various specifications to cater to the varied requirements of clients. These are developed using innovative techniques of production to ensure international quality standards, widely known for high efficiency, low maintenance, durability and low power consumption. These can be used in Metering& protection purposes. Our range of M.V. OUTDOOR OIL-COOLED VOLTAGE TRANSFORMER includes following: System voltage: 3.3/6.6/11//22/33 KV OUTDOOR OIL-COOLED VOLTAGE Transformer Applications Wind power generation Solar power generation Thermal /Hydro power plants Substations, Power stations
    ...more
  • Distribution Transformers

    Distribution Transformers

    Get Price Quote

    Features   Designed for life time trouble-free performance Design conforms to Indian / International standards Low power loss and low noise level Designed to withstand electrical impulses, thermal and dynamic stresses Optimum utilization of active materials for compactness Modern manufacturing techniques ensure cost effectiveness and reliability PrevNext 1234 Specifications   3 phase, 50 Hz in voltages of 11kV, 22kV and 33kV Off-circuit tap changer to provide any range as per standards On-load tap changer to provide any range as per standards Class A insulated for oil cooled, Class B to Class H for dry type transformers Any vector group as per standards Duty cycle as per Indian / International standards Copper / Aluminum wound Painting as per Indian / International standards HV side bushings / cable box LV side bushings / cable box / bus duct Fittings as per Indian / International standards
    ...more
  • Three Phase Transformer

    Three Phase Transformer

    Get Price Quote

    Apart from online payment processing methods, we also facilitate payment through offline mediums. We follow strict quality procedures that are as per the guidelines, help us in presenting dependable and cost-effective product range. We offer high quality three phase transformer.   Additional Information : Item Code - TPT-01
    ...more
  • Power Distribution Transformers

    Power Distribution Transformers

    Get Price Quote

    We give utmost care to ensure complete satisfaction of the clients. Our range power distribution Transformers helps in converting low voltage into high voltage or visa-versa and accordingly the transformer is termed step - up or step-down. In order to maintain our established quality trademark, we use refined raw materials and other kinds of modern machines.
    ...more
  • 110kVA 3-Phase Oil Cooled Compact Substation (CSS)

    110kVA 3-Phase Oil Cooled Compact Substation (CSS)

    200,000 - 250,000 / unit

    • Power Rating110kVA
    • Number of Phases3-Phase
    • Voltage Ratio11kV/433V
    • Cooling TypeOil Cooled
    • Winding MaterialCooper
    • StandardsIS-2026
    • VectorDYN11
    • DutyContinuous
    • Compact substations are used for energy transformation in secondary distribution network from MV to LV or LV to MV. New India’s Compact Substations comprise of an enclosure containing medium voltage (MV) switchgear, distribution transformers, low voltage (LV) switchboards - All in one enclosure. These are best suited for inter-connections and auxiliary equipment to supply low voltage energy from medium voltage systems. These substations are typically installed in locations accessible to the public and ensure protection for all people according to specified service conditions. These are designed to be aesthetically pleasing and secure from vandalism. A CSS saves space, extra wiring, extra connectivity and above all keeps the location clean and safe. The Substation is designed to withstand moisture, dirt and condensation in coastal areas. It is completely lockable in order to prevent unauthorized access. Apart from having obvious advantages such as space saving, plug & play type construction, portability, minimal exposed cabling / wiring etc. our Compact Substations are a very cost effective solution. Salient Features: High Safety. Good Aesthetics. Cast Saving as compared to Conventional substations. Compact size and space saving. Plug and play advantage and zero set-up and Installation time. Enclosure protects internal equipments against environmental Hazards. The compartmentalizes construction prevents accidental to energized areas. Tailored configuration to customer needs. Variety and choices for MV/LV switchgear. Low power loss and low noise transformer. Number of feeders for LV can be customer specific. Easy to install. Modern manufacturing techniques ensure cost effectiveness, relliability and long trouble free performances. Contains: Pre fabricated Enclosure Distribution Transformer Medium Voltage Switchgear Low Voltage Switchboard Connectors etc. Natural Air Cooling Brands avaialble: Kalpa and Universal Clientele: Colombo Dockyard PLC Bogala Graphite Geosteel Copperbelt Energy Jindal Steel & Power Devki Steel Mills Ltd Konkola Copper Mines PLC Melwire Rolling Pvt Ltd Lilongwe Water Board
    ...more
  • Oil Filled Transformers

    Oil Filled Transformers

    Get Price Quote

    Converter Transformers are used for large drive applications and static voltage compensation. These Transformers are mostly built as double – tier with two secondary or multi secondary windings. Multi secondary windings are provided with desired phase shift to obtain 12, 24 or 36 pulse configurations. Product Feature High K-Rating Transformer.Earthing Shield between HV & LV Winding  to isolate the harmonic distortion.Highly Efficient and Durable.Low on maintenance.Automatic On/ Off cooling option.
    ...more
  • 1 KVA 3 Phase Control Transformers

    1 KVA 3 Phase Control Transformers

    Get Price Quote

    We manufacture a wide range of 3 KVA 3 Phase Transformers that is preferred by clients across the country. The use of latest technology in these transformers makes them ideal for application in the Engineering as well as the Electrical Industries. Further, we use high grade components in manufacturing these transformers to ensure durable finish standards, maintenance free working, and high utility to the clients. The technical specifications of our products   range are as follows: Range: 1VA to 300 KVA Single Phase, 3 Phase Regulations: Within 5% Insulation Resistance: 500 MΩ Breakdown Voltage: 3 KVA
    ...more
  • Oil Immersed Transformer

    Oil Immersed Transformer

    Get Price Quote

    • Range160 kVA to 2500 kVA, up to 33 kV Class
    • Converter transformers4540, IEC: 146 & IEEE: 444
    • Distribution and power transformers: IS: 2026, BS: 171 & IEC: 76, Converter transformers: IS: 4540, IEC: 146 & IEEE: 444, Furnace transformers: IS: 2026, System earthing transformers: IS: 3150 & BS: 4944, The company is capable of manufacturing transformers to any other standards as per customers'consultants' requirements.
    ...more
  • Air Cooled Distribution Transformers

    Air Cooled Distribution Transformers

    Get Price Quote

    Exclusively used for Indoor applications. Preferred over Oil cooled Transformers due to reduced fire hazards. Maintenance free and negligible humming noise. Special type transformers -Compact type as per customer requirement/worksite constraint. Transformer designs conform to I.S 2026 & I.S 11171.
    ...more
  • Planar Transformer

    Planar Transformer

    Get Price Quote

    • UsagePower Supply And Electronic Devices
    • TypePlanar Transformer
    • TechnologyPlanar Technology
    • TopologyFlat, Geometric Winding Arrangement
    • Miracle Electronics’ planar transformer, which breaks from the typical coiled coil topology of conventional transformers, represents a novel approach to transformer construction. It makes use of a flat, geometric winding arrangement instead, which is made feasible by Printed Circuit Board (PCB) technology. This creative design has several benefits in terms of thermal performance, EMI characteristics, and overall power density, in addition to making a transformer that is more space-efficient and compact. The winding structure of our planar transformer is placed in a two-dimensional flat pattern, which increases the surface area exposed to the environment, and improves heat dissipation. This increased thermal efficiency not only increases the transformer’s total lifespan, but also adds to its dependability. Planar transformers also have a number of benefits, one of which is their small size, which makes them perfect for space-constrained applications like power supply and electronic devices. The lowered weight and size are especially helpful in sectors where effective system integration depends on space optimization. In the field of magnetics, planar technology is essential for meeting the increasing need for intelligent solutions and small-sized components for a range of applications
    ...more
  • Distribution Transformer

    Distribution Transformer

    Get Price Quote

    Our Distribution Transformers have the largest satisfied customer base. Dedicated to providing environment friendly quality solutions and commitment to delight customers with unique value propositions.
  • Three Phase Power Transformer

    Three Phase Power Transformer

    500,000 / Piece

    • Power RatingIP55
    • Number of Phase3-Phase
    • Cooling TypeOil Cooled
    • Winding MaterialMild Steel
    • Mounting TypeFloor Mounted
    • Insulation ClassA
    • AMC AvailableYes
    • Winding TurnsStep-Up Transformer
    ...more
  • Oil Immersed Distribution Transformer

    Oil Immersed Distribution Transformer

    Get Price Quote

    • MOQ1 Piece
    • Frequency50/60 Hz
    • Construction TypeIndoor/Outdoor
    • Duty TypeOutdoor / Indoor, Pole or Ground Mounted
    • Voltage Class3.3, 6.6, 11, 22, 33kV or any specific
    • No of Phases1 or 3 Phase, ONAN, KNAN
    • CapacityUp to 10MVA
    • Insulating FluidPCB FREE Mineral Oil, both inhibited & Biodegradable FR3,uninhibited as per IS335/IEC60296
    • Class of InsulationClass A
    • Tap ChangerOff Circuit or On Load
    • Tapping RangeOCTC or OLTC as per customer requirement
    • Winding MaterialAluminum or Copper with multi paper covering
    • Applicable StandardsIS 1180 ,IS 2026, IEC 60076, ANSI, IEEE
    • PaintingEnamel, Epoxy, Polyurethane or customer specific
    • Kalpa offers a complete line of oil cooled three-phase distribution transformers that meet applicable IS / IEC standards. With high voltages up to 33kV and ratings up to 10 MVA, transformers are designed for outdoors covering domestic, International , commercial and industrial applications. High-grade materials, combined with sophisticated engineering design systems and state of the art test infrastructure are key elements of a transformer that will deliver years of highly reliable service. Design can meet any stringent specifications Offering low losses as per request. As per IS1180/EEL - 1, 2 & 3 BEE STAR RATING Capacity to Execute large volume orders. Assured Features Highest dielectric insulation property to withstand Lightening Impulse Mechanical design to withstand short circuit forces arising during faults Optimum oven heating under vacuum as to achieve desired compression height and maximum insulation resistance (IR) to windings Adequate ducts between layers, coils, discs for maximum oil flow and reduced hot spot temperature. Step-lap designed CRGO laminations for lower losses and excitation current Pre-compressed Insulation material for minimal moisture absorption Standard Fittings H.V. Cable box L.V. Cable box with bus bar or bus duct Off circuit tap links Conservator oil filling hole With cap & drain plug Undercarriage with four Bi-directional rollers Earthing terminals Drain cum bottom filter Valve with sampling plug Top filter valve with Sampling plug Plain Oil Level Gauge Rating diagram plate Air release device Thermometer Pocket Lifting lugs Pressed Steel Radiators (Fins or corrugated type) Double Diaphragm explosion vent Silica gel breather Additional Neutral bushing First filling of oil Optional Fittings Detachable Radiators with isolating valves Jacking Pads Dial type Oil Temperature Indicator With A/T contacts Dial type Winding Temperature Indicator with A/T contacts Magnetic Oil Gauge with A/T contactsw Buchholz relay with A/T contacts Marshaling box with control wiring Equalizer pipe between Conservator & explosion vent On Load Tap Changer RTCC Panel with automatic Voltage Regulator (AVR) Pressure Release valve DGPT Relay
    ...more
  • Distribution Transformers

    Distribution Transformers

    Get Price Quote

    We are offering distribution transformers are used to step down three-phase high voltage to low voltage for energy distribution. Our liquid-filled transformers are manufactured in accordance with the most demanding industry and international standards. Transformers can be used for indoor or outdoor applications and can be provided with off-load and on-load tap changers.
    ...more
  • Portable Substations

    Portable Substations

    Get Price Quote

    The compact type substations are used for feeding power by acquiring minimum space, can be mounted on Roof Top Basement of the premises or portable type for construction sites, They are easy to install, usually mounted on skid frame or channels with lifting hooks or portable trolleys as per customer demand. The CSS is computerised with suitable medium voltage, lowvoltage sections and transformer section with seperate doors for each compartment. Standard design low weight small volume transformer room accessable both side shutters provisional cable entry 100% non porous powder coating.
    ...more

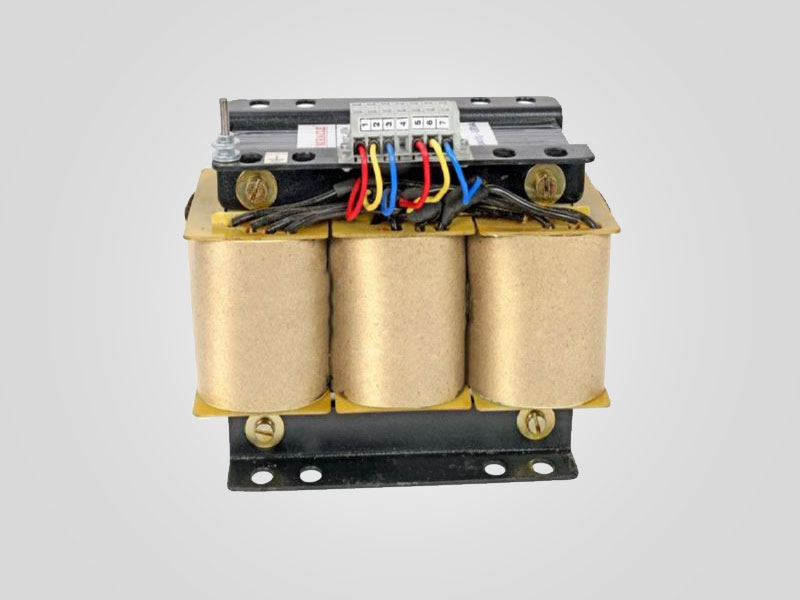

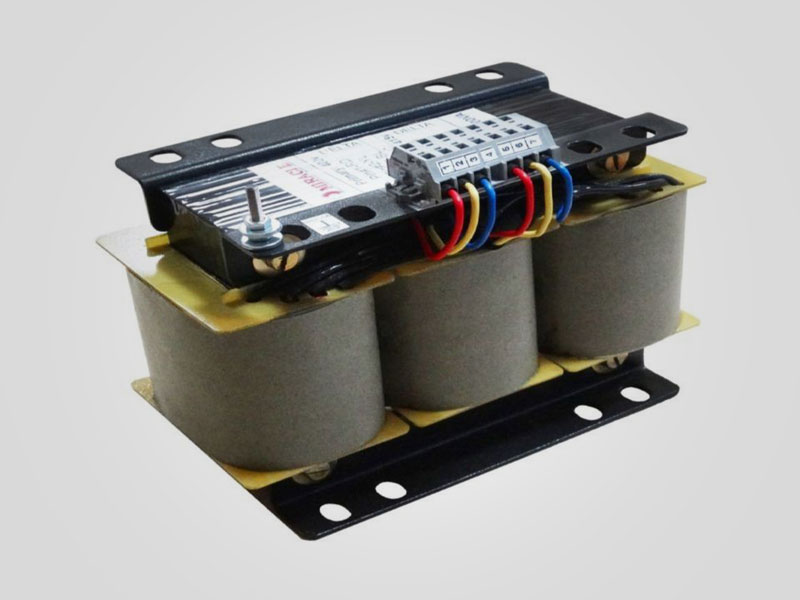

  • Three Phase Transformer +2

    Three Phase Transformer

    Get Price Quote

    Miracle Electronic’s Three phase transformers are used across numerous industries increasingly as a preferred to product to effectively change values of three phase voltage and current to desired units. Miracle Electronic’s Three-phase (3φ) transformers are used for efficient and fault free electrical power generation, transmission, and distribution, as well as for all industrial uses. A reliable power supply presupposes a sufficiently large supply system with high-performance transformers. The high quality standards set by MIRACLE are appreciated throughout the industry and our products ourselves stand able testimony to this claim. MMiracle Electronic’s Three Phase Transformers: Fault Free Generation, Transmission and Distribution.Miracle Electronics manufactures Power transformers up to 30 KVA in accordance with International standards and supplies to markets across the globe. Product Variants available: 1, 10, 20 , 25 , 50 ,100, 500 VA ,1 KVA , 5 KVA ,10 KVA Air cooled 120 /240 V / 415 V 1 Phase – 3 Phase 50 Hz – 60 Hz Low height & Low Profile General Product Features & Inclusions Self-Lead TEX E Wires PVC Cables Sleeves Connectors L Clamp U Brackets Flange Type Mounting With CRGO core / with CRNGO / with Round cores Class B /F insulation Epoxy Mounting arrangements
    ...more
  • Distribution Transformers

    Distribution Transformers

    Get Price Quote

    Bangalore based reputed manufacturer , supplier and service write my essay service provider of a wide selection of excellent quality power & distribution transformers, air- cooled transformers, furnace transformers, etc...!!! We are a highly established company engaged in manufacturing, supplying and exporting the highest quality Transformer, which is very important electrical machinery. While designing, manufacturing, testing, and commissioning of these transformers, we give utmost care to ensure the complete satisfaction of the clients. Our range power distribution Transformers helps in converting low voltage into a high voltage or vice-versa and accordingly the transformer is termed step - up or step-down. All Transformers manufactured by us work on tempurpedic symphony pillow the principle of electromagnetic induction. In order to maintain our established quality trademark, we use refined raw materials and other kinds of modern machines
    ...more
  • Distribution Transformers

    Distribution Transformers

    Get Price Quote

    • Frequency60Hz
    • FeatureLow power loss & low noise. and Hermetically sealed can be used in limited space
    • RatingUpto 5MVA
    • Voltage ClassUpto 33kV
    • Raychem RPG manufactures wide range of distribution transformers designated to grant the reliability, quality and efficient transformers upto 5MVA, 33kV offering wide range of varieties such as. Conventional Type Hermetically sealed with Radiators Hermetically sealed with Corrugated finwalls Natural Ester fluids
    ...more
  • Power Distribution Transformers

    Power Distribution Transformers

    Get Price Quote

    • Cooling TypeAir Cooled And Oil Cooled
    • Country of OriginMade in India
    • Energy Efficiency Level5 Star
    • PhaseThree Phase
    • Brand NameAstron Electric
    • Power25 Kva to 10 mba
    • Voltage Rating11 kv / 433 volt
    • Materialcopper / aluminium
    ...more

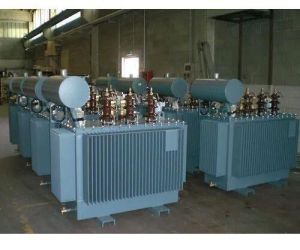

  • Oil Type Distribution Transformer

    Oil Type Distribution Transformer

    Get Price Quote

    • Cooling TypeOil Cooled
    • Capacity63KVA TO 2500KVA
    • Mounting TypeFloor Mounted
    • SpecialityDesigned for trouble-free performance,High quality & reliability.,Energy Efficient
    • Voltage Rating11KV/433V
    • PhaseThree Phase
    • Frequency50 Hz
    • MaterialMild Steel
    • Ambient Temp Degree Celsius50 to 60 Degree C
    • Maximum Humidity95%
    ...more
  • Distribution Transformers

    Distribution Transformers

    Get Price Quote

    VTST manufactures a wide range conventional, sealed type/ outdoor type, 3 Ph, 50 Hz, oil immersed, ONAN/ ONAF/ OFWF cooled, step up/ step down, multi winding with Al/ Cu conductor, Continuous duty distribution transformers ranging from 15 KVA to 2500 KVA with all voltage class and up to 33 KV. These transformers can be free breathing, fitted with a conservator. The liquid filled range is cooled by tank - mounted plate radiators on the side of their tanks. The latter being known as conventional type transformer.
    ...more
  • Power Distribution Transformers

    Power Distribution Transformers

    150,000 / Piece

    • PhaseThree Phase
    • Brand NameVijay Power
    • Cooling TypeOil Cooled
    • Energy Efficiency Level4 Star
    • Frequency50 Hz
    • Power25 kVA to 2000 kVA
    • Voltage Rating33 kV / 11 kV
    • Secondary Connection Type430 Volts
    • Capacity25 to 2000 kVA
    • MaterialCopper and Aluminium Wound
    ...more
  • Electrical Transformer

    Electrical Transformer

    Get Price Quote

    • Number Of FlowerPower Transformers
    • Availability5-10 Tons
    • FinishingPolished
    • Packaging TypeWooden Box
    • SpecialityEasy To Use, High Efficiency, Reliable
    • UsageIndustrial
    • Minimum Order Quantity (MOQ)1 Unit
    ...more
  • Distribution Transformer

    Distribution Transformer

    Get Price Quote

    A distribution transformer is a transformer that provides the final voltage transformation in the electric power distribution system, stepping down the voltage used in the distribution lines to the level used by the customer. The invention of a practical efficient transformer made AC power distribution feasible; a system using distribution transformers was demonstrated as early as 1882. If mounted on a utility pole, they are called pole-mount transformers. If the distribution lines are located at ground level or underground, distribution transformers are mounted on concrete pads and locked in steel cases, thus known as pad-mount transformers. Distribution transformers normally have ratings up to 200 KVA, although some national standards can describe units up to 5000 KVA as distribution transformers. Since distribution transformers are energized for 24 hours a day (even when they don’t carry any load), reducing iron losses has an important role in their design. As they usually don’t operate at full load, they are designed to have maximum efficiency at lower loads. To have a better efficiency, voltage regulation in these transformers should be kept to a minimum. Hence they are designed to have small leakage reactant.
    ...more
  • Three Phase Isolation Transformer

    Three Phase Isolation Transformer

    Get Price Quote

    • Nominal AC Output Voltage Ratings480 VAC or 208 VAC, wye derived, 60 hertz.
    • Output Impedance3-4 % typical.
    • Harmonic K-RatingK-4, K-7, K-13, or K-20 rated in accordance with: K = Σ Ih(pu)2 h2 2.3 Performance Specifications
    • Load RegulationMaintained within +2.5% or less of nominal, from no load to full load.
    • Overload500% for 10 seconds, and 1,000% for one cycle.
    • THD≤ 1% added to the output voltage waveform under a linear load.
    • Harmonic AttenuationLoad generated triplen harmonics are attenuated at the primary.
    • We are a reputed firm engaged in offering precision-engineered Three Phase Isolation Transformer. It is a continuous duty rated, 600 volt class, convection cooled, dry type, isolation transformer to support harmonic rich non-linear loads while maintaining safe operating temperatures. This transformer includes superior transverse and common mode noise attenuation. Designed as per NEMA TP 1-2002 dry type transformer efficiency standards, our transformer is acknowledged for high performance and reliability. We provide Three Phase Isolation Transformer in variegated specifications to meet diverse applications.   Standards : The power conditioning system is designed in accordance with applicable portions of the following standards NEMA TP 1-2002 Dry Type Distribution Transformer Efficiency Standards American National Standards Institute (ANSI C57.110 & C62.41-1991) Institute of Electrical and Electronic Engineers (IEEE 519-1992) National Fire Protection Association (NFPA) 70, National Electrical Code (NEC) Federal Information Processing Standards Publication 94 (FIPS Pub 94) UL Listed to Standard 1561 C-UL listed to CSA Standard C22.2, No. 47-M90  Input Specifications : Nominal AC input voltage ratings: 600 VAC, 480 VAC, 240 VAC or 208 VAC, 3 phase for transformers below 225kVA,and 600 VAC or 480 VAC, 3 phase for transformers 225kVA and above. All are designed with sufficient margin tosustain a constant input of +10% without saturation. The nominal operating frequency: 60 hertz + 3 hertz. The power conditioning system’s primary is configured in a three phase delta. Transformers below 500kVA include full capacity taps at 2½ % increments, two (2) above and four (4) below the nominal voltage tap. 500kVA transformers include full capacity taps at 2½ % increments, one (1) above and two (2) below the nominal voltage tap. Energizing inrush current will not exceed 10 times the full load input current for ½ cycle.  Output Specifications : Output Voltage : Sinusoidal with no flat topping when high crest factor (3.0 : 1), non-linear loads are present at the output. Audible Noise Measured at 1 Meter from the Unit : ≤ 50dBA for 15 KVA to 112 KVA ≤ 55dBA for 150 KVA to 225 KVA ≤ 60dBA for 300 KVA to 500 KVA Electrostatic Shielding : Incorporates two, or an optional three, solid copper foil electrostatic shields which minimize inner winding capacitance, transients, and noise coupling between primary and secondary windings. Common Mode Noise Attenuation : 126 dB with two shields, or 146dB with optional three shields. Transverse Mode Noise Attenuation : 3 dB down at 10kHz, decaying 20 dB per decade. Efficiency : 98% typical and meets NEMA TP 1-2002 dry type transformer efficiency standards on models 15kVA and above. The power conditioning transformer is designed to achieve NEMA TP 1-2002 Table 4-2 efficiencies listed below under a K-4, K-7, or K-13 non-linear load at or between 35% to 50% load and at an operating temperature of 75 degrees C. KVA Efficiency : 15* 30 97.00% 97.50% 50 97.70% 75 98.00% 112 98.20% 150 98.30% 225 98.50% 300 98.60% 500 98.70%   *15kVA model efficiency applicable to K4 and K7 loading only.  Optional TVSS : Incorporates a fused (with front panel mounted, blown fuse lamp indicator) 3 phase, secondary connected, 6 mode spike suppression network. The TVSS is comprised of high energy metal oxide varistors with less than a 5 nanosecond response time and a maximum peak current handling capability of 40,000 amps (8x20μsec) per mode. The suppression network system will remain functional when subjected to ANSI/IEEE C62.41 Category B-3 waveforms. The spike suppression network increases the transverse mode noise attenuation to 3 dB down at 10kHz, decaying 40 dB per decade.  Main Transformer : Transformer Windings : All copper conductor construction, with separate primary and secondary, isolated windings. The transformer conforms to NEC article 250, that specifies a separately derived power source. The neutral conductor is sized for 200% of the ampacity of the phase conductor. Terminals are provided for isolated three phase output conductors, neutral conductor and ground. All leads, wires and terminals are labeled to correspond with the circuit wiring diagram. Basic Impulse level : No less than 10,000 Volts. MTBF : ≥ 200,000 hours. Transformer Steel : Grain oriented, M6 grade, silicon steel. Flux Density : ≤ 15k gauss. Core Losses :  ≤ 0.6% of the KVA rating. Insulation : Class N, 200OC with a maximum temperature rise of 115OC above ambient, not exceeding 130OC under nonlinear loading per UL 1561. Cooling : Natural convection.  Cabinet : Enclosure : NEMA type 2 general purpose, floor mounted, and indoor enclosure. Construction : Cabinets are manufactured from 14 gauge steel with base sub-structure suitable for fork lifting.
    ...more
  • Three Phase Voltage

    Three Phase Voltage

    Get Price Quote

    Miracle Electronic’s Three phase transformers are used across numerous industries increasingly as a preferred to product to effectively change values of three phase voltage and current to desired units. Miracle Electronic’s Three-phase (3φ) transformers are used for efficient and fault free electrical power generation, transmission, and distribution, as well as for all industrial uses. A reliable power supply presupposes a sufficiently large supply system with high-performance transformers. The high quality standards set by MIRACLE are appreciated throughout the industry and our products ourselves stand able testimony to this claim. MMiracle Electronic’s Three Phase Transformers: Fault Free Generation, Transmission and Distribution.Miracle Electronics manufactures Power transformers up to 30 KVA in accordance with International standards and supplies to markets across the globe. All our Power Transformers are RoHS Compliant, High, Reach Compliant, CE and UL Marked with request. General Product Features & Inclusions Self-Lead TEX E Wires PVC Cables Sleeves Connectors L Clamp U Brackets Flange Type Mounting With CRGO core / with CRNGO / with Round cores Class B /F insulation Epoxy Mounting arrangements Product Variants available: 1, 10, 20 , 25 , 50 ,100, 500 VA ,1 KVA , 5 KVA ,10 KVA Air cooled 120 /240 V / 415 V 1 Phase – 3 Phase 50 Hz – 60 Hz Low height & Low Profile Miracle Electronics also undertakes requests for custom design and development of Three Phase Transformers.Please contact our Customer Support Team for more details.
    ...more
