Elnet is elmeasure's energy management system (ems), distributed pc based data acquisition and monitoring software tool used to check the performance of electric utility grids to monitor and optimize the performance of the generation andor transmission system. this system used in any organization to achieve energy efficiency through well laid out procedures and methods, and to ensure continual improvement, which will spread awareness of energy efficiency throughout an entire organization. The system will collect all electrical data like voltage, amps, power factor, peak demands from multifunction meters that enables necessary actions and correction at right time.

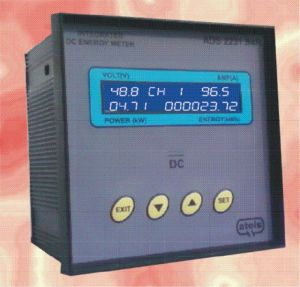

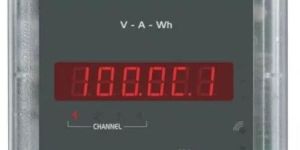

ADS 2231 is a Microcontroller based Integrated Digital Meter to measure Multiple parameters on DC power Management applications. The general range available is 48V DC & 100A DC. Standard  Shunts Input  External shunts input 100A / 75mV Multiple channels     ( 4 ) and is very economically priced. Measures & Displays  DC Volt, DC Current & DC Energy(KWhr) of each channel. And Cumulative  Current & Energy(KWhr) PC INTERFACE :    RS232 or RS485 DISPLAY  Back lit alphanumeric     16 x 2  LCD Display      Features Single meter measures Multiple channels Standard Shunt Input 100A/75mV DC Measures DC Volt & Amp & Energy of each ch. Measures Cumulative Current & Energy Micro controller based Large Alphanumeric back lit LCD Display 0.5% FSD Accuracy Software calibration Records Data with Time stamp RS 232 - RS485 Interface for PC communication Built-in noise filter for harsh field conditions Compact meter

We use superior-grade packaging as barrier protection for our products against dust, moisture, mechanical damages and logistical jostling. Our products packaging is premium. From marketplaces of Bangalore(India) to all the others, our organization is capable of providing the product to purchasers as per requirement.

Energy monitoring system can remote monitor electric devices (i.e., electricity meter box). When devices are opened, the system can identify their location and transmit information to the monitoring center through GPRS. By the use of software application developed, we can observe and study the readings appearing in the meter, download the data, generate online reports.

Elite 440 is a multi-line three-phase digital panel meter for accurate and reliable measurement of electrical parameters (voltage, current, power, frequency, etc.) for industrial and commercial applications. It has a large multi-line backlit LCD display which enables four parameters to be displayed at the same time. Modbus communication capability allows easy integration with energy monitoring systems. Expansion modules can be fitted for enhanced system integration (pulse inputs/outputs or analogue output and ethernet).  Application Commercial and industrial sub-metering and energy management (EMS) applications. Building management and monitoring systems (BMS). High, medium and low-voltage switchgear panels. Control and relay panels. Power Control Centre (PCC) panels. Motor Control Centre (MCC) panels. Relaying and control outputs. Plant automation and monitoring system (SCADA/DAS).

Digital energy meter, Advantage of Digital Meters: a) Accurate, Versatile and Reliable b) less Investment as one digital meter covers complete range of analog meters. c) Less storage space d) Easy Handling

Features: Accuracy class 0.5/1.0 Solid State version Built in transducers Built in Selector Switch or without selector switch Compact in size with Aesthetic value 7 segment red LED Display Tropicalised Design and time tested Low power consumption Specification Electrical Distribution Control & Relay Panel Power Control Centre Motor Control Centre Generator Control Panels Test Benches and Laboratory Equipments Wind Energy and Co-Generation Plants Wind Energy and Co-Generation Plants Air Conditioning/Refrigeration Plants

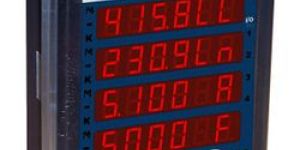

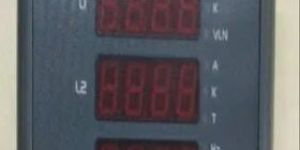

Product Features : Measurement of basic, power, energy and demand parameters. On-site programmable PT and CT ratios. High brightness LED display (alpha numeric for parameter, numeric for value. Automatic CT reverse correction for energy and demand. Programmable demand techniques : block / sliding window. Programmable demand parameters : Apparent / Active power. Programmable demand range : Kilo / Mega. Programmable Alarm / hysterisis settings. Program RTC time to match EB meter's clock. For EMS-15C : Max. Demand Controller = Max. demand indicator + Relay module (4 relay)(RR-4) 4 control outputs for alarm and trip settings.

Ours is a well-known entity, which is engaged in manufacturing, supplying, exporting and trading digital energy meter. Owing to their features like selectable ct ratio and source energy recording with display of voltage, current, frequency and power factor, these meters are applicable for generator panel and capacitive power plant. Engineered to perfection, these meters are available in different specifications. Features: precise engineering high material strength user-friendly details: true rms measurements accuracy class 1.0 2 –line, 16 char back lit lcd display confirms to is-13779 iec-62052-11& iec-62053-21 ct ratio- selectable from 55 to 30005 rs 485 port – mod bus protocol compact and ideal for industrial environment display parameters: e.b energy ( 6.3 format) line voltages (vr, vy, and vb with respect to neutral) line currents (ir, iy, and ib). Line frequency. Average power factor lag or lead active power- r ph, y ph, b ph & summation eb on hour l.e.d indications: presence of phases (r, y, b) reverse polarity specifications: accuracy class class1.0 frequency 50hz ± 5 % system voltage 415v ac110v ac auxiliary 40-275v acdc operating temperature 0°c to + 55°c ct ratio-field programmable 55 to 30005 in steps of 5 power consumption-sensing voltage current input auxiliary less than 0.2 va, less than 0.2 va, less than 5 va weight 300 grams models pdm9023 – 3ph. 4w dimensions 96x96x70 mm (wxhxd) mounting flush applications: electrical panels- ht & lt panels generator panel and capacitive power plant oem application test benches and laboratory equipment

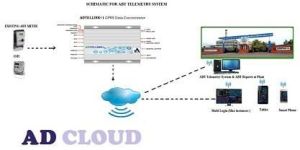

ADCLOUD (Advanced Cloud Hosted Energy Management Software with access to Multiple Standard Industrial ReportsChartsAnalysis Tool, as well as Optional customized ReportsCharts post commissioning of the product.

Nowadays, companies and industries are not only interested in controlling the consumption of energy in  their installations, but they also aim at having a centralised control of the whole installation, so that it can  be adequately managed and maintained. CIRCUTOR offers its software range to address these issues:  PowerVision and PowerStudio. PowerStudio is used to read the instantaneous values of all of CIRCUTOR's  units in real time, with the generation of a log that is stored in a PC, which can be studied later on. In addition, PowerVision can be used to download the data stored in the units with internal memory.ApplicationsPowerStudio billing application + PS scada application

It replaces 2 energy meters recording data from different sources of energy. Relay output option available for prepaid metering based on set value with individual load hours for both energy sources. Individual load hours for both energy sources.

EMS-11: Measurement of current parameters (L-N) *CT primary and secondary programmable. EMS-12: Measurement of voltage parameters *PT primary and secondary programmable. EMS-13: Measurement of frequency parameter. EMS-14: Measurement of Power Factor parameter. EMS-02: Measurement of basic parameters.(Current (L-N), Voltage (L-N),(L-L), frequency (average) and Power factor (Total) * CT ratio programmable, RS485 Mod-bus RTU protocol available, Sensing : True RMS. EMS-18: VAF Meter with True RMS Sensing. Program can be locked by removing short link connected across specified terminals. Hold/Scroll Facility available .

This RS-485 to Wifi gateway can read the data from one or more RS-485 slaves & upload the data to remote server over Wifi Internet.   Applications:   Energy monitoring – Send readings from AC or DC energy meters to cloud Solar monitoring Smart metering applications. Upload industrial sensor data to cloud – Liquid level, fuel level, Vibration, Tilt, Weight, Temperature, Humidity, Pressure etc.   Specifications:   Convert RS-485 sensors to smart sensors Supports multiple slaves on single RS-485 bus Wifi connectivity Data reporting protocol: HTTP POST using TCP/IP Sampling/reporting rate: Configurable from 30 secs up to several hours Temperature: -10degC to +50degC. Humidity: 10-90% RH Power input: 5V-6V DC @ 500mA max Standby power: < 5mW

Using the latest and sophisticated technology we have developed Energy Management Software which provides greater energy efficiency business. The Energy Management Software does not require data cabling as it uses Power Line Communication.

Elite 440/ 443 is a Multi-Line Three-Phase Digital Panel Meter for Accurate and reliable Measurement of Electrical Quantities(Voltage, current, Power, Frequency, etc., ) in industrial andcommercial applications. It has a large multi-line backlit LCDdisplay which enables four parameters to be displayed at thesame time. Modbus Communications capability allows easyintegration with energy monitoring systems. An expansionmodule can be fitted for enhanced functionality (pulseinput / output)
