Precision Gauges Dealers in Peenya Industrial Area, Bangalore

eliCoil Gauges are available as Go/No Go thread plug gauges for inspection of tapped holes prior to HeliCoil fitment. The gauges are available in 5H & 6H class for Metric sizes and 2B/3B for UNC/UNF sizes. Accuracy of the finished thread when the insert is installed is dependent upon the accuracy of the tapped hole. If the finished tapped hole gages satisfactorily, the installed insert will be within the thread tolerance. It is not necessary to gage the installed insert. After the insert is installed, the GO thread plug gage may not enter freely; however, the insert will always seat itself when the bolt or screw is installed and tightened. (Reference NASM33537).Gage handles and all gage nibs are marked with the extreme product limits for the particular size and class of fit. When gaging tapped holes which have been thoroughly cleaned or which have a protective finish applied, the gage should always be lubricated with light oil. HI nib may enter provided a definite drag results on or before 3rd turn from entry – Ref. FEDSTD-H28, Screw thread Standards for Federal Services.Working gages provide a guaranteed minimum wear allowance on the pitch diameter of the GO members of two ten thousandths of an inch (.0002). These gages are recommended for production in sizes 1/2 inch and smaller.Reference gages have pitch diameters on or close to minimum (basic size). They are essentially laboratory or master gages and should be used in case of conflict between two working gages. Conflict can occur when one of the gages has experienced more use and wear. The complete gage consists of the GO thread plug gage, the HI thread plug gage and the appropriately marked gage handle. Accuracy of the finished thread, when the insert is installed, is dependent upon the accuracy of the tapped hole.

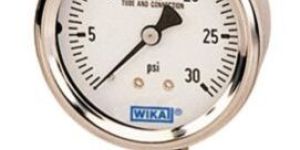

We are offering pressure gauge. Pressure gauge becomes a very important and nowadays integral part of the complex hydraulic equipments in order to monitor the pressure flowing through the circuit and also is important to control the pressure when it is above or below the actual hydraulic pressure required. Pressure gauges can be found even in the routine hydraulic equipments like equipments used to measure tire pressure in auto mobiles. The pressure gauge is attached in a certain intersection in the hydraulic circuit and is connected through a hydraulic tee and it monitors the pressure flowing through that particular pipe or hydraulic hose.

Thisis a cold cathode Ionisation gauge consisting of two electrodes anode and cathode. A potential difference of about 2.2 KV is applied between anode and cathode through current limiting resistors. A magnetic field is introduced at right angles to the plane of the electrodes by a permanent magnet having nearly 800 gauss magnetic field which will increase the ionisation current. The electrons emitted from the cathode (gauge head body) of the gauge head are deflected by means of magnetic field applied at right angles to the plane of the electrodes and are made to take helical path before reaching the anode loop. Thus following very long path, the chance of collision with gas molecule is high even at low pressures.

We offer fixtures and gauges which are used in various industries to enhance the productivity of different assemblies. Our products are known for its durability and precise dimensions and are fabricated using qualitative ferrous and non-ferrous materials. These high performance products can be custom developed as per the specific requirements of our clients.

We offer high quality Digital Penning Vacuum Gauge. Digital Penning Vacuum Gauge is a Cathode Ionised Gauge that consists of two electrodes: anode and cathode. When difference of 2.2 KV passes between the anode and cathode through the resistors, a magnetic field generates within the Digital Penning Vacuum Gauge.  Digital Penning Vacuum Gauge is an instrument used in high vacuum system, coating units, sputtering units, vacuum furnace and other applications.

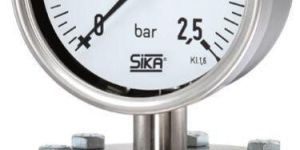

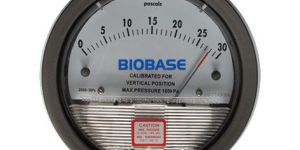

Providing you the best range of Schaffer Diaphragm Pressure Gauge such as Low Pressure Diaphragm Pressure Gauges, Diaphragm Sealed Pressure Gauge and Diaphragm Differential Pressure Gauges with effective & timely delivery.Sensing Element:Diaphragm SS 316L , Diaphragm SS 316L: Die cast aluminium & SS 304 with Bayonet Bezel as a standard (SS 316 Optional), Mounting:DirectProjection with Bottom entry.

GENERAL FEATURES: Performance as per IS3624 & DIN 837-1. Accuracy ±0.5% OR ±1% of FSD. Positive Pressure Ranges up to 600Kgcm² or Other equivalent measuring unit. Dials size 4” & 6” All standard Connection Threads options Vertical or Horizontal mounting options Bourdon tube in stainless steel casing. Suitable for most environments & Field applications.

Strain Gauge manufactured by IPA are of foil type and comes in two different impedances which are 120 Ohms and 350 Ohms. These are used in the manufacture of loadcells and various strain measurement applications. We also manufacture nickel gauges for : Span compensation Temperature compensation

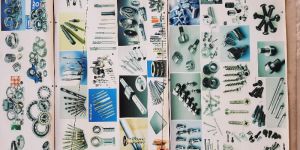

Our industrial gauges and measuring gauges are designed to be the most cost effective way to check the critical dimensions of components and are geared to enhance the productivity of our clients by enabling consistently high quality of products. Our gages effectively inspect the dimensions before the die is sent for production to prevent errors in dimensional accuracy.

1.Carbide Plug Gauges are normally supplied with GO in Carbide & NOGO in Stabilised Steel. 2.Both can be supplied in carbide as per requirement. 3.MGPL gauges have excellent wall thickness to give desired results. Range 0.5 to 8 mm Reversible type design 8 to 40 mm Taper shank design 40 to 60 mm Trilock Design 60 400 mm Plate tyhpe Plug Gauge 4.Extra lenght up to 100 mm can be supplied as per requirement.

Strain Gauge manufactured by IPA are of foil type  and comes in two different impedances which are 120 Ohms and 350 Ohms. These are used in the manufacture of loadcells and various strain measurement applications. We also manufacture nickel gauges for : Span compensation Temperature compensation You can have all the accessories like adhesives, cleaning agents, elements for bonding of strain gauges etc. from us.

The Pirani gauge consists of a metal filament (usually platinum) suspended in a tube which is connected to the system whose vacuum is to be measured. Connection is usually made either by a ground glass joint or a flanged metal connector, sealed with an o-ring. The filament is connected to an electrical circuit from which, after calibration, a pressure reading may be taken. Pirani Gauge instruments can be used in high vacuum systems, coating units, sputtering units, and many other applications where vacuum to be measured in the range of upto 0.001 mm Hg.
