Solar Pump Dealers in Bangalore

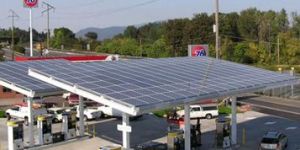

Converting to solar power is the answer to fighting the menace of load shedding in urban, Semi Urban and Rural areas. By doing this, the FUEL BUNK Owners will not only save on the recurring costs of electricity and generator expenses but will also ensure continued and uninterrupted supply to the customers. Switching to solar energy would free from them from adverse effects of load shedding and help save over 70 per cent on electricity and Diesel Generator bills.

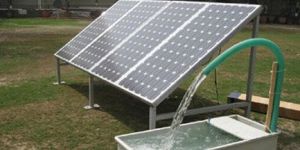

Tata Solar SaawanTM is water pumping solution system that offers a cost effective alternate to conventional water pumping systems. It comes in various configurations (ACDC) with submersible & above the surface options. Whether you are in a remote location where the cost of running traditional water piping is prohibitive or you have no or limited access to grid, Tata Solar SaawanTM is the right product for you.

VET wind solar hybrid power solutions for pump sets have been developed to generate power from wind & sunlight natural resources a renewable energy system. VET wind solar hybrid is a spacial design for the bore well pump set.Features• A proven design ideally suited for running bore well pump set throughout the year.• All Time Power (ATP).• Custom built system as per site conditions and water requirements.• Pumping of water up to 1000ft depth.• Almost maintenance free and long service.• Very economic design hence affordable system price

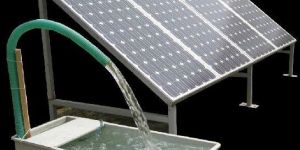

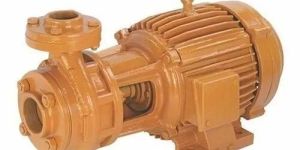

We are offering solar pumps. Arraytech’s solar water pumping system is a stand-alone system operating on power generated by solar photovoltaic panels. The power generated by solar panels is used for operating solar surface centrifugal mono-block pumps solar submersible pumps solar open well submersible pump set for lifting water from open well or water reservoir for irrigation and drinking water purpose. The system requires a shadow-free area for installation of the solar panels.

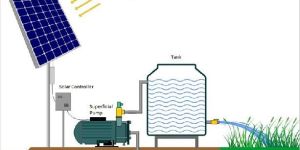

The use of Solar PV module for water pumping is one of the most attractive applications due to several advantages. In general, a water pumping system consists of PV modules, motor, pump and storage tank. The Storage tank can be thought of as an energy storage media like batteries. Therefore, the use of batteries is not required for water pumping applications. Also, a DC motor can directly be coupled with Solar PV panel, avoiding the use of any inverter. An AC motor can also be used wither inverter, which converts DC to AC. Additionally a PV water pumping system can also have a maximum power point tracking (MPPT) device to match the PV module output impedance with that of motor to extract maximum power throughout the day.   Solar Pumping system can be easily integrated into the existing pumping system arrangement by using pump drives (VFD) in the arrangement.   Like off grid systems, a PV pumping system can be designed for sizes ranging from very small water pumping requirement for drinking water to large water volume requirement for irrigation purpose.

A submersible pump is a device which has a hermetically sealed motor close-coupled to the pump body. The whole assembly is submerged in the fluid to be pumped.The main advantage of this type of pump is that it prevents pump cavitation, a problem associated with a high elevation difference between pump and the fluid surface. Submersible pumps push fluid to the surface as opposed to jet pumps having to pull fluids. Submersible pumps are used for drainage, sewage pumping, general industrial pumping and slurry pumping. They are also popular with pond filters.

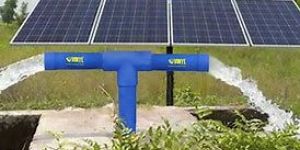

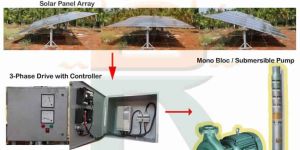

ReAP - Solar powered Irrigation Solutions – A low cost, battery-less solutionReAP solar irrigation Water Pumping System is a stand-alone system operating on power generated by Solar Photovoltaic Panels.The power generated by Solar Panels is used for operating Mono bloc or Submersible pump for lifting water from bore well, open well or water reservoir for irrigation and drinking water purpose. Water can be pumped as long as sunlight is available. Capable of pumping in cloudy weather with varying pressure.Can be used with existing 3-Phase Mono bloc or submersible pumps.System Components• Solar Photovoltaic Panels• Mounting Frame, Cabling System & other Accessories• 3-Phase Drive with Controller. Special Features of Solar Powered Pump• Robust 3 phase inverter Drive connects between Solar panel and Motor.• Rugged construction• Simple installation and maintenance• Highly reliable Applications• Village water supply• Livestock watering• Water supply to remote homes / agriculture• Micro-Irrigation Benefits• No conventional grid electricity required• Long operating life• Highly reliable and durable• Easy to operate and maintain• Eco-friendly• No fuel cost- uses abundantly available free solar energy.

Features   Enclosure – IP54 category Wide MPPT Range Automatic Start & Stop based on solar Irradiation Max I/P Voltage Model: 800V Ground water extraction for Irrigation, Commercial and Household use Particulate filter for air intake and exhaust 3 hp, 5hp, 7hp & 10hp Dry run protection IEC 61683/IS 61683 & IEC 60068-2(1,2,14,30) 5 Years Warranty Suitable for both Open Well and Tube Well MC4 connector for Solar input

Cosmic solar water pump for 3 phase motors, with efficiency of 98% deliver maximum energy in all conditions Transformer-less design, advanced electronics and optimized internal connections reduce potential energy loses. Balanced three phase AC output ensures grid compliance all times and precise MPP tracking at 99.9% in steady conditions and 99.8% in dynamic conditions enable the inverter to harvest all the energy of the PV modules Excellent MPPT Efficiency, 98% conversion efficiency, 1000V DC, AC power burst and an excellent cooling concept provides high yield and earlier return on investment. High voltage input and reduces losses on the DC side. Early start up and late stop of power production result in maximized yield while exact cooling minimizes energy losses. MPOP tracker allows for more modules in a series and longer strings, while providing greater flexibility in the PV setup      Battery less operation  Variable Frequency drive incorporated for smooth operation even during minimum sunlight  Transformer less design makes the product smaller in size and also cost effective  MPPT incorporated to track maximum power and give 35% more energy from the panel maximum torque at minimum sunlight

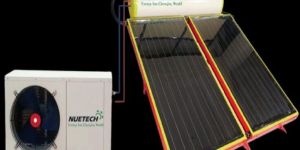

Nuetech Solar’s Solar Integrated Heat Pump is a revolutionary solution that merges advanced solar technology with efficient heat pump functionality to deliver superior climate control. By utilizing solar energy to power the heat pump, this system significantly reduces dependency on traditional electricity sources, leading to lower energy bills and a reduced environmental impact.

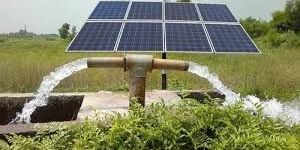

A solar pump uses power derived from sunlight that is converted into electrical power by Solar Photo Voltaic(SPV) modules, which give higher power output in the afternoons and lower power output in the mornings and evenings. As a result, a solar pump works on varying power input and gives varying water output at a given pump head. On the other hand, a grid powered/diesel operated pump set, while working at a particular pump head, works with constant power input from the grid/diesel engine and provides constant water output at the given pump head. E.g. standard 5 HP pump working on grid power/diesel engine for say, 2.5hours a day, may give the same water output in a day as a solar pump of 3HP working for 8hours using sunlight. This is an important fact to keep in mind for appropriate solar pumps selection and application engineering. The most important parameters to select a solar pump are: how much daily water needed, at what pump head, and at which location. The location is important because solar energy varies from region to region, and sizing of solar panels depends on the solar energy of a region.

PV pump system constiuted with 4 parts : Solar array, PV pump inverter, Threephase AC pump and water storage device. The solar array absorbs the sunshine energy, converting the energy to electricity for the system power supply. PV pumping inverter converts DC voltage from the solar array into AC voltage to drive the pump. Pumping water from deep well, river, lake, etc. Then send water to the destination to meet our demand of water. And it could achieve the real-time outputting voltage and frequency regulation according to the change of sunshine, achieving the MPPT, maximizing the use of solar energy. The PV pump system, follow the low carbon, the energy conservation, the environmental protection concept, improve the living standard in water-deficient area. The market prospect and social value is great. Main Components of the Solar PV Power Generating System ●    Solar PV Array of required capcity to generate power ●    Solar Charge Controller Unit to regulate the power ●   A Battery Bank to store the power (not required for solar pumps) ●    High efficient power inverter to convert the DC to AC for powering conventional loads

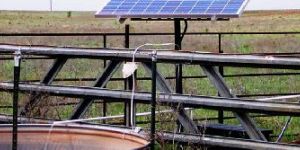

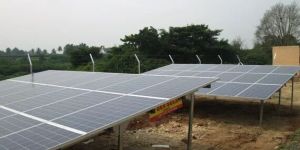

With the use of natural resource, the Solar Agri Pump system helps in cultivation drastically and improves irrigation application with no use of electricity. Available in different PV modules, the pumping system with sufficient power generated allows to draw water from borewell, open well, stream and canal. Features : Automatic protection from low voltage/high voltage and dry run High efficiency and less maintenance Easy to install with three-time manual tracking system Completes the water essentials in Micro-irrigation Useful for both domestic and agricultural areas

Suitable for domestic and comercial aplication   Available in surface and submersible well requirments   Maximum effieciency ,Maximum savings   Available in different capacities.

Solar Power System, Solar Pump, Solar LED Lights, Duct Installation Service

Solar Water Pump, LED Driver, LED Street Light, LED Grid Ligh

Solar DC Pumps, Solar Pumps, Solar DC Pump

The CeS Solar Water Pump uses sunlight which is converted into electrical power by SPV Modules which give higher power output in the afternoons and loweer power output in the mornings and evenings. Thus the CeS Solar Water Pump works on varying input power and gives varying output at a given pump head.
