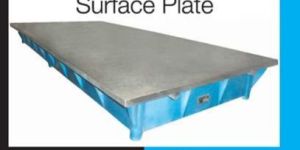

Cast Iron Surface Plates
350,000 Per Piece
1 Piece(s) (MOQ)
Country of Origin : India
Type : Cast Iron Surface Plates
Material : Cast Iron
Shape : Rectangular
Thickness : 40-50mm
Application : Industrial
Grade : DIN
Feature : Corrosion Proof, Excellent Quality, High Strength
Width : 200-3000mm
Size : 1800X1200MM
Brand Name : SANJEEV PRECISION TECHNOLOGIES
Raw Material : CAST IRON
Rigidity : Stress relief

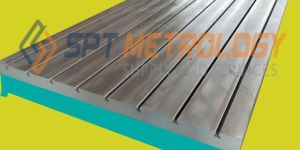

Cast Iron Surface Plates
Get Price Quote
1 Box (MOQ)
Size : 600 X 600MM
Type : Cast Iron surface Plate
Brand Name : ALFA MACHINE TOOLS PVT LTD
Material : CAST IRON
Model Number : 9840264600
Place of Origin : CHENNAI-INDIA
We are offering alfa cast iron surface plate are provided with a certificate of accuracy traceable to national standards. High modulus of rigidity. industry’s finest foundation for precise measurements. provide with steel fabriicated stand with adjustable leveling screws. Surface plates of sizes available from 300 x300mm to 3000 x 1500mm with an accuracy specification as per is:2285-2003
Best Deals from Cast Iron Surface Plates

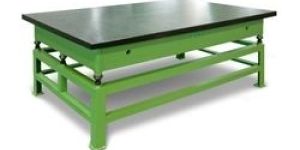

Cast Iron Surface Plates
Get Price Quote
sizes : 1000 x 630 mm
Weight (kg) : 21
GMT Cast Iron Surface Plates are the result of years experience as a manufacturer both in foundry technology and metrology. These plates are of close-grained cast iron. They are amply ribbed to minimize deflection under load. The composition of the metal, the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in IS-2285-2003. GMT Surface plates are manufactured to three grades namely Grade-0, Grade-I & Grade-II, as per the standard stated above. They can be made to other standards on request. Grade-I & Grade-II plates are artificially seasoned. They are hand scraped to achieve maximum local deviation from flatness as per standard at any point on the working surface.A special scraping technique is used to achieve a uniform distribution of load bearing point and oil pockets. An average of 15-20% load bearing points after finish scraping is standard. This finish scraping technique ensures that the area of the load bearing points increases after the initial dulling of the high points. This guarantees a long working life, at the required accuracies. Grade-II plates are accurately machined to get the requisite flatness.
Cast Iron Surface Plate
Get Price Quote
1 Pack(s) (MOQ)
Size : 400 x 400 mm
Type : C I Surface Plate
Brand Name : METACO
Cast iron surface plate, grade 0 and grade 1, available sizes 300 x 300 mm upto size 2000 x 1000 mm. All plates supplied as per is standard. Optionally, stand can be supplied on request
Cast Iron Surface Plates,Bed Plates
Get Price Quote
one Piece(s) (MOQ)
CAST IRON TO IS 210 FG 220 : MIN HARDNESS BHN 190
450 X 450 TO 5000 X2000 : 10000 X 10000
Cast Iron Surface Plates are manufactured to specifications laid down in IS 2285 / DIN 876 or respective standards where products are exported. They are made from close grained Grey Iron Castings to IS 210 : FG 220. They are machined and finally hand scraped to achieve the overall flatness and also flatness within a specified area, as per standards. The sizes to which these are manufactured are 450 x 450 mm to 5000 x 2500 mm as individual plates and for achieving larger sizes more than one piece of the above sizes are used. For example to achieve a plate size of 5000 x 5000 mm we layout 2 plates of 5000 x 2500 mm and do the final erection at the customer's site.
Cast Iron Surface Plates
Get Price Quote
Cast Iron Surface Plates, cast iron angles, Cast Iron Box
Cast Iron Surface Plates
Get Price Quote
Cast Iron Surface Plates, lapping machines, special chuck, Ferrous Casting
Cast Iron Surface Plate
Get Price Quote
Cast Iron Surface Plate, pushpull gauge, Surface Plate, Vernier Calipers
Cast Iron Matched Surface Plates
Get Price Quote
Cast Iron Matched Surface Plates, lapping machines, collect chucks
Cast Iron Surface Plate
Get Price Quote
Cast Iron Surface Plate, Lapping Machine, Collet Chuck
Cast Iron Surface Plate
Get Price Quote
Cast Iron Surface Plate, Cnc Rotary Table, cnc tool trolley, Collet Fixture
Cast Iron Surface Plate
Get Price Quote
Cast Iron Surface Plate, Surface Plate Calibration, Machine Calibration
