Cast Iron Surface Plates Dealers

(48 products available)
  • Cast Iron Surface Plates

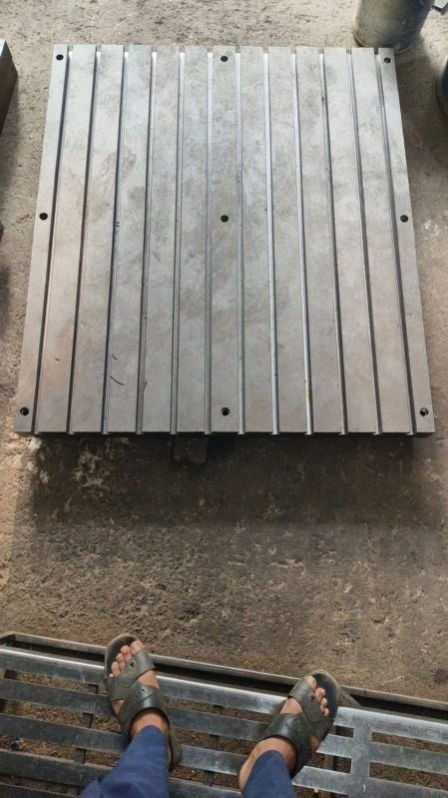

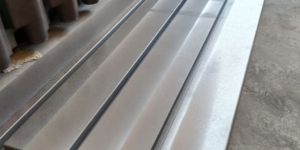

    Cast Iron Surface Plates

    350,000 / Piece

    • Country of OriginIndia
    • Number Of FlowerCast Iron Surface Plates
    • MaterialCast Iron
    • ShapeRectangular
    • Thickness40-50mm
    • ApplicationIndustrial
    • GradeDIN
    • FeatureCorrosion Proof, Excellent Quality, High Strength
    • Width200-3000mm
    • Size1800X1200MM
    • Brand NameSANJEEV PRECISION TECHNOLOGIES
    • Raw MaterialCAST IRON
    • RigidityStress relief
    • Hardness between 170 to 220 BHN. Box type ribbing pattern. Inspection by high precision level or electronic level traceable to NABL. Stress relieved to relieve internal stresses. M.S. stands or C.I. columns with leveling facility can be supplied.. All plates are provided with rexine protection cover Castings stress relieved to relieve internal stresses. Made from close-grained cast iron conforming to grade FG : 220, heavy ribbed and hardness between 180 HB to 210 HB Hand scraped surface finish   Good quality, close-grained, plain cast iron or alloy cast iron at least equal to grade 250 of ISO 185 shall be used; the material shall be sound and free from blow holes and porous patches. Minor defects in working surfaces of grades 2 and 3 only may be repaired by plugging with material of composition similar to that of the plate.   After being cast and rough machined, all plates of grades O and 1 and of size up to and including 400 mm x 250 mm shall be given a suitable treatment to relieve internal stresses before being tinished. H is strongly recommended that larger plates of all grades be stress-relieved by similar means; however, where facilities for this purpose are not available, such plates may be stabilized by natural ageing by agreement with the purchaser. The manufacturer shall, on request, supply the purchaser with a statement of the stress-relieving process which the plate has received.   Cast iron surface plates shall be made with adequate ribbing and the total depth [i.e. the combined thickness of the top (working surface) and the depth of the framing] shall be such that when a concentrated load is applied about the centre of the plate, the loaded area shall not deflect below the remaining area of the plate by more than 1 pm/200 N. The limiting value for deflection applies to surface plates of size 400 mm x 250 mm and larger.
    ...more
    www
  • Cast Iron Surface Plate

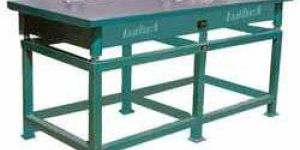

    Cast Iron Surface Plate

    Get Price Quote

    • Thickness15mm
    • FeatureLow maintenance, Easy to operate
    • FinishingZinc Plated
    • Surface TreatmentCoated
    • Length16.83
    • Width12.71
    • Height3.10
    ...more
    www
  • Luthra Cast Iron Surface Plate

    Luthra Cast Iron Surface Plate

    Get Price Quote

    • MOQ5 Piece
    • Brand NameLuthra
    • MaterialCast Iron
    • FinishingPolished
    • ShapeRectangular
    • ApplicationIndustrial
    • Size250x250mm upto 5000mm
    • CertificationISI Certified
    • Country of OriginIndia
    • Some of the unique features of cast iron surface plates are: Our castings are stress relieved either by natural aging or by artificial seasoning. We also provide rexine cover for top surface protection. We offer fabricated stand with leveling screws . The overall working height of surface plate with stand and leveling screw will be 900 mm (approx), from floor level.Option for vibration pads to reduce vibration is also available. We provide computerized calibration certificate traceable to National Physical Laboratory (NPL, Government of India ) New Delhi along with each surface plate.
    ...more
    www
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    Get Price Quote

    • MaterialCast Iron
    • FinishingPolished
    • ShapeRectangular
    • ApplicationIndustrial
    • Size250x250mm upto 5000mm
    • Number Of FlowerCast Iron Surface Plates
    • Country of OriginIndia
    • Surface FinishHand Scrapped Surface Finish
    • We manufacture a wide range of surface plates, which are used in various industries for tool making, inspection, spotting, gauging etc. Our range of surface plates are specifically designed to provide an accurate reference plane for work inspection and also for work layout. These granite surface plates, cast iron surface plates are strictly in compliance with international quality standards and can also be customized as per the specifications laid down by our clients. Our range of surface plates includes cast iron surface plates, precision cast iron surface plates, granite surface plates and precision granite surface plates.
    ...more
  • Cast Iron Surface Plates

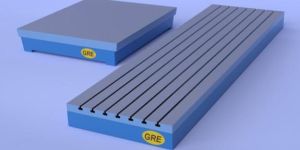

    Cast Iron Surface Plates

    100,000 - 200,000 / piece

    • Country of OriginIndia
    • Number Of FlowerCast Iron Surface Plates
    • MaterialCast Iron
    • ShapeRectangular, Square
    • Thickness90-100mm
    • CertificationISI Certified
    • ApplicationIndustrial
    • GradeDIN, IS
    • FeatureCorrosion Proof, Excellent Quality, Fine Finishing, High Strength, Optimum Quality
    • FinishingHAND SCRAPPED
    • Width200-3000mm
    • Dimension90-100mm
    • SizeUPTO 5000MM
    • Brand NameGRE
    • Raw MaterialCAST IRON
    • Country of OriginIndia
    • UsageIndustrial
    • NameGRE
    • ProductSurface Plate
    • StandardMaterial confirm to IS 210 2009, Grade FG 260
    • FlatnessGrade 1 - 2
    • Product Details   ‘GRE’ Cast iron hand scraped Surface Plate conforms to IS 2285. These Plates are manufactured in various sizes & grades to suit customer’s exact requirements.Grade I being PRECISION HAND SCRAPED and Grade Il accurately finish machined to tolerance.   ‘GRE’ Surface Plates are made of close grained Cast iron to IS 210 Grade FG 200 or FG 220/260 with Hardness 170-200 BHN. Adequate care has been taken in the design of Ribbing to meet requirements of IS / BS & DIN specifications. These are artificially seasoned as recommended by IS 2285 & BS 817 and HAND SCRAPED accurately, so that the error in flatness over any 100 mm distance shall not exceed as per details furnished hereunder. Surface Plates are also supplied with one or more ‘T’ slots as per customer’s need at extra cost.   ‘GRE’ Surface Plates up to 630 x 630 mm are provided with handles. Sizes over 1000 x 1000 mm and above are provided with lifting arrangement. CI floorstands or fabricated stand could be supplied along with ‘GRE’ Plates at an added cost.   ‘Special ‘T’ Slotted Bed Plates are manufactured to suit customer’s requirements for varied application. Plate size 2000 x 2000 mm onwards upto 6000 x 2000 mm and combination thereof are under manu facturing programme. Bed Plates & AUXILIARY- PLATES for HORIZONTAL BORING MACHINES are also manufactured to IS 10602-83.These are Combination Type Plates & manufactured with Square side- faces, so that, when one or more plates are com bined, large configuration is obtained
    ...more
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    5,000 / Piece

    • Country of OriginIndia
    • MaterialCast Iron
    • Size250x250mm, Upto 5000mm
    • ShapeRectangle
    • ColorGreen and Black
    • FlatnessAs Per IS2285-2003
    • BrandLuthra
    • Surface FinishHand Scrapped Finish
    • Some of the unique features of cast iron surface plates are: Our castings are stress relieved either by natural aging or by artificial seasoning. We also provide rexine cover for top surface protection. We offer fabricated stand with leveling screws . The overall working height of surface plate with stand and leveling screw will be 900 mm (approx), from floor level.Option for vibration pads to reduce vibration is also available. We provide computerized calibration certificate traceable to National Physical Laboratory (NPL, Government of India ) New Delhi along with each surface plate. We also have an In-House NABL accredited Laboratory. Special Provision: We provide special tapped holes and T-slots at the top working surface of the surface plate for fixing work or measuring instruments at extra cost. These are offered as per customers specifications.
    ...more
  • Cast Iron Surface Plate

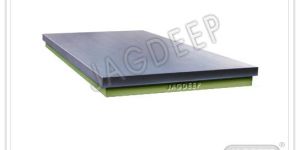

    Cast Iron Surface Plate

    32,400 / unit

    • Size630 X 630 mm
    • MaterialCast Iron
    • Brand NameMicro Flat Datums
    • ShapeSquare
    • Usage/ApplicationSpotting, Tool making, Inspection of parts
    • Surface FinishColor Coated
    ...more
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    Get Price Quote

    Our Cast Iron Surface Plate is extremely lustrous and has high resistance to abrasion and indention. We have a team of professionals who keep their vigil eyes on the entire lot that is stored in the warehouse. This unit keeps the lot free from the factors like duct, rain, sunlight, etc. We have carved a dignified position in the market owing to our on-time and safe delivery of the orders. Details : Used as precision reference base for inspecion, marking and layout. We can also manufacture surface plates as per customer requirement. Used as precision reference base for inspection, making and layout. Standard size Surface Plates are made generally as per IS-2285:2003 in three grades of accuracies and have hand-scraped finish. Surface Tables are made to Grade-1, 2 and 3 flatness accuracies of DIN-876 and have hand-scraped / graound finish. M.S. Fabricated stand or C.I. Column type floor stands supplied at extra cost. Grid lines, Tapped holes and T-slots can be provided at extra cost.
    ...more

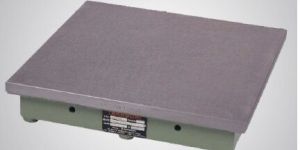

  • Ci Surface Plate

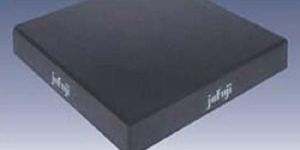

    Ci Surface Plate

    Get Price Quote

    • Size in mm160 X 100, 250 X 160
    • CI surface plate Made Generally as per IS: 2285-2003, Made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS: 210. Stress Relieved Hand scraped surface. Provided with Lifting Handles and Rexin Cover.
    ...more
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    20,000 - 30,000 / Piece

    • MaterialCast Iron
    • FinishingPolished
    • ShapeRectangular, Square
    • ApplicationIndustrial
    • SizeStandard
    • CertificationISI Certified
    • Country of OriginIndia
    ...more
  • Ci Surface Plate

    Ci Surface Plate

    Get Price Quote

    • Size12" x 12", 12" x 18"
    • We offer a qualitative range of precision Cast Iron Surface Plate. These cast iron surface plates provide an accurate reference or datum plane for precision gauging, marking, inspection and tooling setup. Cast iron surface plate are made of good quality close grain cast iron as per IS-210:1993 confirming to grade FG-220. The meticulous manufacturing processes that are carried out at our premises make these C.I surface plate apt for machine shops, quality control and standard rooms. Our precision cast iron surface plates are used in the application where strict accuracy is required hence, these plates are appropriate for high precision work and are ideal for blue matching. Our team of qualified engineers carries out rigorous quality control inspection to test these surface plates as per IS-2285:2003 for flatness ,repeatabilty, durability etc. The final inspection of surface plate is undertaken by a high precision computerized electronic level make Cast Iron Surface Plate.
    ...more
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    Get Price Quote

    These plates are of close grained cast iron. They are amply ribbed to minimize deflection under load. The composition of the metal, the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in IS 2285 -1963.Surface plates are manufactured to two tolerance standards. - Grade-I and Grade-II. Grade-I plates are more precise than Grade-II plates. The deviation in flatness for Grade-I and  Grade -II  plates for sizes upto and including 2000 x 1000 mm are as prescribed in IS 2285-1963.Grade-1 plates are artificially seasoned.They are hand scraped to achieve maximum local deviation from flatness of 5 microns over any length of 300 mm at any points on the working face , in plates of  630 X 400 mm and larger. Aspecial scraping technique is used to achieve a uniform distribution of load bearing points and oil pockets. An average of 15-20 load bearing points , after finish scraping , is standard. This finish scraping technique ensures that the area of the load bearing points increases  after the intial dulling of the high points. This guarantees a long working life, at the required accuracies. Grade-II plates are accurately machined to get the requisite flatness. Standard Accessories : Plates of sizes 1000 X 1000 mm and smaller, are provided with handles. A wooden cover is provided to protect the working face.   Optional Accessories : Fabricated mild steel stands, with three leveling screws, are offered for plates upto and including size 1600 X1000 mm. Cast Iron Column Floor Stands, each with a leveling screw and nut, are offered as per the scheme : A set of five, three for leveling and two for support for 2000 X 1000 mm plate. A set of seven, five for leveling and two for support for 3000 X 1000 mm plate.
    ...more
  • Color Coated Cast Iron Surface Plate

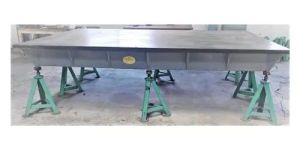

    Color Coated Cast Iron Surface Plate

    50,000 / Piece

    • Country of OriginIndia
    • MaterialCast Iron
    • ShapeRectangular
    • CertificationISI Certified
    • ApplicationIndustrial
    • FinishingPolished
    • SizeStandard
    • Brand NameGRE
    • Features: GRE cast iron hand scraped surface plate confirms to IS 2285:2013, DIN876. These plates are manufactured in various sizes & grades to suit customers exact requirements. Grade 1 being Precision hand scraped and grade 2 accurately finish machined to tolerance. GRE CI Cast Iron Surface Plate to IS 2285 in general of size from 500x500 to 3000 x 1500 mm , Casting used shall be IS 210 FG 200-220 duly stress relieved with hardness 170-200 BHN and machined as well as hand scrapped to tolerance of grade as per IS 2285:2013. The plate will be supplied in fully hand scraped or machined condition to be within tolerance. The plate will have suspending points under the Casting for mounting on the leveling screws provided over the CI Floor Stands and also on MS fabricated stand.  GRE surface plates are provided with top protection cover. Plate’s up to 630X630 mm are provided with handles. Sizes over 1000x1000 mm can be provided with lifting arrangements.
    ...more

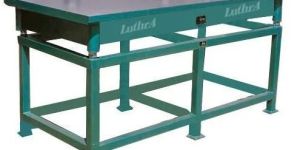

  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    Get Price Quote

    Made By : Luthra Made In : Indian Cast Iron Surface Plate (As per IS:2285-2003, Grade 0 &1) Made Generally as per IS:2285-2003, made from good quality close grained with high Density Alloyed Cast Iron Castings Conforming to Grade FG-220 of IS:210. Stress Relieved Hand scraped surface. Provided with Lifting Handles and Rexin Cover.
    ...more
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    Get Price Quote

    • Country of OriginIndia
    • CertificationISI Certified, ISO 9001:2008 Certified
    • Number Of FlowerBlack, Brown, Creamy, Dark Brown, Grey, Ivory, Light Grey, Off White, White
    • Surface TreatmentPowder Coated, Polished, Non Polished
    • Warranty1 Year, 2 Year, 5 Year
    • ConditionNew, Used
    • Corrosion ResistanceYes, No
    • SpecialitiesDurable, Extra Stronger, Fine Finished, High Durability, Long Life, Perfect Finish, Robustness, Superior Quality
    • We are engaged in manufacturing and supplying a wide range of cast iron surface plates. The cast iron surface plates offered by us is extensively used as a precision reference base for inspection tool making, gauging, spotting, marking, and layout. Grid lines, tapped holes, and t-slots of our fine quality cast iron surface plates can be provided at nominal price. product specification standard size surface plates are made generally as per is-2282: 1991 in three grades of accuracies and have hand-scraped finishm.s. Fabricated stand for c.i. Column type floor stands supplied at extra costgrid lines, tapped holes and t-slots can be provided at extra cost » specifications item codesize in mmitem codesize in mmitem codesize in mm171012000 x 1250171092500 x 1750171173000 x 3000171022000 x 1500171102500 x 2000171183500 x 2500171032000 x 2000171112500 x 2500171194000 x 1000171042400 x 1200171123000 x 1000171204000 x 2000171052500 x 1000171133000 x 1250171215000 x 1000171062500 x 1250171143000 x 1500171226000 x 1000171072500 x 1500171153000 x 160017123-171082500 x 1600171163000 x 2000--
    ...more
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    Get Price Quote

    • Brand NameAYUMIC
    • MaterialCast Iron
    • SizeFrom 300x200mm To 3000x1000mm
    • CertificationNABL
    • Number Of FlowerSurface Plate
    • With thorough understanding of the relevant industry, we are offering a wide range of Cast Iron Surface Plate. These iron surface plates are manufactured using optimum quality material and advanced technology. In tune with different requirements of our copious clients, we modified the entire range in various sizes and shapes. Our offered range has gained exceptional value amongst our clients for its defined features.
    ...more
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    Get Price Quote

    • Brand NameJASH
    • Size250 x 250 to 7000 x 2000 mm
    • Surface FinishHand scrapped
    • Sizes Available160x100mm to 3000x2000mm
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    33,200 / Piece

    • MaterialCast Iron
    • Size630*630*100
    • BrandMicroflat
    • Flatness5 Micron
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    Get Price Quote

    • Size400 x 400 mm
    • Number Of FlowerC I Surface Plate
    • Brand NameMETACO
    • Cast iron surface plate, grade 0 and grade 1, available sizes 300 x 300 mm upto size 2000 x 1000 mm. All plates supplied as per is standard. Optionally, stand can be supplied on request
    ...more
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    Get Price Quote

    These plates are of close grained cast iron. They are amply ribbed to minimize deflection under load. The composition of the metal, the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in IS 2285 -1963. Surface plates are manufactured to two tolerance standards. - Grade-I and Grade-II. Grade-I plates are more precise than Grade-II plates. The deviation in flatness for Grade-I and  Grade -II  plates for sizes upto and including 2000 x 1000 mm are as prescribed in IS 2285-1963. Grade-1 plates are artificially seasoned.They are hand scraped to achieve maximum local deviation from flatness of 5 microns over any length of 300 mm at any points on the working face , in plates of  630 X 400 mm and larger. Aspecial scraping technique is used to achieve a uniform distribution of load bearing points and oil pockets. An average of 15-20 load bearing points , after finish scraping , is standard. This finish scraping technique ensures that the area of the load bearing points increases  after the intial dulling of the high points. This guarantees a long working life, at the required accuracies.
    ...more
  • Cast Iron Surface Plate

    Cast Iron Surface Plate

    Get Price Quote

    We are offering cast iron surface plate. Gmt cast iron surface plates are the products of years of manufacturing experience. these plates are of close-grained cast iron.they are amply ribbed to minimize deflection under load.the composition of the metal,the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in is-2285-1991. gmt surface plates are manufactured to three grades namely grade 0,grade-i & grade-ii,as per the standard stated above. grade"0" & grade-i plates are artificially seasoned.they are hand scraped to achieve maximum local deviation from flatness as per standard at any point on the working surface.a special scrapping technique is used to achieve a uniform distribution of load bearing point and oil pockets.an average of 15-20 load bearing points after finish scraping is standard.this finished scraping technique ensures that the area of the load bearing points increases after the initial dulling of the high points.this guarantees a long working life,at the required accuracies.grade-ii plates are accurately machined to get the requisite flatness.
    ...more
  • Cast Iron Surface Plates Shaping Machine

    Cast Iron Surface Plates Shaping Machine

    150,000 - 700,000 / piece

    • MaterialCast Iron
    • FinishingPolished
    • ApplicationCommercial
    • FeatureFine Finishing, High Strength, Optimum Quality
    • Shaping machine
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    200,000 / piece

    • Brand NameSPT METROLOGY
    • Availability2000
    • Packaging Typecast iron
    • Automation GradeGRADE 1
    • Usage/ApplicationENGINEERING INDUSTRY
    • ModelCISP01
    • FG260IS 2285-2003
    • HARDNESSNABL CALIBRATED
    • STRESS RELIEVEDCHECKING LOAD CAPACITY
    • We are manufacturing of Cast Iron Surface Plates to Grade 1 accuracy as per IS 2285-2003.We offer wide variety of cast iron surface plate manufactured in compliance with international quality standards. Extensively used for tool making, inspection, spotting, gauging etc., Hardness between 170 to 220 BHN. Stress relieved to relieve internal stresses. Material confirm to IS 210 2009, Grade FG 260.
    ...more
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    Get Price Quote

    Features These cast iron surface plates provide an accurate reference plane for precision gauging, inspection and tooling setup. We make use of good quality closed grain cast iron .The meticulous manufacturing processes that are carried out at our premise makes these cast iron plates apt for machine shops, quality control and standard rooms. Our precision cast iron surface plates are utilized in the applications, where strict accuracy required hence, these plates are appropriate for high precision work and are ideal for blue matching.
    ...more
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    Get Price Quote

    These plates are of close grained cast iron. They are amply ribbed to minimize deflection under load. The composition of the metal, the depth and cross-section of the ribs and the thickness of the plate are designed to conform to the deflection limits specified in IS 2285 -1963.Surface plates are manufactured to two tolerance standards. - Grade-I and Grade-II. Grade-I plates are more precise than Grade-II plates. The deviation in flatness for Grade-I and  Grade -II  plates for sizes upto and including 2000 x 1000 mm are as prescribed in IS 2285-1963.Grade-1 plates are artificially seasoned.They are hand scraped to achieve maximum local deviation from flatness of 5 microns over any length of 300 mm at any points on the working face , in plates of  630 X 400 mm and larger. Aspecial scraping technique is used to achieve a uniform distribution of load bearing points and oil pockets. An average of 15-20 load bearing points , after finish scraping , is standard. This finish scraping technique ensures that the area of the load bearing points increases  after the intial dulling of the high points. This guarantees a long working life, at the required accuracies. Grade-II plates are accurately machined to get the requisite flatness. Standard Accessories : Plates of sizes 1000 X 1000 mm and smaller, are provided with handles. A wooden cover is provided to protect the working face.   Optional Accessories : Fabricated mild steel stands, with three leveling screws, are offered for plates upto and including size 1600 X1000 mm. Cast Iron Column Floor Stands, each with a leveling screw and nut, are offered as per the scheme : A set of five, three for leveling and two for support for 2000 X 1000 mm plate. A set of seven, five for leveling and two for support for 3000 X 1000 mm plate.
    ...more
  • Ci Surface Plate

    Ci Surface Plate

    Get Price Quote

    A crystalline rock, has a fine grained, nonporous texture. It is crystalline throughout and the composition is hard and compact. Granite does not have the soft in-between spaces and has therefore a much higher wear resistance plus a higher degree of flatness accuracy. The material strength of Surface Plate is three times greater than that of ordinary granite and is super rigid. This Surface Plate has a very low expansion coefficient (5 x 10-6 meter per degree), which makes it least responsive to temperature changes. 100 per cent corrosion-proof and acid resistant. Non-magnetic and easy to clean. No oiling required which is mandatory on cast iron surface plate and with non-glaring satin finish. These plates are inspected through Electronic level Processing System of Ms. Wyler, Switzerland, to ensure the accuracy and flatness.
    ...more
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    2,000 - 20,000 / Piece

    • MaterialCast Iron
    • FinishingPolished
    • ShapeRectangular, Square
    • ApplicationIndustrial
    • GradeAISI, ASTM, BS, DIN, GB, JIS
    • FeatureExcellent Quality
    • Width100-200mm, 200-3000mm, 300-400mm, 400-500mm
    • Number Of FlowerCast Iron Surface Plates
    • Country of OriginIndia
    ...more
  • Cast Iron Surface Plates

    Cast Iron Surface Plates

    10,000 - 2,000,000 / Piece

    • MaterialCast Iron
    • FinishingPolished
    • Raw MaterialCast Iron
    • ShapeRectangular, Square
    • ApplicationIndustrial
    • Size6000 x 6000
    • All size surface plates available with size from 200 mm x 200 mm to 6000 mm x 6000 mm Loading capacity as per requirement  Flatness accuracy - 0.1 mm per SQM VMC Machined surfaces
    ...more
  • Ci Surface Plate

    Ci Surface Plate

    Get Price Quote

    • Size3M x 2M .
    • Cast iron surface plate shall be used as a precision reference for marking , lay out and inspection of Steam turbine governing components .Overall assembled size shall be 6M x 6M consisting of 6 nos. of individual surface plates of size 3M x 2M Top working surface of each surface plate shall be provided with machined grooves in a grid of 250mm * 250mm,
    ...more
  • Ci Surface Plate

    Ci Surface Plate

    Get Price Quote

    • SIZE IN INCHS40 x 80, 40 x 64 , 40 x 40, 24 x 40
    • Cast Iron, Made from High Quality close grained cast iron. Stress relieved against distortion. Precisely finished by planning and hand scraping. Granite, Made out of selected black granite having uniform texture and colour. Very dense and hard wearing. Non-Magnetic non glaring, economical, lesser wear, no oiling, no rust.
    ...more
