Granite Surface Plates Dealers

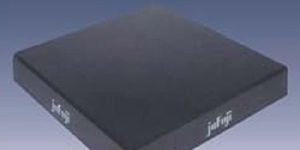

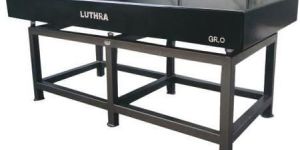

Granite Surface Plates meet IS.7327 - 1991 for flatness.Granite surface Plates are manufactured to precision standards using the highest quality granite.   ACCURACY Rigourous quality control inspection is carried out all stages. Final inspection is carried out by a high Precision Computerised Electronic Level.     ACCURACY UNDER LOAD Granite Surface Plates are capable of supporting a total normal load of 25 kgs. Per 0.1. Sq. mtr.   CERTIFICATE A certificate of accuracy is supplied with each plate as per IS: 7327 - 1991     TECHNICAL DATA Granite Surface Plates are manufactured in Four Grades. The typical applicaton of these four grades of plates are as under.   GRADE 00 is of laboratory grade. It is specified for precision measurement in gauge rooms and metrology laboratories. GRADE 0 is of inspection grade. It is specified for general work in quality control. GRADE 1 is of tool room grade. It is specified for production checking work through the shop. GRADE 2 is for use in shops for general inspection.     MATERIAL Granite Surface Plates are made from seiect granite with uniform distribution of light and dark constituents. In such granite the minerals are evenly distributed resulting in a homogenous appearance. The following are the representative properties of our granites.   FLATNESS TOLERANCE The flatness deviation of a local area of 250 mm X 250 mm of the working surface shall not exceed. 3.5 µm for plates of Grade 00 7 µm for plates of Grade 0 15 µm for plates of Grade 1 30 µm for plates of Grade 2   ADVANTAGES Granite has one of the lowest cu - efficients of expansion amongst known materials. Granite does not rust. It may chip, but will not develop a burr. It is easy to keep clean.

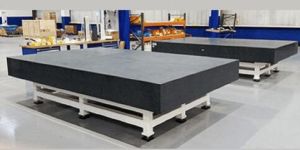

A crystalline rock, has a fine grained, nonporous texture. It is crystalline throughout and the composition is hard and compact. Granite does not have the soft in-between spaces and has therefore a much higher wear resistance plus a higher degree of flatness accuracy. The material strength of Surface Plate is three times greater than that of ordinary granite and is super rigid. This Surface Plate has a very low expansion coefficient (5 x 10-6 meter per degree), which makes it least responsive to temperature changes. 100 per cent corrosion-proof and acid resistant. Non-magnetic and easy to clean. No oiling required which is mandatory on cast iron surface plate and with non-glaring satin finish. These plates are inspected through Electronic level Processing System of Ms. Wyler, Switzerland, to ensure the accuracy and flatness. Plates are supplied with a calibration certificate traceable to National Standards showing graphic display of the fastness. The plates are manufactured by high precision lapping method providing 450 chamfering at edges & corners to avoid chip off and cracks.

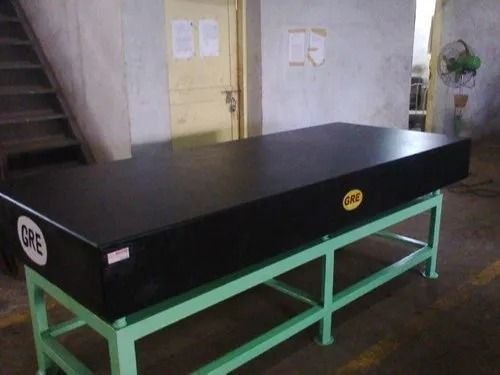

Matching up with the never ending demands of customers, our company offers high quality range of Granite Surface Plate. Available all sizes. Using excellent grade material which we buy from our trusted vendors.

We are offering granite surface plate. Made out of selected black granite having uniform texture & colour. Very dense and hard wearing. Its inherent properties provides a high module of rigidity and stability, corrosion, moisture, maintenance free. Non-magnetic, non glaring, economical, lesser wear, no oiling, no rust. Lapped to a velvet top finish no wringing. Increases life of height gauge and other tools.

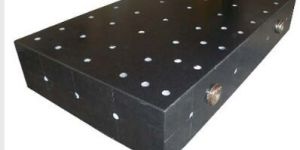

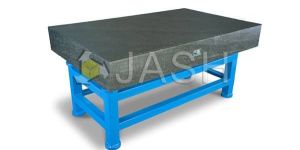

JASH Granite Surface Plates are used for precision gauging, inspection, layout and marking purposes. They are preferred by Precision Tool Rooms, Engineering Industries and Research Laboratories because of their following outstanding advantages. No rust, no corrosion, relatively warp-free, no compensating hump when nicked, longer wear, smoother action, greater precision, non-magnetic, less care after commissioning, lower co-efficient of thermal expansion and non-glaring surface. These features make JASH one of the best granite surface plate manufacturers in the industry.   Salient Features Made from close grained Granite having uniform color and texture having hardness 5.6 to 7 on Moh's scale, free from flaws, fissures and large inclusions of softer minerals. Made generally as per IS-7327. Also available on request conforming to DIN-876, BS-817, JIS -B-7513 and US Federal specification GGG-P-463-C. Metalic threaded inserts, Metalic T-slots, Plates with two or four ledges can also be supplied against specific request at extra cost. Rexine cover provided for top working surface with standard size plates. Fabricated Frame / Cupboard type / Cast Iron column type stand with leveling screws are available on request at extra cost. Active and Passive air mounts are offered upon request, at extra costs. Granite Lapping Plates square and rectangular available on request.

Our products are catered to both enjoying the continued patronage of our valued expectations and sustain the faith reposed on o improvement in the state of art technology in De and Calibration.

We are offering granite surface plate, gmt granite surface plates are manufactured to precision standards using the finest quality black granite for measuring applications, layout marking work and lapping precision parts. lapped to accuracies as per the din 876 standards, is 7327:1991, gmt's surface plates are offered in four grades: laboratory grade – 00, inspection grade – 0, tool room grade – I and ii. these are also supplied for use as reference bases for co-ordinate measuring machines. T-slots can be provided on request for clamping components.

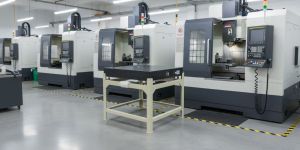

Manufacurers of Granite Surface Plate and Granite Machine Beds Our factory is located at Anekal which is located closer to the Granite Quarry, and have years of experience in manufacturing and reconditioning of Granite Surface Plate and Granite Products.We offer Granite Surface Plates of all sizes and grades as per customer needs.

Granite Surface Plates, Pressure Gauges, Vernier Calipers, Micrometer

Granite Surface Plates, Steel Furniture, Real Estate Agent

Granite Surface Plates, Three Coordinate Measuring Machine

Granite Surface Plates, Angle Plates, Try Square, Precision Tool
