Leo Laboratory Products & Services Alandur, Chennai, Tamil Nadu

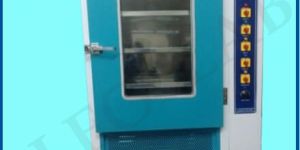

ø  make of the equipment – “leo” ø  temperature range:  5°c to 60°c, ø  working temperature:  5°c  to 60° (as per your required temp.) continuously with an accuracy +/- 1°c or even better ø  humidity range: 30% to 95% rh (as per your required %) continuously  with an accuracy +/- 3% or even better ø  fan motor for air circulation’s ø  heating by ss tubular heaters for long life ø  temperature & humidity control – microprocessor based pid controlled led  display & capacitance type sensor for precise control of temperature & humidity  (compound) ø  calibration port on side ørunners  for trays adjustable   ø  low water level alarm, øelectrical circuit breaker ø  time delay for compressor switch on overload cut off relay forcompressor, ø  provided with stainless steel trays for holding samples ø  temperature & humiditycontrol, microprocessor with capacitance type sensor, ø  set humidity ± 3%, set temperature ± 1°c, ø  illumination 8watts fluorescent lamp, ø  internal body material stainless steel - 304 grade, leo laboraory products & services,  chennai   ø  external body material, powder coated crcasteel ø  working voltage regime: 220-240, ø  insulation 65 mm ø  noise level less than 65 db (a),  .

Number Of Flower : With Cooling

Brand Name : LEO

Application : Customized

Power : According to size

Power Supply : 230 V, Single phase

Standard : As per NAPL

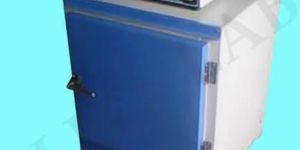

 temperature ambient +5.0°c to 250°c  equipped with felt gasket  napl calibration certificate (optional)  double walled construction  comply with nabl naph standards  spring loaded locking system  supply with stainless steel trays  air circulating fan (optional)  easy to operation and low maintenance  microprocessor based pid controlled digital temperature indicator cum controller (optional) model lhao-1414 lhao-1818 lhao-1824 lhao-2424 lhao-2436 working chamber size 14” x 14” x 14” 18” x 18” x 18” 18” x 24” x 18” 24” x 24” x 24” 24” x 36” x 24” load 1.80 kw 2.20 kw 2.50 kw 3.00 kw 3.50 kw no. Of trays 1 2 3 3 3 temp. Range ambient +5°c to 250°c working temperature as per your requirement temp. Accuracy ± 1.0°c temp. Least count (resolution) 1.0°c

Number Of Flower : Heating

Brand Name : LEO

Certification : As per ISO

Application : Drying

Country of Origin : 230 V

Condition : AC volt

Application : All feild for Dyring purpose

Power Source : AC

Total Carbohydrate : 1 year

After-Sales Service Provided : yes

Model : Lab & Memmert model

Country of Origin : Chennai

 temperature ambient 5.0°c to 50°c  equipped with magnetic gasket  napl calibration certificate (optional)  double walled construction  comply with nabl naph standards  spring loaded locking system  supply with stainless steel trays  air circulating system fan by axial fan  easy to operation and low maintenance  microprocessor based pid controlled digital temperature indicator cum controller  booster heater  energy regulator  interior illumination  digital volt meter  rocker switch for mains, cooling, heating, & illumination  8 watts led lamp model lbodi-4c lbodi-6c lbodi-10c lbodi-12c lbodi-15 working chamber size (mm) 455 x 610 x 410 505 x 830 x 415 565 x 865 x 550 650 x 900 x 580 700 x 900 x 650 load 300 w 400 w 500 w 600 w 750 w no. Of trays 2 2 3 3 3

Brand Name : LEO

Application : Laboratory use

Classification : Scientific instruments

Power Supply : 230V

Total Carbohydrate : 1 year

Country of Origin : Chennai

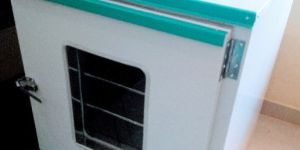

 temperature ambient +5.0°c  equipped with felt gasket  napl calibration certificate (optional)  double walled construction  comply with nabl naph standards  spring loaded locking system  supply with stainless steel trays  air circulating system fan by axial fan (optional)  easy to operation and low maintenance  microprocessor based pid controlled digital temperature indicator cum controller (optional) leo laboraory products & services, chennai model lbi-1414 lbi-1818 lbi-1824 lbi-2424 lbi-2436 working chamber size 14” x 14” x 14” 18” x 18” x 18” 18” x 24” x 18” 24” x 24” x 24” 24” x 36” x 24” load 300 w 400 w 500 w 600 w 750 w no. of trays 1 2 3 3 3 temp. range ambient +5°c to 60°c working temperature 37°c 42°c temp. accuracy ± 0.5°c temp. least count (resolution) 0.1°

Application : Laboratory Use

Classification : Scientific Instruments

Country of Origin : 220V, 230V

Condition : New

Frequency : 50Hz

Total Carbohydrate : 1 Year

Temperature : 0-50Deg C

Volume : 100-150ltr, Customer Requirment

Automation Grade : Fully Automatic

No of Shelves : 3 Shelves

Country of Origin : India

Brand Name : LEO

Packaging Type : Inner SS Outer MS With Powder Coated Paint

Triple walled. mounted on tubular stand. separate boiling chamber fitted bottom side of the autoclave. temperature controlled by microprocessor based pid controlled digital temperature indicating cum controller, low water cutoff device, auto pressure cutoff switch etc.

Thickness : 0-5mm

Availability : According to ordering size

Capacity : According to ordering capacity

Packaging Type : Customized

Usage : Laboratory Use

Specialities : Corrosion Resistance

Overall Dimension : Customized

Chamber Volume : Customized

Number Of Flower : Horizontal Autoclave

Brand Name : LEO LAB

Material : Stainless Steel

Shape : Horizontal

Certification : As per NABL / NABH

Packaging Type : SS

Country of Origin : 240V

Condition : New

Power : Customized

Pressure : High Pressure

Surface Finishing : Polished

Phase : According to size

Total Carbohydrate : 1 Year

Country of Origin : India

Operating Mode : Semi Automatic

Corrosion Resistance : Yes

Mount Type : Floor Mounted Autoclave

Rust Proof : Yes

IP Grade : SS 304 / SS 316

Width : Customized

Operating Temperature : 121 Deg. C

Frequency : 50 Hz.

Accuracy : +/- 1 Deg. C

Height : Customized

Temperature : 130 Deg. C

Depth : Customized

we are offering autoclave. cat. no.1001 “leo” autoclave (vertical) - wing nut locking system with ss basket construction: it is double walled, inner chamber made out of stainless steel and the outer chamber made out of mild steel with powder coated paint stainless steel door: made out of stainless steel plate with dish door opening & lock system: door opening by foot lifting arrangement with wing nut locking system. accessories fitted along with the autoclave  pressure gauge pressure release valve]  safety valve  immersion type heater  wing nut opener  gasket  handle  stainless steel basket chamber size dia x height load 250 x 450 mm 10” x 18” 2.0 kw 300 x 500 mm 12” x 20” 3.0 kw 350 x 550 mm 14” x 22” 3.0 kw 400 x 600 mm 16” x 22” 4.0 kw 450 x 600 mm 18” x 22” 4.5 kw 550 x 750 mm 22” x 30” 6.0 kw optional accessories at an extra cost 01 water level indicator 02 automatic low level cutoff device 03 automatic pressure cutoff device 04 electric timer 1 hour 05 automatic digital timer range [0 – 999] 06 digital temperature indicating controller 07 radial locking system

Thickness : 0-5mm

Availability : 40Kg

Capacity : 50-100 Litre

Packaging Type : Customized

Usage : Laboratory Use

Specialities : Corrosion Resistance

Overall Dimension : Customized

Number Of Flower : Vertical Autoclave

Brand Name : LEO

Material : Stainless Steel

Shape : Vertical

Country of Origin : 220V

Condition : New

Power : According to size

Pressure : Medium Pressure

Surface Finishing : Polished

Phase : Single Phase

Total Carbohydrate : 1 Year

Country of Origin : India

Operating Mode : Customized

Corrosion Resistance : Yes

Mount Type : Floor Mounted Autoclave

Rust Proof : Yes

cat. no.1014 “tsi” curing water bath (atc bath) for concrete mould with stirrer / pump motor and microprocessor based pid controlled digital temperature indicating cum controller (dual display – sv & pv) built in digital timer ø  temperature ambient +5.0°c to 100°c ø  equipped with neoprene  gasket ø  napl calibration certificate (optional) ø  double walled construction ø  comply with nabl   standards ø  spring loaded locking system ø  supply with stainless steel trays ø  stirrer motor  / pump motor according to capacity ø  easy to operation and low maintenance ø  microprocessor based pid controlled digital temperature indicator cum controller model lcwb-12 lcwb-24 lcwb-36          lcwb-48 capacity 12 molds 24 molds 36 molds 48 molds chamber size (approx.) in mm 500 x 350 x 500 (w x b x d) 700 x 500 x 500 (w x b x d) 1000 x 500 x 500(w x b x d) 1000 x 650 x 500(w x b x d) size of cubes 150 x 150 mm 150 x 150 mm 150 x 150 mm 150 x 150 mm no. of rows (cubes) 3 x 2x 2 rows 4 x 3 x 2 rows 6 x 3 x 2  rows 6 x 4 x 2 rows load 6.00 kw 9.00 kw 12.00 kw 18.00 kw power supply 230v, 1 phase 440v, 3 phase 440v, 3 phase 440v, 3 phase no. of mains indicating lamp 1 no. 3 nos. 3 nos. 3 nos. no. of heater indicating lamp 1 no. 3 nos. 3 nos. 3 nos. temp. range ambient +5°c  to 100°c working temperature 100°c temp. accuracy ± 2.0°c temp. least count (resolution) 1.0°c digital timer 0 to 999 min (optional) construction double  wall,  inner stainless steel 304 grade    outer chamber mild steel with powder coated paint  /  stainless steel 304 grade  trays stainless steel power supply 220 volts / 440 volts

Brand Name : TSI

Finishing : Polished

Shape : Rectangular

Packaging Type : Powder coated

Condition : New

Power : 230V

Application : Curing concreate mould

Certification : ISO 9001-2015

Feature : Eco-Friendly

Capacity : 100-1000ltr

Standard : NAPL

Number Of Flower : Accelerated Curing Tank

Total Carbohydrate : 1year

Country of Origin : India

CAT. No.1006“TSI”   B.O.D. INCUBATOR WITH FORCED AIRCULATION FAN’S AND MICROPROCESSOR BASED PID CONTROLLER  DIGITAL TEMPERTURE INDICATING – CUM -  CONTROLLER CONTROL PANEL: All controls and circuitry are housed at the top of the incubator and therefore protected from spillage. Separate indicator lamps for mains, heating and cooling are fitted. Temperature setting knob allows the user to select and set any desired temp. Supplied complete with 2 or 3 shelves of Stainless Steel as per chamber, Cord and plug Suitable to work on 220V, 1 Phase, 50 Hz, AC supply. The unit is provided with 4 Nos. wheels for easy movements. 1        Automatic Digital Temp. Indicating Controller with Sensor 2        Squire type ON/OFF switch with indicator for Mains  3        Squire type ON/OFF switch with indicator for Cooling 4        Squire type ON/OFF switch with indicator for Heating 1 no. & Volt meter   POWER SUPPLY: Suitable   to work    on 220/230 Volt, Single phase, 50 Hz. AC Mains     INNER CHAMBER SIZE W x H x D IN (MM) CAPACITY IN CU. FT. NO. OF SHELVES 455 X610 X 410 4.0 2 NOS 505 X 830 X 415 6.0 3 NOS 565 X 865 X 550 10.0 3 NOS 650 X 900 X 580 12.0 3 NOS 700 X 900 X 650 15.0 3 NOS  ‘TSI”  BOD incubator is most versatile and highly reliable low temperature incubator to make Biochemical Oxygen Demand determinations and for preservation of vaccines, insulin, level extracts, chemicals etc.

Brand Name : Oriflame

Country of Origin : India
