Manometers Dealers in Chennai

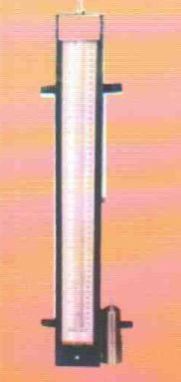

GAYATRI's make Single Limb well Type direct reading Manometers are used for precision measurement of pressure, vacuum, differential pressure flow and liquid level measurement. Initially liquid is filled in the well till the scale shows zero but when a positive pressure is being applied on the liquid in the well, causing the level to go down very slightly. Liquid level in the indicating tube has risen substantially giving direct reading from scale in desired units. The single limb well type manometers are accurate & dependable as well as highly versatile for many applications. All Scales are graduated to correct for the drop in the well level.

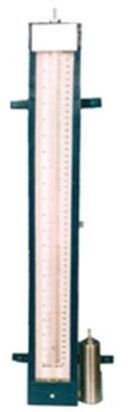

The well Type Single Limb Manometer, provided by us, is accurate and dependable as well as highly versatile for many industrial applications. It is helpful in fast reading of pressure, vacuum reading of pressure, vacuum/differential pressure, flow and liquid level. It is offered by us in different pressure units. The Single Limb Manometer is efficient in showing accurate results and is purchasable from us at cost-effective prices. Details : Wetted parts S.S. 304, 316 & P.P Different Pressure units All Type of Mounting (Stand & wall Mounted) Accessories : Catch Pot, Three Valve manifold, Five Valve manifold & Overflow device Accuracy : +2.5 % F.S.D. Range Available: Minimum 0 - 200 mm WC and Maximum 0 - 3000 mm WC

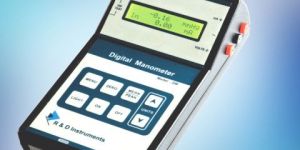

Ideal for calibration of differential pressure transmitters,differential pressure gauge, level transmitters, flow transmitters, magnahelic gauge, etc. PRODUCT FEATURES MEASUREMENTS: Electrical measurements of mA & Volts Peak pressure measurements (High & Low peak) PRESSURE SWITCH TEST FACILITY: Opening and closing pressures are easily identified by display hold while opening and closing contact DISPLAY: Large backlit alpha numeric display with 2 lines (one line Pressure and second line for electrical measurement) . ‘Auto OFF’function for longer battery life KEYPAD: Feather Touch keypad for easy operation. Dedicated ZERO key for Zeroing before test PUMP: Screw pump to build pressure

MEASUREMENTS: Electrical measurements of mA & Volts Peak pressure measurements (High & Low peak) PRESSURE SWITCH TEST FACILITY: Opening and closing pressures areeasily identified by display hold while opening and closing contact DISPLAY: Large backlit alpha numeric display with 2 lines (one line Pressure and second line for electrical measurement) . ‘Auto OFF’function for longer battery life KEYPAD: Feather Touch keypad for easy operation. Dedicated ZERO key for Zeroing before test PUMP: Screw pump to build pressure

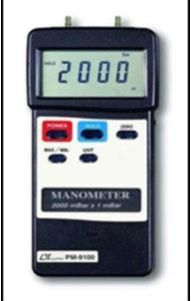

Circuit  Microprocessor LSI circuit. Display  61 mm x 34 mm supper large LCD display. 15 mm ( 0.6″ ) digit size. Function  Dual differential input, data hold, zero/relative, memory. Zero adjust Push button on the front panel. Operating Temp  0 to 50   ( 32 to 122    ). Operating Humidity  Less than 80% R.H.

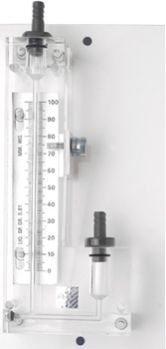

We offer Acrylic Single Limbed Manometer. Item : Single limbed acrylic tube manometer Range : 0 – 30 mm in Wc Hg with 1 mm Wc Hg 0 – 50 mm in Wc Hg with 1 mm Wc Hg 0 – 100 mm in Wc Hg with 1 mm Wc Hg 0 – 150 mm in Wc Hg with 1 mm Wc Hg 0 – 200 mm in Wc Hg with 1 mm Wc Hg 0 – 300 mm in Wc Hg with 1 mm Wc Hg 0 – 500 mm in Wc Hg with 1 mm Wc Hg OR As required End fittings : ¼” PP SS nozzles Description : Single limbed acrylic tube block with calibrated scale Mounting : Wall mounting Make : Ji Accuracy : +- 1% FSD
