Manometers Dealers

Inclined Single Limb : HP tapping connected to well, It pushes manometer fluid into capillary which is either kept open or connected to LP tapping. defference in pressure is directly read over engraved acrylic scale. U-Tube Dual Limb : HP Tapping is connected to LH Limb. RH Limb is kept open or connected to LP tapping. Difference in level of two limbs shows differencial pressure over engraved acrylic scale.

Acrylic Body Inclined Tube Manometer   Model : FITZER / ABI / 50. Range : In Between 10 mm to 150 mm. Fluid : Red Gauge Oil Sp.Gr 0.823 Resolution : 0.1 / 0.2 / 0.5 mm W.C.

Provide visual indication of pressure with the Series 1213 Gas Pressure Manometer. Designed for use with natural gas, the manometer can also be used to monitor any compatible gases up to 15 inches of water column. Tap water is used as the sensing media and a magnetic clip provides temporary or permanent mounting. Economically priced and made of durable plastic for years of trouble-free service. Includes three feet of vinyl tubing and 18" nylon male NPT to barb fitting.

“Telelin” make U-Tube Manometer are accurate, Simple and economical instruments for measurement of positive pressure, negative pressure, differential pressure, vacuum, flow etc. U-tube manometers indicates pressure as vertical distance from the top of the fluid in one leg to the top of fluid in the other leg. Scales are graduated from centre zero towards each end and distance s traveled by liquid from zero are added. There in no loss of accuracy if the two distances are different because of slight tube bore difference. The units of measure commonly used are mmW.g., inch W.g., mm Hg, Inch Hg, kgcm 2 , PSIG, mbar, Pa , Flow Units etc.

We are offering inclined manometer. Manometer a manometer is a device employed to measure pressure, vacuum, differential pressure, flow& level. Features clear, 25mm drilled and reamed unbreakable acrylic block. Precision machined reservoirs and indicating column insure high accuracy. Zeroing is easy, using the sliding milky white scale, inbuilt preset spirit level for accurate mounting.

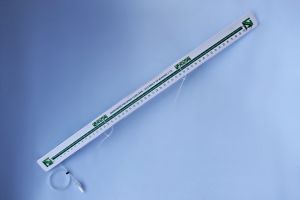

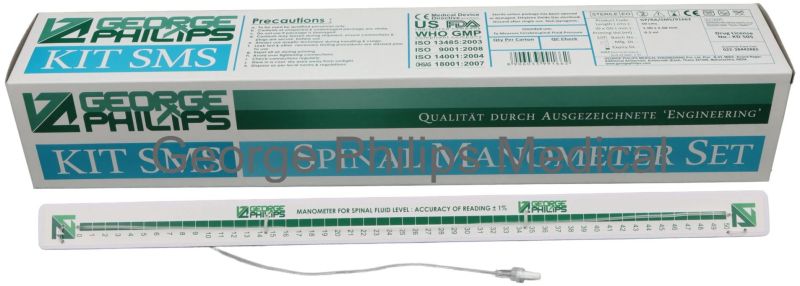

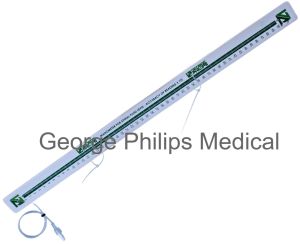

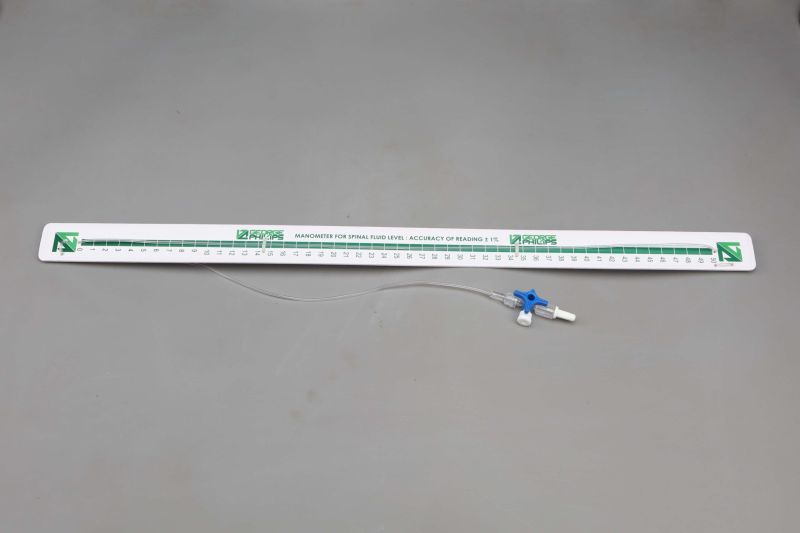

DESCRIPTION George Philip’s Spinal Manometers have been providing safe, reliable, cost effective CSF pressure measurement and designed to check out the pressure of the cerebrospinal fluid by using a needle, which is inserted into the spine. The needle is inserted through the patient’s back and the resulting height of the fluid in the bore indicates the pressure. Fine bore clear manometer tube for very low priming volume and enhances easy visualization of water level. It’s rigid calibrated scale is calibrated Calibration from '0 to 50' cms and velcro straps used for easy fixing to the I. V. stand. A transparent & fully threaded end adaptor ensures a safe and secure connection with trouble free venting and vented luer caps permits aseptic handling and priming.   FEATURESBENEFITS Fine Bore rear manometer Clear and easy visualization of fluid level Rigid calibrated scale Enhances accuracy of the reading Velco Straps For easy fixing to the I.V. stand End adapters Makes ideal connection with needle Vented Luer Caps Ensures safe and reliability of system in sterile condition. Soft Kink resistant tubes Guarantee precise fluid flow Attached with 3 way stopcock Provides trouble free venting

"TELELIN" High Accuracy, One Piece Clear Acrylic Plastic Body (imported Acrylic) U-Tube Manometer. SPECIFICATIONS OUR MODEL NO :PBM-UT Standard Range a) 50- 0-50 mm W.G b) 100- 0-100 mm W.G c)150 - 0 - 150 mm. W.G. d) 250- 0 - 250 mm. W.G. e) 300- 0 - 300 mm. W.G f) 500- 0- 500 mm W.G Scale In cms Connection Nozzel type or ¼” BSP (F) or as per required Scale Engraved on milky white acrylic, scale engraving filled with black color. Metering Tube Drilled in Acrylic block itself Mounting Wall mounting holes provided in acrylic block Indicating Liquid Water only Drain Drain screw will be provided Scale Adjusting Knob Scale Zero adjusting Knob will be provided Packing Teflon & Neoprene Accuracy +-0.8% OF F.R Accessories Box Plastic Bottle filled with coloured water, PVC tubing. Max Temp 50’C

Manometer is used for precise measurement of pressure vacuum and differential pressure. We are one of the major suppliers and exporters of Differential Pressure Manometer that has the ability to accurately measure very small pressures. This Differential Pressure Manometer is also used to measure the speed at which a stream of air is flowing.

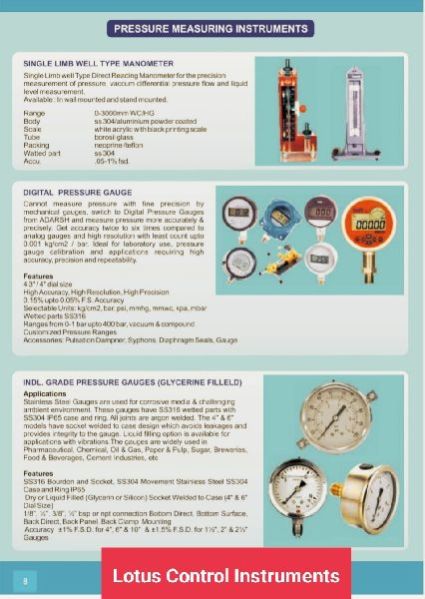

The Single Limb Manometer is a direct reading manometer for the precise measurement of pressure, vacuum different pressure flow and liquid level measurement. The Single Limb Manometer is available in different sizes as per the requirement of the client. The Single Limb Manometer is a simple device that facilitates direct and accurate reading. Attributes : In wall mounted and stand mounted Range from 0-100 to 0-500 Acrylic Body ( CVG / SLM ) Metallic Body ( CVG / SLMM

High accuracy Digital Manometer are used to measure Pressure, Vacuum and differential pressure. The digital portable manometer is very useful to calibrate. And check the transmitters pressure gauges & precise testing in laboratory, research center, pnematic controlpanel & remote indication where the certain accuracy is required.RANGES RESOLUTION0 - 200 mm .....0.1 mm0 - 760 mm hg...0.1 mm0 - 1000 mm wg ....1 mm0 - 10000 mm wg ....1 mm0 - 20000 mm wg ....1 mm 0 - 4000 mm hg ....1 mmRanges available up to 500 bar Standard scales available in : Kg/ Cm2, Bar, Mbar, or other on request.

Dual & differential input, 200 mbar x 0.1 mbar. Unit : mbar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H2O, meter/H2O, Atmosphere. Data hold, Memory (Max., Min.). RS232/USB computer interface. Application : Industrial, laboratory, schools, heating, ventilation, hospital, medical... Size : 180 x 72 x 32 mm.

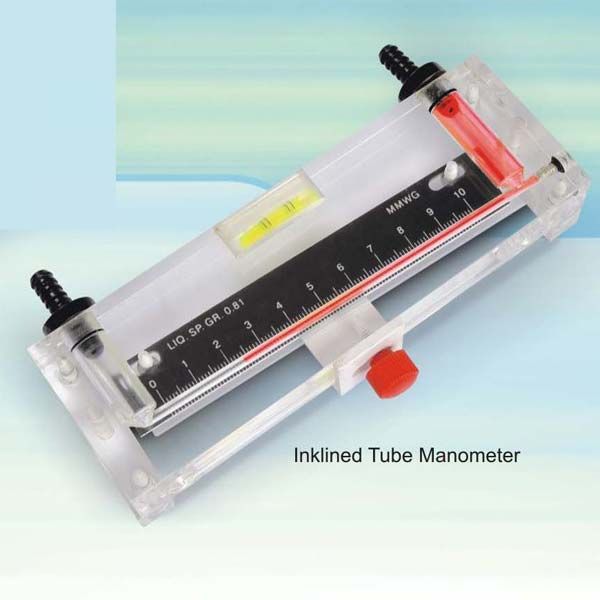

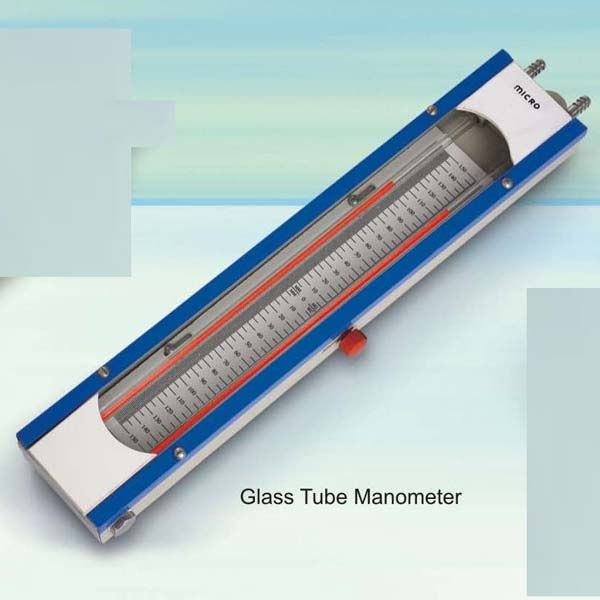

The exclusive range of Tube Manometers is inclusive of Glass Tube Manometer, Inklined Tube Manometer and U-Tube Manometer. We are one of the reputed Manufacturers and Suppliers of Tube Manometers in Maharashtra, India. The Tube Manometers, offered by us are fabricated from a thick acrylic solid block. It is compact in design and accurate in dimensions offering superb performance. We make sure that the desired order of the Manometers is delivered on time.

Suitable for continuous or intermittent, monitoring of central venous pressure during infusion particularly in ICU, CCU, OT’s and casualty departments. Manometer tube with graduation from –4 cm to +34 cm and attached to three way tap. 120 cm. long extention tube is fitted with female luer lock on one end and male luer lock on the other end for safe connection to central venous catheter. Injection site is provided additionally for extra medication. Sliding indicator provided to record previous reading. Moulded clamps with elastic strings are provided for easy fixation on the I.V. stand. Sterile, individually packed in peelable pouch. Category reference code

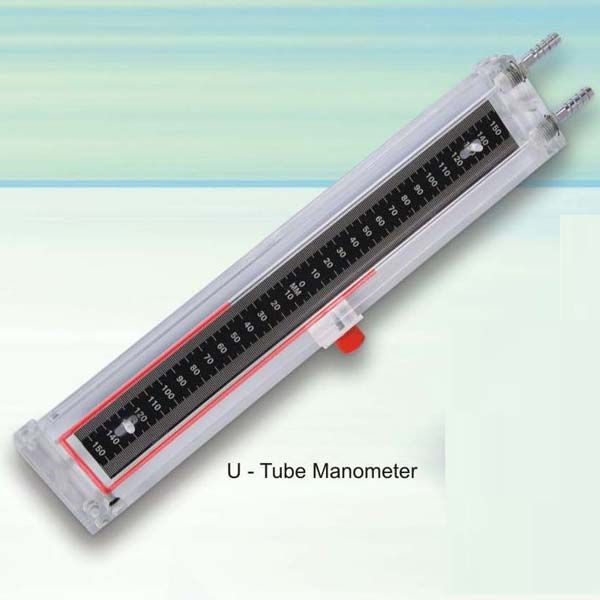

Our U Tube Manometers display accurate measurement demonstrating the pressure, vaccum, flow measurement and differential pressures. With reliance of quality and customised solutions, we offer customised U Tube Manometers at highly affordable rates.
