Navson Technologies Private Limited T Nagar, Chennai, Tamil Nadu

Spin Coater NT12000 V1 Description: The NT12000 V1 is a cutting-edge, made-in-India spin coater designed for superior thin-film coating applications. With a speed range of 100-12000 rpm and an acceleration of 8000 rpm/sec, this spin coater delivers exceptional performance and versatility for researchers and industrial users alike. Key Features: Hybrid Operation: Use with or without vacuum based on substrate requirements, providing flexibility and reducing downtime. High-Speed Performance: Achieve precise control with speeds ranging from 100 to 12000 rpm and rapid acceleration. Vibration Dampening: Highly damped vibrations and quick response control ensure smooth and consistent coatings. Easy Chuck Replacement: Features push-fit chucks that are easy to replace, enhancing user convenience. Purging Facility: Includes a purging option for enhanced coating quality. Programmable Touch Display: Allows for up to 10 steps per program with RPM and time feedback, and can save programs up to 16GB. Benefits: Ripple-Free Coatings: The vacuum-less concept minimizes vibrations, ensuring smoother coatings. Reduced Downtime: Quickly switch from vacuum to vacuum-less chucks to continue processes even if the vacuum pump fails. User-Friendly Interface: The touch display provides an intuitive user experience with extensive programming capabilities. Applications: Semiconductor Manufacturing Biotechnology Material Science Research Electronics Optics Why Choose NT12000 V1? Versatile and Reliable: Adaptable to various coating needs with a robust design. Advanced Control: Ensures precise and repeatable coating processes. Efficient Operation: Minimizes operational downtime and maximizes productivity. For more details and to request a quote, visit our website or contact our sales team.

Brand Name : Navson Technologies

Condition : New

Power : 240 W

Power Source : Electric

Automation Grade : Manual

Certification : CE Certified, ISO 9001:2008

Country of Origin : 110V, 220V

Number Of Flower : Spin Coater, Scientific Coating Equipment

Availability : 10kg

Total Carbohydrate : 1year

After-Sales Service Provided : 3 Years Guarantee

Country of Origin : India,India

Speed : 50 - 12000 RPM

Acceleration : 8000 RPM/s

Drive System : BLDC Motor

Standard Chucks : 1 Vacuum Chuck ; 2 Fragment Adapters (10mm * 10mm To 2” Dia. Substrate)

Standard Chucks : 1 Universal Vacuum Chuck (20 Mm * 20 Mm To 4

Standard Chucks : 1 Universal Vacuum-less Chuck ( 25 Mm * 25 Mm, 25 Mm * 75 Mm And 2”, 3” & 4” Diameter Substrates)

Drainpipe : Polypropylene Pipe At The Side Of Chamber

Housing Material : Corrosion-free Powder Coated Sheet Metal - Glove Box Compatible

User Interface : Touch Display (Mountable Android Tablet)

Program Steps : 100 Steps Per Program

Storage Capacity : 100 Programs

Substrate Holding Mechanism : Vacuum, Vacuum-less & Hybrid

Optional Purchase : Customised Chuck (Vacuum Or Vacuum-less) To Hold Substrates From 5 To 100 Mm Dia.

Substrate Size : 5 To 100 Mm Diameter

Working Chamber Material : Solid Natural Polypropylene

Working Chamber Size : 6” Diameter; 4” Height

Substrate Holding Vacuum : 650 Mmhg

Vacuum Connections : 10mm Pu Hose - 2m Length - Default

Spirit Level : External

Safety Feature : Lid Interlock Safety For Open Cover

Lid Material : Translucent Brown Acrylic Lid (Compatible For Photo-resist Coating)

Nitrogen Purging : Pneumatic Connection In The Lid For Nitrogen Purging

Power Requirement : 220V AC/50Hz; DC Adapter Will Be Provided

Installation Support : Refer To Installation Videos (Unpacking + Installation + Working Videos)

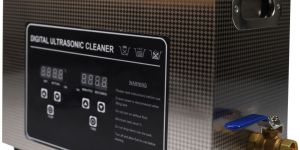

The NTUCL6 is a compact, high-performance ultrasonic cleaner featuring a 6 L stainless-steel tank, 40 kHz ultrasonic frequency at 180 W power, and a 300 W heating element. Its sleek footprint (325 × 175 × 275 mm) and 300 × 150 × 150 mm inner tank make it ideal for jewelry, labware, precision parts, and delicate instruments. Fully compliant with RoHS, CE, FCC, and UKCA standards, it delivers reliable, chemical-free cleaning in professional and research environments. Features: Cleaning Performance 40 kHz frequency and 180 W ultrasonic power for deep cavitation­-driven removal of contaminants. Heating & Drying Integrated 300 W heater boosts solvent action and accelerates drying cycles. Capacity & Usability Generous 6 L capacity accommodates multiple small parts or larger assemblies with ease. Design & Size Overall dimensions of 325 × 175 × 275 mm fit comfortably on any bench or workstation. Material & Build Quality Durable stainless-steel tank resists corrosion; easy-drain port for quick fluid changes. Safety & Regulatory Compliance Meets RoHS, CE, FCC, and UKCA regulations for professional and industrial use.

Phase : Single Phase

Warranty : 1 Year

ultrasonic frequency : 40 KHz

Body Material : Stainless Steel

Certification : CE Certified & ISO 9001:2015

Finishing : Chrome Finish

Country of Origin : India

Ultrasonic Power : 180 W

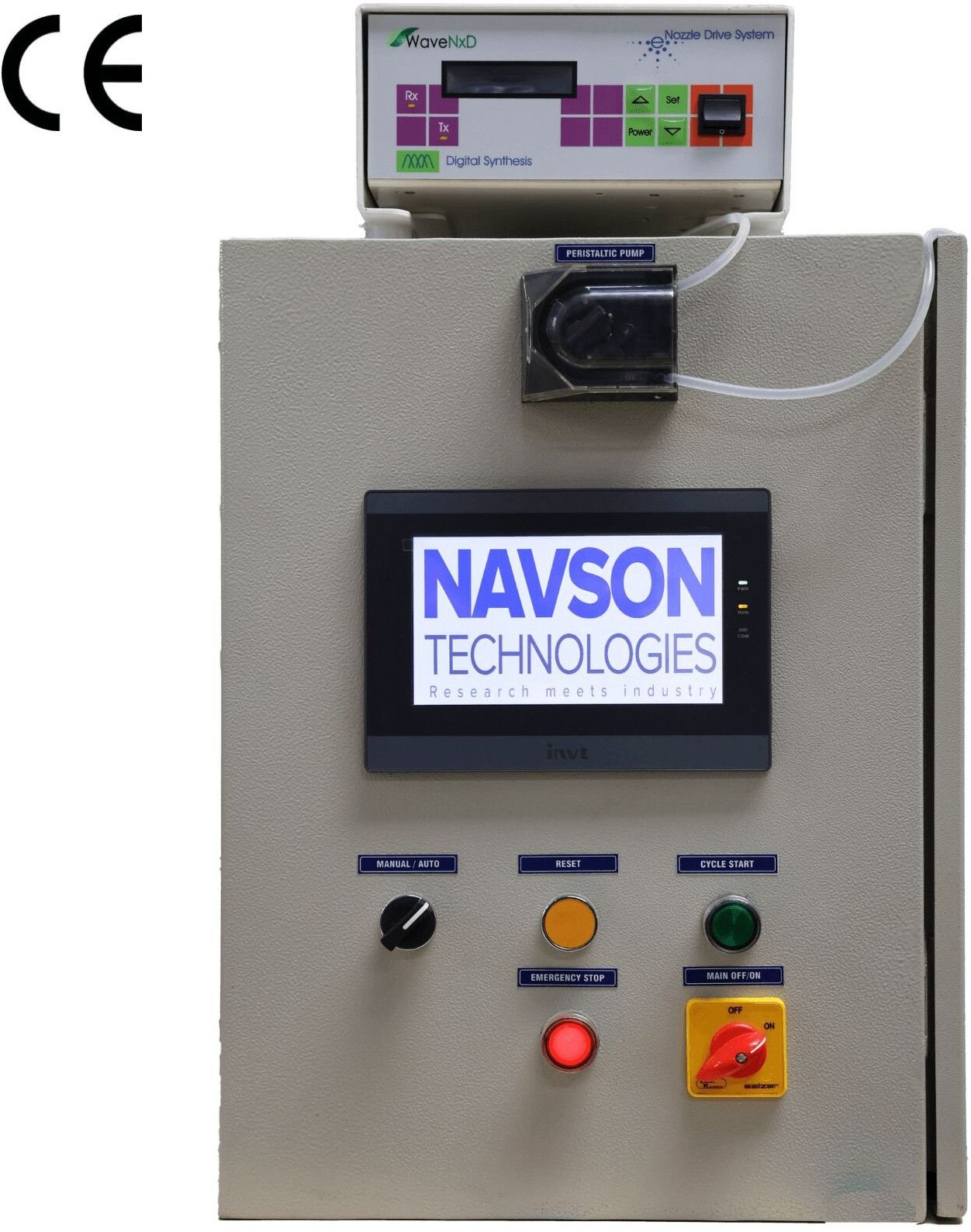

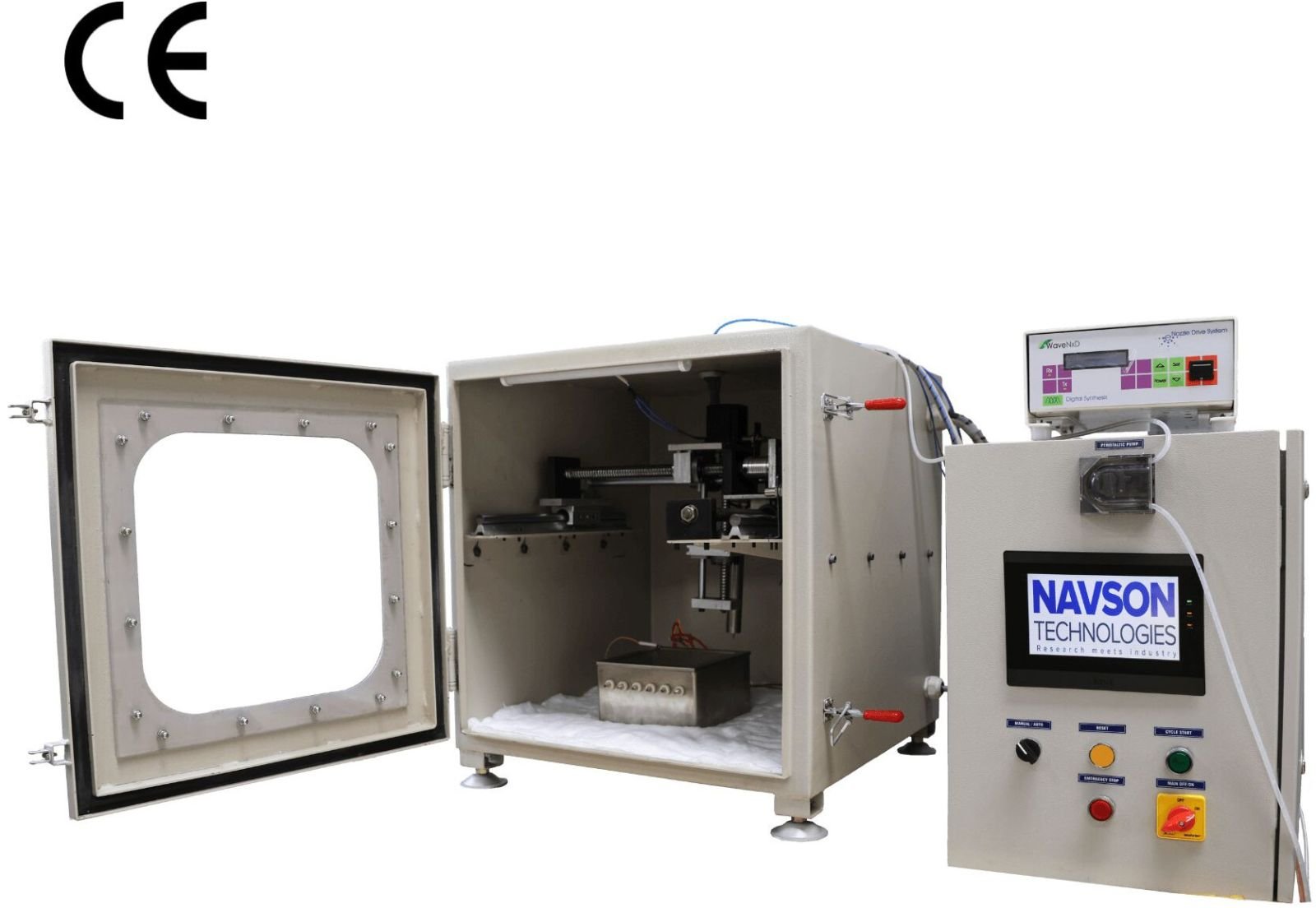

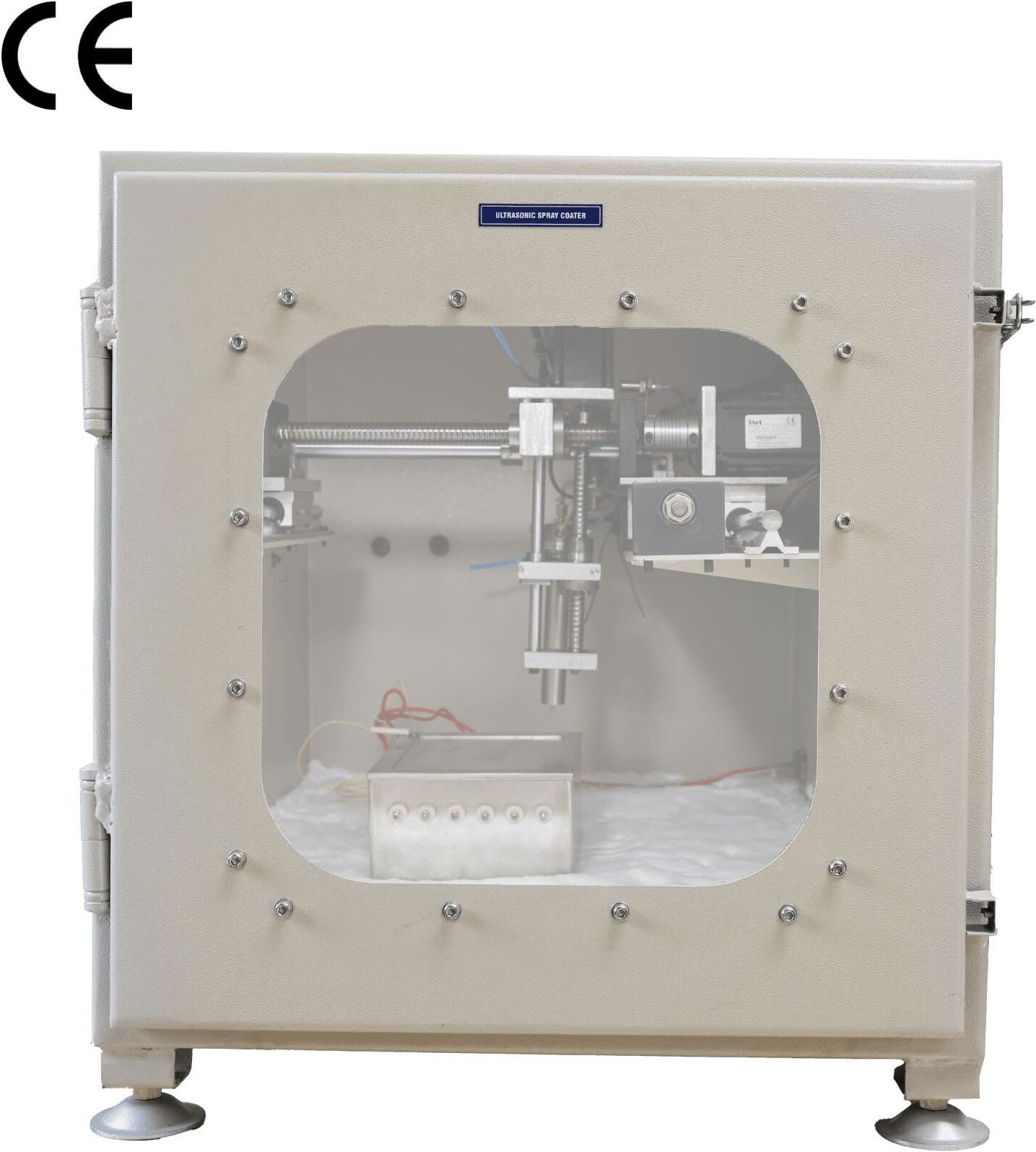

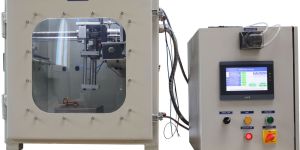

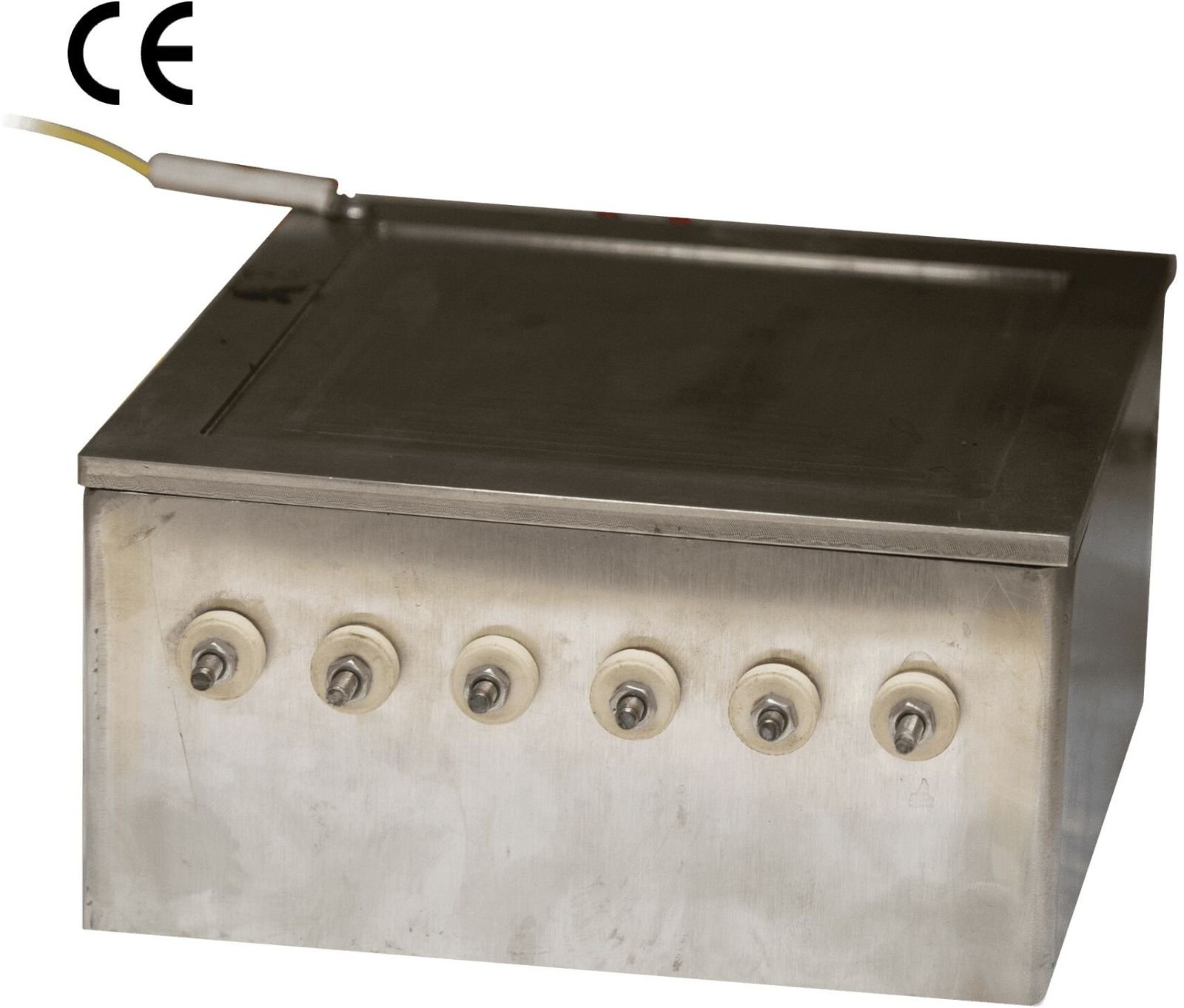

The NTPY01 Research Spray Pyrolysis System brings the science of ultrasonic atomization and controlled thermal chemistry straight to your lab bench. A precision gantry sweeps the ultrasonic nozzle across the PID-regulated hot plate, creating micrometer precursor droplets whose characteristics are controlled to achieve the desired grain growth, porosity and film thickness. As droplets land and decompose in real time, you achieve crack-free metal-oxide, perovskite or hybrid-organic–inorganic layers with sub-5 % thickness variation. Optional nitrogen or argon purging transforms the chamber into an oxygen- and moisture-free zone, enabling defect-free halide perovskites, metal–organic frameworks and other air-sensitive materials. Ideal for applications like transparent conductive oxides, thermoelectric, gas sensors, catalyst coatings and battery electrodes, the NTPY01 delivers high-throughput reproducibility and full process logging for seamless scale-up from discovery research to pilot-line validation.  Features: Precision Motion & Traversing Precision XYZ Traverses Driven by high-torque servo/stepper motors, the X–Y stage glides from 10 to 800 mm/s (with optional Y speeds to match), while an optional Z axis offers up to 100 mm of travel. This level of motion control guarantees repeatable, gradient-ready coatings across large or multiple substrates without manual realignment. Chamber Design & Modularity Generous, Adaptable Chamber Encased in a 650 × 650 × 650 mm stainless-steel enclosure, the NTPY01 accommodates anything from full-size wafers to custom multi-sample racks. Its modular ports and customizable dimensions let you swap in heating stages, purge kits, or tilt fixtures—so your setup evolves with each new material system. Dispensing Options & Flexibility Interchangeable Dispensing Suite Swap between peristaltic (50 mL/250 mL) and syringe-pump heads in seconds, or choose between air-ultrasonic and 60/120/180 kHz nozzles to dial in droplet sizes from 14 to 40 µm. The result is flawless film formation—whether you’re casting nanoparticle inks, sol–gel precursors, or delicate polymer formulations. User Interface & Workflow Control Touchscreen-Controlled Workflow A crisp 7″ HMI guides you through unlimited, on-board recipes with live visual feedback of spray paths and dwell times. One tap launches multi-step sequences, while USB log exports capture every parameter—so your lab notebooks practically fill themselves. Material Compatibility & Maintenance Chemical-Tough Construction Every fluid-contact surface is stainless or high-performance polymer, and tool-less access panels let you purge or swap components without corroding fasteners. Run aggressive acids, bases, or solvents day after day, knowing cleanup is a five-minute wipe down, not a full teardown. Data Logging & System Integration Real-Time Data & Connectivity As the system sweeps across your sample, time-stamped CSV logs record position, flow rate, and nozzle status for downstream analysis. Optional PC linkage means your deposition recipes and results feed directly into MATLAB, Python, or SPC tools—no extra scripting required. Expandability & Accessories Plug-and-Play Accessories From vacuum-chuck modules to IR-heating plates and clean-gas purge kits, each add-on snaps into place without tools. Whether you’re drying in situ, curing under UV, or maintaining inert atmospheres, you’ll have the exact configuration you need—instantly and without improvisation.

User Interface Control : 7” Touch Screen HMI, PC Connectivity (Optional)

Integrated Dispensing Unit Capacity : 50 ML, 250 ML (Optional); Higher Volumes Customizable

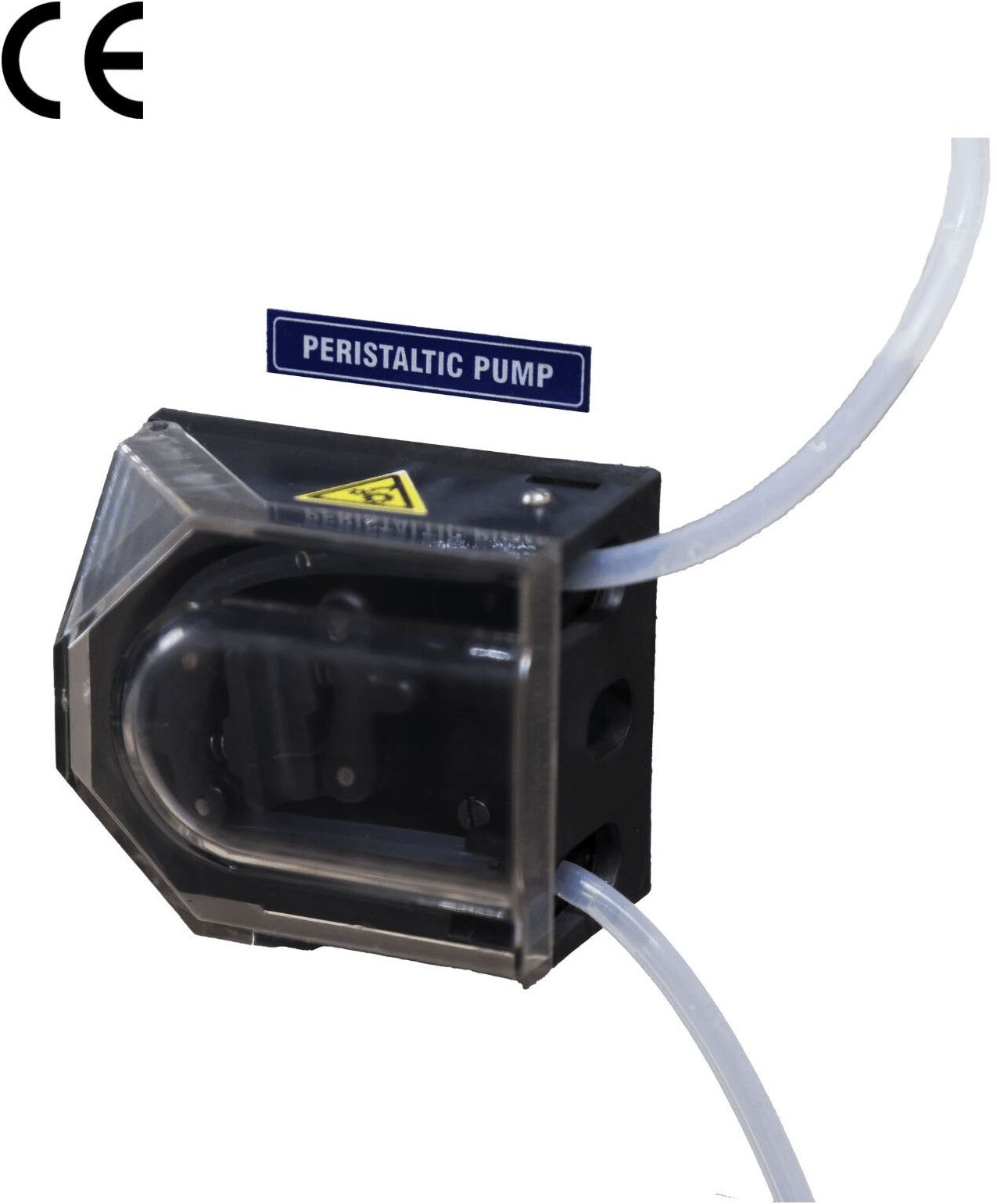

Dispensing Options : Peristaltic Pump, Syringe Pump (Optional)

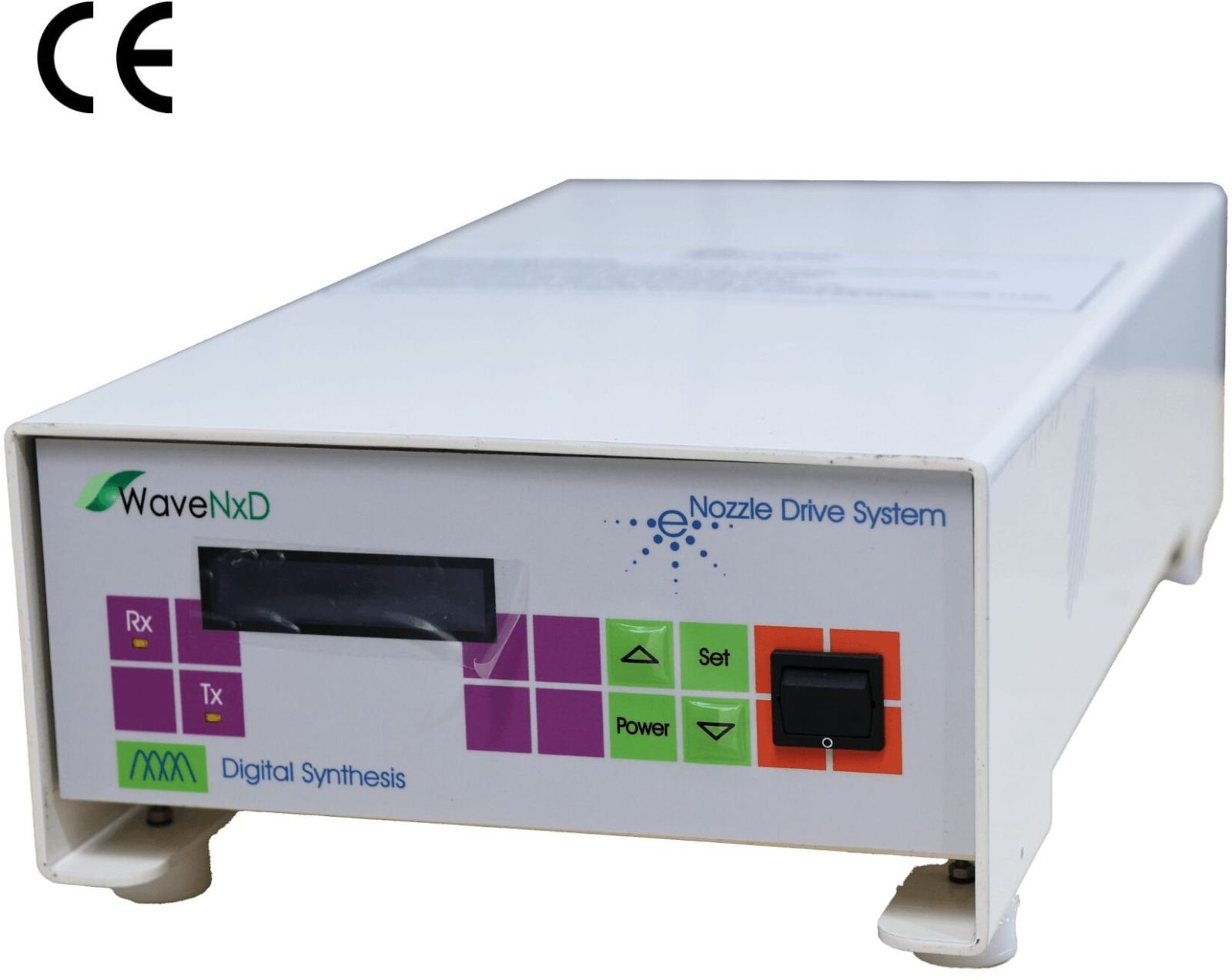

Sprayer Nozzle Options : Air Ultrasonic Nozzle, Ultra Sonic Nozzle (Optional)

Chamber Dimensions : 650 X 650 X 650 Mm

Sprayer Traverse : X - Y 200mm Max. [Dimensions Can Be Customized]; Z Adjustment: 100 Mm (Customizable)

Drive Speed Z Axis : 1 - 12mm/sec, 10 - 800mm/sec (Optional)

Drive Speed Y Axis : 1 - 12mm/sec, 10 - 800mm/sec (Optional)

Drive Speed X Axis : 10 - 800mm/sec

Actuator : Servo/Stepper Motor

Country of Origin : India

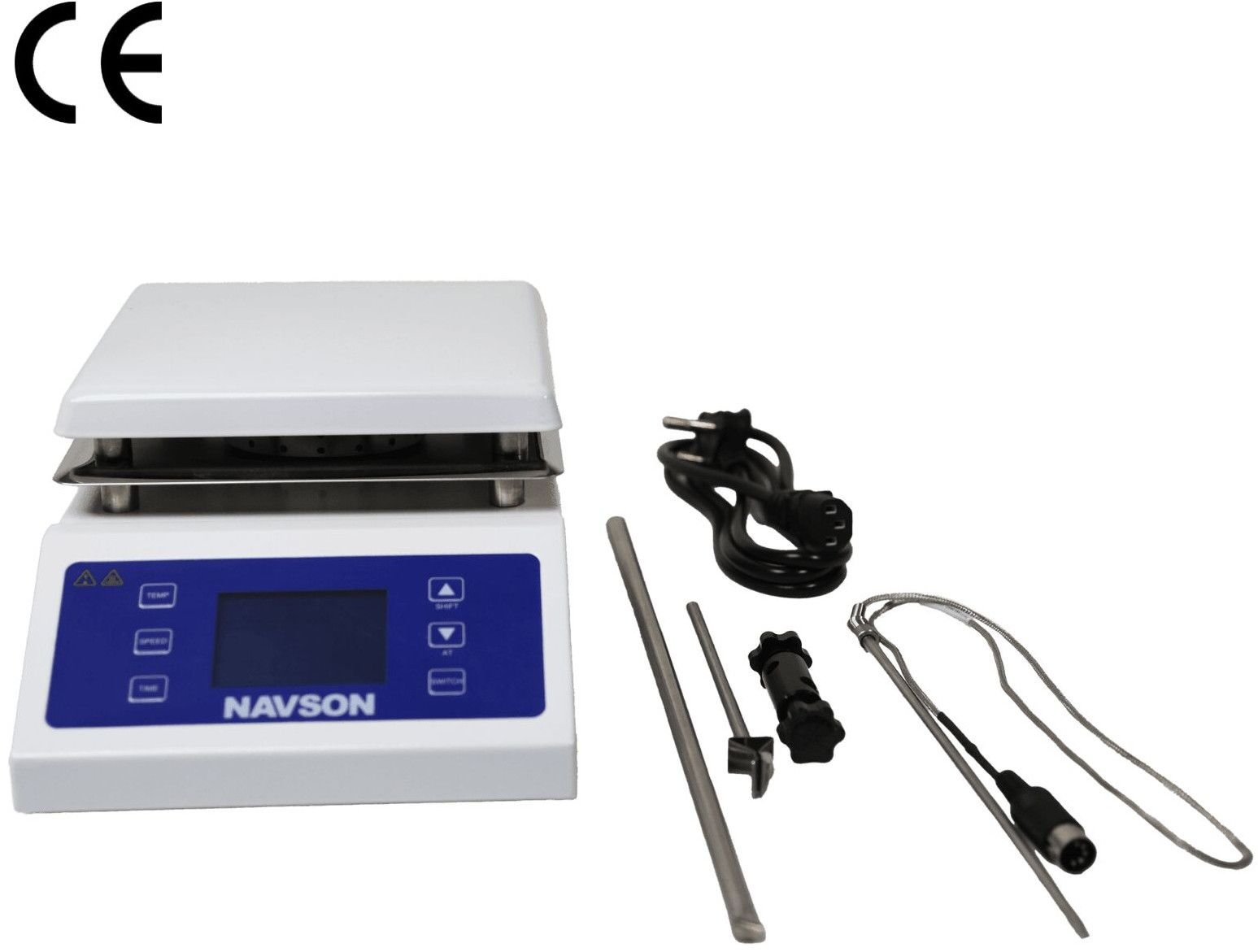

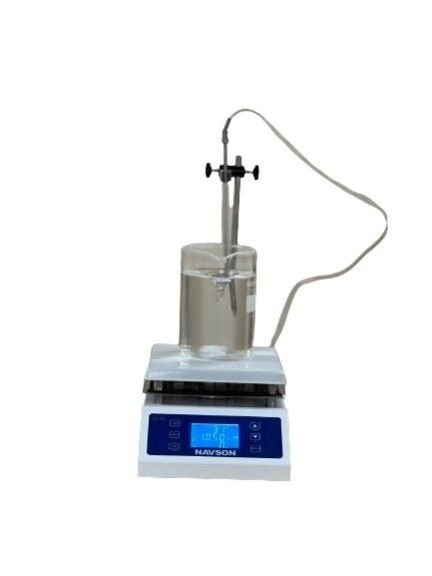

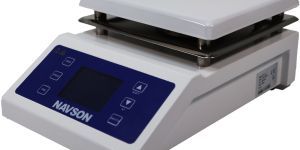

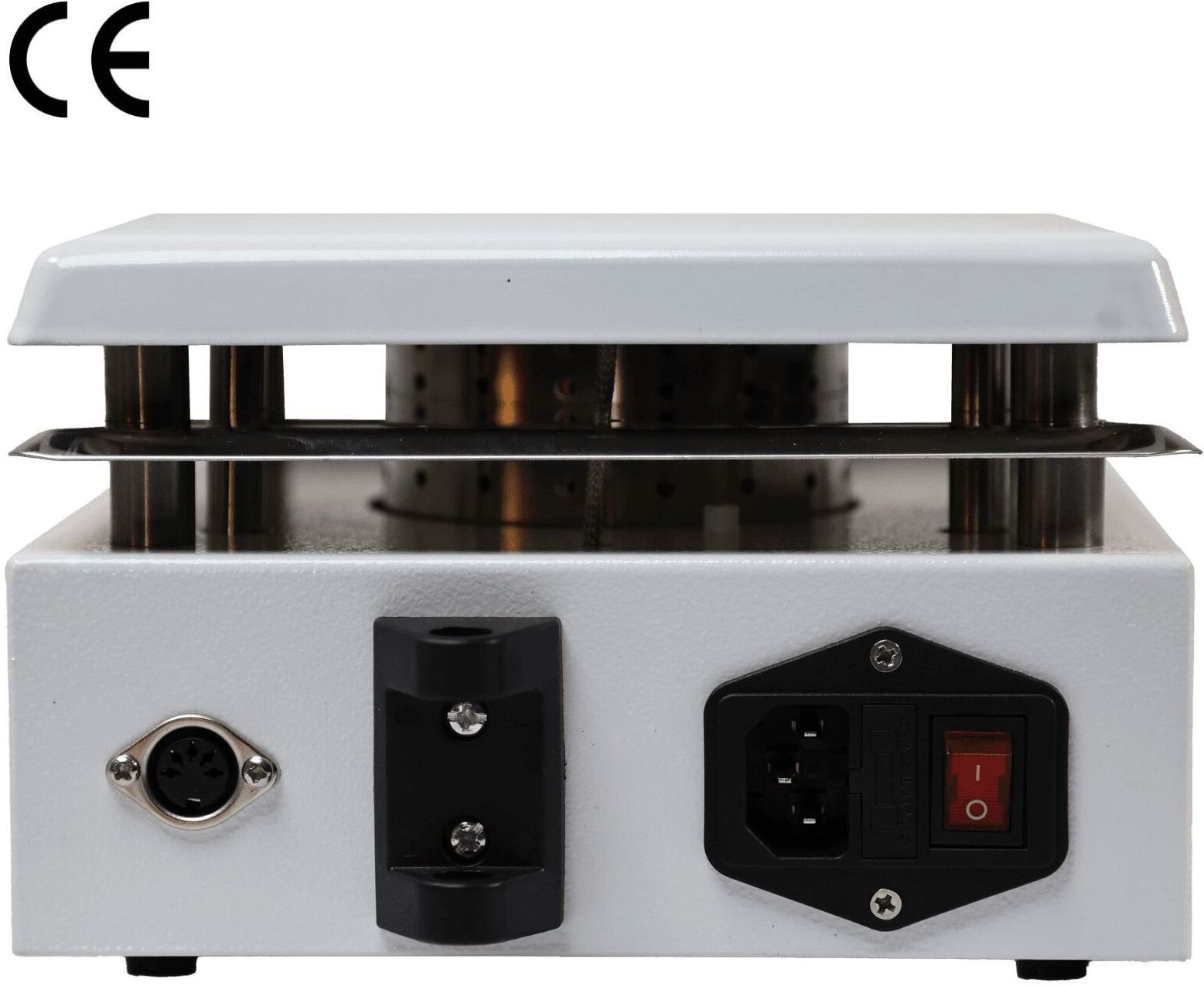

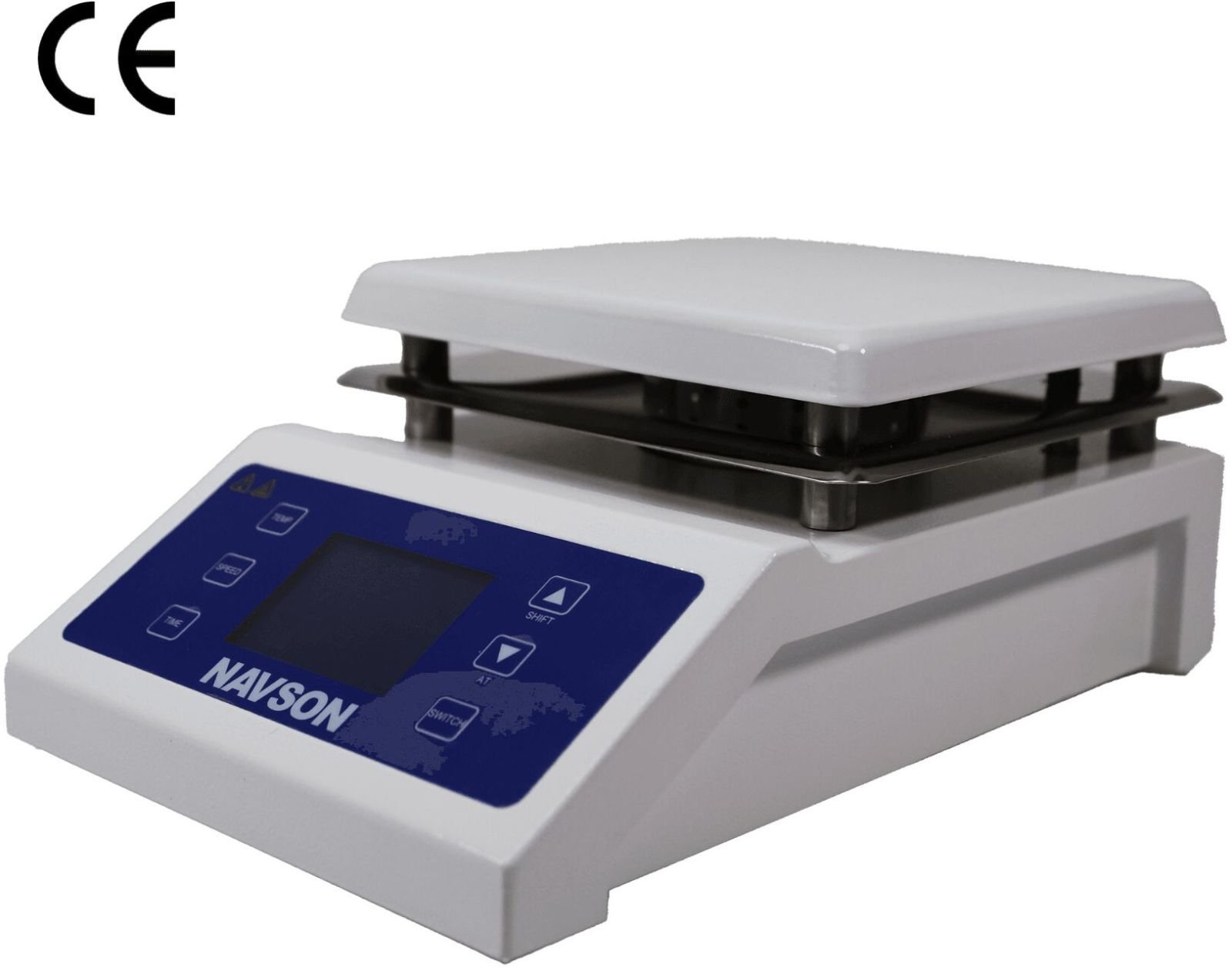

Compact benchtop design combines a 5 L corrosion-resistant ceramic-coated hot plate with an integrated magnetic stirrer for efficient sample mixing and heating. Digital PID temperature control (RT–350 °C) ensures ±1 °C stability, with programmable ramp and hold profiles for reproducible reactions. Adjustable stirring speeds (200–2000 RPM) and a heavy-duty drive magnet deliver uniform mixing from micro to multi-liter volumes. Safety features include independent over-temperature cutoff, splash guard lips, and chemical-resistant front panel. Ideal for organic synthesis, nanomaterial dispersion, buffer preparation, and general lab heating/stirring tasks. Features: Mixing Capacity & Performance High-Capacity Mixing• Maximum Volume: 5 L – ideal for medium-scale reactions and batch processes. Versatile Speed Control• Range: 200 – 2 000 RPM via a 20 W brushless DC motor• Magnetic Stirring: 22 mm PTFE bars for reliable, contamination-free mixing Heating & Temperature Control Wide Temperature Envelope• Operating Range: Ambient to 380 °C• Heating Plate: 190 × 190 mm ceramic-coated surface, 0.6 kW power• Sensor: Precision PT100 probe Workflow Efficiency Extended Run Times• Timer: 1 – 9 999 minutes (up to 166.65 hours) for long-duration workflows Build Quality & Load Capacity Robust Construction• Exterior: Powder-coated mild steel sheet-metal housing for chemical and wear resistance• Plate Load Capacity: Supports up to 10 kg of apparatus or vessel Design & Portability Compact Footprint• Dimensions (L × W × H): 320 x 190 x 125 mm – fits easily on standard lab benches• Net Weight: 5 kg for effortless repositioning Power Requirements Standard Power Input 220 V AC, 50 Hz – compatible with global lab power supplies

Brand Name : Navson Technologies

Country of Origin : India

Maximum Volume : 5L

Speed Range : 200 - 2000 RPM

Temperature Range : Ambient - 380 ℃

System Exterior : Powder Coated MS Sheet Metal Enclosure

Heating Plate : Ceramic Coated Heating Plate

Driving Mode : BLDC Motor

Motor Power : 20 W

Heating power : 0.6 KW

Magnetic Stirring Bar : 22 Mm PTFE Magnetic Bars

time range : 1 - 9999 Minutes (Hours)

Temperature Sensor : PT100

Heating Plate Size : 190 Mm X 190 Mm

Dimensions (L x B x H) : 320 X 190 X 125 Mm

Plate Load : 10 Kg

Net Weight : 5 Kg

Power Input : 220V AC/50Hz

Engineered for FS 209 Class 100 (ISO Class 5) clean rooms with 100% Natural Polypropylene working chamber and chassis for zero metal contamination and ultra-low particle generation. Available in 8″ and 12″ (50 – 12,000 RPM) with ±1% RPM accuracy with multiple dispensing head options. Intuitive touchscreen UI with wireless mobile functionality offers real-time monitoring and unlimited recipe storage. Seamless, tool-less PP housing allows rapid wipe-down and resists aggressive solvents. Optional vacuum/vacuum-free chucks, Centering Tool, Liners, UV Curing, Infra-Red Heating, Wastage Collecting Containers and PC Software. Suitable for applications like Semiconductor lithography, MEMS & microsystems fabrication, OLED and display panel manufacturing, Optical coatings & sol-gel films. Features: Material & Chamber Construction 100% Polypropylene Construction Fully non-metallic wetted path and chassis for zero metal contamination and ultra-low particle generation—ideal for FS 209 Class 100 (ISO Class 5) clean rooms Chemical-resistant all-polypropylene chassis Ø 12 ” Natural Polypropylene working chamber Multiple dispensing ports (edge-bead ready) Seamless polypropylene homopolymer molding—no joints, no dead zones, no leak paths Substrate Handling & Processing Capability Large-Format Processing Accommodates up to 250 mm substrates, plus multiple smaller dies in one run to maximize throughput in R&D and pilot production. Chemical Resistance & Material Compatibility Wide Chemical Compatibility 1 M HCl & NaOH Resistant — Impervious to strong acids and alkalis Solvent-Proof Construction — Compatible with acetone, toluene, isopropanol, and more Natural Polypropylene construction resists aggressive developers, strippers, acids, bases, and organic solvents without risk of leaching or corrosion—perfect for advanced resist, dielectric, and hybrid-material formulations. Performance & Control Precision Spin Control 50 – 12,000 RPM with ±1% RPM accuracy, programmable acceleration/deceleration, and ±1% thickness uniformity across the entire substrate. Cleanroom & Glovebox Compatibility Clean-Room-Grade Design Seamless, rounded interior surfaces for rapid wipe-down; tool-less, snap-fit covers; sealed electronics bay; and no metal fasteners in the processing chamber. Fits through Antechamber of glovebox* Remote operation from outside glovebox to ensure a comfortable operation for the user User Interface Tab can be fitted onto the Glove-Box wall (On request) User Interface & Process Management Integrated Recipe Management Integrated vacuum control and USB data-logging for process validation. Android™ touch UI, 10 steps per program Store up virtually unlimited recipes Live Graphical representation of RPM vs Time

Warranty : 12 Months Warranty With 3 Years Of Support

Certification : CE Certified, ISO 9001:2015

Country of Origin : India

Engineered for FS 209 Class 100 (ISO Class 5) clean rooms with 100% Natural Polypropylene working chamber and chassis for zero metal contamination and ultra-low particle generation. Available in 8″ and 12″ (50 – 12,000 RPM) with ±1% RPM accuracy with multiple dispensing head options. Intuitive touchscreen UI with wireless mobile functionality offers real-time monitoring and unlimited recipe storage. Seamless, tool-less PP housing allows rapid wipe-down and resists aggressive solvents. Optional vacuum/vacuum-free chucks, Centering Tool, Liners, UV Curing, Infra-Red Heating, Wastage Collecting Containers and PC Software. Suitable for applications like Semiconductor lithography, MEMS & microsystems fabrication, OLED and display panel manufacturing, Optical coatings & sol-gel films. Features: Material & Chamber Construction 100% Polypropylene Construction Fully non-metallic wetted path and chassis for zero metal contamination and ultra-low particle generation—ideal for FS 209 Class 100 (ISO Class 5) clean rooms Chemical-resistant all-polypropylene chassis Ø 8 ” Natural Polypropylene working chamber Multiple dispensing ports (edge-bead ready) Seamless polypropylene homopolymer molding—no joints, no dead zones, no leak paths Substrate Handling & Processing Capability Large-Format Processing Accommodates up to 150 mm substrates, plus multiple smaller dies in one run to maximize throughput in R&D and pilot production. Chemical Resistance & Material Compatibility Wide Chemical Compatibility 1 M HCl & NaOH Resistant — Impervious to strong acids and alkalis Solvent-Proof Construction — Compatible with acetone, toluene, isopropanol, and more Natural Polypropylene construction resists aggressive developers, strippers, acids, bases, and organic solvents without risk of leaching or corrosion—perfect for advanced resist, dielectric, and hybrid-material formulations. Performance & Control Precision Spin Control 50 – 12,000 RPM with ±1% RPM accuracy, programmable acceleration/deceleration, and ±1% thickness uniformity across the entire substrate. Cleanroom & Glovebox Compatibility Clean-Room-Grade Design Seamless, rounded interior surfaces for rapid wipe-down; tool-less, snap-fit covers; sealed electronics bay; and no metal fasteners in the processing chamber. Fits through Antechamber of glovebox* Remote operation from outside glovebox to ensure a comfortable operation for the user User Interface Tab can be fitted onto the Glove-Box wall (On request) User Interface & Process Management Integrated Recipe Management Integrated vacuum control and USB data-logging for process validation. Android™ touch UI, 10 steps per program Store up virtually unlimited recipes Live Graphical representation of RPM vs Time

Add-Ons & Accessories : Oil-Free Vacuum Pump

Installation Support : Reference Videos (Unpacking + Installation + Working Videos) And Online Support.

Power Requirement : 220V AC/50Hz; DC Adapter Will Be Provided

Dimensions (L x B x H) : 264 X 264 X 350 Mm (Without Drain & Display)

Nitrogen Purging : Pneumatic Connection In The Lid For Nitrogen Purging

Lid Material : Translucent Brown Acrylic Lid (compatible For Photo-resist Coating)

Liquid Dispensing : Centre Hole In The Lid For Liquid Dispensing

Safety Feature : Lid Interlock Safety For Open Cover

Spirit Level : External

Vacuum Connections : 10mm PU Hose – 2m Length – Default

Substrate Holding Vacuum : 650mm Hg Maximum

Working Chamber Size : 8” Diameter; 4” Height

Working Chamber Material : Solid Natural Polypropylene

Substrate Size : 5 To 150mm Diameter

Optional Purchase : Customized Chuck (vacuum Or Vacuum-less) To Hold Substrates From 5 To 150 Mm Dia.

Substrate Holding Mechanism : Vacuum, Vacuum-less & Hybrid

Storage Capacity : Unlimited Programs

Program Steps : 10 Steps Per Program (100 Steps Customizable)

User Interface : Semi Integrated Android Based Touch Display

Time per Program : 10000

Housing Material : Natural Polypropylene

Drainpipe : Polypropylene Pipe At The Side Of Chamber

Standard Chucks : 1 Vacuum Chuck (10mm * 10mm To 2” Dia. Substrate)

Drive System : BLDC Motor

Acceleration : 1 – 8000 RPM/s

Speed : 50 – 12000 RPM

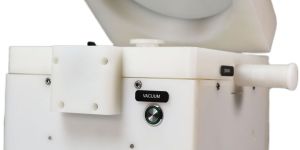

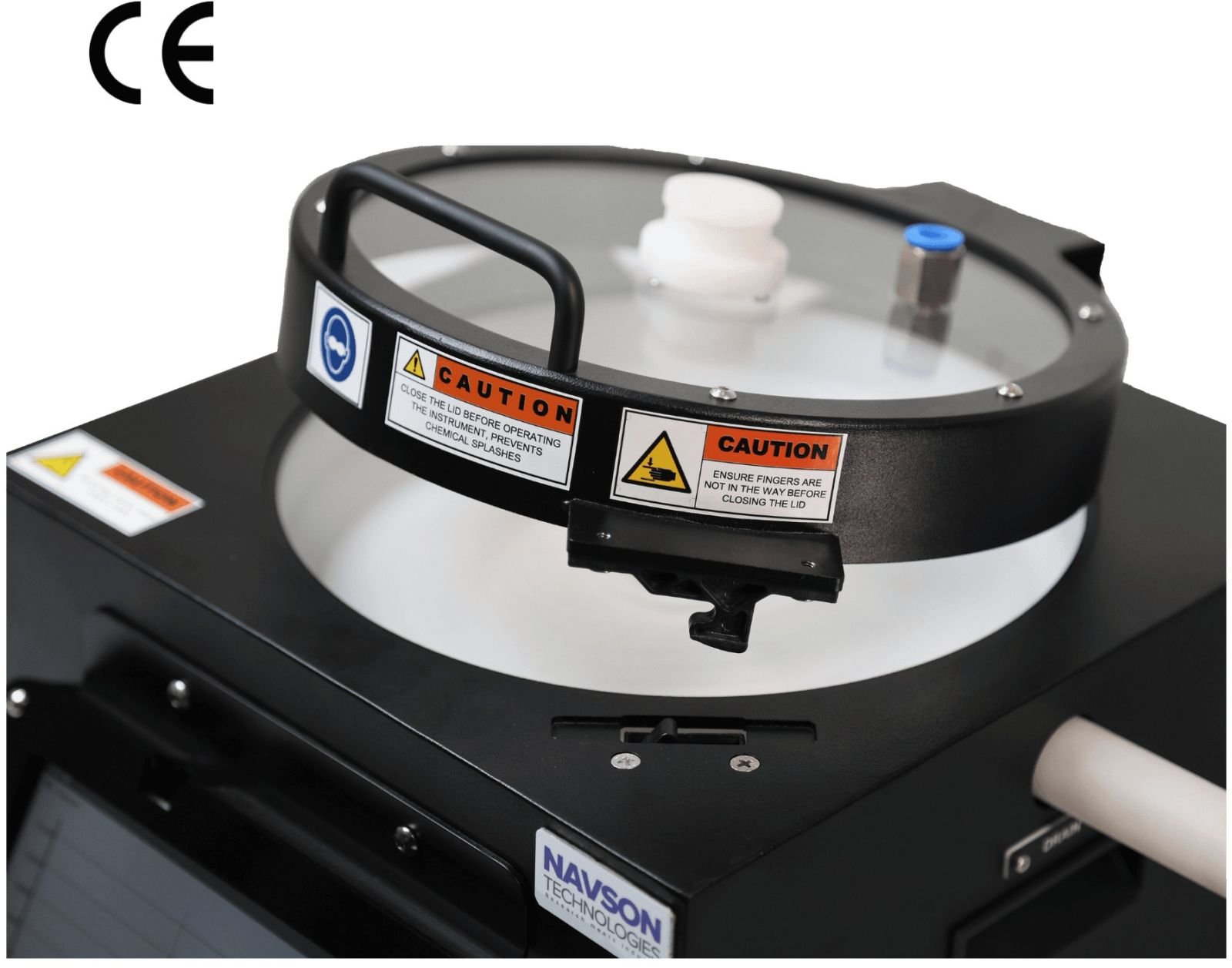

Model Number : NTCR-08

Country of Origin : India

Warranty : 12 Months Warranty With 3 Years Of Support

Certification : CE Certified, ISO 9001:2015

Featuring a 100% Natural Polypropylene solid working chamber for zero metal exposure and ultra-low particle generation, the NT12000 delivers up to 12 000 RPM with ±1 % speed accuracy. Its advanced touchscreen UI supports 10-step process recipes and unlimited program storage for maximum flexibility. Real-time display of RPM, time, and ramp profiles with USB export of full run logs. Ideal for high-precision photoresist lithography, ceramic coating, OLED/quantum-dot deposition, perovskite PV layers, MEMS/NEMS films, and photonic coatings. Safety interlocks, over-speed, and CE certification ensure reliable operation. Accessories include vacuum or vacuum-free chucks, Infra-Red Heating for drying the substrates and UV for curing the coatings. Features: Remote Operation & User Interface Wireless remote operation Suitable for situations where remote working is necessary with a working distance of 10 mts from the instrument (Eg. Glove Box) Integrated vacuum control and USB data-logging for process validation. Android™ touch UI, 10 steps per program Store up virtually unlimited recipes Live Graphical representation of RPM vs Time Glove-Box Compatibility Glove-Box Compatible (Tested & Certified) Fits through Antechamber of glovebox* Remote operation from outside glovebox to ensure a comfortable operation for the user User Interface Tab can be fitted onto the Glove-Box wall (On request) Working Chamber & Material Compatibility Natural Polypropylene Working Chamber Ø 10″ Diameter Bowl with translucent UV-safe lid; 100% virgin homopolymer construction Handles 5 – 200 mm substrates via vacuum, vacuum-less & hybrid chucks Inert Gas purging facility Simple & quick cleaning with side drainage facility with optional Solution Spillage Containers > 1 M HCl & NaOH Resistant — Impervious to strong acids and alkalis Solvent-Proof Construction — Compatible with acetone, toluene, isopropanol, and more Guarantees sample purity, no contamination and zero leaching.

Installation Support : Refer To Installation Videos (Unpacking + Installation + Working Videos)

Warranty : 12 Months Warranty With 3 Years Of Support

Power Requirement : 220V AC/50Hz; DC Adapter Will Be Provided

Dimensions (L x B x H) : 334 X 334 X 320 Mm (Without Drain & Display)

Nitrogen Purging : Pneumatic Connection In The Lid For Nitrogen Purging

Lid Material : Translucent Brown Acrylic Lid (Compatible For Photo-Resist Coating)

Liquid Dispensing : Centre Hole In The Lid For Liquid Dispensing

Safety Feature : Lid Interlock Safety For Open Cover

Spirit Level : External

Vacuum Connections : 10mm PU Hose – 2m Length – Default

Substrate Holding Vacuum : 650mmHg Maximum

Working Chamber Material : Solid Natural Polypropylene

Working Chamber Size : 10” Diameter; 3” Height

Substrate Size : 5 To 200mm Diameter

Optional Purchase : Customized Chuck (vacuum Or Vacuum-less) To Hold Substrates From 5 To 200 Mm Dia.

Substrate Holding Mechanism : Vacuum, Vacuum-Less & Hybrid

Storage Capacity : Unlimited Programs

Program Steps : 10 Steps Per Program (100 Steps Customizable)

User Interface : Semi Integrated Android Based Touch Display

Time per Program : 10000 Seconds

Housing Material : Corrosion-free Powder Coated Sheet Metal – Glove Box Compatible

Drainpipe : Polypropylene Pipe At The Side Of Chamber

Standard Chucks : 1 Vacuum Chuck (10mm * 10mm To 2” Dia. Substrate)

Drive System : BLDC Motor

Acceleration : 1 To 8000 RPM/s

Speed : 50 – 12000 RPM

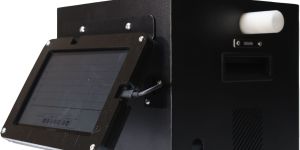

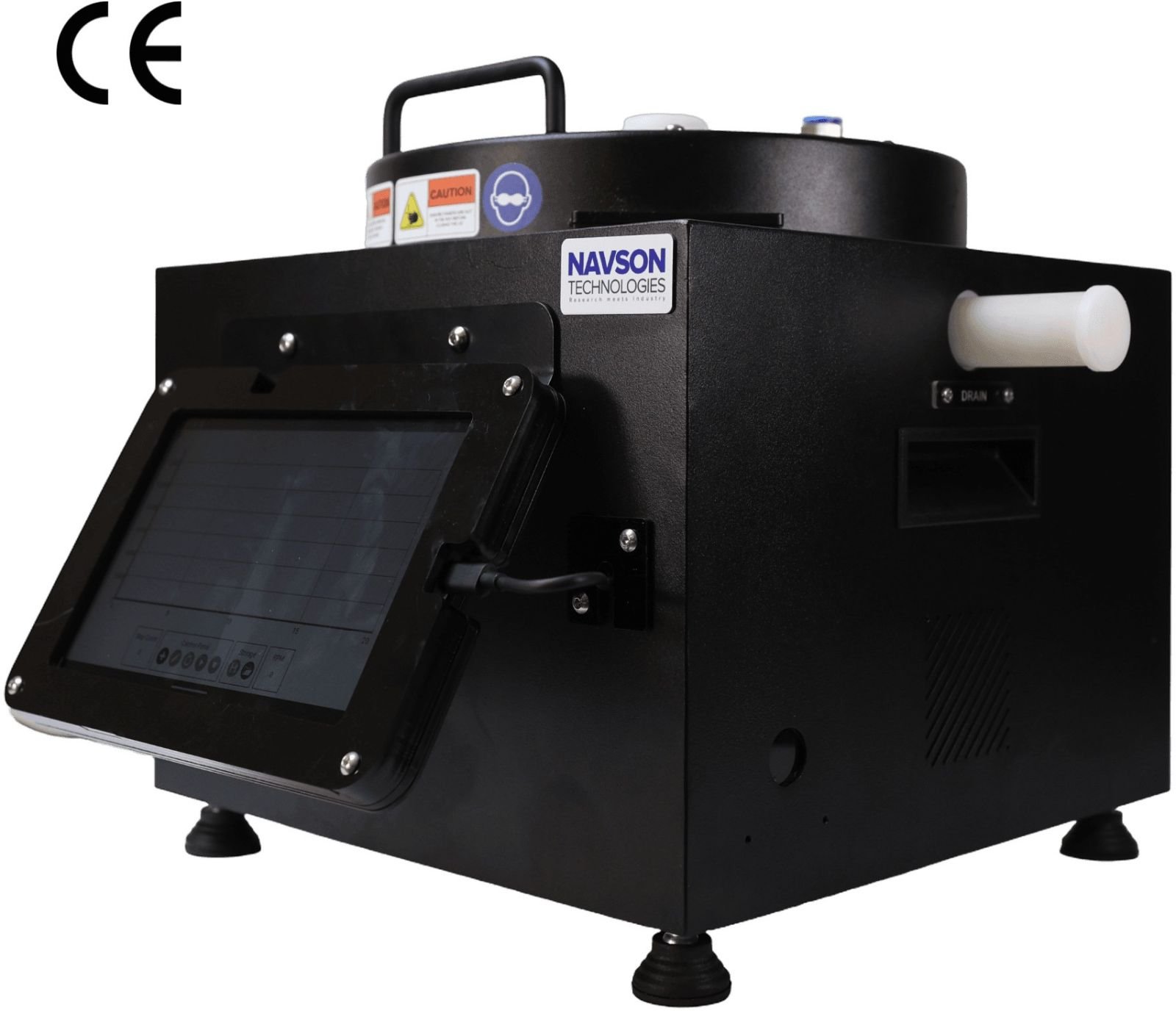

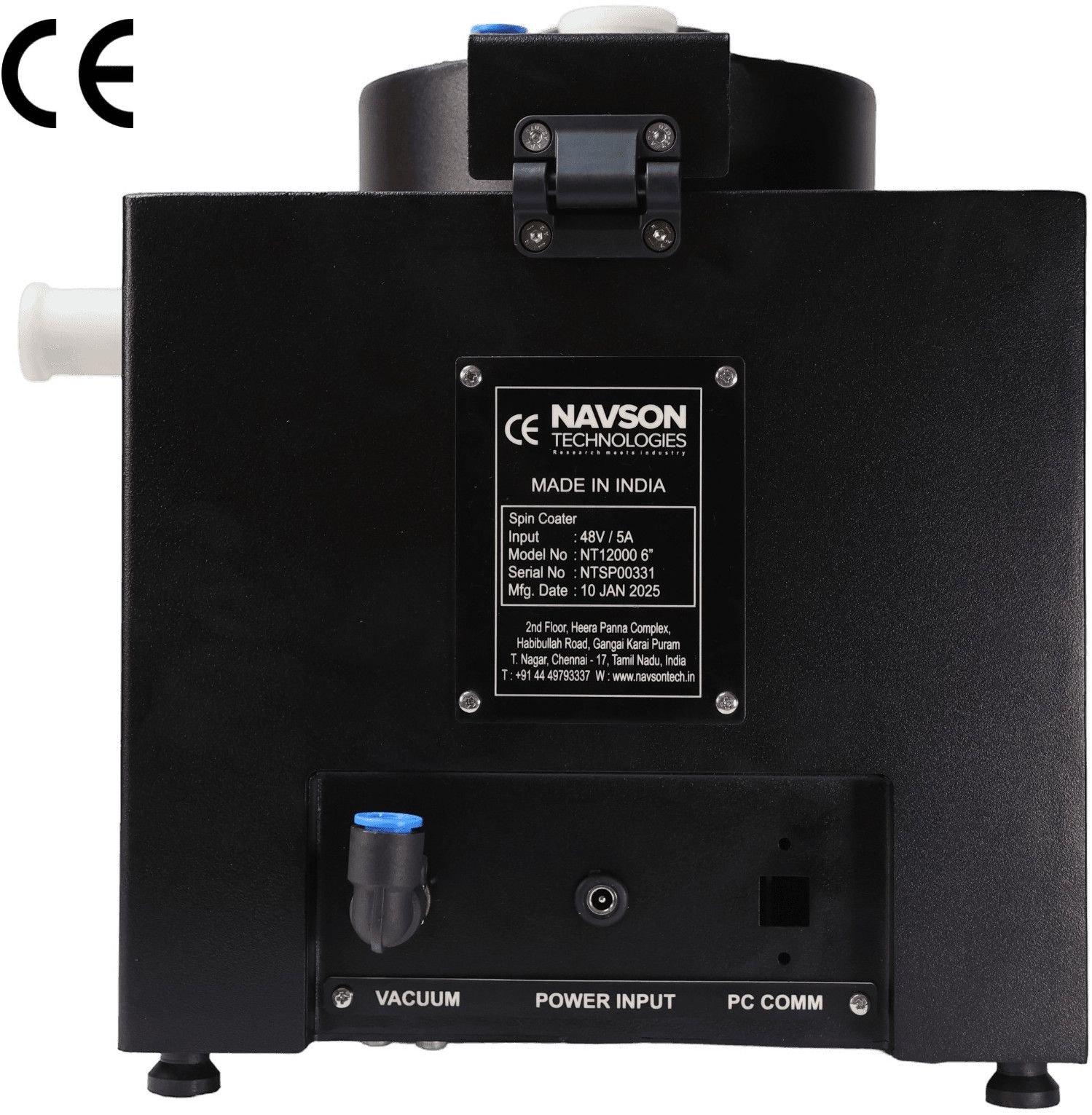

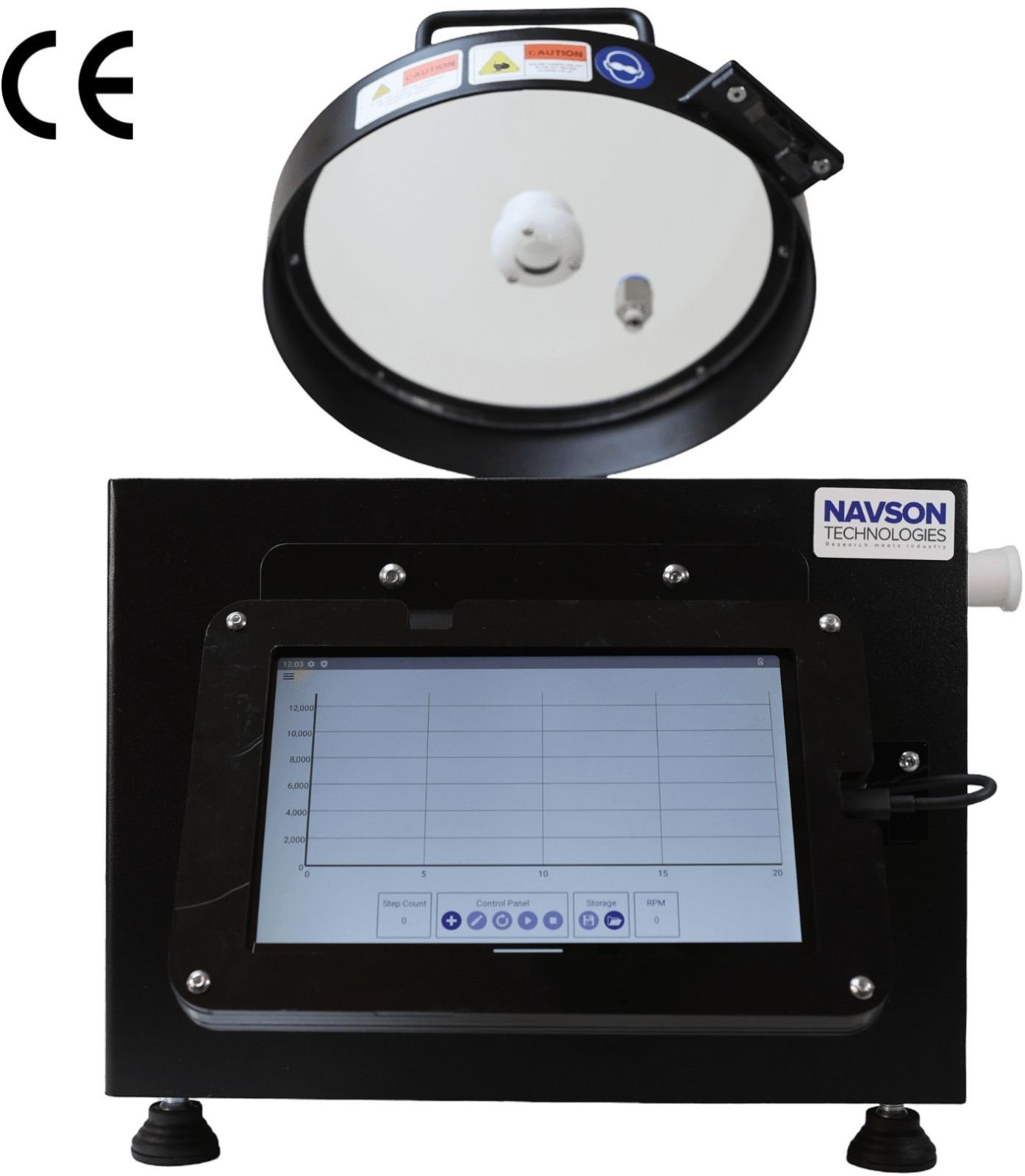

Model Number : NT12000-10

Country of Origin : India

Certification : CE Certified, ISO 9001:2015

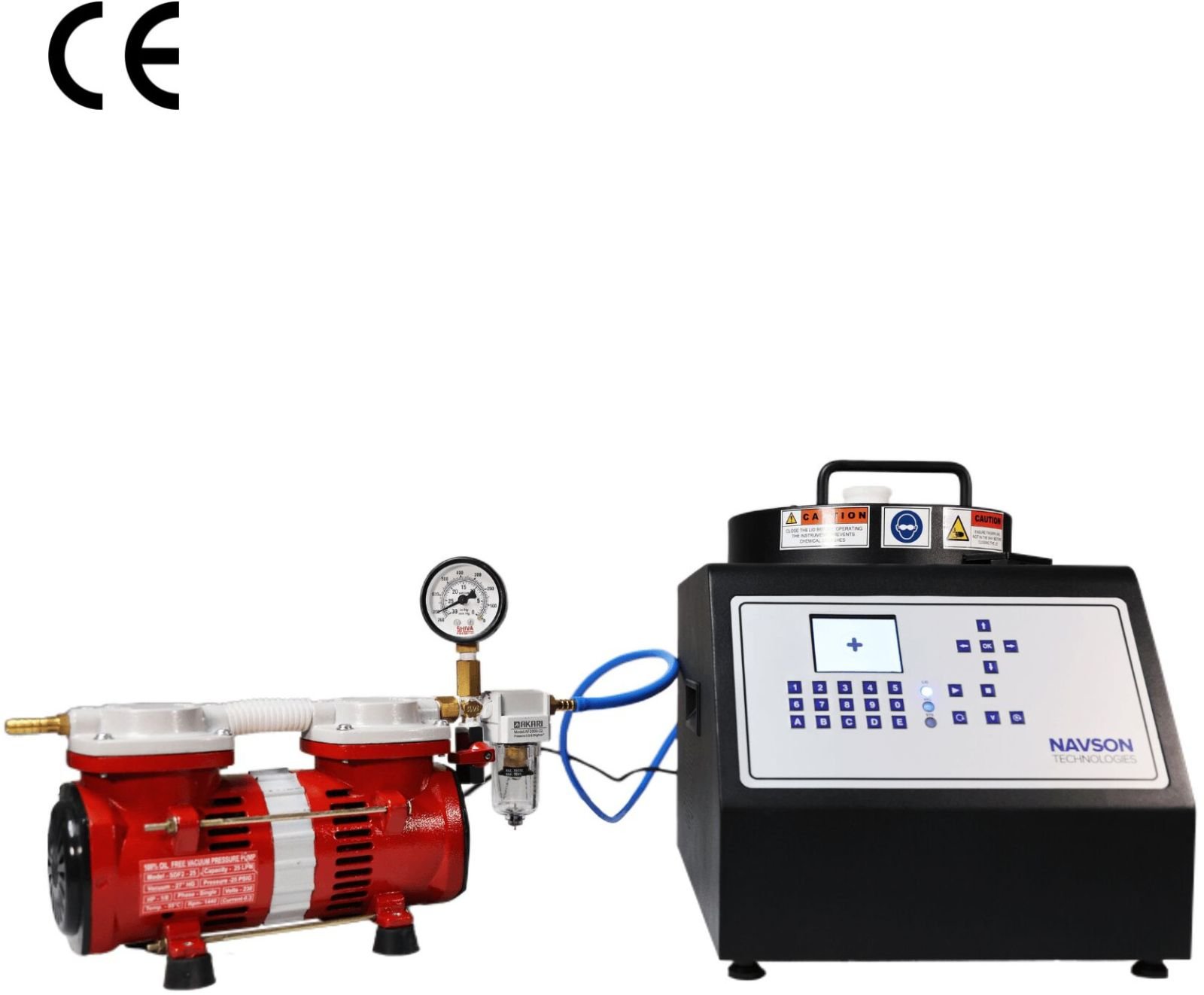

Add-Ons & Accessories : Oil-Free Vacuum Pump

Featuring a 100% Natural Polypropylene solid working chamber for zero metal exposure and ultra-low particle generation, the NT12000 delivers up to 12 000 RPM with ±1 % speed accuracy. Its advanced touchscreen UI supports 10-step process recipes and unlimited program storage for maximum flexibility. Real-time display of RPM, time, and ramp profiles with USB export of full run logs. Ideal for high-precision photoresist lithography, ceramic coating, OLED/quantum-dot deposition, perovskite PV layers, MEMS/NEMS films, and photonic coatings. Safety interlocks, over-speed, and CE certification ensure reliable operation. Accessories include vacuum or vacuum-free chucks, Infra-Red Heating for drying the substrates and UV for curing the coatings. Features: Remote Operation & User Interface Wireless remote operation Suitable for situations where remote working is necessary with a working distance of 10 mts from the instrument (Eg. Glove Box) Integrated vacuum control and USB data-logging for process validation. Android™ touch UI, 10 steps per program Store up virtually unlimited recipes Live Graphical representation of RPM vs Time Glove-Box Compatibility Glove-Box Compatible (Tested & Certified) Fits through Antechamber of glovebox* Remote operation from outside glovebox to ensure a comfortable operation for the user User Interface Tab can be fitted onto the Glove-Box wall (On request) Working Chamber & Material Compatibility Natural Polypropylene Working Chamber Ø 6 ” Diameter Bowl with translucent UV-safe lid; 100% virgin homopolymer construction Handles 5 – 100 mm substrates via vacuum, vacuum-less & hybrid chucks Inert Gas purging facility Simple & quick cleaning with side drainage facility with optional Solution Spillage Containers > 1 M HCl & NaOH Resistant — Impervious to strong acids and alkalis Solvent-Proof Construction — Compatible with acetone, toluene, isopropanol, and more Guarantees sample purity, no contamination and zero leaching.

Add-Ons & Accessories : Oil-Free Vacuum Pump

Installation Support : Refer To Installation Videos (Unpacking + Installation + Working Videos)

Power Requirement : 220V AC/50Hz; DC Adapter Will Be Provided

Nitrogen Purging : Pneumatic Connection In The Lid For Nitrogen Purging

Lid Material : Translucent Brown Acrylic Lid (Compatible For Photo-Resist Coating)

Liquid Dispensing : Centre Hole In The Lid For Liquid Dispensing

Safety Feature : Lid Interlock Safety For Open Cover

Spirit Level : External

Vacuum Connections : 10mm PU Hose – 2m Length – Default

Substrate Holding Vacuum : 650mmHg Maximum

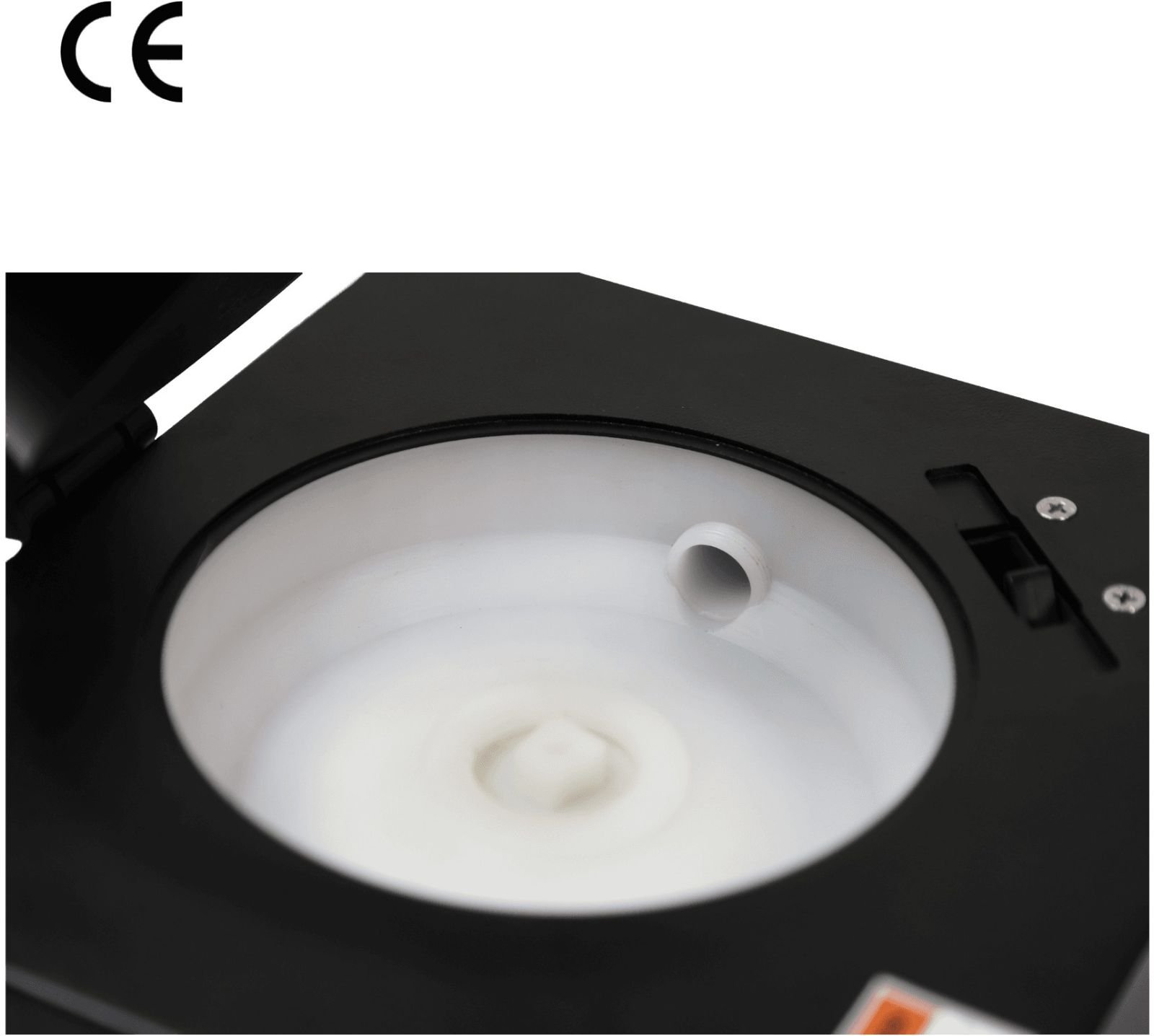

Working Chamber Size : 6” Diameter; 3” Height

Working Chamber Material : Solid Natural Polypropylene

Substrate Size : 5 To 100mm Diameter

Optional Purchase : Customized Chuck (Vacuum Or Vacuum-Less) To Hold Substrates From 5 To 100 Mm Dia.

Substrate Holding Mechanism : Vacuum, Vacuum-Less & Hybrid

Storage Capacity : Unlimited Programs

Program Steps : 10 Steps Per Program (100 Steps Customizable)

User Interface : Semi Integrated Android Based Touch Display

Time per Program : 10000 Seconds

Housing Material : Corrosion-free Powder Coated Sheet Metal – Glove Box Compatible

Drainpipe : Polypropylene Pipe At The Side Of Chamber

Standard Chucks : 1 Vacuum Chuck (10mm * 10mm To 2” Dia. Substrate)

Drive System : BLDC Motor

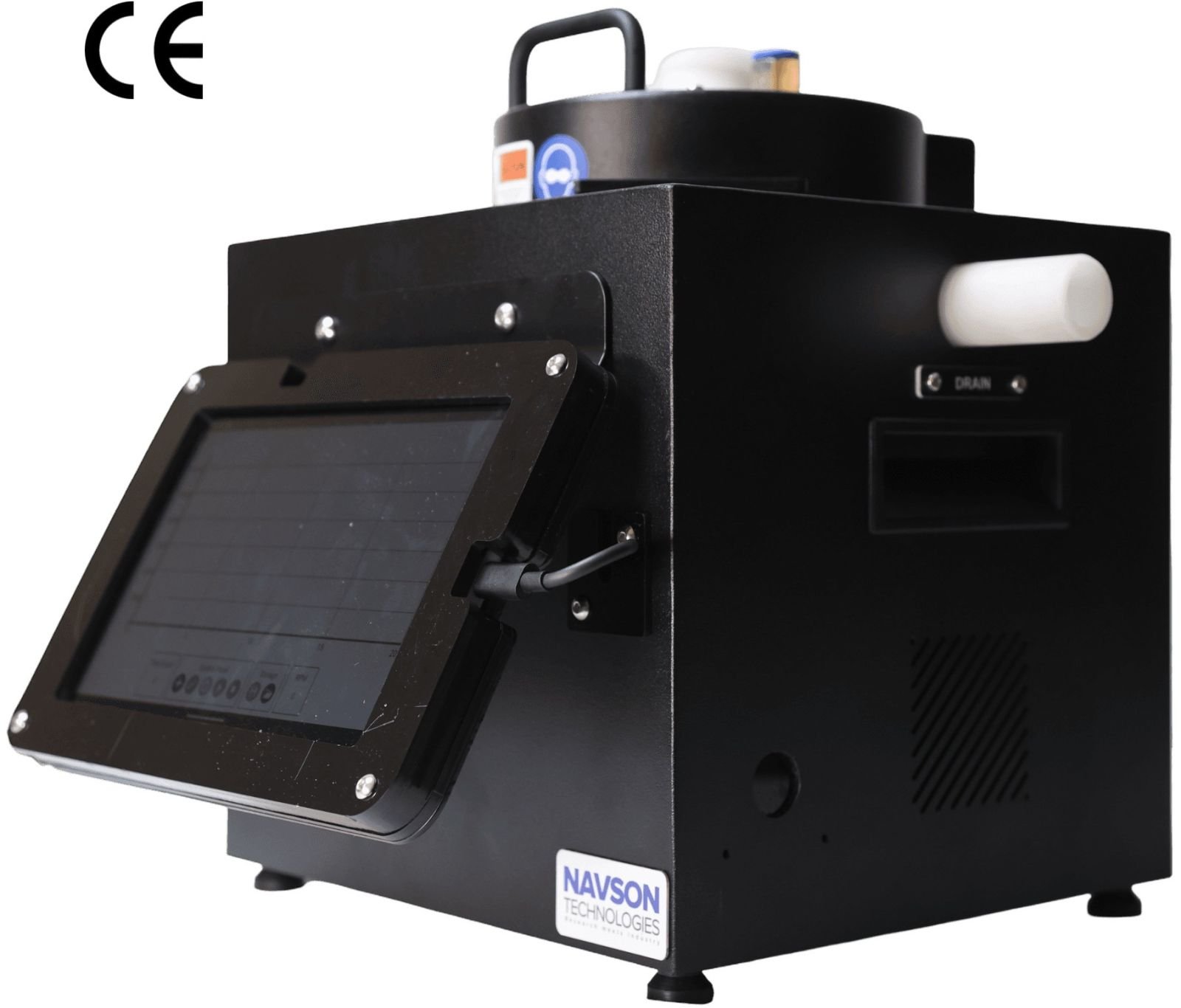

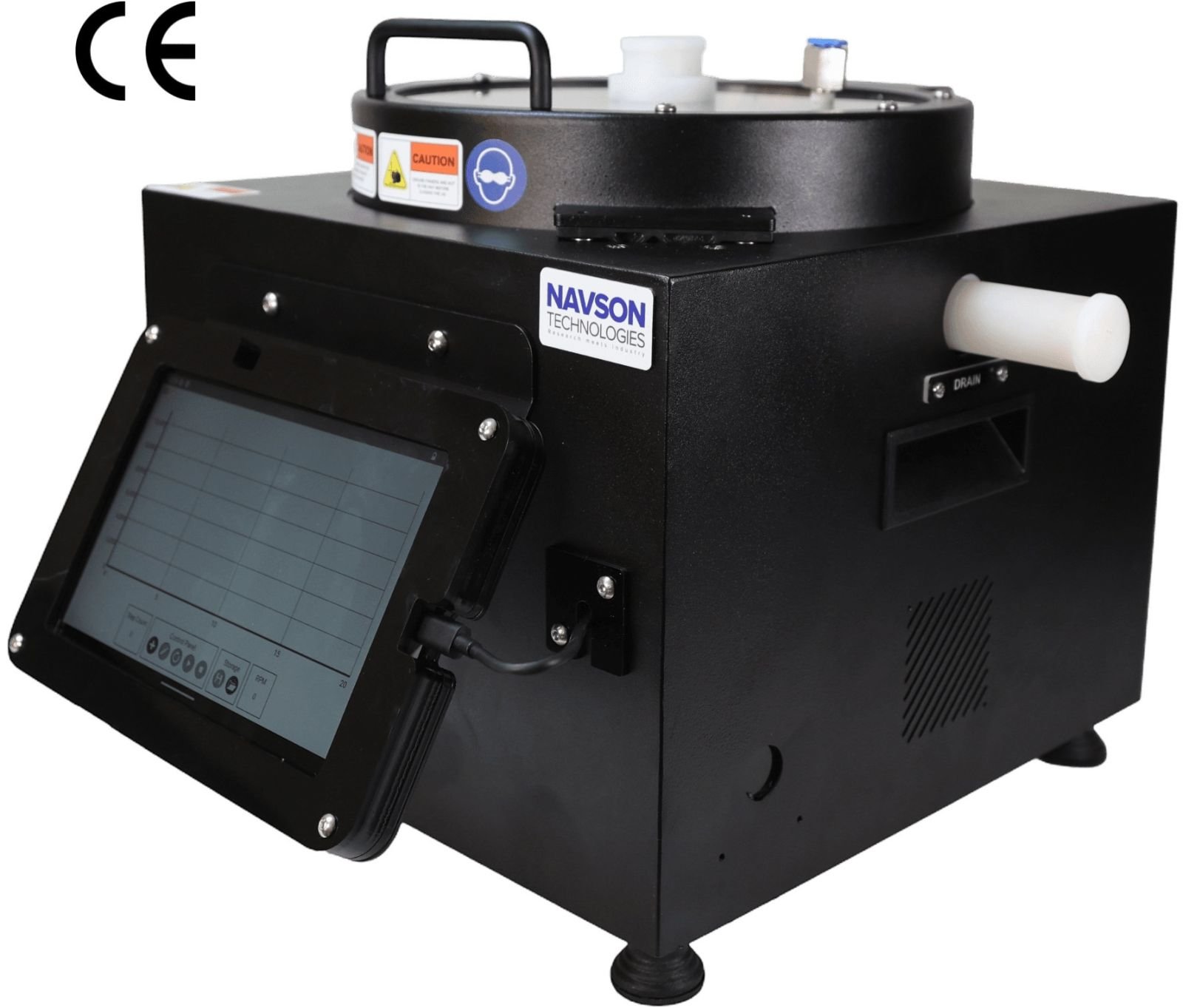

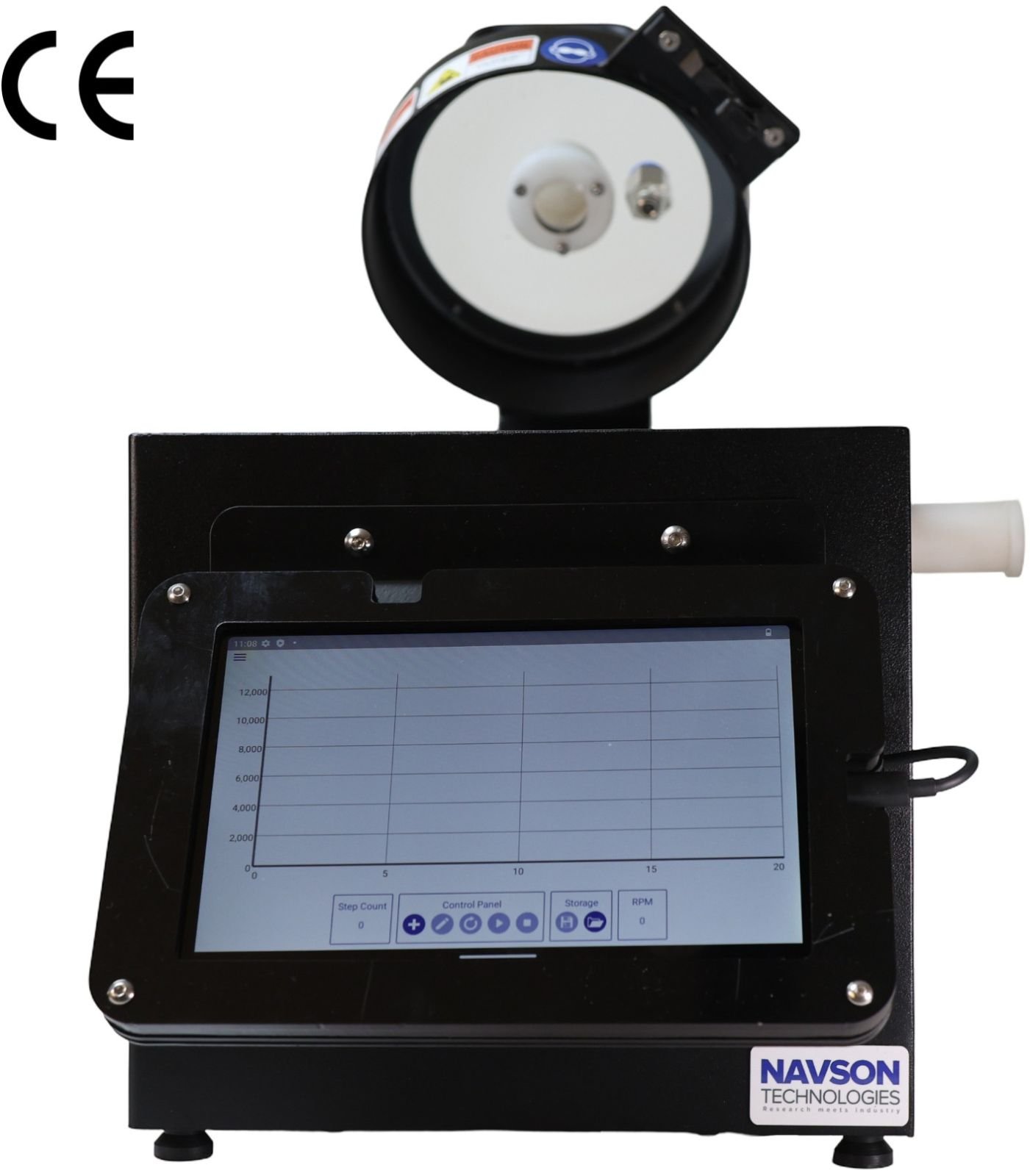

Model Number : NT12000-06

Acceleration : 1 To 8000 RPM/s

Speed : 50 – 12000 RPM

Country of Origin : India

Warranty : 12 Months Warranty With 3 Years Of Support

Certification : CE Certified, ISO 9001:2015

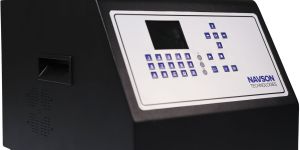

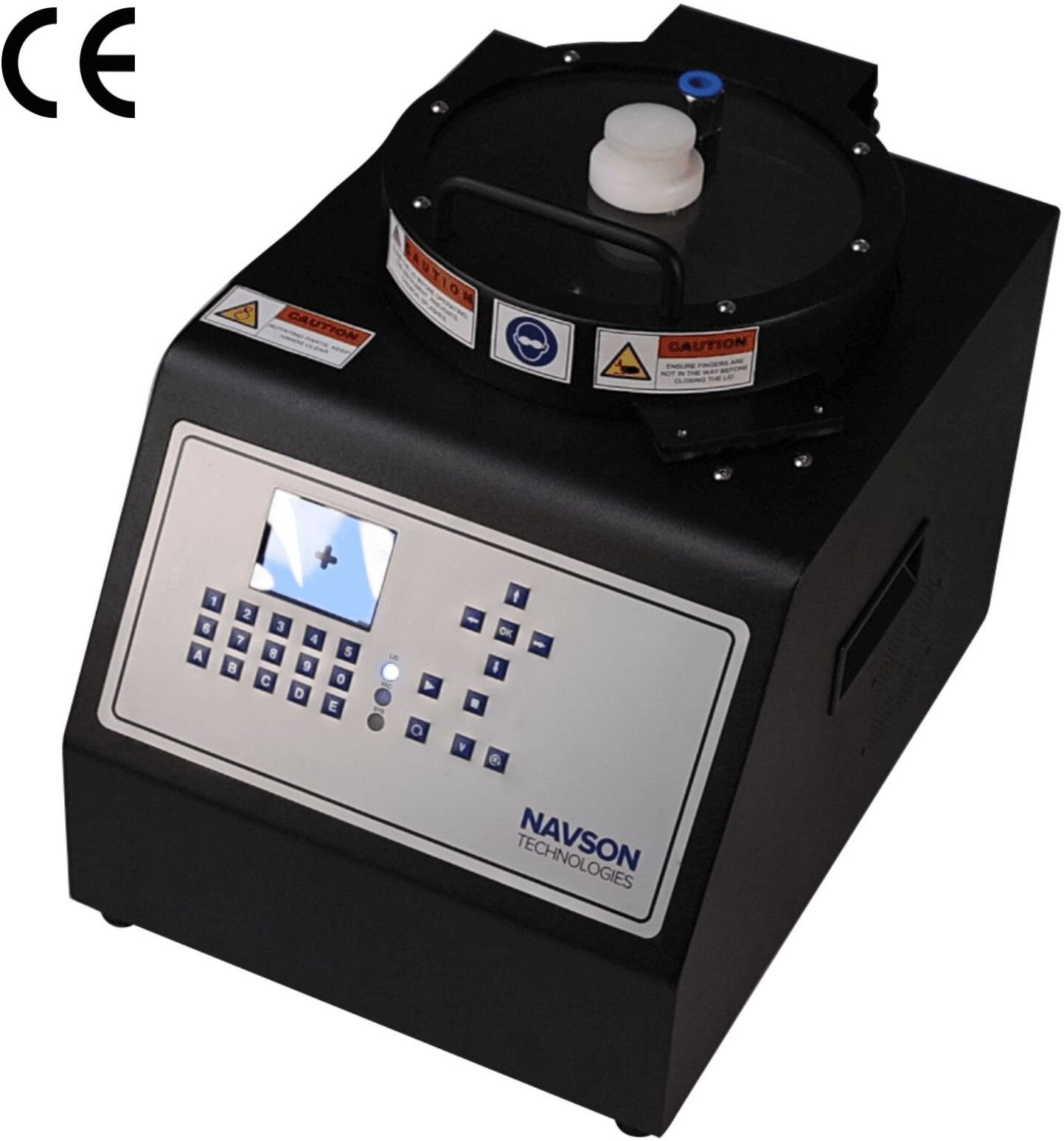

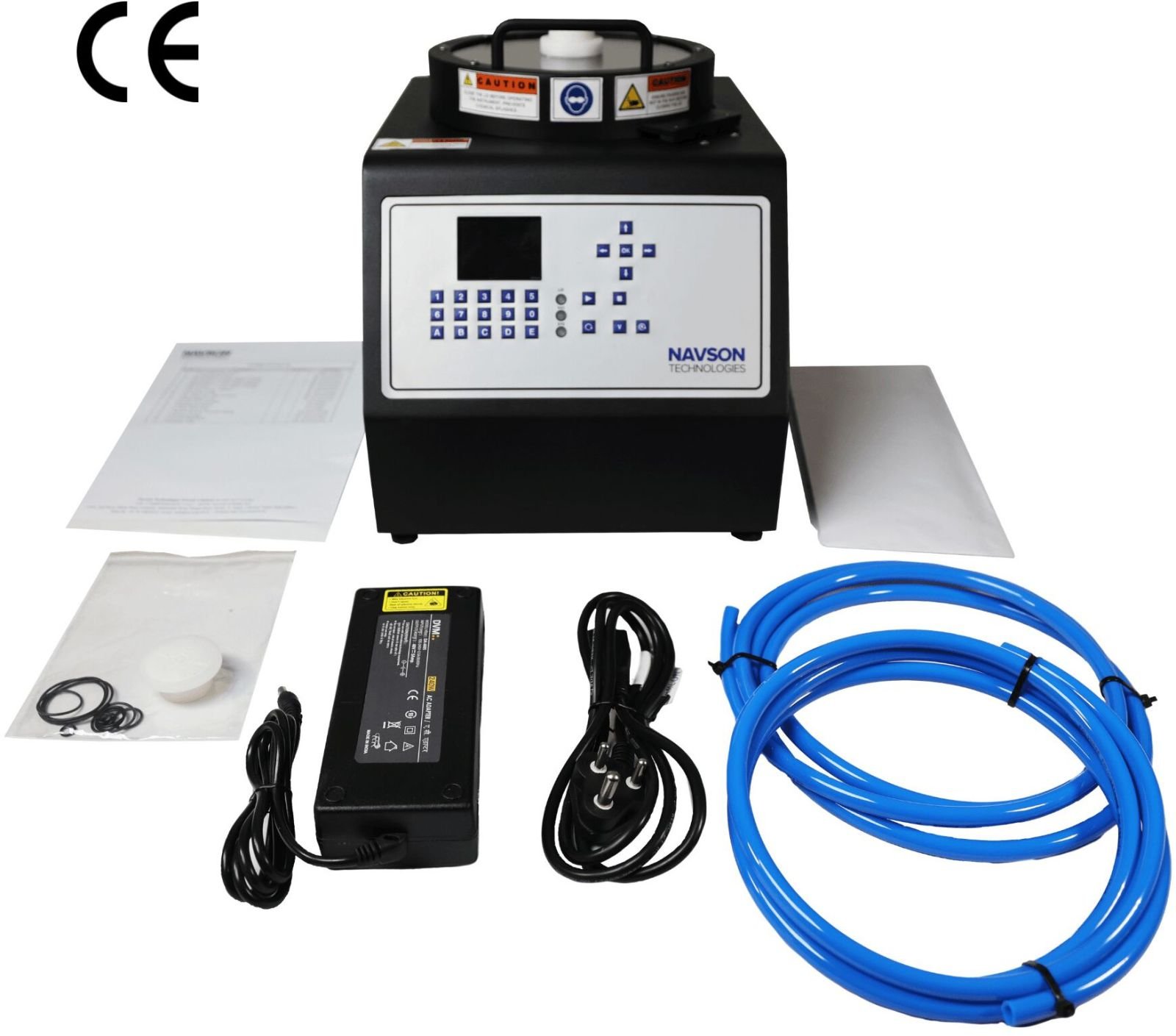

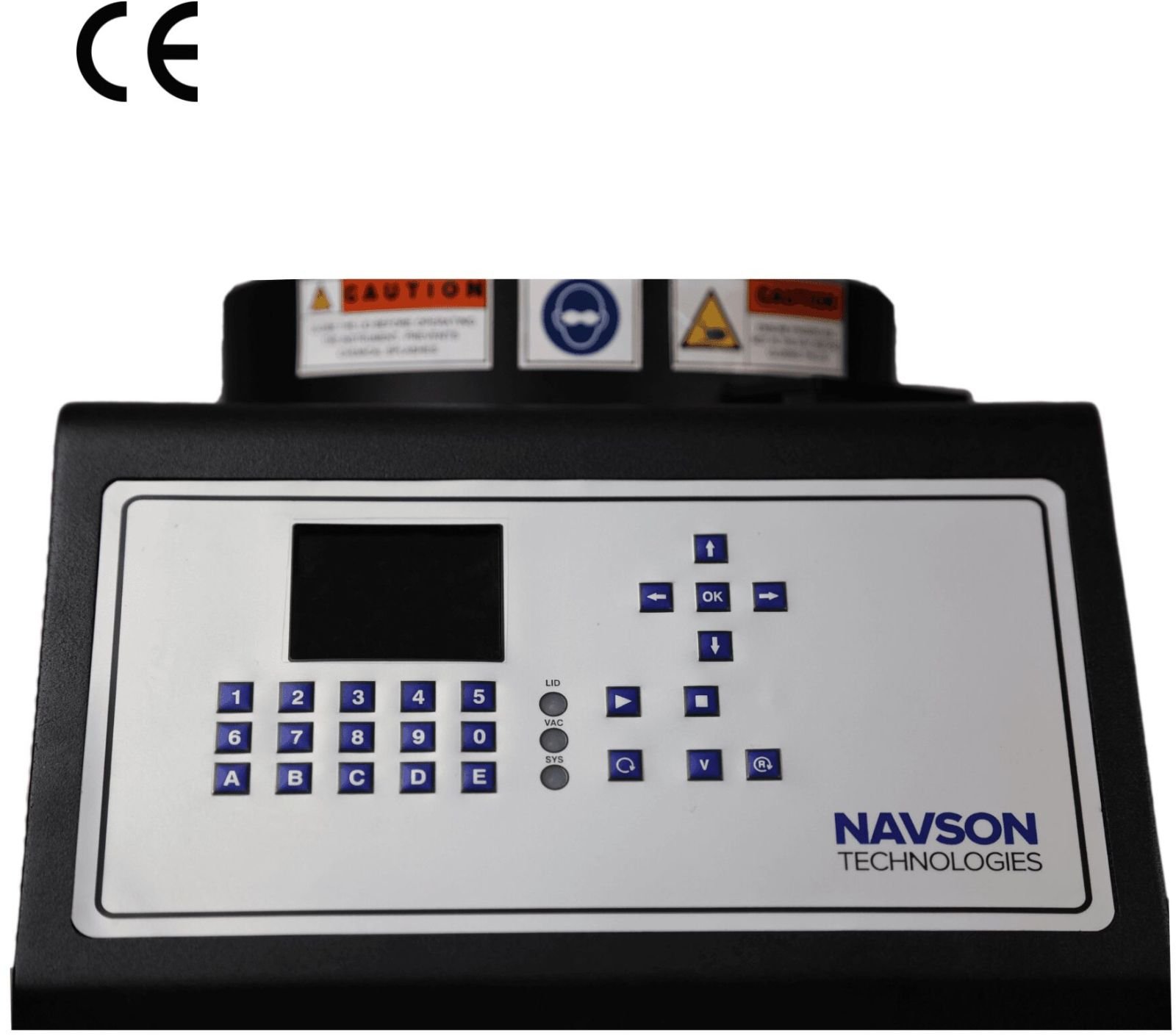

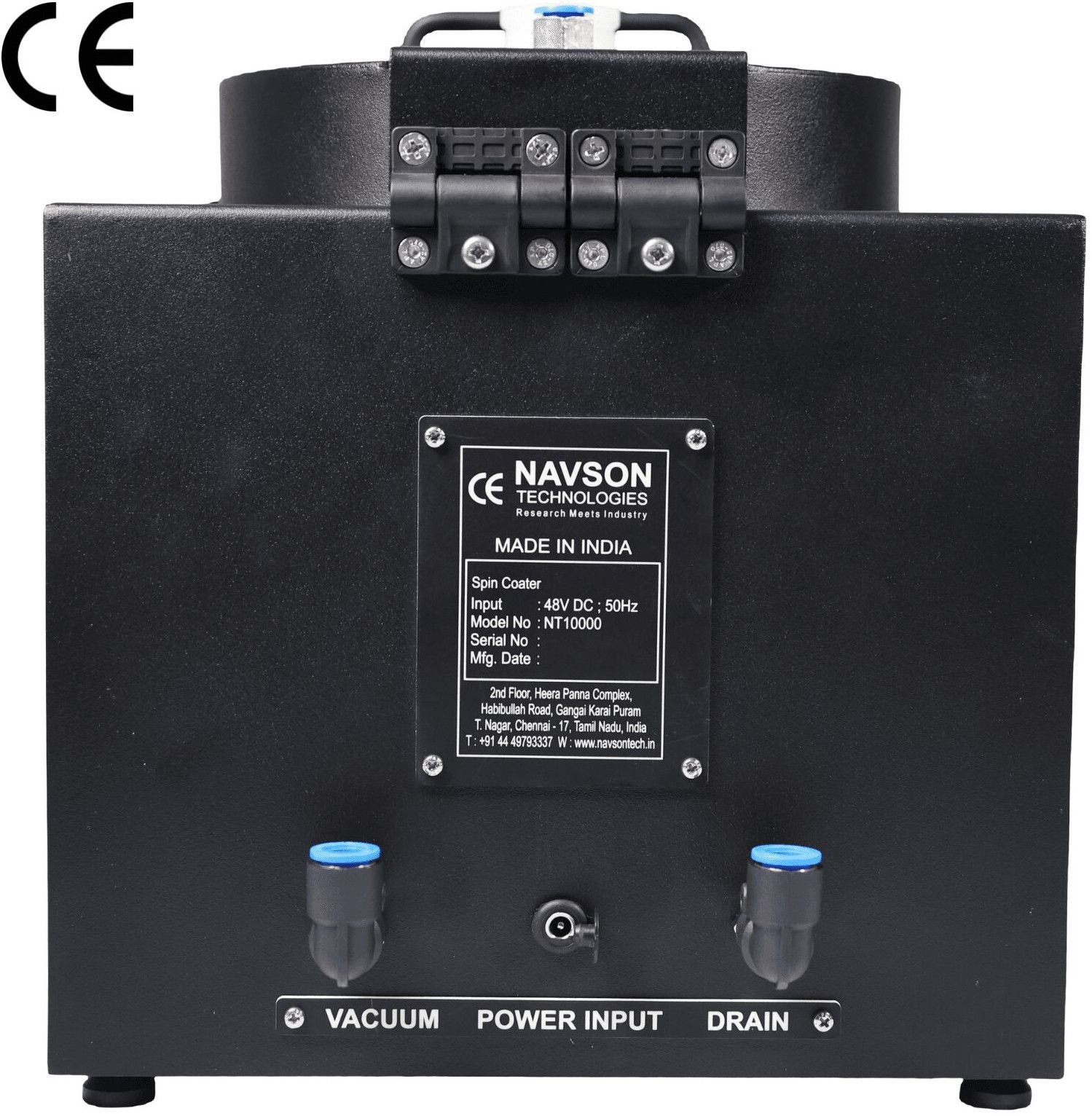

The NT10000 combines a rugged body with a PTFE-coated working chamber for effortless cleaning and broad chemical resistance. Its keypad interface can be programmed up to 100 steps and has internal storage and displays real-time speed & time.   Features: Intuitive Keypad Control Membrane keypad and LCD display Store up to 10 custom spin recipes (speed, dwell time, acceleration) Real-time monitoring of RPM and run time. Durable Steel Chassis Rigid, vibration-damped construction for uniform film coating Chemical- and impact-resistant finish Safety interlock on chamber lid Teflon-Coated Spin Bowl Ultra-low surface energy for rapid de-bubbling and minimal carry-over Exceptional resistance to acids, bases, and organic solvents Smooth, non-porous surface for effortless cleaning

Model Number : NT10000

Installation Support : Refer To Installation Videos (UNPACKING + INSTALLATION + WORKING VIDEOS)

Power Requirement : 220 V AC/50 Hz; DC Adapter Will Be Provided

Dimensions (L x B x H) : 400 × 270 × 300mm (excluding Drainpipe And User Interface Protrusion)

Lid Material : Transparent

Liquid Dispensing : Centre Hole In The Lid For Liquid Dispensing

Safety Feature : Lid Interlock Safety For Open Cover

Spirit Level : External

Vacuum Connections : 10 Mm PU Hose – 2 M Length (default)

Substrate Holding Vacuum : 650mmhg Maximum

Working Chamber Size : 8″ Diameter × 4″ Height

Working Chamber Material : PTFE‐coated Corrosion‐free Metal

Optional Purchase : Customized Chuck (vacuum Or Vacuum‐less) To Hold Substrates From 5 To 150 Mm Dia.

Substrate Size : 5 To 150mm Diameter

Substrate Holding Mechanism : Vacuum, Vacuum‐less & Hybrid

Storage Capacity : 20 Programs

Program Steps : 100 Steps Per Program

User Interface : Keypad With LCD Display

Housing Material : Corrosion‐free Powder‐coated Sheet Metal – Glove Box Compatible

Drainpipe : At The Bottom Of Working Chamber

Drive System : BLDC Motor

Acceleration : 100 – 5000 Rpm/s

Speed : 500 – 10000 Rpm

Country of Origin : India

Warranty : 12 Months Warranty With 3 Years Of Support

Certification : CE Certified, ISO 9001:2015

Standard Chucks : 1 Vacuum Chuck (10 mm × 10 mm to 2″ dia. substrate)

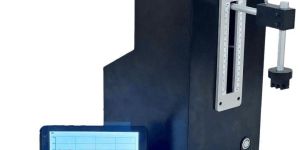

Our Dip Coater Models: Understanding the importance of this technique, our dip coater models are designed to cater to diverse requirements. From small-scale laboratory research to larger industrial applications, our models offer precision, control, and versatility. The inclusion of features like adjustable speed and temperature control, coupled with the option for PC connectivity, enhances the functionality and applicability of our dip coaters in cutting-edge material science and engineering projects. Both models are engineered for precision and versatility, with their specific features tailored to meet the needs of different research and industrial environments. Whether for small-scale laboratory research or larger industrial applications, our Dip Coaters provide the reliability and efficiency required for cutting-edge material development.

Brand : Navson Technologies

Model Name : NTDP15

Film Length : 150 Mm

Condition : New

Power Type : DC

Automation Grade : Semi-Automatic

Certification : CE Certified

Feature : Accuracy, Easy To Use, Sturdy Construction

Number Of Flower : Dip Coater

Total Carbohydrate : 1yr

Country of Origin : India

Depth Millimeter : 100-200
