Temperature Sensors Dealers in Chennai

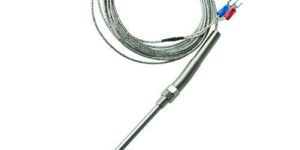

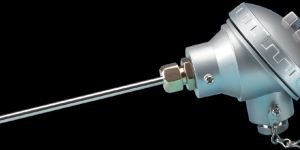

Thermocouple Temperature Sensor is the most common, versatile and convenient device in order to detect temperature. We are a reliable Manufacturer and Supplier of Thermocouple Temperature Sensor in Tamil Nadu, India. It is carefully and intricately designed by our team of professionals under the strict supervision of veterans so that the quality is not hampered. Long service life, accurate results and corrosion resistant is the highlights of our Thermocouple Temperature Sensor.Details : Thermocouple Type K, J, T, E, N, R, S &B Simplex / Duplex. Standard ANSI MC 96.1 / Din 43710 / IEC 754 Insulation Ceramic Beaded / Mineral Insulated Junction Grounded / Ungrounded / Exposed. Special RTD & T/C - Custom Designed Bearing Temperature Measurement Probes Surface Temperature Probes Bayonet Type Temperature Probes Washer / Ring / Wafer Type Temperature Probes Size Base Metal 22 / 30 / 16 / 14 / 12 / 10 SWG Noble Metal 27 / 26 / 25 / 24 SWG Ceramic Beaded Sheath SS 304 / 316 / 310 / 446 / Incolloy / Inconel Ceramic Tube (High Alumina, Ker 710 and Other Customer's Specified Material OD 3 mm to 25mm. Mineral Insulated Sheath SS 316 / 310 / 446 / Inconel OD 1 / 1.5 / 3 / 4.5 / 6 / 8 mm Termination Plug and Socket, Head Assembly, Flying Leads with Lugs and Special Construction Extension Fiber Glass / PTFE / SS Braided P.C Compression fitting, bayonet Fitting, Screwed

empsen offer thermocouple and RTD Compensating Cable for thermocouple Type J , K, N, S, B Insulation type PVC, Teflon, Fiber ,SS shielded with 2 wire for RTD type Pt 100, Pt500,pt1000 insulation Teflon, Fiber, SS shielded with 2 wire, 3wire and 4 wire , Duplex cable also available Use proper compensating cable avoid temperature loss . Also available with thermocouple RTD and compensating connectors Customized cable also available

Tempsen have customized High Temperature Thermocouple Type ‘K ‘ up to1200°C, ‘S’ up to1600°C, ‘B’ up to1800°C Available range of 0 to 1800 ºC. assemblies find applications in temperature measurement of Furnace, Oven and other High Temperature Application of corrosive or non-corrosive nature. High Temperature Pressure assemblies with SS thermo wells and weld on flanges are offered on request. A wide Variety of designs, diameters, lengths and materials of sheaths ( ceramic SS) can be offered along with standard designs. High precision test Thermocouples duly calibrated from recognized test laboratories. Available with Aluminum Head with IP 65 weather proof or Flame proof

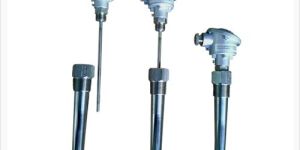

We have been made quality Resistance Temperature Detectors (RTD’s), also known as resistive temperature dedectors.Measurement of temperature with a resistance temperature detector is a matter of measuring resistance. The sensing element in an RTD is usually a small diameter wire, processed in such a manner so that its’ resistance will change in a known and repeatable manner relative to temperature. RTD’s are commonly used because their results are more stable, accurate and repeatable. We offer many RTD sensor types and parts including terminal heads, terminal and barrier blocks, extensions and RTD elements.

thermocouple and RTD Compensating Cable for thermocouple Type J , K, N, S, B Insulation type PVC, Teflon, Fiber ,SS shielded with 2 wire for RTD type Pt 100, Pt500,pt1000 insulation Teflon, Fiber, SS shielded with 2 wire, 3wire and 4 wire , Duplex cable also available Use proper compensating cable avoid temperature loss . Also available with thermocouple RTD and compensating connectors Customized cable also available.

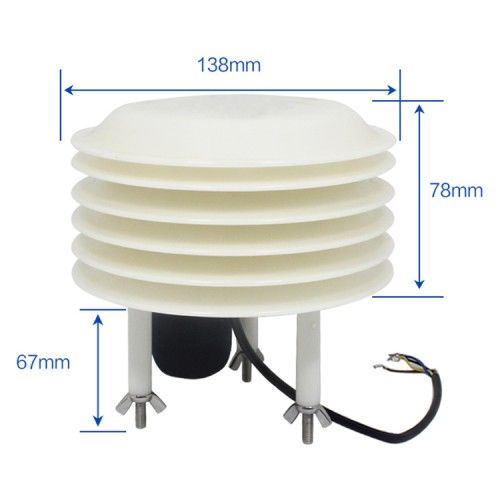

  We know that an erroneous sensor can send the entire control system into a tailspin. Therefore, we test our humidity/temperature sensors thoroughly to ensure that they have exceptional degree of accuracy, stability and reliabilityincluding for long-term use.Our humidity/temperature sensors maintain same performance with wide range of humidity (0 to 100% RH) and a similarly large range of temperature.

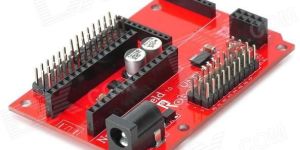

This extension plate provides all IO leads to 328 p for the Arduino Nano. Introduces the electronic building blocks for 3 pinsensor interface. Provide the external power input terminals, can support external 7-12V input.With 24 l01 XBee socket and plug, expanded the Arduino Nano wireless capabilities.Nano IO expansion board is Arduino Nano a line board.It leads to the so-called all pins with 3 pin interface as the electronic building blocks, Zigbee XBee series modules and nRF24L01 wireless interfaces. Support the power converter is 7 to 12V

Nagman is a 4 decade old organisation dedicated to the cause of Instrumentation, serving industries in India & worldwide thro’ their Calibration Products & Services and Temperature Sensors. Nagman’s infrastructure & facilities (Manufacturing, Quality Assurance & Calibration), skills & capabilities (with respect to Design & Applications Engineering) are widely recognized (& accepted) by leading project consultants executants & major industries.

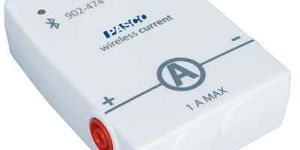

Measure currents of up to 1 A with built-in protection for the sensor against overload and transmit the collected data wirelessly to your computers, Chromebooks, tablets or smart phones.The wide current range allows for introductory and advanced explorations of the fundamental concepts of electricity and basic circuits. Combine with the Wireless Voltage Sensor to explore Ohm’s Law, series & parallel circuits and much more. Note: the Wireless Voltage Sensor can be used with standard leads or patch cables but does not include leads. The leads that come with the Wireless Voltage Sensor can be purchased separately. See the buying guide below for details. Since current can only exist in a complete circuit, the Wireless Current Sensor must be part of that circuit in order to measure current. It is connected in series and has a very low resistance (0.1 Ω). For this reason we don’t don’t recommend connecting it directly across a battery or other voltage source without a resistive load.   Special Features Simplicity: just pair and go, no cables and adapters to manage Variable sampling rate for capturing small fast changes or experiments that run for hours, days, or weeks. High speed sampling available via USB connection in “burst mode” Long-lasting rechargeable battery. Logging mode – Log current data directly onto the sensor for long-term experiments.

ICD Temperature Scanner Model No. SCN525 is capable to measure and control the  Temperature  upto  16  points.  It  accepts  temperature  sensors  like  RTDs, Thermocouple, mV and mA signals  from Transmitters. The Scanner is completely user programmable  like High/Low set point control action, Auto/Manual operation, Channel grouping, Hold, Pause etc. The Scanner is a single board construction with the latest integrated circuit, so as to reduce  component  counts.  Fast  A/D  converter  is  used  for  quick  refreshing  of  all  the channels input and output. Digital Zero / Span calibration eliminates trim pot adjustments and settings are made  through key pad. Maximum 4  relay outputs are given  for Alarm & Trip controls. Channel grouping optional and control modes are programmable.The  Scanner  scans  all  the  channels  continuously  on  the  background  while displaying  and  generates  the  Alarm  &  Trip  outputs  after  comparison  with  respective settings. The Scanner has  two modes of operation:1. Operator Level and,2. Superior Level The operator level permits channel display selection in Auto, Manual, Hold mode and Alarm acknowledge. Whereas supervisory level access, Alarm & Trip setting, group configuration, output delay adjustments, channel pause  function, scan  time etc. Optionally, external relay box containing Max. 32 relays can be connected through serial  link. The scanner  is housed  in 96 x 192 x 250 mm  flush mounting enclosure.   FEATURES Microcontroller based design Accepts RTD, Thermocouple, mV, mA High Accuracy with software linearisation Multiplexing by Analog switches Channel pause & Hold facility Two set points per channel Over range & Open sensor indication Programmable scan time, set point & channel pause Alarm and Trip indication for each channel Error compensation at site Digital calibration for each channel Optional : PC Interface Optional : Relay output - Max.32 through external relay unit Compact in size / Modular construction EERAM storage, no battery required Protection against EMI/Stray noise Built-in Watchdog Timer 2 or 4 Relay output     APPLICATION Winding temperature monitoring of High Rating Motors,PowerGenerators and transformers Various parts of Engine bed,Ball bearings, Water and Steam pipe of boilers Various points in Sugar mills, Food processing, Chemical, Cement,Fertilizer & Pharmaceutical Industries

Accept Input RTD, Thermocouple(J and K ) RTD/ -99.9 to 550.0 º C, J/ 0-600 º C, K/ 0-1250 º C Auto and Manual scanning Selectable Display Four for Temperature Two for Channel Channel Skip ,Offset -99.9 to 99.9 º C all channels Selection can be select feather touch keys Power supply 230 VAC mains operated Scan time 1-99 secs selectable Size 96X96mm , Channels available 2/4/6/8
