Thermal Lining Associates Ganapathi, Coimbatore, Tamil Nadu

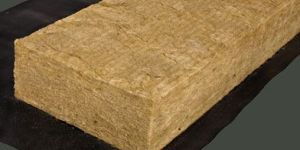

Made from bonded rock fibres. For thermal and acoustic insulation of flat or curved surfaces. Also available with AL foil, glass cloth etc. Ideal for under deck insulation, acoustic insulation, insulation over false ceiling ,transport appliances, partitions & industrial insulation.

Thickness : 50, 65, 75 & 100mm.

Refractory is a class of materials which are produced from non-metallic minerals. They are the primary materials used in the internal lining of industrial furnaces, boilers and possess capability to withstand heat and pressure, and are used in steel, aluminum, glass, cement, petrochemicals, non-ferrous metals, thermal power plants and process units. These are produced in Special Shapes and are Custom made to suit the requirements of the various industries. Refractories are classified on the basis of their chemical composition, end use, and manufacturing method. They can be classified as acidic, basic, and neutral refractories. A small range of high melting point materials like magnesia, bauxite, fireclay, and silica are used to produce refractories.

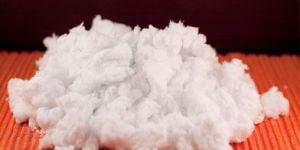

Super fine Mineral Wool in bulk form. Used for industrial Insulation (hot, cold & acoustic) as loose fill, mattresses and sprayed mineral wool application.

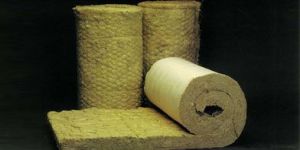

Made from Lightly Resin bonded rock fibres with wire mesh machine stitched and machine laid on one side used in boiler, equipment, vessel tank, chimney, ESP pipe & fitting, duct & other industrial applications.

Size : Mattresses in size of 1.64m * 1.22m with machine stitched wire on one side

Density : 100, 120, 150 Kg/m3.

Thickness : 25, 40, 50, 65, 75 & 100mm.

Cold face insulation brick has chemical property of 30 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1200⁰C. Hot face insulation brick has chemical property of 30 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1300⁰C

Standard Fire brick with I.S.6 quality has chemical property of 30 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1300⁰C. Standard Fire brick with I.S.8 quality has chemical property of 40 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1400⁰C. Fire brick burner block with I.S.6 quality has chemical property of 30 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1300⁰C. Fire brick burner block with I.S.8 quality has chemical property of 40 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1400⁰C. Fire brick Side arch with I.S.6 quality has chemical property of 30 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1300⁰C. Fire brick Side arch with I.S.8 quality has chemical property of 40 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1400⁰C. Fire brick End arch with I.S.6 quality has chemical property of 30 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1300⁰C. Fire brick End arch with I.S.8 quality has chemical property of 40 % Al₂O₃; 2.00% Fe₂O₃ can withstand up to 1400⁰C. High alumina brick50 quality has chemical property of 50 % Al₂O₃; 2.50% Fe₂O₃ can withstand up to 1450⁰C. High alumina brick60 quality has chemical property of 60 % Al₂O₃; 2.50-3.00% Fe₂O₃ can withstand up to 1460⁰C. High alumina brick70 quality has chemical property of 70 % Al₂O₃; 3.00 -3.50% Fe₂O₃ can withstand up to 1480⁰C.

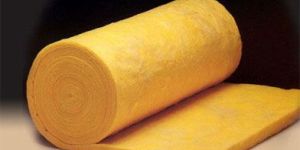

Made from bonded glass fibres. For thermal and acoustic insulation, available with or without AL foil. Ideal for under deck insulation, over the false ceiling and for ducting.

Size : Roll in standard width of 1.2m

Thickness : 25, 40, 50mm

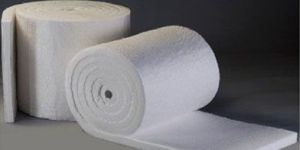

Ceramic Fibre Blanket Soft refractory fibre, available as blanket. Used in furnaces, heaters, reactors reformers, kilns etc.

Size : 7.3MM*0.61MM

Density : 64, 96 & 128 Kg/m3.

Thickness : 25mm.
