1969 Laxmi Nagar, Delhi

We offer high quality Step Down Transformers. It is hard wired, durable with a heavy duty chord. It has a 100 Watt maximum capacity and can be used continuously over a period of time. It has one grounded outlet in front of unit (accepts 3 or 2 prong US and Euro plugs) and reduces the voltage to the fit the next level of desired use. Perhaps it will go to some point in a factory, shop, home or even the much smaller applications and be reduced again to fit a lower voltage piece of equipment. Step Down Transformers have a primary winding of higher number of turns than the secondary winding. Since power is fixed, lowered voltage results in increased amperage; the lowering of voltage is inversely proportional and results in increase of amperage. Our Step Down Transformers are relatively simple in design and they have the exact ratio of windings in each circuit so as to deliver the appropriate current and voltage. Application, budget and other factors must be considered before installing a particular transformer. Both incoming and outgoing voltages must be known prior to selecting any Step Down Transformer. We manufacture all our products as per ISI specifications which give an assurance to the customer on the quality of our product. We are equipped with an R&D unit and testing tools and section which has got all tools and testing facilities that support us in supplying products as per client’s specific requirement.

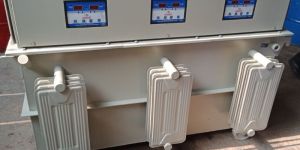

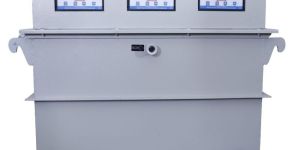

TECHNICAL SPECIFICATIONS OF  SERVO VOLTAGE STABILIZER   Load                                                   :           100KVA, 150KVA, 200KVA, 250KVA & 300KVA Input Voltage                                    :            300 to 470VAC Output Voltage                                 :             415VAC Insulation                                                        :               Greater than 6M Ohms Frequency                                                        :               50 Hz. Winding                                                            :               Pure Copper Wire Control System                                            :               Servo Motor Volt Meters                                                     :               Digital or Analog display Mode of Operation                                     :               Auto/Manual Selectable Protections                                                  :              High Low Cut Off, Overload, Short Circuit & By Pass Switch  Voltage Correction Speed                     :               Stepless correction as per requirement of                                                                                           the Customers (6-30V/Sec.)         Response Time                                             :               Less than 10 milli second Wave Form Distortion                            :               Nil.  Output Voltage Regulation                  :               +/- 1% from no load to full load.                                                                 Operating Temperature                         :              450 C above Ambient  Over Load Capacity                                    :              110% for 10 minute Metering                                                           :              Analog/Digital metering to read Output Voltage                                                                                                                                            and error message for voltage and high Voltage.               Accessories                                                     :               Switches, Meters, Carbons Reputed make and                                                                                           cable and wire of ISI Marked. Efficiency                                                         :               Better than 95% Duty Cycle                                                       :               Continuous  Application Standard                                              :               IS: 9815      Contact Person : Sundip Rana                               General Manager Sales                               07011865472 &  9910070719                               E-Mail Id: - servostar9@gmail.com

Brand Name : SERVOSTAR

Condition : New

Automatic Grade : Automatic

Certification : ISO 9001:2008

Feature : Stable Performance

Country of Origin : 220V

Operating Temperature : 45 Degree Centigrade

Output Type : AC Single Phase

Number Of Flower : Servo Voltage Stabilizer

Frequency : 50hz

Phase : 3

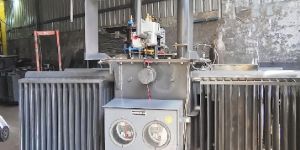

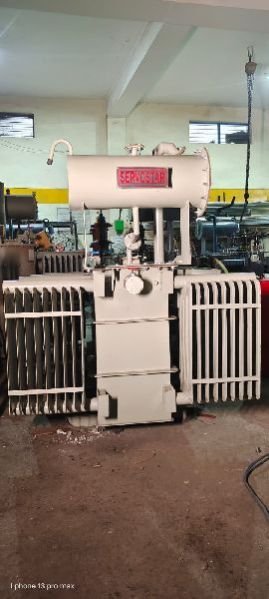

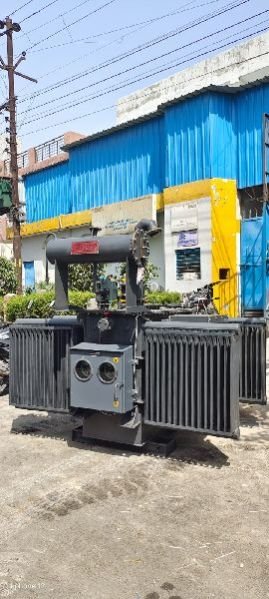

750KVA 11/0.415KV CRGO Core Cu Wound Oil Cooled Type Distribution Transformer as per IS 1180 or IS 2026

Brand Name : SERVOSTAR

Driven Type : Electric

Surface Finishing : Coated

Winding Material : Copper

Shape : Rectangle

Connection Type : Dyn11

Cooling Type : Oil Cooled

Power Rating : 50-100 KW

Operating Type : Automatic

Speciality : High Efficiency

Usage : Outdoor

Certification : ISO 9001:2008

Standard : IS-1180, IS-2026

Mounting Type : Ground Mounted

Frequency : 50Hz

Total Carbohydrate : 2 Year

Country of Origin : India

Number of Phase : Three Phase

Insulation Class : A Class

Energy Efficiency Level : <98%

Max Ambient Air Temperature : 55

Winding Turns : Step Down

Voltage Ratio : 11/0.433KV

Onsite Support Available : Yes

AMC Available : Yes

TECHNICAL SPECIFICATIONS Capacity /Rating : 1 to 10KVA Input Voltage : 230 V (1 phase, 50 Hz).                                     Output Voltage : 230 V (1 Phase, 50 Hz). Conductor : Super Electrolytic Copper Core : CRGO M-4, Low Losses Lamination Insulation : Class F Regulation : +/- 5% Cooling : Dry Type, Natural Air Cooled Temperature : 50 Deg. C (above ambient) Duty Cycle & use : 24 x 7 Continuous, Indoor C.M.N.R. : 100 db Load Regulation : Better than 3.5% Insulation resistance : more than 5 Mega Ohms Dielectric Strength : 2500V AC fro 60 Sec Leakage Current ` : Less than 50µA Efficiency : 97% Reference Standard : IS 2026

Brand Name : SERVOSTAR

Material : Copper

Finishing : Coated

Driven Type : Electric

Shape : Rectangle

Power : 1KVA to 10KVA

Cooling Type : Air Cooled

Operating Type : Automatic

Speciality : Robust Construction, High Efficiency, Reliable

Usage : Industrial, Electricity Distribution

Certification : ISO 9001:2008

Country of Origin : 220 V

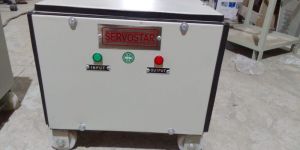

Transformers also provide an extremely useful feature called isolation, which is the ability to couple one circuit to another without the use of direct wire connections. There are applications where electrical isolation is needed between two AC circuit without any transformation of voltage or current levels. In these instances, transformers called isolation transformers having 1:1 transformation ratios are used. Our Isolation Transformers isolate the equipments from noisy power line hence providing a better option to clients. These remove power line noise, surges, spikes and transients. It also provides high insulation resistance and provides complete electromagnetic and electrostatic shielding. Our range of Isolation Transformers are designed as per the guidelines of ISO 2026 which gives an assurance to the customer on the high quality of the product. An isolation transformer does not have a direct electrical path from the power input side to the power output side. The term is also used to define how much electrical isolation exists between the input and output windings. For example when using line-voltage input transformers to power low voltage device handled by humans, a high degree of isolation is required for safety. Isolated transformers often use separate bobbins for the primary and secondary coil windings, but usually the windings are just wound on top of each other with insulation in between. There is usually an electrostatic shield between windings which is tied to transformer case.

Number Of Flower : Isolation Transformer

Material : High-quality Insulating Material

Packaging Type : Varies

Packaging Type : Standard Packaging

Usage : Isolate Equipment From Power Line Noise

Speciality : Removes Power Line Noise, Surges, Spikes, And Transients
