ACE MEDICAL CORPORATION Shahdara, Delhi

Construction All stainless steel Triple walled construction, lid is made of thick die pressed SS 304 sheet in mirror finish. The unit is fitted with 8 wingnuts to hold the lid at high pressure. Autoclave Is Equipped With Steam release valve. Spring loaded safety valve & stop cock. Water inlet and water outlet valves. Water level indicating gauge glass with stainless steel guard. Pressure gauge. Double Heating Element. Two power cords for each heating elements Working Pressure The normal recommended pressure for sterilization process is (15 psi -17 psi). Working Temperature: 121°C Chamber size & Capacity: 16" Dia X 24" Ht. (400 x600mm) Note: Special sizes can be fabricated as perthe customer's requirement.  Mode of Heating: Electrically heated by two immersion heaters of 3000 watts each 220 volts 50Hz. Optional Accessories: Automatic Pressure Control Switch. This semi-automatic device controls the pressure inside the chamber mechanically and cuts-off the current from the heating elements, when the desired/ set pressure value level is attained inside the chamber and restarts the mechanism once the pressure inside the chamber falls from the desired level. Automatic Water Cut-off Device - This device is a safety device which protects the heaters from running dry. This device ensures that the machine is automatically switched off in case the desired water level falls below the prescribed level.

Material : Stainless Steel

Shape : Horizontal

Thickness : 10-15mm

Condition : New

Power : 3-6kw

Surface Finishing : Polished

Temperature : 100-200ºC

Usage : Laboratory Use

Number Of Flower : Diaphragm Vacuum Pumps

Number Of Stages : Single stage

Power : 10W

Material : Aluminium

Motor Speed : 1800 RPM

Number Of Flower : Electric

Application : Clinical, Hospital

Material : Steel

Feature : Quality-tested, Rust resistance

Material : Stainless Steel

Thickness : 10-15mm

Condition : New

Pressure : High Pressure

Free standing bulk model   Suitable for large Hospitals & for small manufacturing units. Suitable for 10/90 EO/CO2 mixture or 90/10 EO/CO2.    Rectangular Model  600 (H) x 600 (W) x 1200 (D) mm.  900 (H) x 600 (W) x 1500 (D) mm.   Other sizes on request.

Country of Origin : 220V

Capacity : 0-100ltr

Frequency : 50Hz

Power : 2kw

Total Carbohydrate : 1yrs

Shape : Rectangular

Usage : Laboratory Use

Specialities : High Performance, Good Finishing

Brand Name : GE

Application : Hospital

Also available in 1 Hr. Rotary Timer

Also available in 1 Hr. Rotary Timer

Also available in 1 Hr. Rotary Timer

Application : Laboratory

Availability : 100-200kg

Country of Origin : 220V

Condition : New

Total Carbohydrate : 1year

SALIENT FEATURES Carries CE Mark End ring hydraulically formed without joints to sustain required pressure. All other joints Argon Arc Welded. Unique Multiport valves located at the top controls all operations manually. Two safety valves spring'loaded  and a pressure  switch provided to prevent accidental  pressure  build up. Works on 134°C at 32 psi(2.1 kgf/cm2)  Low water level protection for heaters. Pressure lock device for the door. Hydrostatically tested 2 times the working  pressure Best suited for rapid sterilization of instruments for Cardiac,  Ortho,  Neuro & Urology. Instruments come  out dry after the cycle. Power : 18 KW, 440V,3-Phase. First Cycle : 35 minutes, 20 minutes preheating time 15 minutes actual time Subsequent :09 minutes.

Material : 304 STAINLESS STEEL

Condition : New

Total Carbohydrate : 1 year

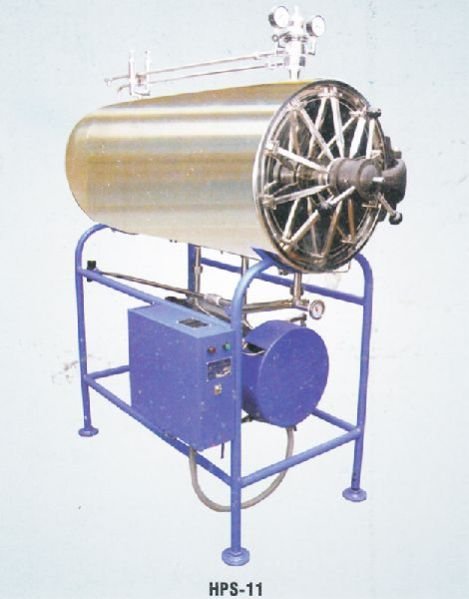

SALIENT FEATURES Carries CE Mark End ring hydraulically formed without joints to sustain required pressure, All other joints Argon Arc Welded. Very useful where in Sterilizing temperature, Time, Pre Vacuum and Post vacuum is maintained Automatically, Human error is avoided Available in both HPS-11 and HSS-12 Models. Model HPSPL 15 - HSSPL 15A

Total Carbohydrate : 1 Year

Material : Mild Steel

Insulation Wall : Easy

Power : 9 kW

Pressure : 17 psi

Country of Origin : 440 V

Specialities : End Ring Hydraulically Formed Without Joints To Sustain Required Pressure. All Other Loints Argon Arc Welded.

Phase : 3

Temperature : 121 Degree C

SALIENT FEATURES Carries CE Mark End ring hydraulically formed without joints to sustain required pressure, All other Ioints Argon Arc Welded. Unique combination of Steam cum ETO Sterilizer. Economical solution when the Hospital needs Steam Sterilizer along with ETO sterilizer. Required Water Ring Vacuum Pump and ETO Cylinder is Included in the package. Available in both HPS-11 and HSS-12 models Model HPSET 14 - HSSET 14A

Country of Origin : 220V

Application : Laboratory Use

Capacity : 0-100ltr

Frequency : 60Hz

Power : 2kw

Feature : High Performance

Total Carbohydrate : 1yrs

ACE-103 AUTOCLAVE VERTICAL FULLY AUTOMATIC DIGITAL WITH LCD OR LED DISPLAY Specifications are same as per cat. ACE-102. This unit is fitted with a PLC logic controller with LCD or LED display With Temp: & Timer Programmable. To work on 220 VOLT AC Supply. Low cost easy to operate high feature Auto tune advance PID temp: control. Microprocessor based auto tune advance PID Digital Temp: controller controls temp: precisely at set value. Sensor –RTD-PT-100. Temp: Range: 0-100 degree Celsius Resolution 0.1 C Initial purging cycle at the start air is automatically removed from the working chamber. Perform all operation of Autoclave automatically PURGING HEATING PURGING EVACUATING STERILIZATION TIMER FINAL EVACUATING Inbuilt thermal printer for report & data logging, with date time temp: operation message etc. Automatic solenoid control relay operation for exhaust valve. LED indication for each cycle process. LOW water level detection. 4 keys soft touch Menu Driven System Auto tune advance PID control temp: PID values settable in menu. Audio alarm on temp: deviation form set point/ process complete. Selectable timer up to 99 (HOURS/MINUTES) Timer disables operation for continuous running. Visual Alarm LED indication for temp: deviation/Heater

Capacity : 22ltrs

Thickness : 5 MM to 40 MM

Condition : New

SALIENT FEATURES Carries CE Mark End ring hydraulically formed without joints to sustain required pressure. All other joints Argon Arc Welded. For the Modern Hospital, Double Door Sterilizers are installed where non sterile and sterile areas separate. Material is loaded from sterile side and after sterilization it is Removed from sterile side thereby protecting sterilized material. All other features are like other sterilizers. Available in both HPS-11 and HSS-12 Models. Model HPSDD 16-HSSDD 16A

Capacity : 180 Ltr.

Availability : 100-200kg

Country of Origin : 220V

Condition : New

Driven Type : Electric

Total Carbohydrate : 1year

Material : Stainless Steel

Shape : Horizontal

Thickness : 10-15mm

Condition : New

Pressure : High Pressure

Model : Semi Deluxe

Usage : Laboratory Use

We provide all type of Laboratory Autoclave Maintenance & repairing Service Like : 1. Cooker Type Electric Portable Steam Autoclave2. Ace-102 Laboratory Autoclave Vertical (Semi Deluxe Model)3. ACE-106 HORIZONTAL RECTANGULAR AUTOCLAVE4. Fully Automatic Autoclave5. High Pressure Autoclaves Wings Type6. Horizontal Steam Autoclave7. Steam Storage Autoclave
