Advance Technical Systems Private Limited Mayur Vihar, Delhi

100 kΩ Kelivin-Varley Voltage Divider Resolution:0.1ppm Linearity :0.1ppm Used by NMI Built in Wheatstone Bridge allows for a self calibrating circuit

Resistance values of 100 Ω, 1kΩ,10kΩ,   High accuracy High stability -

Stability

Pre- Heat Currents from 20µA to 150mA Connects 8 PRT's/SPRT's at one time Individual Programmable "Pre-Warm" Current available

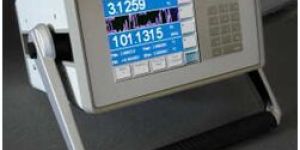

Measuring Range: -200 to 660°C Basic Accuracy: +/- 0.006°C Display: Graphical Display, Dual Range, Dual Current Source Enter & Store Probe Coefficients Full Current Reversal

16-channel input & 2-channel output Gold flashed tellurium copper terminals Thermoelectric Potentials:

Range: 0.01 to 100,000 Gauss High Resolution 41/2 Digit Display DC Accuracy: ± 0.4% of reading Temperature Coefficient: 0.05%/o C Built-In Precision Calibration

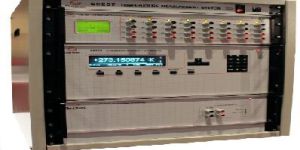

The 6625T is a modular, customer specified Temperature Measurement System. Typically, The System is composed of a 6622T Series Bridge, 6634A Resistance Standard, 3210 Thermometry Adaptor

Temp. Range: 15°C to 50°C Temp Stability: < 0.03°C over 24 hours Large volume enclosure - over 82 litres   Enclosure is fully EMI shielded Convenient front access door Fully Programmable

110 to 150,000 fpm in 4 ranges Speeds up to 1,000,000 rpm measurable External trigger Very-high beam intensity: up to 15 x 106 candela Beam width 10o at 1/2,-intesity points

Range: 30 to 140 dB Weighting A,B and C Fast/slow meter response

20-bit Resolution 5-point Linearization Legal for trade capability Lb and Kg measurement units RS-232 computer interface

A full,5 digit LED display for RLC 0.02% accuracy for RLC, G,Z and Y 0.0001 accuracy for DQ measurements Test frequencies from 12Hz to 200kHz GR like 1659/1689/1692/1693 available

Ranges from 10Ω to 10TΩ Accuracies from 0.01 to 1% TC as low as 5 ppm/oC Stability as high as 10 ppm/yr

Range:- 200°C to 1820°C Accuracy for RTD:± 0.01°C Accuracy for T/C: ±0.1°C Resolution: 0.001°C 2 measuring input Units: °C,°F,K,m°C,Ohms

  Measurement of circuit capacitances Dielectric measurements 10-5 pF to 11.1 μF, 2- or 3- terminal 0.01% accuracy, 1 ppm resolution Lever balance, in-line readout Reads dissipation factor or conductance

Capacitance range: 0.002 pF to 1150 pF (Depending on Model) Variable Air Capacitors Stability: better than 0.02%. FSD  Settable to 40 ppm Low temperature coefficient, low losses Wide selection to suit needs

4-wire measurement Automatic L-C-R selection Selectable test model: series or parallel Backlit, 20,000/2,000 count display Low-battery indicator USB interface

20 Hz to 20 kHz 0.1 mW to 20 W 0.6-W to 32-kW input impedance True rms reading

200 Test Voltages: 10 VDC to 1090 VDC 50 kΩ to 200 TΩ (2 x 1014Ω) Analog Output 3% Basic Accuracy Simple Operation Direct Reading, Safe, Stable
