The 405S is a dry dial multijet water meter with a protected magnetic
transmission between the measuring element and the totalizer. It is a PN 16
meter suited to hard network conditions
Its reliability, resistance to bad water quality and noiseless operation will
satisfy both end users and network managers
The 405S is a dry dial multijet water meter with a protected magnetic
transmission between the measuring element and the totalizer. It is a PN 16
meter suited to hard network conditions
Its reliability, resistance to bad water quality and noiseless operation will
satisfy both end users and network managers
Polymer Composite body
Easy operation
Highly reliable
Economical
Easy maintenance
BENEFITS
TECHNICAL DATA
Materials
Valve body : Polymer Composite
Spindle : S.S
Spindle packing : O-ring (nitrile)
Shutoff ball : EPDM
Rated pressure : 25 bar
Fluid temp limits : 5°C to 110°C
Rated voltage supply : 230 V, 1 Phase, 50 Hz
Absorbed power : 6 W
Mounting position : Horizontal or vertical
(Do not mount with
motor downwards)
Protection : IP 20

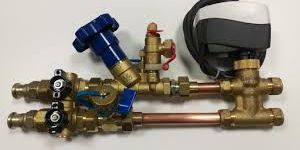

FCU VALVE
Normally Closed Port -
Coil Port
Normally Open Port -
Bypass Port
Center Port -Common Port
POLYMER
•
•
•
•
Long life synchronous motor drive
with spring return
•
•
Available with two way and three
way connections
•
•
Suitable for two position control
of hot and chilled water in fan coil
units and other small zone units
• AutoManual lever
• Size 20 mm dia
Polymer Composite body
Easy operation
Highly reliable
Economical
Easy maintenance
BENEFITS
TECHNICAL DATA
Materials
Valve body : Polymer Composite
Spindle : S.S
Spindle packing : O-ring (nitrile)
Shutoff ball : EPDM
Rated pressure : 25 bar
Fluid temp limits : 5°C to 110°C
Rated voltage supply : 230 V, 1 Phase, 50 Hz
Absorbed power : 6 W
Mounting position : Horizontal or vertical
(Do not mount with
motor downwards)
Protection : IP 20
FCU VALVE
Normally Closed Port -
Coil Port
Normally Open Port -
Bypass Port
Center Port -Common Port
POLYMER
•
•
•
•
Long life synchronous motor drive
with spring return
•
•
Available with two way and three
way connections
•
•
Suitable for two position control
of hot and chilled water in fan coil
units and other small zone units
• AutoManual lever
• Size 20 mm dia
Air Separator is used to remove dissolved airgases or micro bubbles from closed or open hydronic, HVAC, boiler other water fluid systems. In the process it separates undissolved impurities as well.
Of M.S. construction, with flanged connections, the air separator is provided with a high capacity automatic air vent at the top.
For chilled water application, it should be insulated with 50 mm thick insulation to the specifications and cladded with 26G Aluminum cladding.
Sediment Separator removes impurities heavier than water
- Prevents Choking of strainers
- Prevents damage to pumps and other equipment
Air Separator is used to remove dissolved airgases or micro bubbles from closed or open hydronic, HVAC, boiler other water fluid systems. In the process it separates undissolved impurities as well.
Of M.S. construction, with flanged connections, the air separator is provided with a high capacity automatic air vent at the top.
For chilled water application, it should be insulated with 50 mm thick insulation to the specifications and cladded with 26G Aluminum cladding.
Sediment Separator removes impurities heavier than water
- Prevents Choking of strainers
- Prevents damage to pumps and other equipment
Simple and rugged construction
• Suitable for ducts carrying air or any
other non-corrosive gas
• Indicates the presence or absence of
air flow to start and stop electrically
operated equipment in a flow or noflow
condition
• Can be used for monitoring flows in
horizontal and vertical ducts with
upward air flow
Simple and rugged construction
• Suitable for ducts carrying air or any
other non-corrosive gas
• Indicates the presence or absence of
air flow to start and stop electrically
operated equipment in a flow or noflow
condition
• Can be used for monitoring flows in
horizontal and vertical ducts with
upward air flow
