Level Indicator Dealers in Delhi

Located in Delhi, India, we are a known wholesale supplier of Water Level Indicator. We specialize in catering to the bulk orders of Water Level Indicator with utmost ease. We have gained much appreciation among our customers for our products durability along with exquisite design and quality. Safe and timely delivery of the same is ensured with our advance transit facilities. Moreover, Water Level Indicator is available in affordable prices to break all budget constraints.

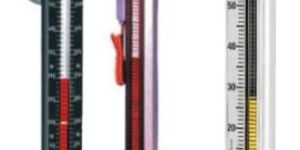

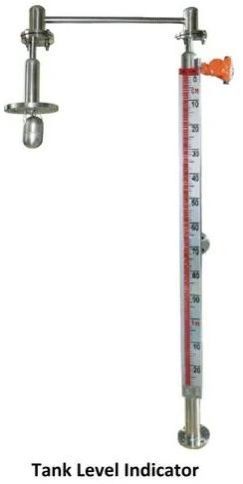

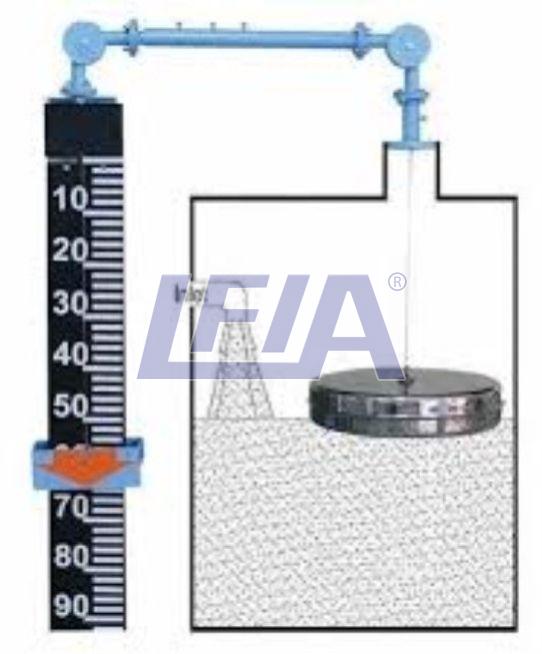

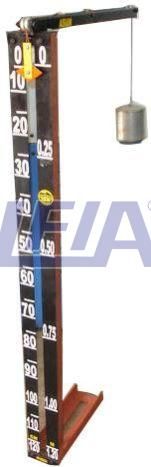

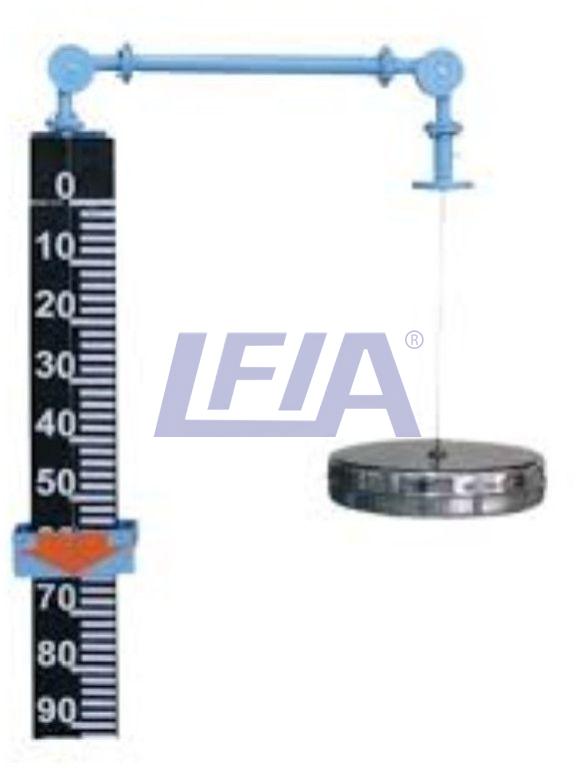

Here in this case this indicator is used as a direct local level indicator mounted on the top of the vessel or RCC tank. The float is made out of SS304/ SS316/ PP/ PVDF/ PTFE/ PVC etc. As the level inside the tank rises the float, which buoys up, moves the connecting pipe to the region of visibility on top. Construction : The Top Mounted Magnetic Level Indicator basically consists of a guide pipe, float with stem main magnet, a guard protecting magnet guide tube, follower magnet and glass tube, The guide pipe inserted in the tank, guide the float which follows the liquid level in the tank. The main magnet mounted on the the stem tip in turn follows the liquid level. Magnetic coupling between main magnet and follower magnet brings the visual indication of level outside. Follower magnet moves in an isolated glass tube filled with density compensating liquid. The entire construction is very sturdy keeping in view its outdoor installation. Applications : Dipstick substitute Underground tanks Horizontal tank Corrosive acids such as H2S04, RNO3 chlorosulphonic acid, oleum, acetic, CS2 Solvent tanks such as benzene, Acetone, toluene, alcoholic liquids or any organic liquid, butadiene, vinyl acetate, vinyl chloride. Liquefied Gases such as liquid chlorine, liquid ammonia, LPG Molten Sulphur Phosphorus, Lead etc.

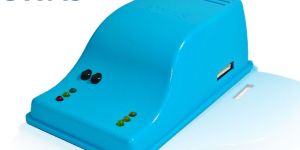

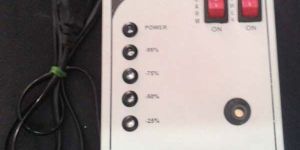

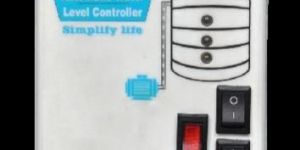

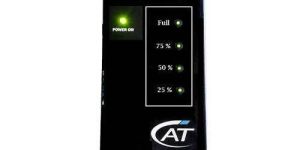

Looking for trusted Built Indice2 Water Level Indicator with Dual Alarm suppliers? We are the perfect ones and capable of fulfilling bulk orders. We have online payment processing system to avoid security issues. In order to make it more reliable, we have maintained payment logs accessible for the convenience of our customers. Benefits : No need to Check Water Tank Level from Tank Four Level Water Indicator 25%, 50%, 75% & 100% of Water Tank Dual Alarm is to Alert when Tank is Full & when Tank is Empty. No Water Wastage & No Power Wastage Features : Our Device is made up of High Grade Platic which eliminate the risk of electric shock. Rust, Scale, and Maintenance free Magnetic level sensors. Switch to Turn ON/OFF Alarm. Maintenance Free & Long Life System.

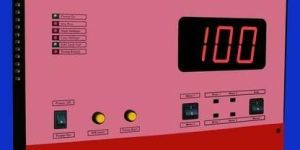

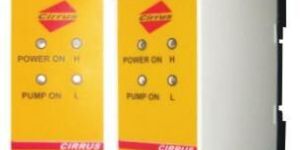

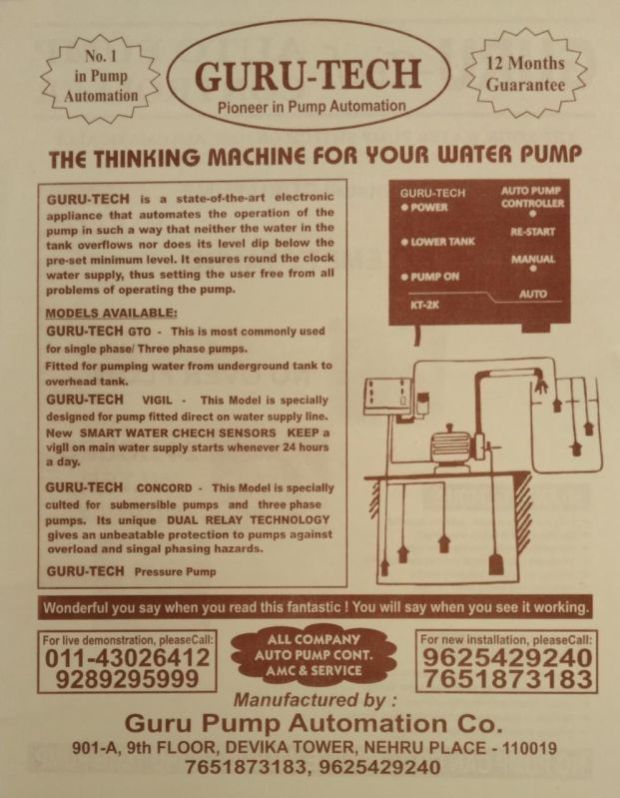

Backed by our rich industry experience, we manufacture and supply Water Level Indicators nationwide.  Our Water Level Indicators Water is equipped with Automatic Pump Controller. The most remarkable thing about these Water Level Indicators is their inbuilt control mechanism to control the level of the Water. Moreover, these Water Level Indicators are quite easy to operate and require least amount of maintenance.

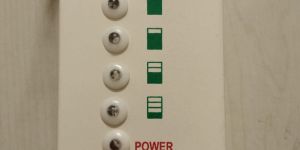

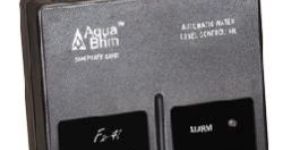

This model is designed for water level indication of multiple (Up-to 4) tanks with audio buzzer at empty and full level of tanks. This show 5 level and flow status of each tank. This is suitable for residential houses and bungalows having multiple tanks. Variants: Pentacool-SOLO: This variant is for displaying 5 levels of single tank. Features It can display level of 1 to 4 tanks. The water display will be as follow: If The water level is below 20%, 1st LED will blink If the water level is above 20% but below 40% , 1st LED will glow If water level is above 40% but below 60%, 1st & 2nd LED will glow If water level is above 60% but below 80%, 1st, 2nd & 3rd LED will glow If water level is above 80% but below 99%, 1st, 2nd, 3rd & 4th LED will glow If the Tank is full 100%, it will glow all 5 LED. The low level can be set 20%, 40%, 60% & 80%. Whenever there is increase in water level of tank, it will indicate flow pulse in that tank. The buzzer will start in case of full or low level for 3 minuts. It will be off when BUZZER button is pressed.

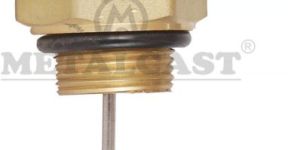

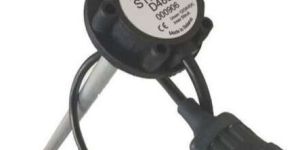

We are offering oil level indicator. These float assemblies are fitted onto their respective tanks & are responsible to indicate the level of fluid as per the design parameters of the concerned vehicle. It may be through needle indication or glow lamps.

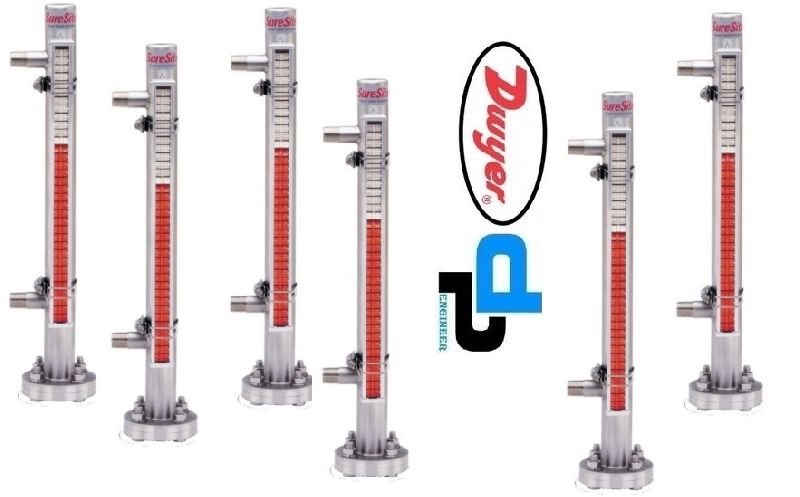

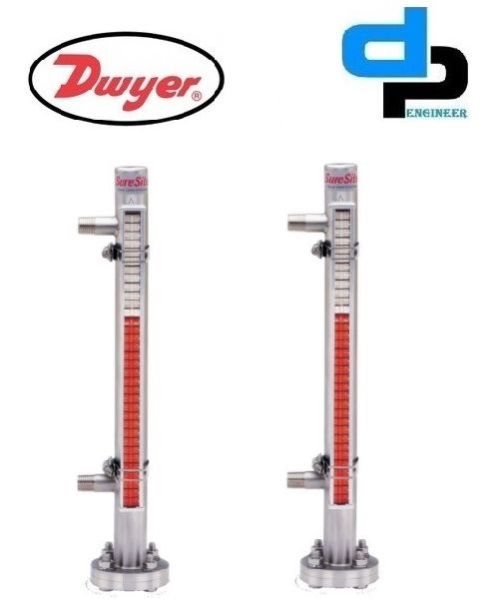

Levsen series MLI -31 Magnetic Level Indicator simple & reliable Level Indicator, Which is based on magnetic principle. It is absolutely safe for dangerous liquid even under high pressure. Magnetic Level Indicators are widely used to observe the Level of tanks or vessels that contain liquid media. Magnetic level gauges utilize a float that contains one or more magnets. As the float rises and falls its magnetic field passes up and down the level column. The level indicator follows the magnetic field.Simple Magnetic proven design Float moves up & down on Probe according to Liquid Level and Fixed limit switches inside the probe change their contacts by magnetic attraction.

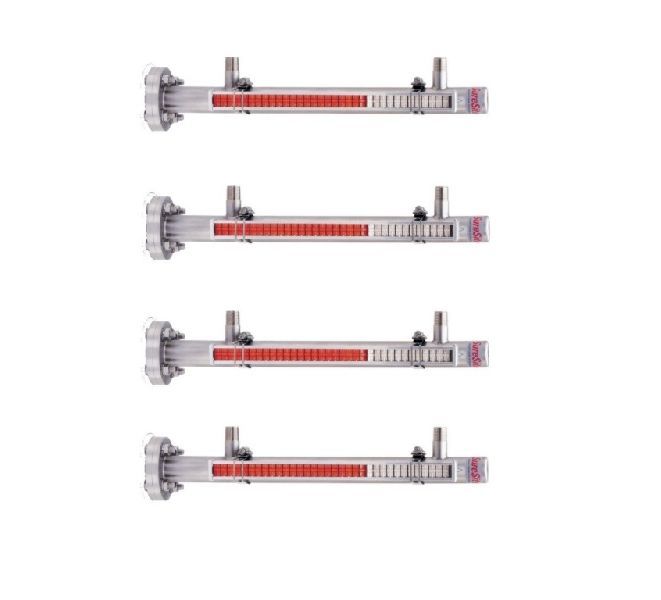

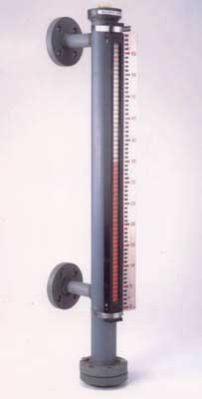

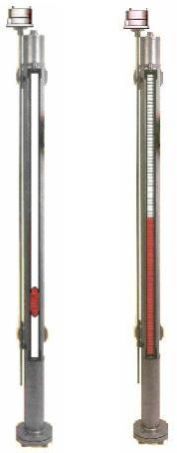

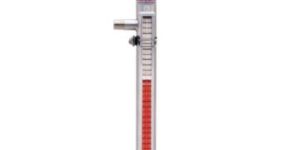

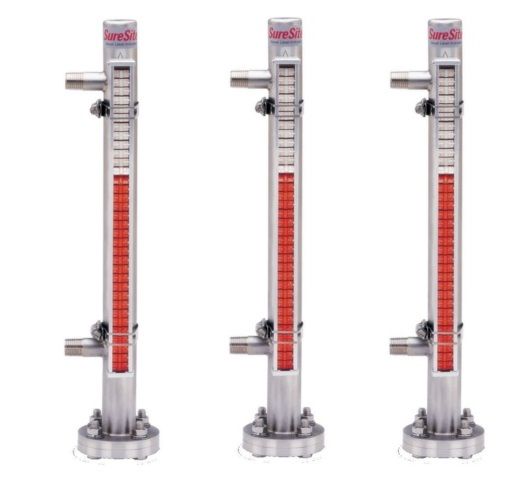

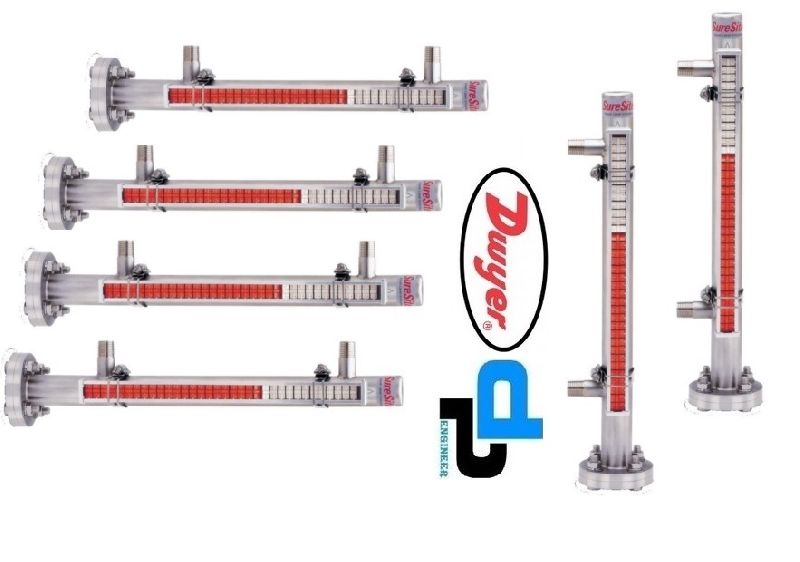

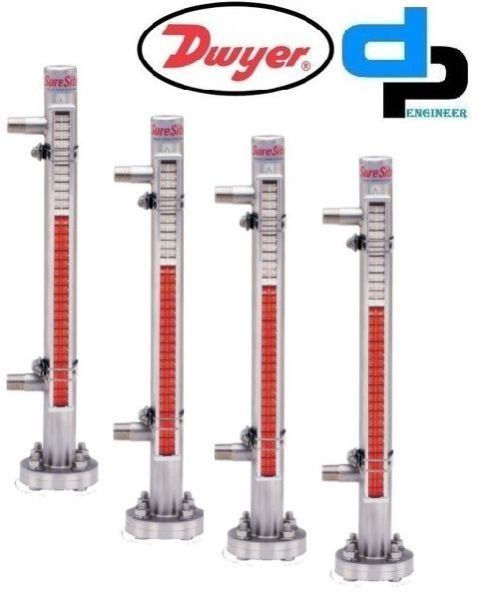

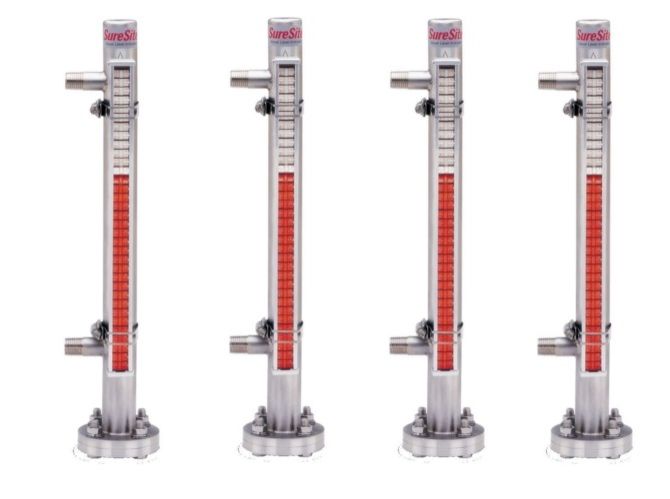

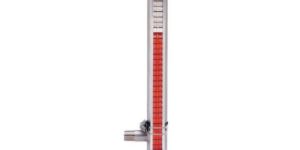

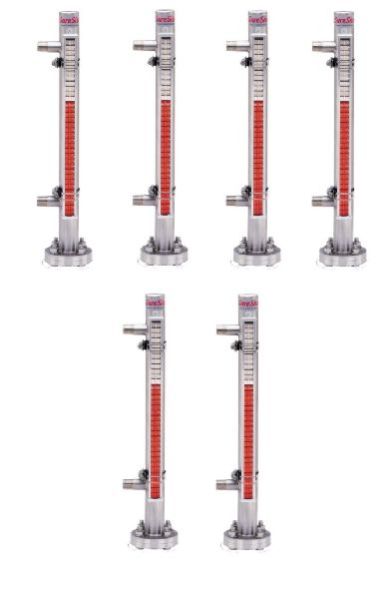

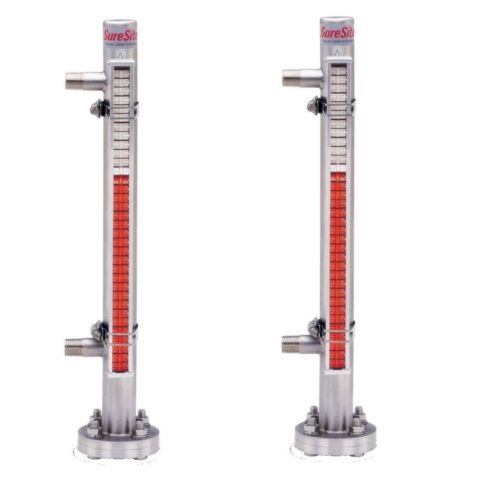

We bring forth precision engineered range of Magnetic Level Indicator, which is manufactured in accordance with set industrial standards. This Magnetic Level Indicator is flanged to the tank for indicating the level of liquids and liquefied gases in open or closed tanks. Further, this level indicator is safe to use and ensure longer working life. Details : The cage is flanged to the tank & the level is indicated on a strip which consists of magnetic bi-color rollers. The floats are available in various metallurgies like SS316, Titanium, PVDF, Polypropylene and PVC Highlighting Features : Available in side and top mounting versions Capsule Indicator in glass tube or magnetic bi-color rollers SS 304, SS 316, PTFE, PP, PVC & PVDF Float & Cage Material Max. C.C. Distance : 5000 mm, greater lengths on request. Flanged connection drilled to ASA 150# or other on demand Pr 20 Kgcm2 for SS & 3 Kgcm2 for PP, PVC & PVDF, Higher Pr rating on demand Temp 450oC for SS, 80oC for PVDF, 60oC for PVC, 50oC (Max) for PP Specific Gravity : Min 0.5 AISS etched scale in cm +- 5 mm accuracy Widely Used In : Chemicals Pharmaceutical industries Petrochemical industries Refineries Oil and fuel tanks

We bring forth precision engineered range of Magnetic Level Indicator, which is manufactured in accordance with set industrial standards. This Magnetic Level Indicator is flanged to the tank for indicating the level of liquids and liquefied gases in open or closed tanks. Further, this level indicator is safe to use and ensure longer working life.Details : The cage is flanged to the tank & the level is indicated on a strip which consists of magnetic bi-color rollers. The floats are available in various metallurgies like SS316, Titanium, PVDF, Polypropylene and PVC   Highlighting Features : Available in side and top mounting versions Capsule Indicator in glass tube or magnetic bi-color rollers SS 304, SS 316, PTFE, PP, PVC & PVDF Float & Cage Material Max. C.C. Distance : 5000 mm, greater lengths on request. Flanged connection drilled to ASA 150# or other on demand Pr 20 Kg/cm2 for SS & 3 Kg/cm2 for PP, PVC & PVDF, Higher Pr rating on demand Temp 450oC for SS, 80oC for PVDF, 60oC for PVC, 50oC (Max) for PP Specific Gravity : Min 0.5 AI/SS etched scale in cm +/- 5 mm accuracy   Widely Used In : Chemicals Pharmaceutical industries Petrochemical industries Refineries Oil and fuel tanks
