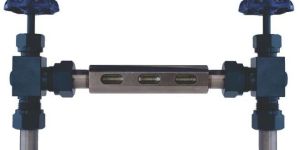

Tubular Level Gauges are simple reliable device for direct reading in atmospheric or pressured tank application. It has mounted parallel along the side of tank, and gives local liquid indication in transparent glass tube as the process level fluctuates. Gland packing design provides tension free tube installation to achieve zero leakage and also enables glass removal for replacement or cleaning without dismantling of tubular gauge. Auto shut od ball check valve arrangement provided for preventing liquid loss during glass breakage.

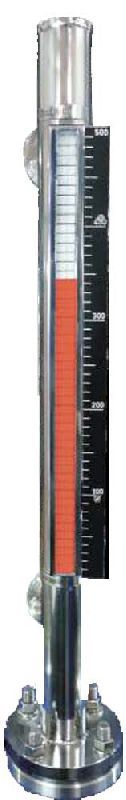

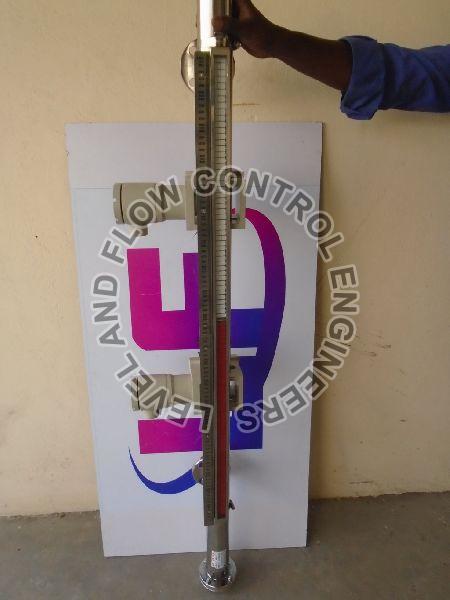

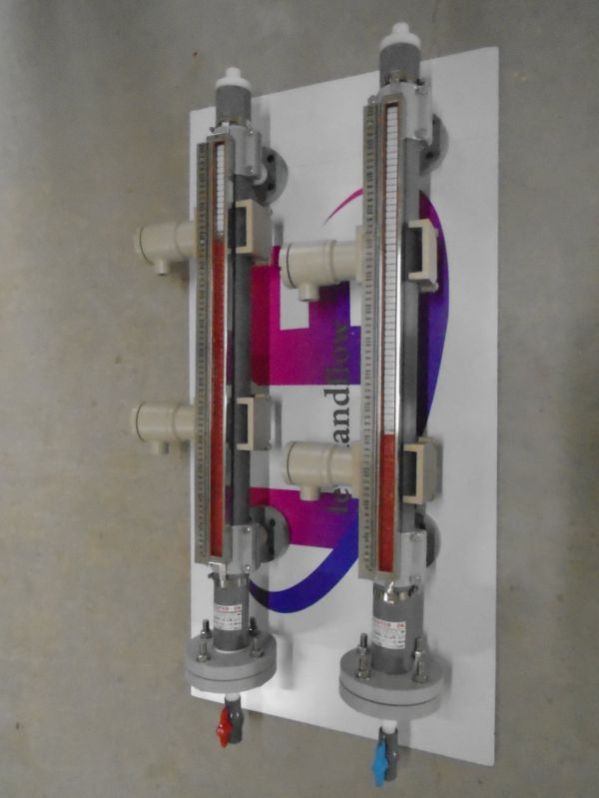

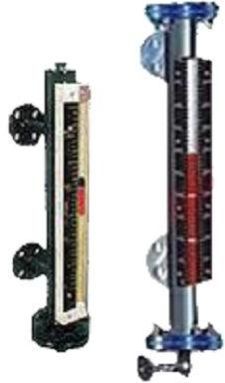

Our range of VLIs can provide an optimal solutionfor almost any level measuring and controlapplication. For most applications, a suitableindicator can be configured from standardmodular components. Special solutionsare frequently needed for unusualoperating and installation conditions. We cover an extremely wide rangeof special level instrumentation requirements.If necessary, the standard interfacescan be adapted to match the requirementsof customer’s control systems. FEATURES Very wide operating range: Vacuum to 500bar pressured tanks, up to 0.3g/cm3liquid densities, 77K to 673K operating temperatures Available with Level Indicator, Level Switch and Level transmitters for remote monitoring and control The operating principle is based on the use of permanent magnet system ensuring safe and reliable activation of visual indication elements or transducers Magnetic elements used can withstand high temperatures with negligible degradation of magnetic flux. Lightweight and hermetically sealed floats ensure smooth usage for dirty and high viscous liquids over large indication ranges. Closed and Open floats are available for various pressure ranges Applications We have many years of practical experience in the use of WEKA VLI Level Indicators in: Chemical and other process industries Shipbuilding Thermal Power Plants Hydraulic systems Railways Vehicular applications Petrochemical industries Refrigeration systems

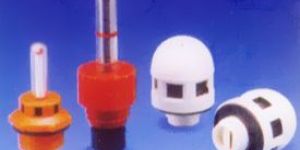

Easy to read elctrolyte level indicators allow the level of electrolyte in the battery/cell to be read at a glance and vent plugs having microporous filters return the acid spray to the battery/cell, while allowing the Oxygen and Hydrogen generated during the final stage of boost charging, to exit to the atmosphere.

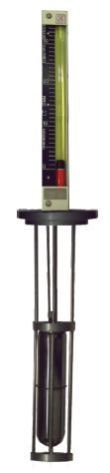

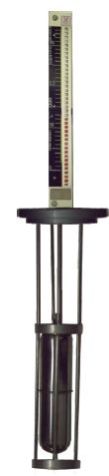

The Top Mounted Magnetic Level Indicator is used as a direct local level indicator mounted on the top of the vessel or RCC tank. The Top Mounted Magnetic Level Indicator basically consists of a guide pipe, float with stem main magnet, a guard protecting magnet guide tube, follower magnet and glass tube, the guide pipe inserted in the tank, guides the float which follows the liquid level in the tank. The float is made out of SS304/ SS316/ PP/ PVDF/ PTFE/ PVC etc. As the level inside the tank rise the float, which buoys up, moves the connecting pipe to the region of visibility on top. The entire construction of Top Mounted Magnetic Level is very sturdy keeping in mind its outdoor installation. Applications : Dipstick substitute Underground tanks Horizontal tanks Corrosive acids Liquefied Gases

Model No.: JB/SMMLI/406Simple magnetic principle used to get unique, absolutely safe and most reliable level indicator for dangerous liquids even under high pressures. APPLICATIONS:• Corrosive acids - oleum, H2SO4 • HNO3, Acetic.• Solvents - benzene , toluene, alcohols, CS2.• Liq. Gases - LPG, NH3, Chlorine • Propylene, Butadiene.• Veg. Oils, Fuel Oils, Lubricants, Water • Poisonous / toxic liquids, DMA, TEA, PCL3, SO3

Here in this case this indicator is used as a direct local level indicator mounted on the top of the vessel or RCC tank. The float is made out of SS304/ SS316/ PP/ PVDF/ PTFE/ PVC etc. As the level inside the tank rises the float, which buoys up, moves the connecting pipe to the region of visibility on top. Construction : The Top Mounted Magnetic Level Indicator basically consists of a guide pipe, float with stem main magnet, a guard protecting magnet guide tube, follower magnet and glass tube, The guide pipe inserted in the tank, guide the float which follows the liquid level in the tank. The main magnet mounted on the the stem tip in turn follows the liquid level. Magnetic coupling between main magnet and follower magnet brings the visual indication of level outside. Follower magnet moves in an isolated glass tube filled with density compensating liquid. The entire construction is very sturdy keeping in view its outdoor installation. Applications : Dipstick substitute Underground tanks Horizontal tank Corrosive acids such as H2S04, RNO3 chlorosulphonic acid, oleum, acetic, CS2 Solvent tanks such as benzene, Acetone, toluene, alcoholic liquids or any organic liquid, butadiene, vinyl acetate, vinyl chloride. Liquefied Gases such as liquid chlorine, liquid ammonia, LPG Molten Sulphur Phosphorus, Lead etc.

When dealing with equipment in the dairy sector, a lot of business happens because of the measurements of the products and the accuracy of these measurements is what sustains relations because no one wants to lose out. In recent times, we’ve seen the need for transparency in more walks of life being made possible with technology. As technology in our day-to-day life in the cities so also does the need trickle down to the rural areas where even small adjustments to existing technology can do wonders to business. One of the most easily recognizable fonts in the world is the numerical digit displays found on calculators and petrol pumps. You will find this easily decipherable font on a tank level indicator. For all milk measuring purposes, we have smart tank level indicators on our machines that uses a bright 4 digit display. The tank level indicator is capable of measuring up to 9999 liter or 99.9°C. On the tank level indicators you will find it provides all the relevant milk data that any dairy producer would use like BMC ID, milk volume and milk temperature. The smart level indicators are also capable of 2 way SMS communication over a GSM band. There’s also an auto alert for milk chilling and even an alert for when 80% of capacity has been reached. These tanks will work for any type of milk. It doesn’t matter whether it’s set up in the same facility as a goat milking parlor or a cow milking parlor, the error margin on volume will still be +/- 3 liters and the error margin for temperature is 0.2°C. When there are features like this, it makes the job of the dairy producer easier and also helps in transparency. This special technology is a patent of India and was developed in IIT, Kharagpur. It was also designed to leave a small footprint on the tank. For more info on the smart level indicators, have a look at the brochure for the full list of features and technical specifications.

To determine the Level of liquid inside a tank, YPL Tubular Level gauge is one of the economical & reliable instruments For it. It is mounted at the side of tank through flange or thread Connection. Liquid inside the tank passes through a transparent Cylindrical glass tube & liquid Level can be physically viewed Through the glass tube and measured by a graduated scale Mounted on the gauge. Level gauges are made in CS SS PP Construction in different centre to centre distance between Mounting flanges or thread connections on the side of tank as per The tank height. These gauges are custom manufactured according To the c-c distance required. Level gauges have a pair of integral Isolation valve for closing liquid flow inlet. PP construction versions Are made with all PP isolation vales & internals. With its economical Price, easy to use & sturdy construction make it widely used Level Indicator for various liquids.
