AXESS Patparganj, Delhi

BVW-10/BVW-10H   Advanced appearence designed – increase the size of front opening in order to make the weld components taking and putting easy.   HMI make the operation condition more convenience. Lift Hydraulic preasure/hold system. Noise level ^ 85dBA(the average). The more power, the more weight of actuator range. Weld depth control. Four step control. Suitable for any brand's position hold of tooling fixture.

Availability : 3400 Kg (Approx)

This machine developed by AXESS is suitable for sealing of Plastic & Laminate Tubes for Toothpaste, Ointment, Beauty Cream, Washing Cream, Adhesive, Shampoo, Hair Lotion, Colors, Jam, Chocolate super Glue, Liquid & Paste etc Special Features * Robust build quality for long life. * Each operation like welding head front-back, ultrasonic welding, cutting, each conveyor forward-reverse can be operated manually apart from auto mode. * Tube height adjustable. * Overload protection in ultrasonic system and welding time can be adjusted up to .01sec which convert into more precise welding result.

This machine developed by AXESS is suitable for sealing of Plastic & Laminate Tubes for Toothpaste, Ointment, Beauty Cream, Washing Cream, Adhesive, Shampoo, Hair Lotion, Colors, Jam, Chocolate super Glue, Liquid & Paste etc,Overload protection in ultrasonic system and welding time can be adjusted up to .01sec which convert into more precise welding result.

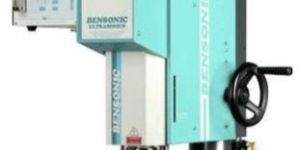

Axess has developed EW series machines in India with brand name AXESS with the help of Bensonic. Components are all same which used in Bensonic machine even Converter Booster assembly is supplied by Bensonic.

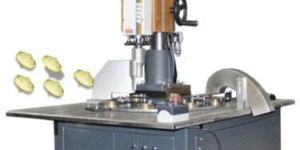

This machine is specially developed by AXESS for whom their production rate is very high but they wants to save labor and time.This machine’s rotary system is very robust combination of mechanical Index System, Motor and reducing gear box.Machine can be designed with desired station and desired wattage Ultrasonic system as per customer requirement.   Key features: * Variable speed* Auto ejection* Choice of station 4, 8 or 16* Stroke length 75mm or can be customize (25mm~100mm) ultrasonic system as per requirement.

Availability : 300 Kg (Approx)

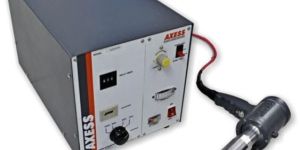

Hand operated system generally used where access to the part is difficult, hard to reach or for large applications. Ideal for welding fabrics made of chemical synthetic fibers, thermoplastic sheets, ribbons and pp sheets etc. for precise, safety and perfect packing.   Applications   Automobile bumper riveting Single point screw inserting Single welding Packing strapping welding   Special Features:    Hand Gun welding handle New digital anti-interference time control circuit The newest ON BOARD modules avoid interference ultrasonic generator (ECO3005H). The economic and the best function ECO series. Economic and power full operation (AW2013H)

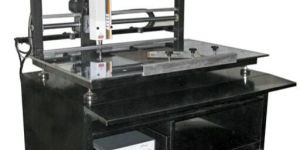

This machine is specially developed by Axess for encapsulating the old historic or important documents.Specially for used to secure historic document by National museum.By this machine one important document can be protected in a polyester film top and bottom which can be sealed all 4 side by Ultrasonic.

Availability : 400 Kg (Approx)

This machine is specially designed to weld the AC blower for split ac or other kind of blower. ** Manually put the bottom piece and the fan pipes, press the START buttons, it will stroke down for welding and complete the welding process according to the set section quantity. ** After completeion of welding, the finished fan pipe will be lifted up automatically for manual taking out. Features: Lifting Mechanism : Provides with heavy duty blinear guide rail, the clearance can be adjusted almost to 0, to move the cylinder down, oscillation by ultrasonic wave without deflection. Descending Speed: Provided with sensitive rotary knob for easy control of the piston descending speed. Horizontal adjustment: Provided with ball vibration device, fine thread horizontal micro adjustment, horizontality can be precisely controlled.

Availability : 350 Kg (approx)

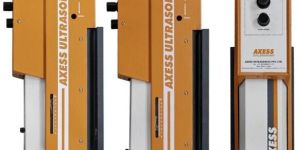

These actuators can be used in different-different application like:It can be used on some on line machine which does not have enough space, It can be used in multi head SPM machine like PP corrugated box welding machine, continuous welding section on BOPP pouch making machine. Generator for these system can be kept at a sufficient distance. Type A: Can use for 1500WType B: Can use for 2500W and 2800WStroke length 75mm or can be customize (25mm~100mm)

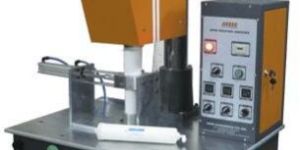

These machines are suitable for automotive filters, RO water purifier filter, water jug and Round Work pieces. Spin welding is a process that joins circular thermoplastic parts by bringing the part interfaces together, under pressure, with a circular, spinning motion. One part is held stationary in a fixture, while the other is rotated against it under pressure. The frictional heat that is generated causes the part interfaces to melt and fuse together, creating a strong, hermetic seal.

Availability : 415 Kg (Approx)

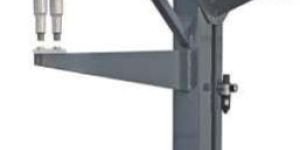

  This machine is specially developed by Axess for manufacturing the PP Corrugated box. This machine can weld one or two welding spot together which make it production friendly. Axess can design frame of the machine as per customer specification like Multi Head fixed or movable.

This machine is specially developed by Axess for manufacturing the PP Corrugated box. This machine can weld one or two welding spot together which make it production friendly. Axess can design frame of the machine as per customer specification like Multi Head fixed or movable. New frame developed by Axess are very robust and user friendly. Ultrasonic system used in these machines already proven. All components used in these system are international class.

Features: Chines/English touch screen interface operation. Track ultrasonic frequency automatically. Time Welding Mode. Constant energy welding mode. Constant power welding mode. Welding quality control. Welding data management/storage. Constant distance(Relative and absolute position) welding mode. Nodal support boostermade of Ti-Aluminium alloy.

This indigenous machine you can weld two plastic part without heat and adhesive by ultrasonic vibration.

Brand Name : Axess

Country of Origin : 220

Frequency : 20

Power : 1500w

After-Sales Service Provided : Axess Ultrasonics Pvt. Ltd.

Country of Origin : Ghaziabad,India

suitable for automotive side indicator, rear lamp, battery, coolant tank of auto vehicle, washer rotator of balancer ring, pallet and big size none regulation of plastic products. hot plate welding utilizes a temperature controlled heat platen assembly, which is introduced between the two parts to be assembled. All items are brought together, and the melting cycle is started. Both halves of the holding fixtures are brought together against stops for the proper amount of seal time and seal depth.   features:   distance adjustable for upper and lower plate. fastest changeable mold.

We make use of suitable packaging material to deliver the product safely and in the stipulated time span. As we are recognized as a dependable name in 110092(India), we are capable of reaching any nook and corner with ease.

Features:   Swiss DHG digital ultrasonic generator. 7 inch colorful touch screen chinese/English operation. Automatically search ultrasonic frequency and 60%~100% amplitude adjustment. Time Welding Mode. Constant distance(Relative and absolute position) welding mode. Constant energy welding mode. Constant power welding mode. Welding quality control. Ultrasonic parameter data management, each data can be saved with USB flash drive. Nodal support boostermade of hard Ti-Aluminium alloy. Postpone start option Shake function Rectangular machinery pillar, strong precise track. Periodic amplitude control and periodic welding pressure (option).

We are offering plastic joining machines. Ultrasonic plastic welding machine spin plastic welding machine hot-plate plastic welding machine ultrasonic tube sealing machine ultrasonic hand gun pp corrugated box welding machine ac blower ultrasonic welding machine tools (horn & fixture)

Brand Name : Axess and Bensonic
