Bright Polymers Delhi

Our Standard “BRIPOL” contains 6 pieces of BRIPOL SEALANT (Self amalgamating, Self Fusing BUTYL-EPR Tape) and 3 pieces of PVC Electrical Tape. BRIPOL SEALANT makes an effective water tight weather shield around Coaxial Connectors and Cables ensuring moisture proof connection & long Cable life. It is hand moldable putty like material in tape form with removable release liner. It is self fusing, self amalgamating, non-drying, non-contaminating, non-conductive & anti-corrosive. It also dampens vibrations thus prevents loosening of Connectors at jumper cable interface and ensures long cable life. IMPORTANT TIPS: Don’t stretch BRIPOL SEALANT Tape. Apply only enough tension to provide a tight and smooth wrap When wrapping overlap the tape to half width Don’t pull the tape to tear it. Always cut it with Scissors only Press the tape against the connector body and cable with thumb and fingers to remove any gaps and to ensure that all the wraps fuse together to form one sheath around the connector Store BRIPOL SEALANT TAPE at temperature between - 25°C to 40°C, away from heat, water, moisture and direct Sun light Shelf Life of BRIPOL SEALANT is 12 months

Material : PVC Electrical Tape

Application : Coaxial Connectors And Cables

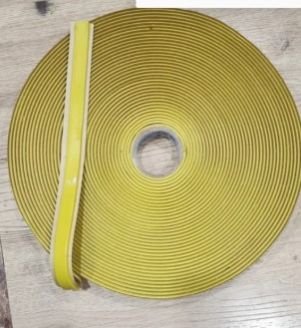

BRIPOL-200Y is yellow coloued Sealant Tape specially formulated for use in Wind Energy and Aerospace Industry for composite manufacturing by Vacuum Bag Resin Transfer Moulding Process (VBRTM) It is compatible with wide variety of film types and mould materials. After cure cycle it strips cleanly from mould surfaces without leaving any residue.

Brand Name : Bright Polymers

Material : Plastic

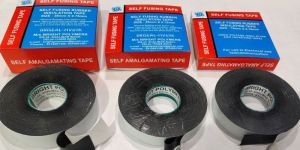

BRISEAL-HV69K is highly conformable, non-vulcanizing, non-drying, self fusing; EPR based SELF AMALGAMATING & SELF FUSING TAPE. It has excellent electrical & physical properties. It can be used for insulation of High Voltage power cables upto 34,000 Volts (34KV). BRISEAL maintains very tight & void free insulation which is resistant to moisture penetration and thus ensure electrical stability. BRISEAL also dampens vibrations thus prevents loosening of cable joints and ensure longer cable life. BRISEAL can be applied in stretched or un-stretched conditions without any loss of electrical properties. Features: Self Fusing and Self Amalgamating primary insulating Tape rated through 34 KV Excellent Electrical and Physical Properties Excellent Thermal Stability over wide temperature range Excellent Moisture Resistant and Corrosion Resistant Excellent Weather Resistant and Vibration Dampner Excellent Ozone, UV and Corona Resistant Compatible with all solid dielectric Cables of HDPE, LDPE, XLP, PVC, Butyl Rubber etc. Designed to insulate Splices & Terminate Cables whose emergency overload temperatures can reach upto 130°C. Suitable for Indoor as well as Outdoor Applications Easy Application and Long Shelf Life

Number Of Flower : Self Amalgamating

Material : EPR (Ethylene Propylene Rubber)

Application : Up To 34,000 Volts (34KV)

Feature : Long Shelf Life

PVC INSULATION TAPES are also used in Telecom Industry for wrapping around the Connector. It protect the connector from Dust and Insects. We also deal in PVC Insulation of good quality. Available Colors are Black, Red, Blue and Green. Length available is 7 Meters to 25 Meters.

Material : PVC

Application : Insulation, Wrapping Around Connectors
