Chugh Brothers Private LImited Janakpuri, Delhi

Application : Conveyors

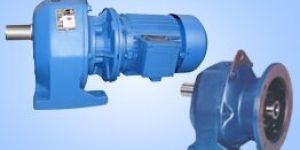

We are offering pbl also manufactures state-of-the-art helical geared motors, motor mount reducers and inline gear reducers with solid and hollow input shafts, under the license agreement with a renowned japanese manufacturer seiki kogyosho limited (skk) (now taken over by sumitomo heavy industries). footflange mounted geared motors, solid input shaft inline gear reducers and motor mount reducers with hollow input shaft are available in the range of 0.4 kw to 11.0 kw and having ratio from 5:1 to 200:1. the units are suitable to accommodate “iec” frame 3-phase, 4 pole ac induction motors.

Country of Origin : Made in India

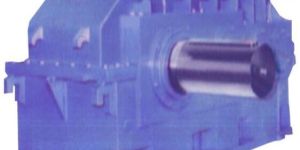

Bevel Helical Gearbox consists of case hardened and profile ground steel gears, along with inclined tooth, that is used to transmit the torque between parallel/right angle shafts, causing minimum noise. RANGE: Power range : Upto 5500 KW. Reduction ratio range : Upto 650/1 Some of the major Characteristics of Bevel Helical Gearbox are: Bevel Helical Gearbox consists of case hardened and profile ground steel gears, along with inclined tooth, that is used to transmit the torque between parallel/right angle shafts, causing minimum noise. Major industries covered are as follows : Sugar Cement Paper Solvent Extraction Rubber Steel Industry Power Plants Mines and Minerals Chemical Agitators Crushers Cranes Larger Ball Mills Aerators Fin Cooler Drives Kneaders Thickeners Sizes available are : 80mm-710 mm centre distance Some of the major applications of Bevel Helical Gearboxes are as follows: Agitators Conveyors Crushers Cranes Larger Ball Mills Mixers Aerators Fin Cooler Drives Kneaders Thickeners

We are offering series m inline geared motors and reducers provide a very efficient and compact drive solution to meet most requirements upto 90kw with maximum output torque capacity 11,000 nm.units are available with ratios coverage of 1.4:1 to 70:1 in double reduction, upto 250:1 in triple reduction and upto 16200:1 in combined units.

We offer F In-line Shaft Mounted Geared Motors. Series F in-line shaft mounted geared motors offer ratios from 5:1 to 100:1 in double reduction form and in combined units form upto 20,000:1.Motors are available upto 45 kw giving a maximum output torque of 7200Nm.The series F geared motors are primarily designed as a shaft mounted unit incorporating an integral torque reaction bracket. The units are also available with bolt-on feet or output flanges and output shafts of single and double extension. All variants are available either motorized or with output shaft assembly.

Display Type : Digital

Automation Grade : Automatic

Material : Mild Steel

Phase : Three Phase

Country of Origin : 24 VDC

Material : Cast Iron

Country of Origin : Made in India

We are offering pbl motor mount gearboxes are available with hollow input shaft and flange to suit standard b5 construction motor as per iec frames. Hollow input shaft and output shaft are co-axial.

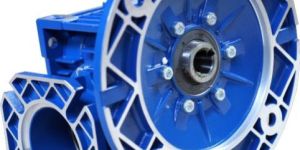

We are offering helical worm geared motors. Series c right angle helical worm geared motors and reducers provide a highly efficient and compact solution to meet most requirements upto 45 kw with maximum output torque capacity of 10,000 nm. units are available with ratios coverage of 8:1 to 250:1 in double reduction, upto 900:1 in triple reduction and upto 16000:1 in combined units.

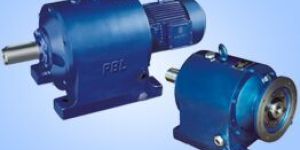

We are offering helical inline geared motor. Pbl ‘p’ series helical gearbox and electric motor are built as one unit to give coaxial and compact constructions. helical gear reducers have co-axial input and output shaft that can be driven by any prime mover. gearboxes can be supplied with input shaft for connecting to prime mover. motor mount gearboxes ensures easy fitment of any make of motors with b5 mounting as per iec frame. these are available in 2 & 3 reductions and in 4, 5, & 6 reductions for extremely low output speeds. these are available in foot, flange, foot-cum-flange and agitator type constructihon

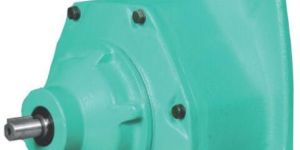

We are offering helical inline gear reducer. Pbl helical inline gear reducers have co-axial input and output shafts and an input shaft that can be driven by any prime mover. Helical inline gear reducers are available in foot, flange, foot cum flange and hub type construction.

We are offering series k right angle drive helical bevel geared motors offer ratios from 8:1 to 160:1 in three stages or upto 10000:1 in five stages . motors are available upto 90kw and output torque capacity upto 12,300 nm.the series k geared motor is designed with integral cast feet base or end mounting and can be offered with single or double extended output shafts. units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. the units can also be offered with a bolt on torque reaction bracket and all variants are available either motorized or with an input shaft assembly.

Orientation : Horizontal

Power : 5500 Kw

Material : Mild Steel

Frequency : 50 Hz

Country of Origin : 315 V

Country of Origin : Made in India

Country of Origin : 380 V

Country of Origin : Made in India

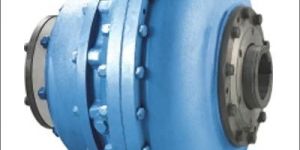

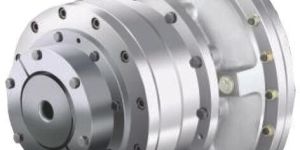

Fluid Coupling transmits power through hydraulic fluid/water, using fluid/water as a medium. Fluid Coupling has no mechanical connection between the input and the output it generates.   Some of its major characteristics:   Smooth jerk, less power transmission; Fluid Coupling is suitable for both fixed speed & variable speed applications; You will rarely find this technology with any of the companies in the world; Heavy industries use Fluid Coupling as a power saving device.   Some of its major applications:   Conveyors Crushers Pumps Ring Granulator Ball Mills Mixers Centrifuges Pumps ID Fans FD Fan PA Fan Boiler Feed Pump and other industrial drives.   Industries where it is suitable to be applied:   Cement & Aggregates Chemicals Food Beverage & Tobacco Material Handling Metal Processing Mining Oil & Gas Others.

Material : Mild Steel

Gear Type : Helical

Orientation : Horizontal

Country of Origin : Made in India

Country of Origin : 415 V

Frequency : 50 Hz

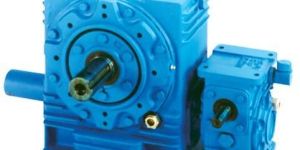

Gear Type : WORM

Packaging Type : BOX

Brand Name : ELECON

Mounting : Foot, Flange

Country of Origin : 240 V

Gear Type : Helical

Packaging Type : box

The altra worm gear box is a well defined gearbox which is having the below benefits: RANGE: Major Applications: From 0.06 KW upto 7.5 KW. Ratio range from 7.5/1 upto 100/1 Conveyors Packaging Loading Automation

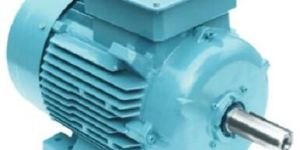

Brand Name : ABB

Power : 0.37 Kw to 200 Kw

Speed : RPM =1500 ( 4 pole), 1000 (6pole), 750 (8 pole)
