CISCHEM SOLUTIONS LLP Okhla, Delhi

  • worm reduction gears

    worm reduction gears

    Request for Price

    Worm speed reduction gear unit is the result of more than thirty years of continuous efforts in development and refinement .

    ...more
    Get Best Price
  • Water Pumps

    Water Pumps

    Request for Price

    Design: Water Pumps is Horizontal, radial split, volute casing pumps according to DIN 24255 std. with closed impeller, end suction, top centre line discharge. Back pull out design enables to remove the rotor without disturbing the pipelinesApplication: Water Pumps for handling clean or slightly turbid non-aggressive liquids. Water Pumps span is Suitable for pumping condensate, general water supply in agriculture, trade, and industries with favourable NPSH condition. Materials: Outer Casing : CI (FG260) & WCB Inner Casing : Ni-hard-IV and Ni-HiCr with 550BHN

    Discharge Outlet Size : : DN 32 to 150 mm

    ...more
    Get Best Price
  • Vertical Pumps

    Vertical Pumps

    Request for Price

    Design: Vertical suspended pumpswith closed and open impellers, for wet pit or dry pit applications, wear resistant design, overhung impellers upto 2 metres submersion depth, intermediate bush bearing support for submersion depth over 2 metres. Self-priming, simple mountingApplication: Recommended where space economy matters Vertical pumps are reliable alternatives to horizontal pumps Vertical pumps are suitable for clear liquids, acids, alkalis, hydrocarbons, slurries, waste water, sugar melts, detergents etc Materials: Vertical pumps are made up of graded cast iron /Ni-hard-IV/WCB/CF8/CF8M (SS-316)/317/317L/CD4MCU/Alloy - 20/Hastalloy - B/ Hastalloy - C etc..

    ...more
    Get Best Price
  • Slurry Pumps

    Slurry Pumps

    Request for Price

    Design: Slurry Pumps are designed armoured centrifugal pumps, heavy duty, single stage with axial inlet, and overhung mounted impeller. Slurry Pumps has TWIN casings i.e. outer and inner. Outer casing is in CI/Carbon Steel to withstand the required hydrostatic pressure and inner casing in special Ni-hard materials to take only the entire wear. In case of replacement, the inner casing alone with set of wear plates need to be replaced. Application: Slurry Pumps used to handle particularly liquids containing abrasive and coarse grained solids such as magnetite pulp, ferro silicon pulp, coal slurries, floatation tailings, out size material middling, sand water mixtures, coarse grained material in mining cocking plouts, ash slurry in thermal power stations, iron ore in beneficiation plants etc. Materials: Outer Casing : CI (FG260) & WCB Inner Casing : Ni-hard-IV and Ni-HiCr with 550BHN

    ...more
    Get Best Price
  • side channel pumps

    side channel pumps

    Request for Price

    Design: Channel Pumps are designed segmental type, horizontal side channel self-priming pumps equipped with unshrouded, vaned wheel impellers. Main objective of the design is for low discharge under high heads with reduced noise. Castings are manufactured by investment casting method. Application: Side Channel Pumps used when liquids and condensates without abrasive matter are to be handled trouble free under high heads. These Side Channel Pumps, also used to handle gas during normal liquid duty, are of noiseless operation, in industries running boilers for the handling of condensate and boiler feed water. Side Channel Pumps used for the construction of washing, cleaning, and spraying plants, and for the construction of fire-extinguishing equipment. Materials: Side Channel Pumps are made by WCB and CF8M (SS-316)

    ...more
    Get Best Price
  • Paper Stock Pumps

    Paper Stock Pumps

    Request for Price

    Design: Heavy duty, horizontal, centrifugal, back pull out design, according to DIN 24256. Open impellers are provided with renewable front wear plate and closed impellers with wear-ring. Simple external axial adjustment for impeller wear. Application:  Paper Stock Pumps are designed for handling paper stocks and pulps upto 7% consistency Paper Stock Pumps also suitable for heavily contaminated liquids, raw sewage, roughly screened sewage, fresh, digested and activated sludge from clarification plants, and sludge water from gravel and clay pits, settling tanks The wide passages in the suction zone of the impeller with less number of vanes and non-clogging design helps to handle stocks easily.  Materials: Paper Stock Pumps are made by Graded cast iron / WCB/CF8/CF8M (SS-316)/317/317L/CD4MCU/Alloy - 20/Hastalloy - B/ Hastalloy - C etc.

    Delivery Size : : DN 80 to 350 mm

    ...more
    Get Best Price
  • mixed flow pumps

    mixed flow pumps

    Request for Price

    Design: Flow Pumps are Horizontal, single stage, volute casing pumps with discharge branch arranged tangentially upwards/horizontal, flanged to a bearing pedestal. The Flow Pumps is normally provided with open impeller. Application: MFlow Pumps are used for Pumping of clean, turbid or slightly contaminated liquids against medium and low heads in water works, sewage works, for irrigation and drainage, dewatering, pumping sea water and sugar industry, for spray pond/injection water applications. Flow Pumps are suitable as coolant pumps in power stations and steel works pumping low concentration cellulose suspensions. Materials: Flow Pumps are made by Graded cast iron, Bronze and CF8M (SS-316).

    ...more
    Get Best Price
  • medium consistency pumps

    medium consistency pumps

    Request for Price

    Design: Medium Consistency Pumps - Horizontal, centrifugal, single stage pump with open impeller along with fluidiser, which ensures efficient fibre separation. Sturdy and vibration-free casing mounting to the base. Medium Consistency Pumps are suitable for variable speed control. The efficiency of the other process equipment following this pump improves since air in stock is removed already in the pump. Suitable for single or double mechanical seal. Reliable direct drive. Easy maintenance. Application: Medium Consistency Pumps are designed for reliable pumping of stock from 8% to 18% consistency. Materials: Medium Consistency Pumps are made by graded cast iron//WCB/CF8/CF8M (SS-316)/317/317L/CD4MCU/Alloy - 20/Hastalloy - B/ Hastalloy - C etc.

    ...more
    Get Best Price

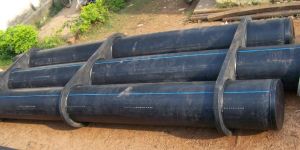

  • Hdpe Pipes and Fittings

    Hdpe Pipes and Fittings

    Request for Price

      Application of HDPE Pipes. WATER SUPPLY Raw/filtered water rising/gravity mains with distribution network. Demineralized water lines. Lift irrigation & siphon irrigation. Cooling/Chilled water circulation lines. Temporary construction water lines schemes for draught relief and flood relief. Agriculture applications like farm irrigation under ground or above ground piping network, sprinkler system, drip systems. Suction & delivery for jet pumps, submersible and centrifugal pumps. CHEMICAL AND EDIBLE TRANSPORT Acids/ alkalies (diluted or concentrated) like sulphuric acid, phosphoric acid, hydrochloric acid, fluoric acid, aromatic acid, caustic soda conveyance (pH 0 to 14). Edible oils, juices, pulp, salts, alcohol/beer. SLURRY TRANSPORTATION Hydro transportation of solids like sand slurry, iron/tin ore slurry, iron ore tailing slurry, coal slurry, cement slurry, fly ash and boiler ash as slurry. Conveyance of Mud/Sand slurry for Dredging Applications. EFFLUENT COLLECTION AND DISPOSAL SYSTEM Effluents Industrial pollution for safe disposal of chemicals in the sea. SUBMARINE AND UNDERWATER PIPELINE Submarine and underwater pipeline for carrying potable water/effluent disposal in to the sea GAS DISRIBUTION Natural gas, bio gas, sewage gas, etc DUST SUPRESSION SYSTEMS Dust suppression system for haul road, mineral loading platform, mineral handling plant, stock piles.. Top    Salient features of HDPE Pipes Light WeightThe inherent light weight of HDPE pipes provides many cost saving benefits related to handling, storage, hauling , joining and installation. Tough & StrongHDPE pipes are strong as well as resilient to withstand both internal pressure as well as external loads (soil/traffic). Excellent even during water hammer condition to absorb surge pressure as well as thermal stresses. FlexibilityExtremely flexible and coilable pipes available in continuous lengths of 50 mtrs. Up to 300 mtrs. In coil length for sizes 16 mm to 110mm OD. Pipes can be laid on undulating lands with maximum radius of curvature/bending up to 25 times of diameter (OD). Quick and Easy Jointing.The butt welding jointing technique provides absolutely leak-proof joint . Being available in coils up to a certain diameter, the quick and easy installation is possible.   Smooth internal SurfaceBy virtue of being extremely smooth oth internal surface it offers considerably low frictional resistance ance to the flowing medium C factor for HDPE pipes is minimum150 and remains constant all throughout its anticipated life. Resistance to Chemicals Totally inert to chemicals from ph-O-14 for almost all fluids (acid/alkali) thereby making it compatible to use even in the most hostile environmental conditions. Wear and Abrasion Resistance.HDPE pipes have excellent resistance to wear/abrasion. HDPE pipes have replaced conventional pipes in slurry-transport systems with excellent performance in flowing even with highly abrasive slurries like iron ore, sand, fly ash etc. Wide range of ChoiceHDPE pipes available in sizes from 16mm OD to 710 mm OD and are available in 2.5 kg/cm2 to 16b kg /cm2 pressure classes providing a wide option to the designer for optimization of cost. Other salient features of HDPE piping system over other systems includes no cathodic protection, very less maintenance, easy repair & cleaning if required, availability of wide range of fittings and provision for jointing with other piping systems etc. Top    Product Details

    ...more
    Get Best Price

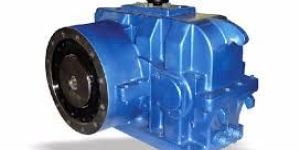

  • elecon gear box

    elecon gear box

    Request for Price

    Elecon Gear Division Quality Management System confirms to the internationally accepted ISO 9001 standards. This certificate covers Quality Assurance in Design and Development, Production, Installation and Service of mechanical transmission products like Worm, Helical and special gear units, Fluid , Geared and Flexible couplings and Accessories.

    ...more
    Get Best Price
  • Chemical Process Pumps

    Chemical Process Pumps

    Request for Price

    Design: Chemical process Pumps-Horizontal, radial split, volute casing pumps according to DIN 24256 with closed impeller, end suction, top centre line discharge. Back pull out design enables to remove the rotor without disturbing the pipelines. If a spacer coupling is used, the motor does not have to be removed from the base plate. Only four bearing beds cover the entire 32 models. This means that the shafts, sleeves, bearings, and bearing beds are identical in and interchangeable for a large number of pump sizes. Application: Chemical process Pumps is Chemical, Petrochemical, refineries, paper, and sugar industries. Chemical process Pumps is Suitable for hydrocarbons, acids, aggressive products, inorganic and organic chemicals. Materials: Chemical process Pumps are made by Graded cast iron / WCB/CF8/CF8M (SS-316)/317/317L/CD4MCU/Alloy - 20/Hastalloy - B/ Hastalloy - C etc..

    ...more
    Get Best Price
  • AXIAL SPLIT VOLUTE CASE PUMP

    AXIAL SPLIT VOLUTE CASE PUMP

    Request for Price

    Design: Axial Split Volute Case Pumps-Horizontal, axially split single stage, inline design volute casing pumps with double suction, radial impeller according to API - 610 7th edition. Application: This process and transfer of Axial Split Volute Case Pumps has been developed for the most exacting conditions and can be used for a multitude of operations such as for pumping crude oil, oil and liquid hydrocarbons, furthermore for pumping cooling water, hot water, river water, brackish water as well as sea water, and also acids and alkalis. This type of Axial Split Volute Case Pumps can also be used for loading in tank farms and as fire water pumps in fire fighting systems. Materials: Axial Split Volute Case Pumps made up of graded cast iron / WCB/CF8/CF8M (SS-316)/317/317L/CD4MCU/Alloy - 20/Hastalloy - B/ Hastalloy - C, and material combination as per API - 610.

    ...more
    Get Best Price

Be first to Rate

Rate This

Select the service for which you are writing review for this business

How would you rate the business?

What would you like other to know about this business, based on your experience?

Minimum 20 characters!

About the Company

  • Primary Business Retailer
  • Secondary Business Type Manufacturer / Exporters / Wholesale Suppliers

Opening Hours

  • SUN : Closed
  • MON : 9:30 AM - 6:30 PM
  • TUE : 9:30 AM - 6:30 PM
  • WED : 9:30 AM - 6:30 PM
  • THU : 9:30 AM - 6:30 PM
  • FRI : 9:30 AM - 6:30 PM
  • SAT : 9:30 AM - 6:30 PM
We are a leading Business House in Industrial Products since 1992 based at Bhubaneswar, Odisha
We are dealing in Industrial products like HDPE Pipes, Industrial Pumps, Valves, Gear Boxes. We are Channel Partners for various MNC’s and reputed companies.
We are also dealing in Industrial Plastics & Plastic Engineering Products as per Client drawings.
We take up Turnkey jobs of Plastic pipelines, Floating Pipelines, Dredging Pipelines, In plant Piping, Cross Country pipelines & Raw water intake lines.
We also take up Turnkey projects for HDPE Geomembrane, Geonet & etc. for Reservoirs, Ash Ponds, Chemical Ponds & etc.
