Electric Cable Making Machine Dealers in Delhi

we are counted among the overruling core laying up machine exporters based in india. our heavy duty laying machine is manufactured using advanced manufacturing practices that assure the high speed and efficiency. applications our core laying machines are economical& effective solution for cabling & abc core laying, rubber/ pvc insulated core laying or xlp cables core laying with filters. main features easy to load and unload high capstan radius to protect cable insulation from surface cracking caused by bending. gear box enables machine rotation in both directions (clockwise/ anti clock wise) to make various cage speed.

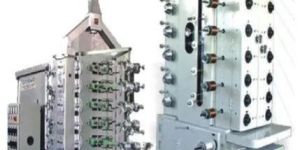

This machine is for medium and fine  copper round wire. Machine specifications Wire gauge -               25 to 36 swg and 25 to 38 swg.   No of lines -       12,16,18,20,22,24   16% low electricity consumption compare to old ratlam model Save up to 1500 to 2500 unit / per month.   8% more production capacity compare to old ratlam model Get extra 1000 to 1500kg product capacity / per month.    #At the same price of old ratlam model   Min to max production capacity -    35swg, 350kg to 700kg  for copper round wire    Electricity consumption :- 30kw to 60kw                  Muskan Engineering Works” is a distinguished Manufacturerof a wide range of Enameling Machine, Wire Drawing Machines and Wire Annealing Machine. Founded in the year 1995, we are a Sole Proprietorship company that is incepted with an objective of providing high quality products in diverse specifications within scheduled time period. Situated in Delhi (India), we manufacture the products in accordance with set industry norms. Under the headship of “Mr. Amrit Lal” (Propeitor), we have gained huge clientele in our country.   #We customized machine as per client requirements.

We offer Stranding Armouring Machine is used for armoring of xlpe ht & power cables, control, special instrumentation, power cables etc. we manufacture the best cable stranding armouring machine which is of optimal quality. our machines are equipped with all the latest features and are just according to the latest trends and needs. we use one of the best equipments to manufacture the machines so that there is no compromise in the quality standards. we supply our products at competitive prices as well. because of our quality standards and prices, we have made a position as a top armouring machine exporter in india. application of use : this machine is used for armoring of xlpe ht & power cable, control, special instrumentation, power cables, etc. main features : without back twist for gi strip armour carriage cradles will be of rectangular shaped fabricated fastened between discs supported on bearings at both ends between discs. discs are fitted on hollow shaft tube with under roller or without under roller carriage with heavy duty pedestal bearing to support the carriage.each bobbin is held between epistles with suitable interlock for pointles. individual wires constant tension can be controlled through mechanically or electronically brake tension.heavy-duty enclosed gear box or external gearbox at the rear end of each carriages having provision driving the carriages in anti-clockwise or clockwise direction.single capstan with fleet ring or haul off caterpillar for constant pull and lay, pneumatic/ hydraulic braking system for each carriage. synchronizations can be done through line shaft or with fully automation conrrl of the whole line through digital drives & standard make.

Backed by a team of experts, we are presenting our valuable clients a broad array of Enameling Machines. Our product range is fabricated in our well equipped manufacturing unit under the inspection of our professionals ensuring quality machines for our clients. Clients can avail these machines at reasonable rates.

We are offering core laying up machine. The machine is used for cabling the multi core ( 3-7 ), pvc cables, xlpe cables with or without steel armouring. Sarvasv industrial corporation main features machine may strand the round cables with back twist and sector cables without back twist line drive by a.c. d.c motors with electronic or mechanical synchronization between line components. facilitated with sector correction with or without back twist arrangement main shaft is supported with roller bearings for easy maintenance. mmi and plc equipped, optional easy lay setting rigid, sun & planetary types

We are reckoned amongst the trusted Manufacturers, Exporters and Suppliers of Haul Off Caterpillar in Delhi, India. The Haul Off Caterpillars that we deal in are available in Pneumatic pressure, cable pulling by Pneumatic (jack) cylinders. Haul Off Caterpillar Controlled with solenoid valves to ensure light pressure on cable due to pulling operations. The sturdy and close roller assembly is supported to full cable gripping length due to passing cutoff cable from pneumatic force. In Haul Off Caterpillar, three speed transmission is control slows fast line speed & stop wire by passing due to pulling operations in bigger diameter cables. Both sides end rollers of Haul-Off Caterpillars support the cable in straightway of running. Highlights Compact structureExcellent performanceReliable operationCost-effective

We are a renowned Manufacturer, Supplier and Exporter of Cable Twisting Machine. The Stranding Cable Twisting Machine available with us is used to prepare multiple strands conductor for various sizes of cables. We make Cable Twisting Machine available in different designs and models, all of which vary in specifications like the number of spools and sizes of the spools. Cable Twisting Machine consists of a round cage with cradles, which help in holding the spools. This cage can be rotated in clockwise and anti clockwise direction with the gear box. We also manufacture these Cable Twisting Machines using mild steel.

Our organization is counted amongst the distinguished names engaged in offering a broad range of Haul-Off Caterpillar. Clients appreciate our range for features like durability, quality and high performance. Fabricated from superior grade raw material, these products are available at industry leading prices.

We are offering core laying machine the armouring cum core laying machine offered by us provides laying of different cores of power cables. Therefore, we provide it in various sizes according to the varied cable sizes. Our armouring cum laying machine is user friendly and can be loaded and unloaded easily. The gearboxes we install in our machines enable the machine to rotate in both clockwise and anticlockwise direction, for various cage speeds. Our machine also consists of an adjustable die holder system which is capable of adopting a hollow die according to the size of the cable. Due to such advanced features in our machinery, we have gained the position of one of the leading armouring cum core laying machine manufacturers. 30 bobbin stranding machine (clockwise anti clockwise) we offer stranding clockwise anti clockwise machine, which is used to prepare multi stands conductor for different sizes of cables. These machine are available in different models depending on the number of cradles that helps in holding the spools. The cage rotates in both the clockwise anti clockwise direction together with it's gear box. The direction is easily changeable with the help of a lever that is provided in the gear box. The machine offered by us possesses has a dia holder head that keeps the shape and sequence correctly. This machine is very easy to operate and maintain.

Take up and pay off  High performance fully automatic Payoff/Take Up stand for small wires and specially designed for high speed extrusion lines. Special features Heavy Frames. Easy to operate and control. Suitable for Higher production. AC/DC motors with drives. Pintle opening and closing by Phneumatic cylinders. Smooth auto traversing. Available in single or double spool winding arrangement.

we are the highly acknowledged manufacturer and exporter of pvc wire and cable machinery, which is the prime manufacturing product of our company. traits : the output specified is on approximate basismade from special alloy steelnitride and honed designed for bearing the pressure of maximum barspiral grooved barrel forced feedingincrease outputguaranteed remarkable stabilitylinearity over the entire speed rangewe can get the 30% to 35% extra on the grooved screw and barrel.semi automatic plant is only with the helical gearbox and ac drives.fully automatic plants included with plc systems, automatic material loading systems, drives synchronizations and many other automatic features.also deals in complete turnkey projects hqes : extruders up to 150mm screw diameter applications at : telephonepowerinstrumentationcontrolbuilding cables etc

Heavy Duty crimped wire mesh are mostly used in construction industries, cement industry, petroleum, minerals, pharmaceuticals, chemical industries, rubber industries, automobile industries, Industrial uses - filtering, sizing, grading, separating, shifting, Domestic uses- grid window, verandas, partitions, counter shelves, rack, lift, cages, guards, trays, and many more. Of all the Crimped Wire Mesh Manufacturers in India, we are the most sought after in the domain.

We are a credible name to offer Core Laying Machine that has fetched high demands for its long lasting life. Easy to load and unload, it is widely acknowledged among our clients. The high capstan radius helps protecting the cable insulation. Known for its fine finish and anti-corrosive properties, the entire range of the core laying machines offered by us is highly popular in the market.

As a dependable Supplier from Delhi(India), we ensure that our customers obtain only quality assured products. Be it online or cash deposit, the financial operations are carried out only under the stern management, supervision of professionals. To make our payment procedures highly secured, we make use of the leading technologies to avoid any fraud.
