Melting Furnaces Dealers in Subzi Mandi, Delhi

• Power: 1500 W
• Material: GOLD,SILVER,COPPER
• Weight: 5 KG
• Material Loading Capacity: 500 GRAM

Heidulf,we are the leading manufacturer & distributor of standard & custom furnaces including gold & silver melting furnaces.furnaces are available in batch or continuous processing with electric heating systems & process control options. Markets served include laboratory, aerospace, heat-treating, foundry, inorganic chemical & specialty metals manufacturing industries. the silver melting furnace that we offer is electric furnaces with "silicon" heating element and automatic control system for silver melting applications ranging from 2 kw to 30 kw capacities. We also design and make silver melting furnaces for specific requirements of the clients.

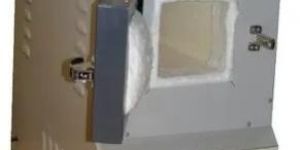

High Temperature Furnace of 1200°C:   Light weight with ceramic fibre wool insulation. The outer casing is made of double walled thick P.C.R.C. sheet, painted with attractive stove enamel. Heating Elements are made of KANTHAL “A-1” wire in coil From placed in the ribs of the tiles, backed by cerwool insulation, which avoids loss of energy. A viewing cap is also provided on the door. Temperature controlled by PID Micro Processor controller dual display with safety alarm an accuracy of ± 3°C or better. To work on 220/230Volts or 400/ 440 Volts A.C. 3 phase supply. Maximum Temp.1200°C working temp.1150°C.     Optional Accessories:   1. Digital timer of 99.59 Hours can also be Provided at an extra cost2. With Direct Printer Port Cable 3. Rates for the above said coil elements with tiles on request.

Double walled chamber with its rust proofing outer wall. Made up of heavy gauge PCRC steel sheet and inner wall of SS 304, the gap in between inner and outer wall filled with mineral glass wool that assures maximum thermal efficiency. Temperature range is 5 degree above ambient to 400 degree C. Dimensions Volume (Ltr) 350 x 350 x 350mm 45 Ltr 450 x 450 x 450mm 95 Ltr 600 x600 x600mm 224 Ltr 600 X900 X600mm 336 Ltr

Ceramic fiber insulated, with chamber made of high density ceramic fiber board. The furnace is heated by heavy duty transformer unit. Control panel is provided with heavy duty controllers like Digital Type Temperature Indicator-cum-Controller. Complete with PT/RT thermocouple. Maximum temperature range is up to 1400 degree Celsius and maximum workingtemperature is 1350 degree Celsius.MUFFLE SIZE :- W x H x D 100x100x225mm 125x125x250mm 150x150x300mm  or 200X200X300 mm

jewellery casting plant, Calorimeter, Metallurgical Polishing Machine

• Voltage: 220/230Volts or 400/ 440 Volts A.C
• Country of Origin: Made in India
• Maximum Temp: 1200°C working temp.1150°C.
• Melting Material: Aluminium
• Power Source: Electric
• Type Of Furnace: Fix

Tilting Furnace, mild steel brass copper, box oven, roller furnace
