Mitco Engineering Works Mangolpuri, Delhi

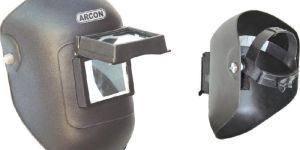

This is used to provide protection to the eyes, ears, face, neck and part of top of the head of the user during welding and cutting process. It can be worn on head using the ratchet system provided in it. In these helmets, polycarbonate lens is provided instead of glass which ensures greater visibility and longer life.

Model Number : ARC-3065

Brand Name : ARCON

Country of Origin : New Delhi

Used to hold electrode during the welding process. Available in two types: Fully Insulated (A-Type) Semi Insulated (B-Type) Three varieties are available in both these types: Mark-I (600A30%): Suitable for all size of electrode Mark-II (400A30%): Suitable up to 4.0 mm electrode Mark-III (200A30%): Suitable up to 3.15 mm electrode Other than the above, two more special varieties of holders are available: Heavy Duty Holder (used for heavy duty welding) Rubber Grip Screw Type Holder

Number Of Flower : Welding Electrode Holder

Application : Electrode Use

Feature : High Quality

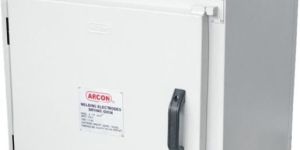

Used to remove dampness from the welding electrodes as moisture in electrode adversely affects quality of welding. In 'arcon' electrode drying ovens, high quality heaters, german thermostats and digital temperature controllers are used to ensure longer life of these ovens. Also high quality insulation is used leading to low heat loss and hence quicker drying of electrode.

Number Of Flower : Welding Electrode Drying Ovens

Application : Welding Electrodes

Availability : 100-200kg

Country of Origin : 220V

Condition : New

Automatic Grade : Semi Automatic

Power : 3-6kw, 500 W To 3 Kw

Driven Type : Electric

Total Carbohydrate : 6 months

Country of Origin : India

Brand Name : ARCON

After-Sales Service Provided : Yes

Used as a medium for supplying power from a welding machine to the work being done. ISI approved. Available in both aluminium and copper conductor in sizes ranging from 16 mm2 to 120 mm2. Both copper and aluminium cables are available in TRS as well as HOFR insulation. Moulding process, used to manufacture these cables, ensures longer life of cable.

Brand Name : ARCON

Conductor Material : Copper & Aluminum

Insulation Material : TRS & HOFR

Country of Origin : New Delhi

This is used specially for TIG Welding. This is available in both 400 amps and 600 amps as per requirement of the customers.

Used in welding of stainless steel. Available in straight lengths of 1 mtr. Or spools weighing 12.5 kgs. Approx. All the straight lengths are embossed with grades. Different grades are available as per requirement of the client: 201 304l er-308l er-309l er-310 316l er-430 er-347

ISI Approved Used to regulate the pressure of gas in cylinder during welding, cutting and heating processes. Made especially from forged brass. In this series, there are two types of regulators: Single Gauge: Showing only inlet pressure Double Gauge: Showing both inlet and outlet pressure Comes with German make 'WIKA' pressure gauges which are highly accurate. MODELS A-10X Single Gauge Oxygen A-1DA Single Gauge DA A-20X Double Gauge Oxygen A-2DA Double Gauge DA A-2AR Double Gauge Argon A-2CO2 Double Gauge CO2 A-2NT Double Gauge Nitrogen A-2HY Double Gauge Hydrogen A-2MOX Double Gauge Medical Oxygen A-2HP+Gas High Pressure Regulator

Used for mild steel welding. Available in straight lengths of 1 mtr. Or spools weighing 13.5 kgs. Approx.

This is used specially for mig welding. This set comprises of three phase - 415v input supply, wire feeder, co2 assembly and mig torch. Following models are available in this: a: rm400: this is suitable for up to 1.2 mm mig wire a: rm600: this is suitable for up to 1.6 mm mig wire

ISI approved Used with LPG gas cylinder especially for industrial purposes. Following models are available: Without Gauge Single Gauge: Showing only inlet pressure Double Gauge: Showing both inlet and outlet pressure

Brand Name : ARCON

Material : Brass

Diaphragms Material : Rubber

Color : Yellow

Condition : New

This is portable welding machine suitable for electrode and tig welding. This is single phase machine and very light in weight. This machine has current capacity of 200 amps and is suitable for welding up to 3.15 mm tig rods and electrode.

Inverter technology is a voltage conversion system which applied to welding makes compact power sources with low energy conversion. This rectifier is suitable for both tig as well as electrode welding. Following are the models available: a: irtte400: this is suitable for up to 4.0 mm electrode and tig rods a: irtte600: this is suitable for up to 5.0 mm electrode and tig rods

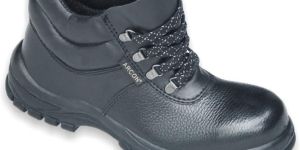

Used to provide protection to the feet of the user. Made of high quality leather with special focus on quality. Comfortable to wear, light weight and highly durable. Various models are available as per requirements of clients: PVC sole safety shoes without foaming PVC sole safety shoes with foaming P.U. Injection safety shoes with split leather upper P.U. Injection safety shoes with chrome leather upper

Brand Name : ARCON

Upper Material : Leather

Outsole Material : P.U.

Country of Origin : New Delhi

Used to provide protection generally while working at higher elevations. Isi approved. 'arcon' safety harness webbing is made of polyester which leads to higher strength of harness and is very comfortable to wear. Following are the models available in safety harness: full body with auto strip lock hook (single rope) full body with snap hook (single rope) full body with scaffold hook (single rope) full body with carabiner hook (single rope) full body with auto strip lock hook (double rope) full body with snap hook (double rope) full body with scaffold hook (double rope) full body with carabiner hook (double rope)

This is suitable specially for electrode welding. Following models are available: a: rte400: this is suitable for up to 4.0 mm electrode a: rte600: this is suitable for up to 5.0 mm electrode

Used to provide current connection between return current cable and work piece. Full size copper braided net is used for maximum flexibility & good conductivity. Very easy to fit cable to the earth clamp.

Used to connect two lengths of flexible cable. Can also be used to connect flexible welding cable to welding machine. Suitable for up to 70 mm2 cable. Handle made of synthetic rubber which ensures greater life. Gunmetal sheet is used to connect welding cable to the connector which is a good conductor of electricity. Hence there is no heating problem.

We provide aluminium tigmig rods and wires with high levels of purity. These are available in straight lengths of 1 mtr. Or spools weighing 7 kgs. Approx. All the straight lengths are embossed with grades. Different grades are available as per requirement of the client: g1b1050: this is pure aluminium (99.97% aluminium) and is used for welding of aluminium and aluminium constructions. Ng214043: this is aluminium alloy with 5% silicon and is used for welding alsi alloy with si content up to 6% ng24047: this is aluminium alloy with 10% silicon. This is high fluidity material with good finish and strong joints. Ng65356: this is aluminium alloy with 5% magnesium and is used for welding of almg alloys for container, automobiles industry and ship building.
