NEXGEN FLUOROPOLYMERS PVT. LTD. Shahzada Bagh, Delhi

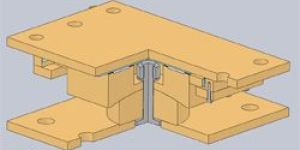

Uplift Restraint bearings:-   Uplift restraint bearings are specially designed to restraint uplift forces in the structure along with all standard features of bearings.

Features :The remarkable properties of polytetrafluoroethylene (PTFE) are well known, notably its low coefficient of friction, non stick surface characteristic, wide working temperature range from -180°C to + 260°C. Excellent weathering resistance and corrosion resistance. Expanded PTFE unsintered tape makes from pure PTFE. It has an expanded network composed of superfine fibers and joints. The combination of flexibility, high longitudinal strength, and easy deforming ability in the transverse direction makes expanded PTFE unsintered tape very suitable for packing and thread sealing applications. But it is not suitable for use in certain critical applications, for example when contact with high concentration of gaseous oxygen or liqud oxygen is involved.

Spherical bearings:-   Spherical Free sliding bearing:- Bears Vertical Load. Allows sliding movement in all directions. Allows Rotation in all direction. Spherical Guided bearing:- Bears Vertical Load Horizontal Load. Allows sliding movement in one direction. Allows Rotation in all direction. Spherical Fixed bearing:- Bears Vertical Load Horizontal Load. Allows Rotation in all direction.

Rocker Cum Sliding Bearings:-   Rocker Cum Free Sliding Bearing:- Bears Vertical Load. Allows sliding movement in all directions. Allows Rotation in one direction. Rocker Cum Guided Bearing:- Bears Vertical Load Horizontal Load. Allows sliding movement in one direction. Allows Rotation in one direction. Rocker Fixed Bearing:- Bears Vertical Load Horizontal Load. Allows Rotation in one direction.

Rocker Cum Roller bearings:-   Rocker Cum Roller bearing:- Bears Vertical Load Horizontal Load. Allows rolling movement in one direction. Allows Rotation in one direction Rocker fixed bearing :- Bears Vertical Load Horizontal Load. Allows Rotation in one direction.

We are one of the finest manufacturers of PTFE Tapes. Expanded PTFE unsintered tape makes from pure PTFE. It has an expanded network composed of superfine fibers and joints. The combination of flexibility, high longitudinal strength, and easy deforming ability in the transverse direction makes expanded PTFE unsintered tape very suitable for packing and thread sealing applications.

PTFE Expanded TapeAvailable with high valued features , functions and benefits.

We are one of the finest manufacturers of PTFE Rods and Tubes. PTFE Extruded Rods & Tubes are manufactured by pre sintered resin. According to different demands, the tubing can be opaque or translucent. PTFE is the most chemical-resistant of all known Plastics. It has the best electrical properties of plastics.

We offer PTFE Products. PTFE Rods, Sheets, Bushes, Tubes, Gaskets, Envelope Gaskets, Gland Packing’s, Mechanical Seals, Bellows, Thin Wall tubes, Diaphragms, Etched sheets, PTFE Fabrics, Ball Valve Seat Rings, V rings, Expanded Tapes, Lined Valves, Lined Pipes, Lined Pipe Fittings and other customized products made as per specific requirements of the customers.

Salient  Features : 100% pure PTFE Excellent sealability and flexibility High recovery of the sheet after use Highly compressible High Resistant to creep and cold flow Unaffected by common chemicals, pH range 0-14 Non-contaminating, non-toxic, asbestos free Meets FDA requirements Service pressure, vacuum to 210 kg/sq.cm (3,000 psi) Service temperature, - 250 to + 250 C, short duration up to + 310 C Easy to cut by blanking, punching, also cutting with sharp blade/ knife Low compressive load to seal Can seal rough or damaged flanges

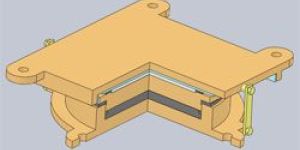

POT Cum PTFE Bearings:-   POT Cum PTFE Free Sliding Bearing:- Bears Vertical Load. Allows sliding movement in all directions. Allows Rotation in all direction.   POT Cum PTFE Guided Bearing:- Bears Vertical Load Horizontal Load. Allows sliding movement in one direction. Allows Rotation in all direction.   POT Fixed Bearing:- Bears Vertical Load Horizontal Load. Allows Rotation in all direction.

Plain Sliding bearings:-   Plain Free sliding bearing:- Bears Vertical Load. Allows sliding movement in all directions. Plain Guided bearing:- Bears Vertical Load Horizontal Load. Allows sliding movement in one direction. Plain Fixed bearing:- Bears Vertical Load Horizontal Load.

Pin Bearings:-   Bears Horizontal Load. Allows Rotation in all direction.

Features :Braided packing is made of different fibers according to different applications. There are packings made of carbon fiber, PTFE fiber, aramid fiber, glass fiber and mixed fiber of aramid and carbon fiber. It offers better lubrication, corrosion resistance, low abrasion and easy to inlay and dismount and it is widely used for pump and valves. Temperature -180°C - +200°C.   Applications :PTFE braided packing is used for the packing of pumps and valves.

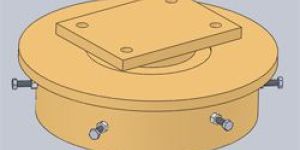

Multi Ball bearings:-   Multi Ball bearings are specially designed to withstand temperature up to 400 Deg C, along with all standard features of bearings.

Features :PTFE moulded sheet is manufactured by moulding method with PTFE granular resin. PTFE is the most chemical resistant of all known plastics. It does not age.It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180°C to + 260°C.

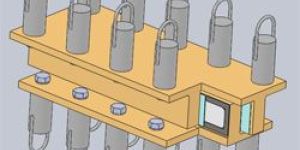

Metallic Guided Bearings:-   Bears Horizontal Load. Allows sliding movement in one direction. Allows Rotation in one direction.

e use latest technology and specialize in the precision machining of PTFE and fluoropolymer materials into complex components for use throughout many markets including chemical, medical, pharmaceutical, aerospace and telecommunications etc.Our state of the art manufacturing facilities including milling, turning centers, multi axis CNC and sliding head machines and CNC lathes offer faster, more precise and cost-effective PTFE machined parts that bring benefits to our customers and have the ability to offer a full service tailored to meet specific customer requirements.Capabilities Prototype to volume Design solutions using CAD cam software Small complex parts Applications include Valve Seats Precision Spindles Automotive components High Precision medical components Semi-conductor components CNC Turning and CNC MillingOur extensive experience in turning and milling offers precision PTFE machining to tight tolerance which results in the highest accuracy and quality parts tailored to individual customer requirements. Prototype and Production- from 1 item to thousands 3D Milling Latest CAD cam connectivity

Steel frame : ASTM A234 grade WPB, in compliance with ANSI B16.28 Steel Tee pc. : According to SCH 40. Flange : ASTMA105, in compliance with ANSI B16.5/Class 150lbs; JIS 10K or DIN is also available on request. Standard : Three fixed flanges; Three loose flange and Two fixed flange or two loose flanges are on request. Lining : Pure PTFE in compliance with ASTM F1545-97

Steel frame : ASTM A234 grade WPB, In compliance with ANSI B16.28 Steel Tee Pc. : According to SCH 40. Flange : ASTM A105, In compliance with ANSI B16.5/Class 150lbs; JIS 10K or DIN is also available on request. Standard : Three fixed flanges; Three loose flange or Two fixed flange and one loose flanges or two loose flanges and one fixed flange are on request. Lining : Pure PTFE in compliance with ASTM F1545-97
